Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431450 · United States

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Height Control

3 part groups · 2 illustrations

Illustrations

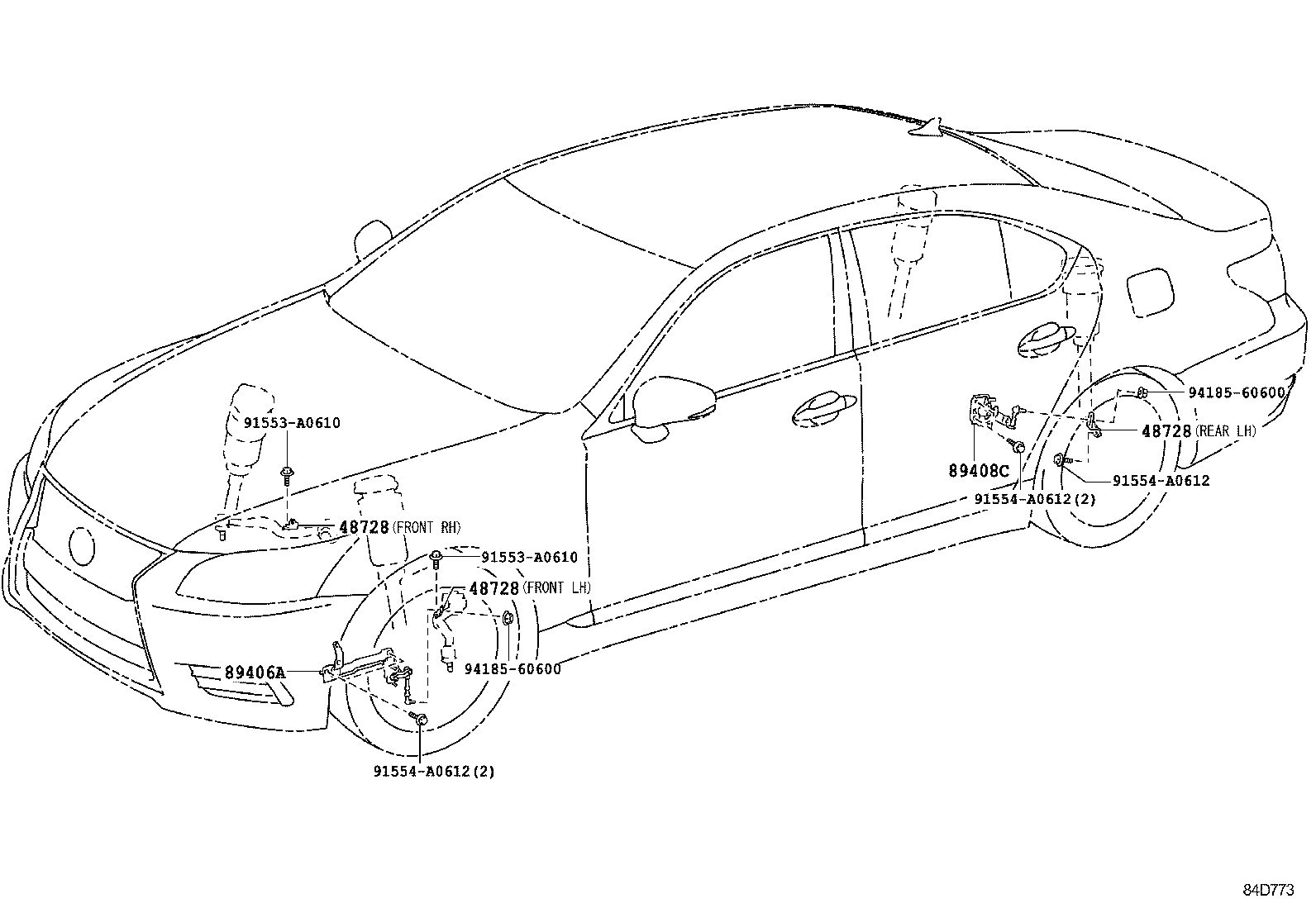

Figure 84D772 84D772 2012-09 → — Figure 84D773 84D773 2012-09 → —

Part groups

PNCDescription
48728 Bracket, Load Sensing Valve Sensor
89406A Sensor Sub-assy, Height Control, Front LH
89408C Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
