Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

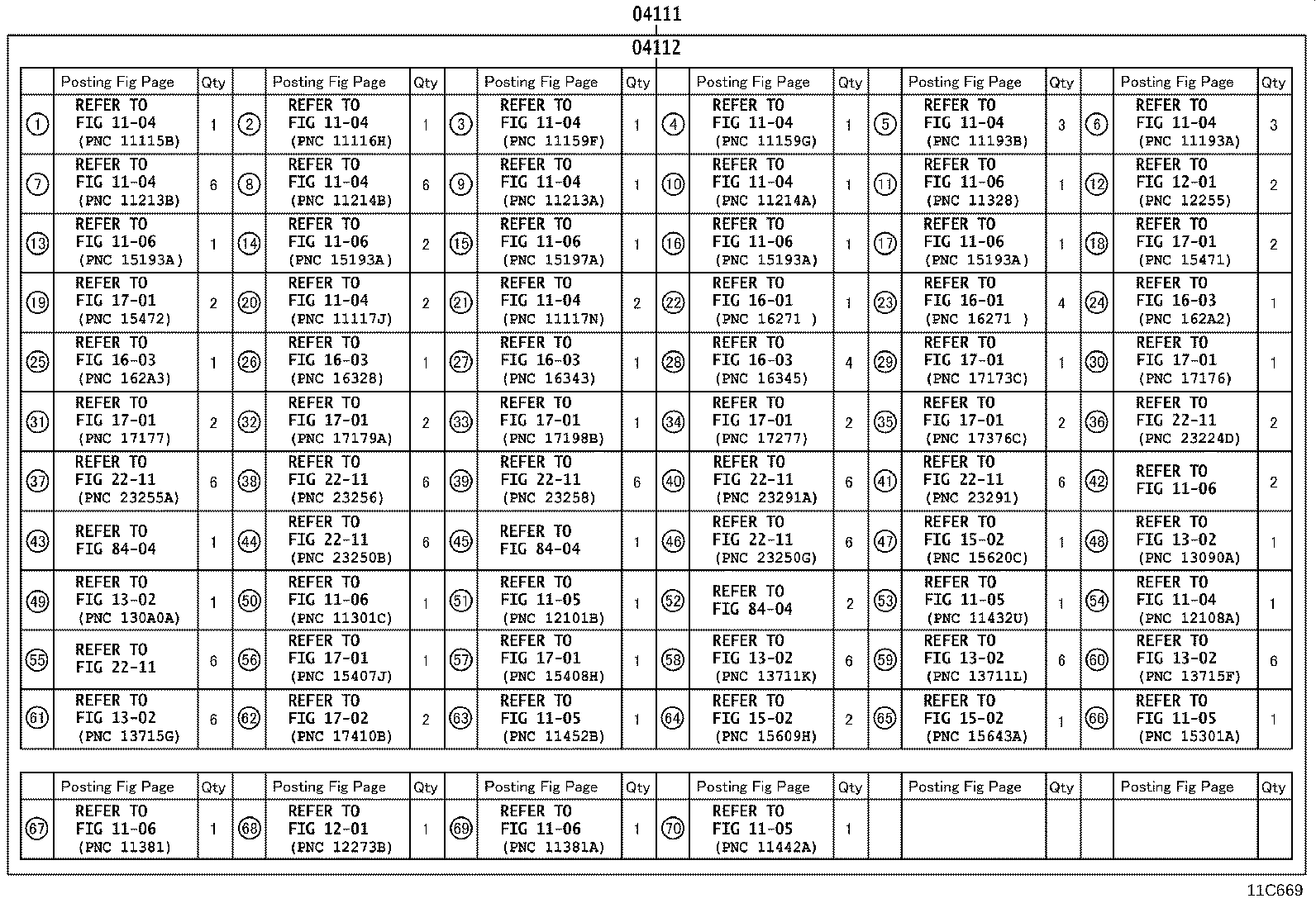

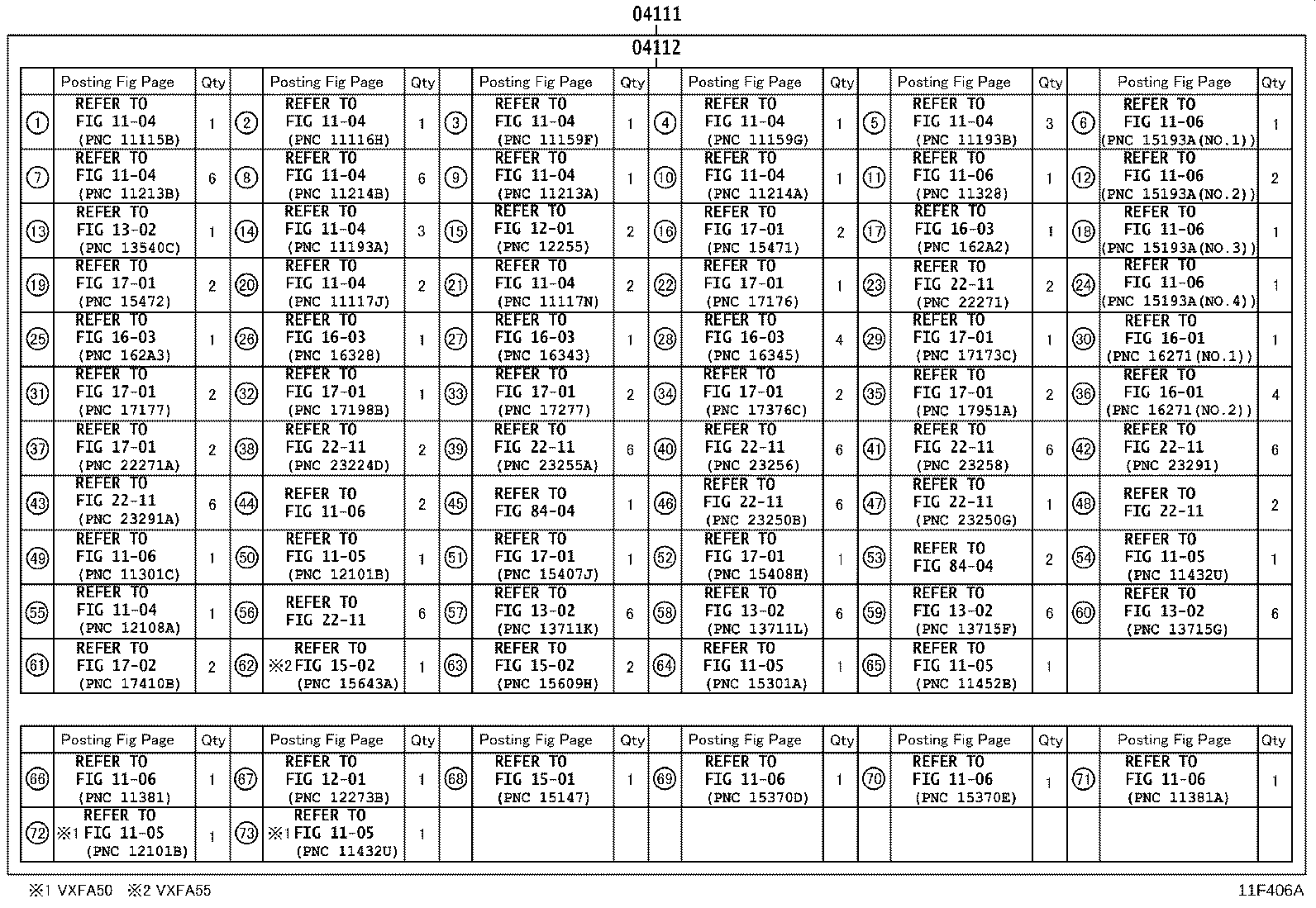

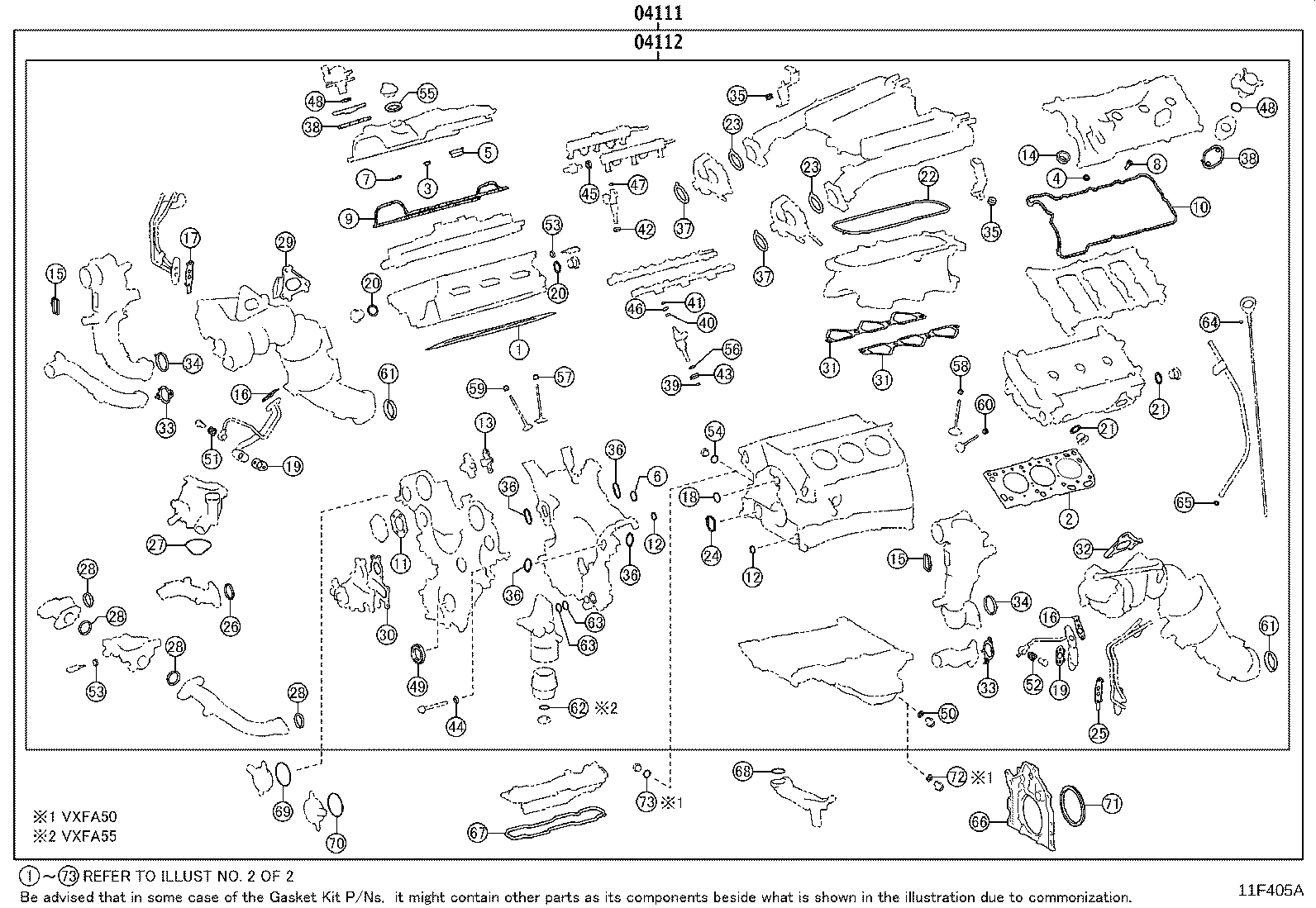

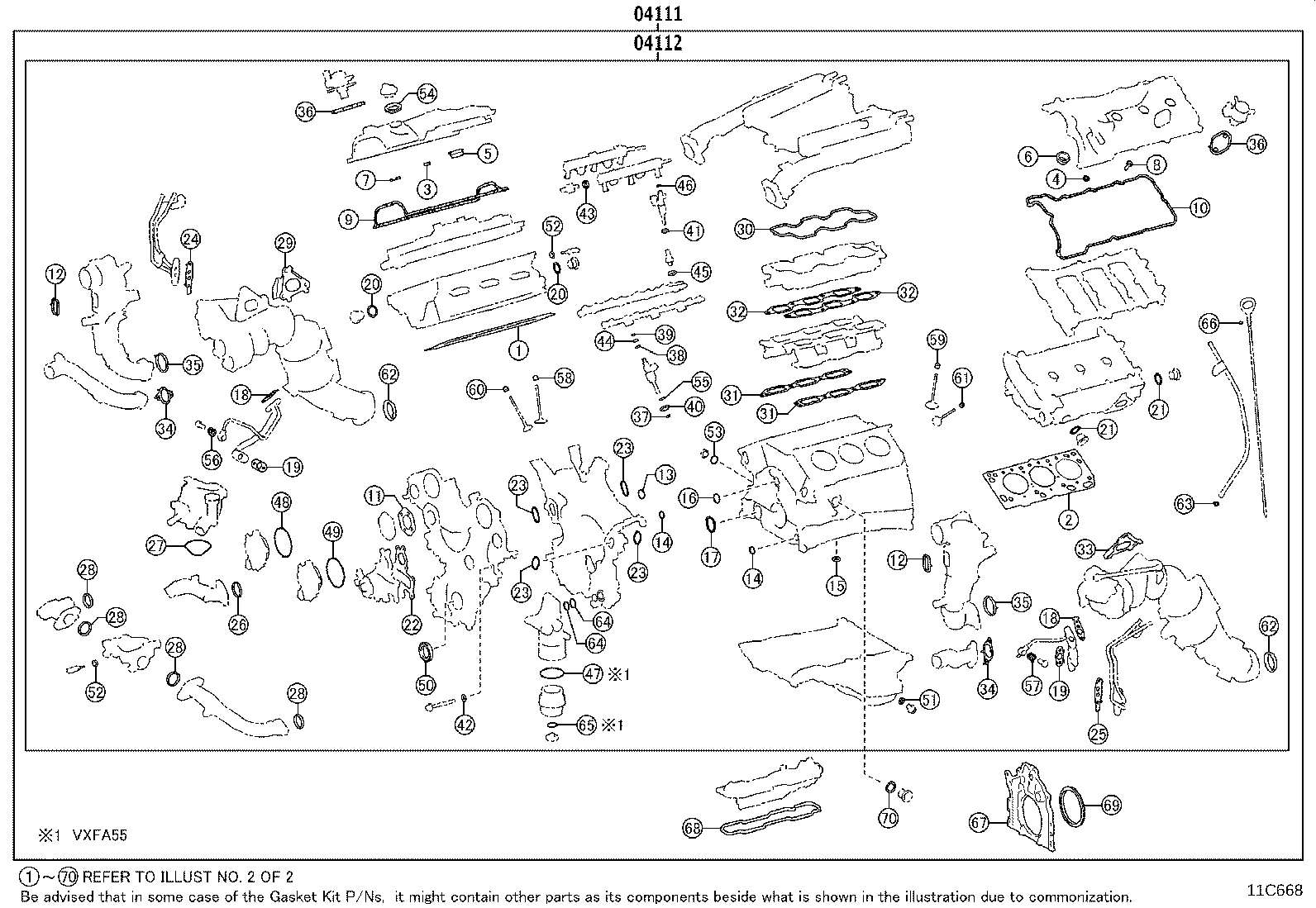

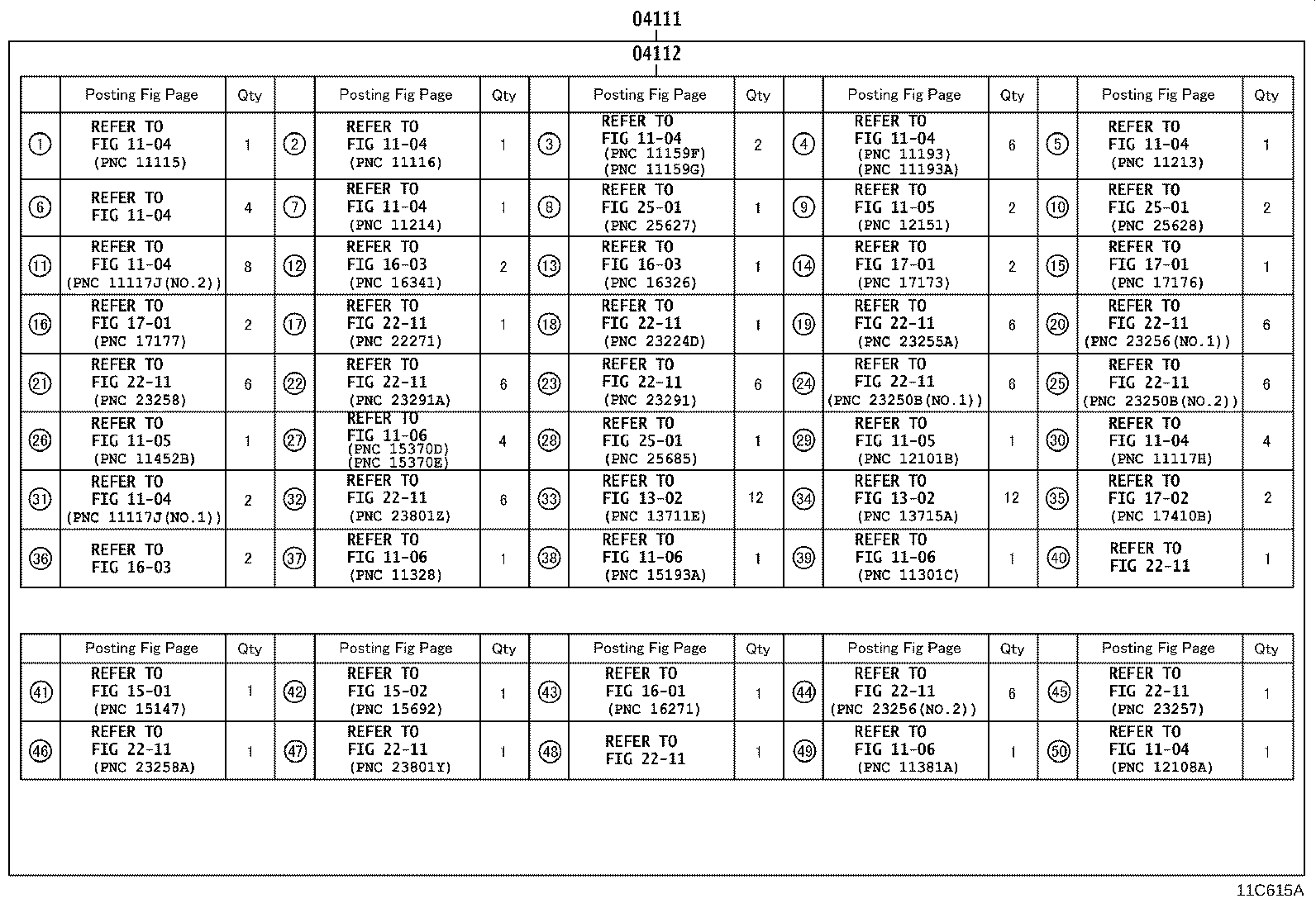

Figure 11C614A 11C614A 2017-10 → — Figure 11C615A 11C615A 2017-10 → — Figure 11C668 11C668 2017-12 → 2020-10 Figure 11F405A 11F405A 2020-10 → — Figure 11C669 11C669 2017-12 → 2020-10 Figure 11F406A 11F406A 2020-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
