Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States
Supported model
Data version 2020-10
Mounting
7 part groups · 4 illustrations
Part groups

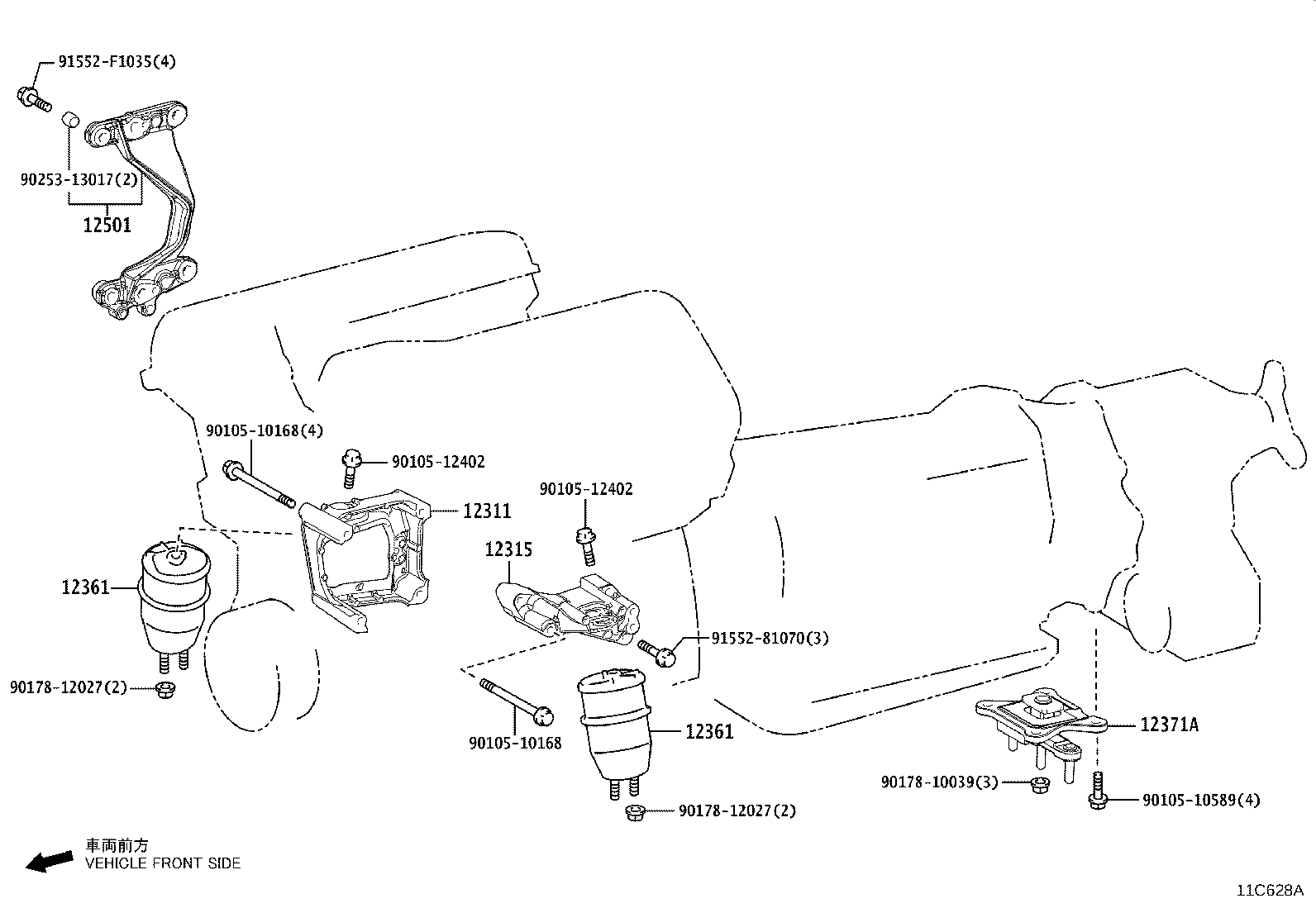

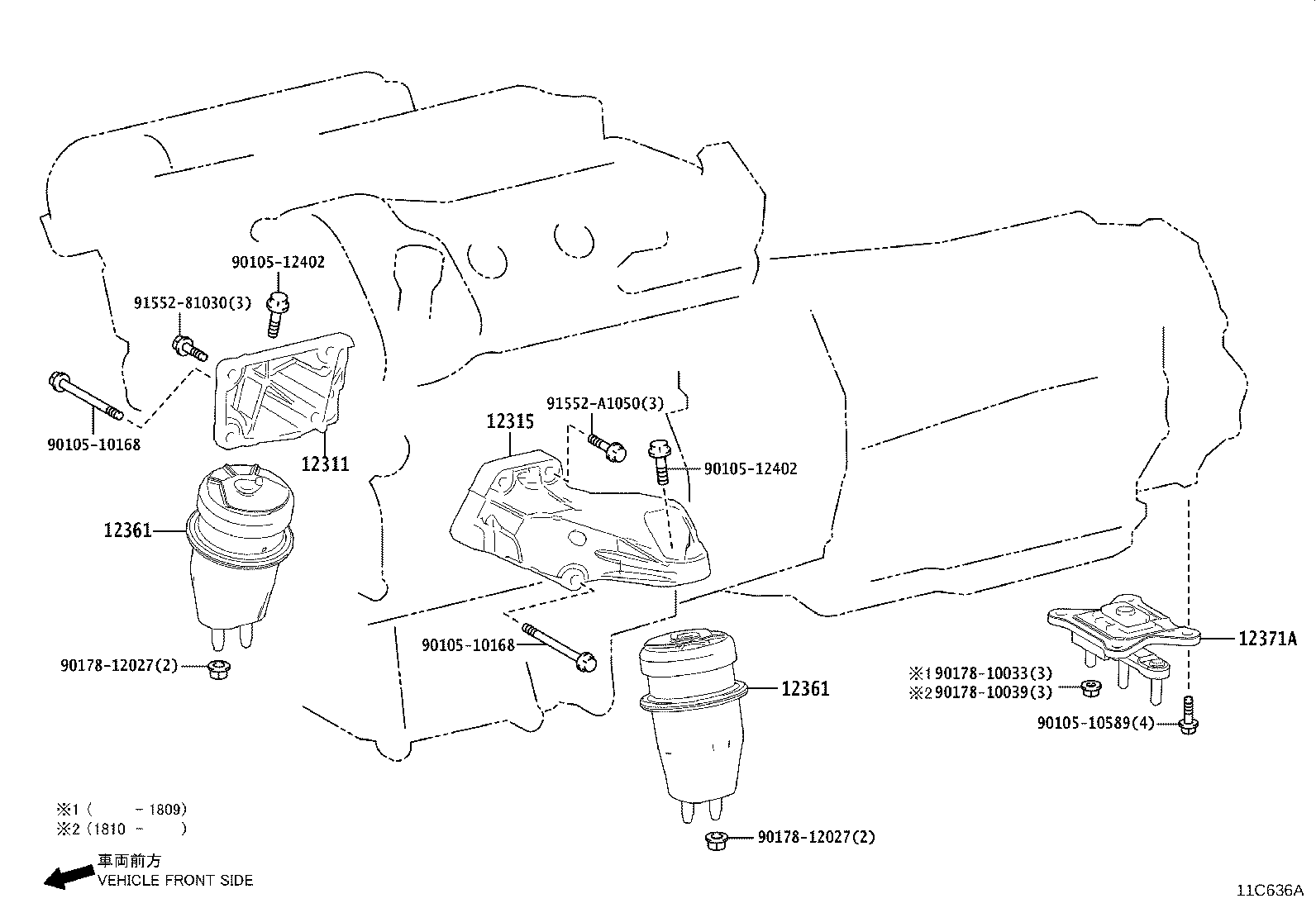

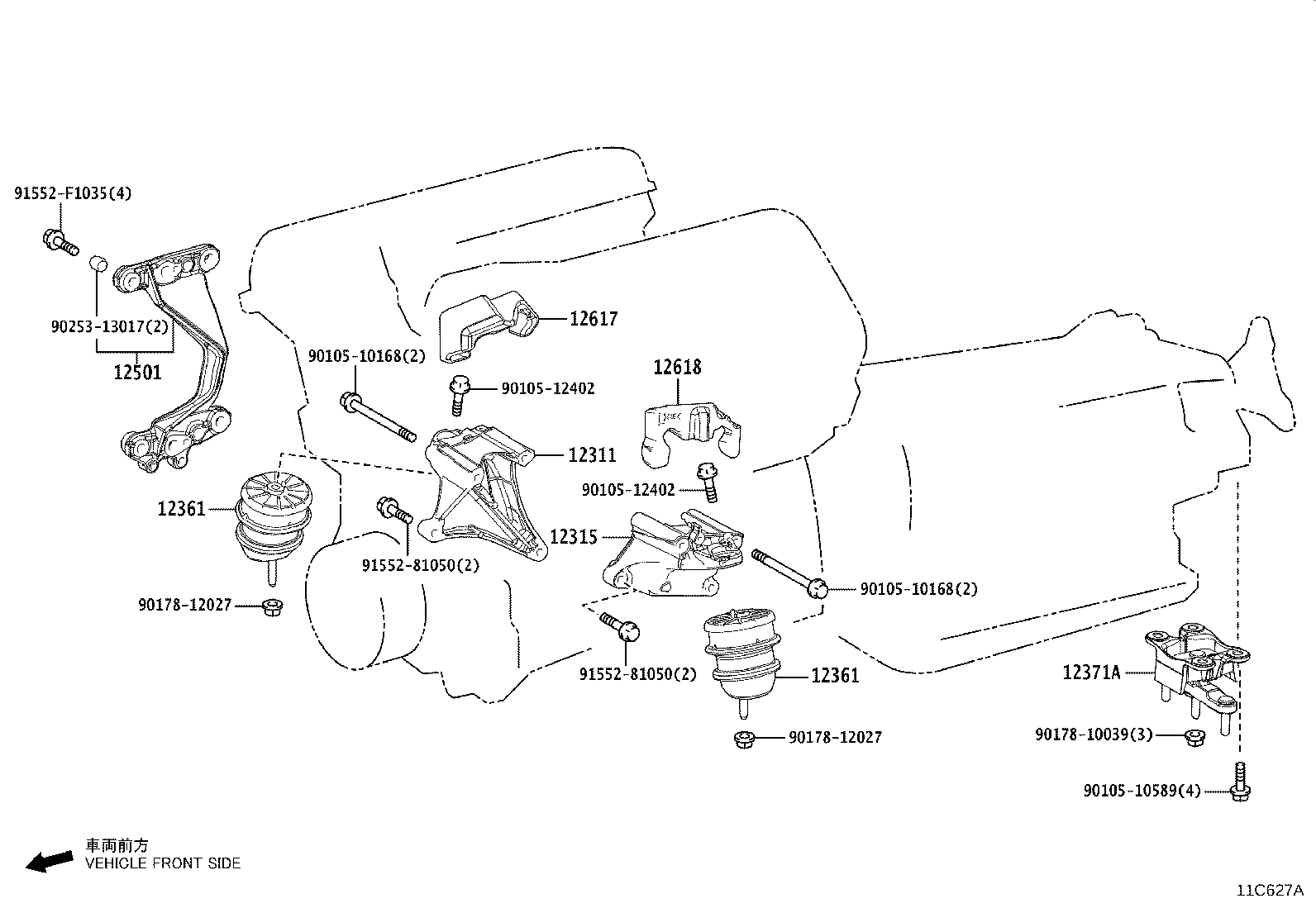

| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12371A | Insulator, Engine Mounting, Rear |
| 12501 | Bracket Sub-assy, Alternator |
| 12617 | Cover, Engine, NO.7 |
| 12618 | Cover, Engine, NO.8 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
