Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

6 part groups · 2 illustrations

Illustrations

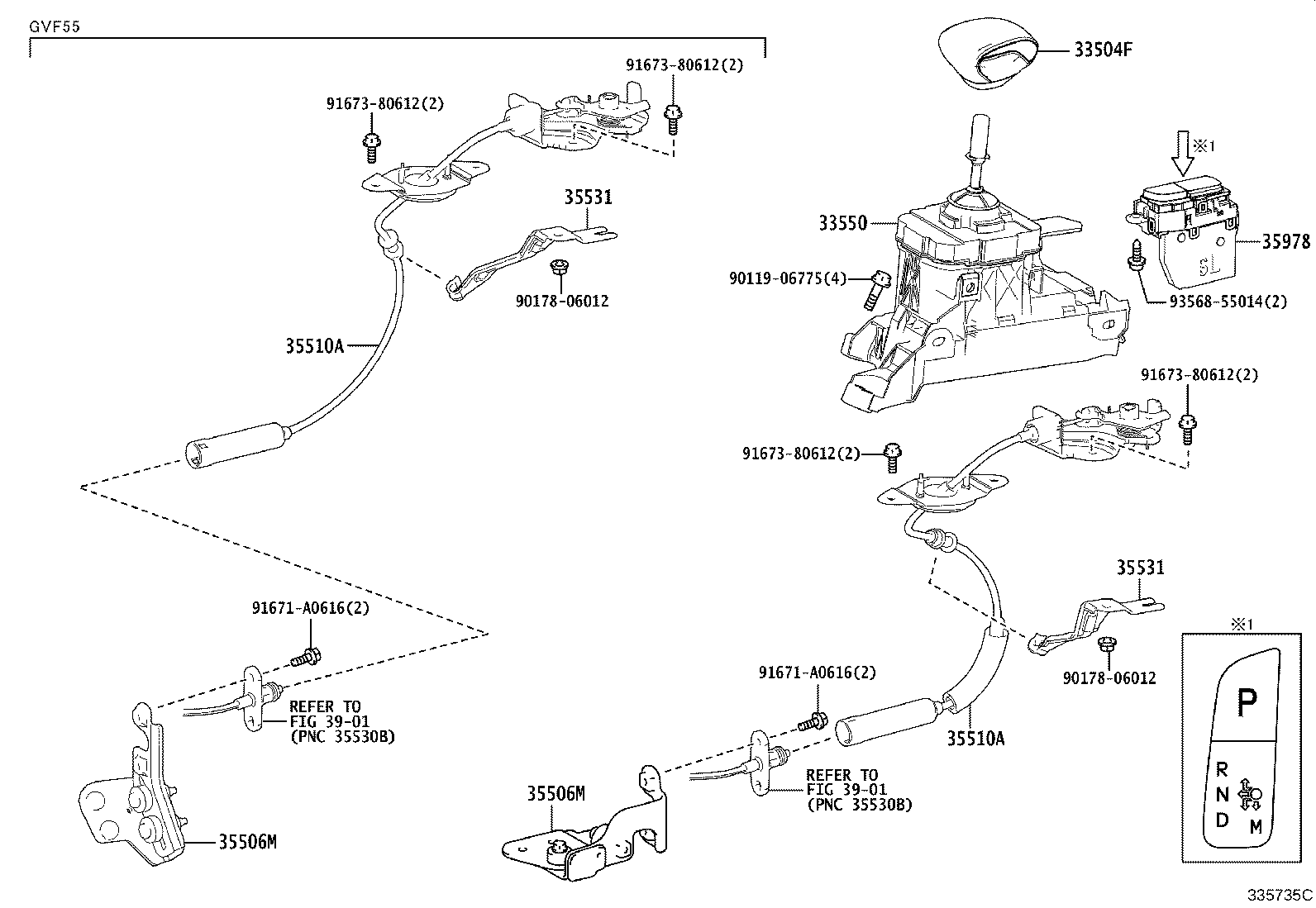

Figure 335734C 335734C 2017-12 → — Figure 335735C 335735C 2017-10 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
35506M Bracket Sub-assy, Parking Release Cable, NO.2
35510A Lever Assy, Parking Lock Release
35531 Bracket, Parking Lock Release Cable Clamp, NO.1
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
