Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States
Supported model
Data version 2020-10

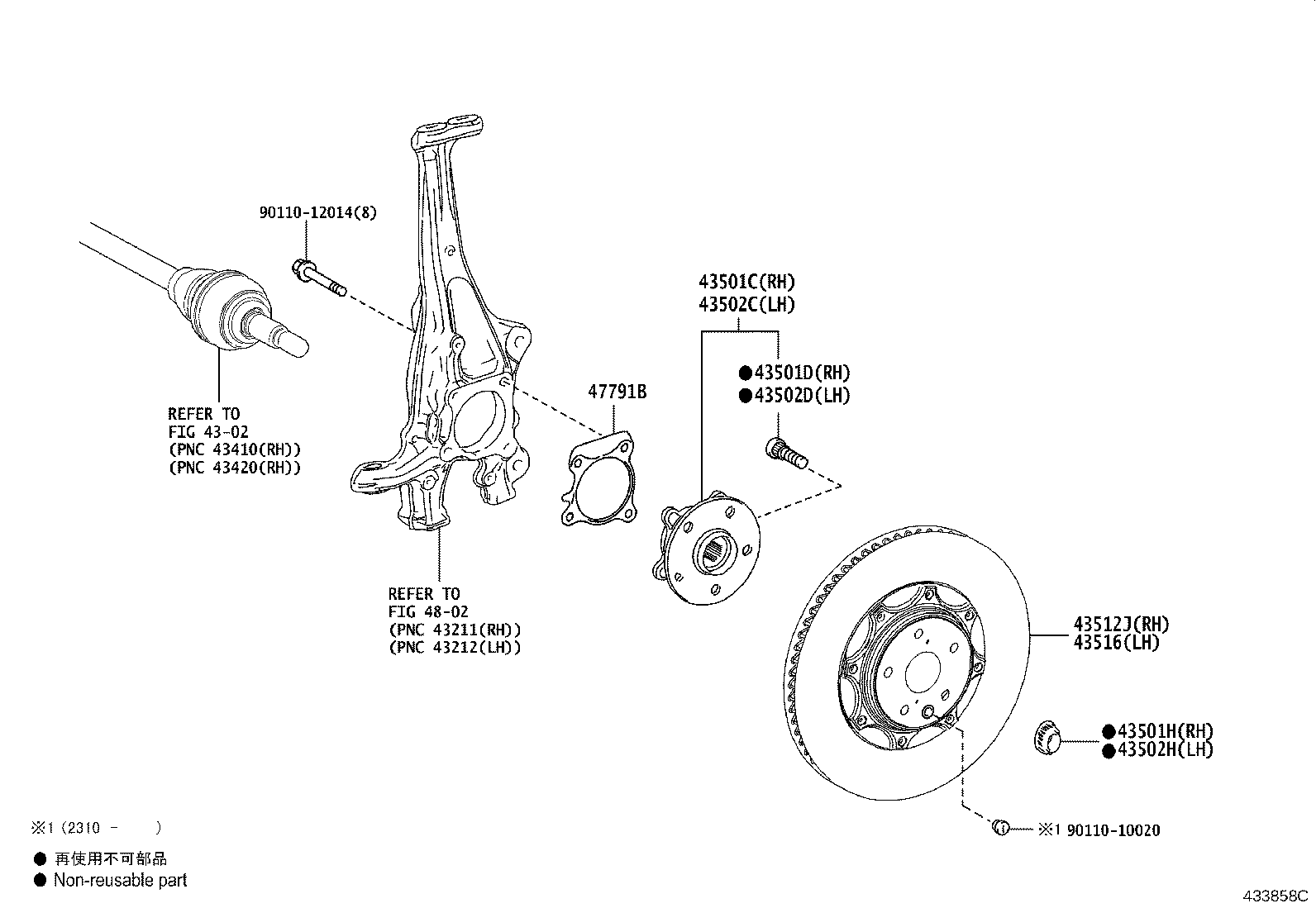

Front Axle Hub
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43501C | Hub Sub-assy, Front Axle, RH |
| 43501D | Bolt, Hub (FOR FRONT AXLE RH) |
| 43501H | Nut (FOR FRONT AXLE SHAFT RH) |
| 43502C | Hub Sub-assy, Front Axle, LH |
| 43502D | Bolt, Hub (FOR FRONT AXLE LH) |
| 43502H | Nut (FOR FRONT AXLE SHAFT LH) |
| 43512J | Disc, Front RH |
| 43516 | Disc, Front LH |
| 47791B | Plate, Disc Brake Air Guide |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
