Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States
Supported model
Data version 2020-10

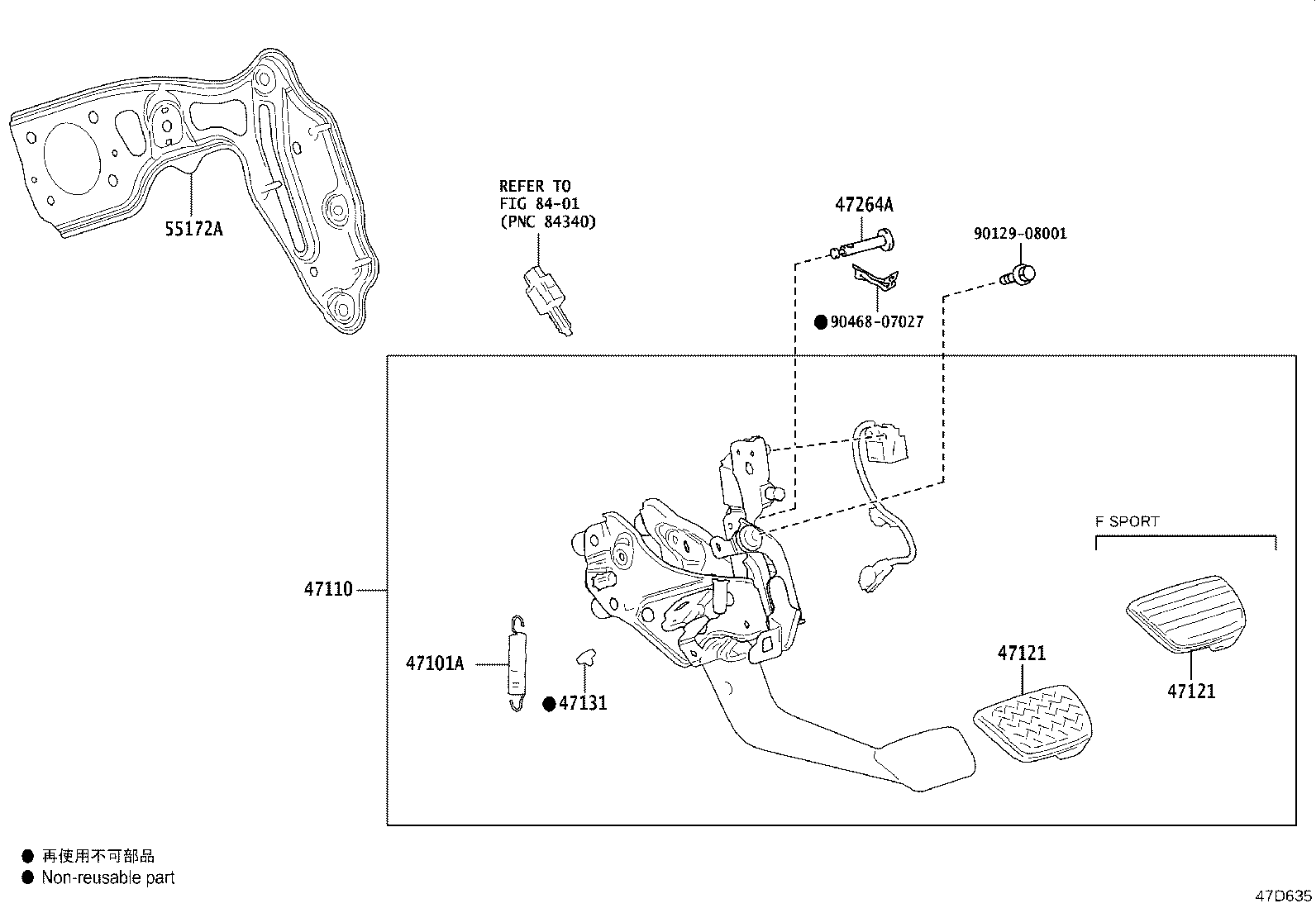

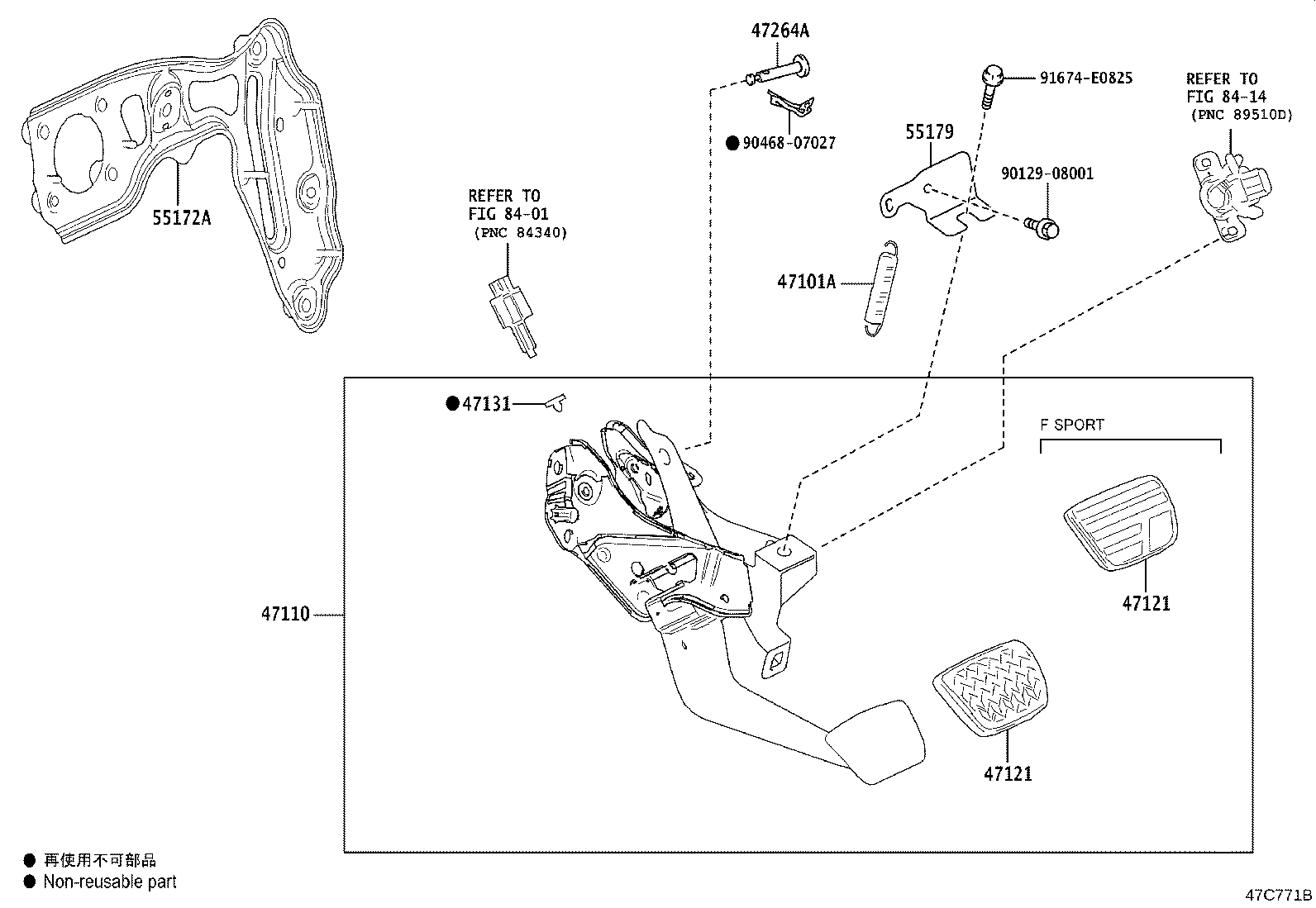

Brake Pedal & Bracket
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
| 55172A | Base, Brake Pedal Support |
| 55179 | Reinforcement, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
