Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10

Front Spring & Shock Absorber

35 part groups · 5 illustrations

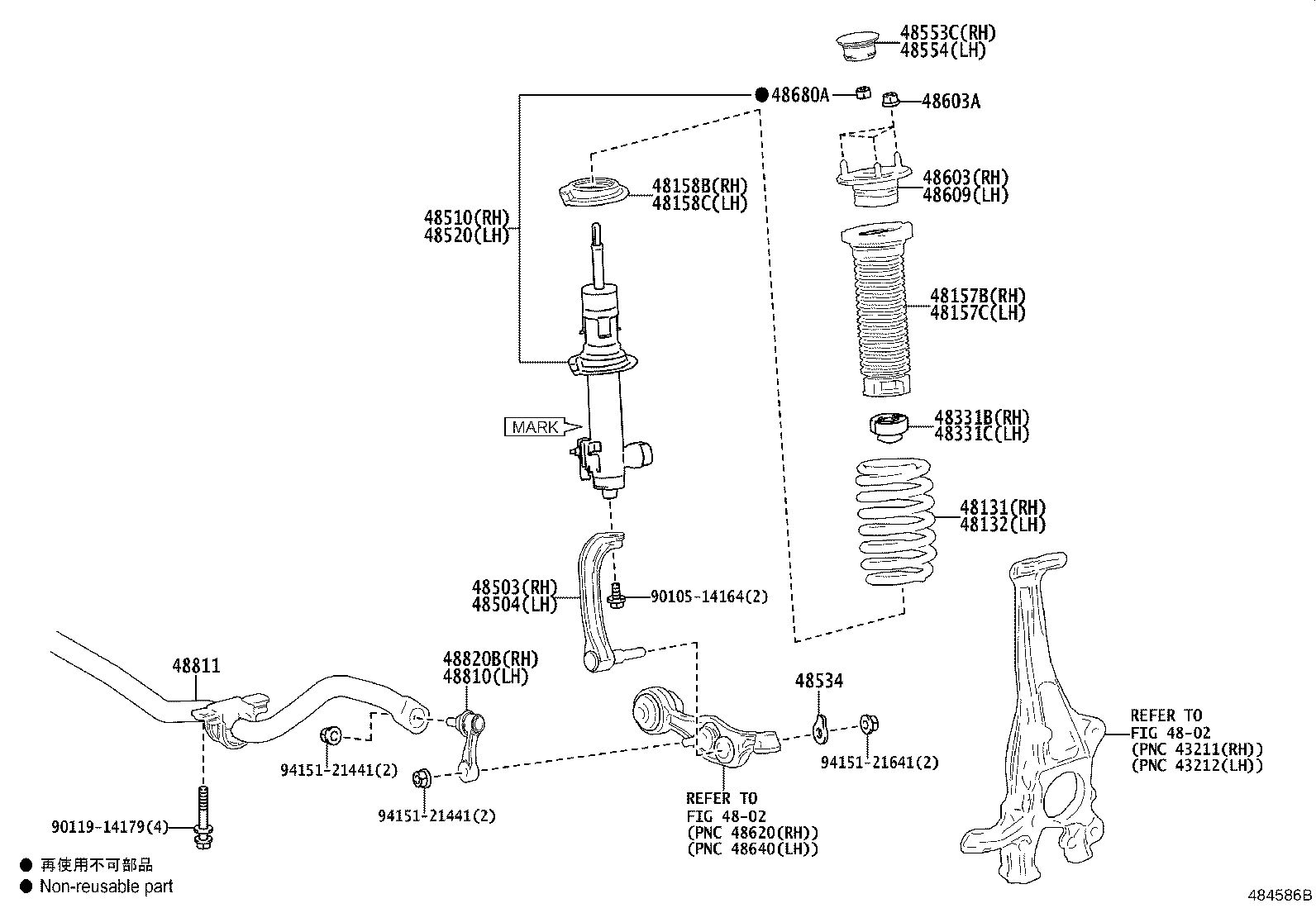

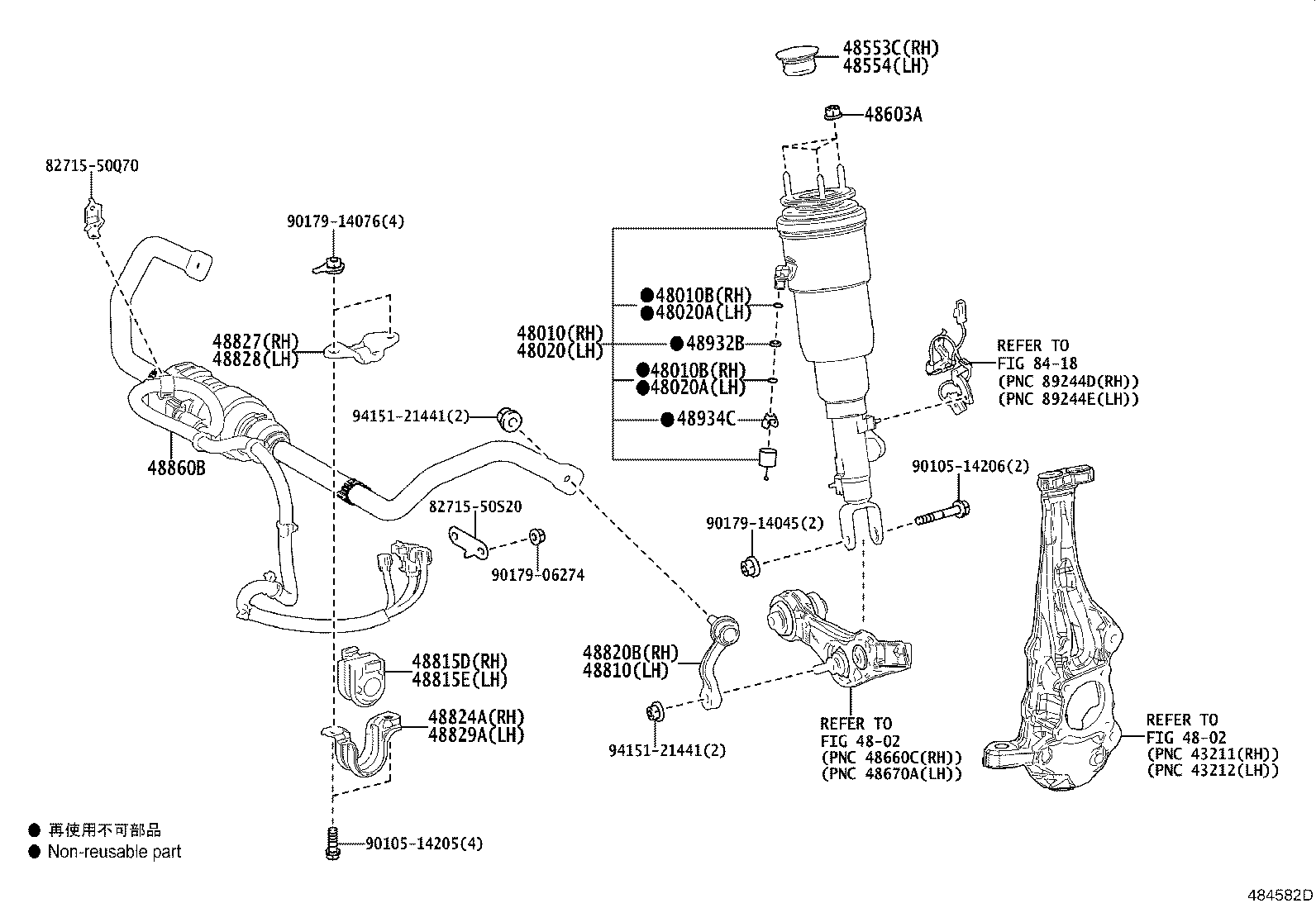

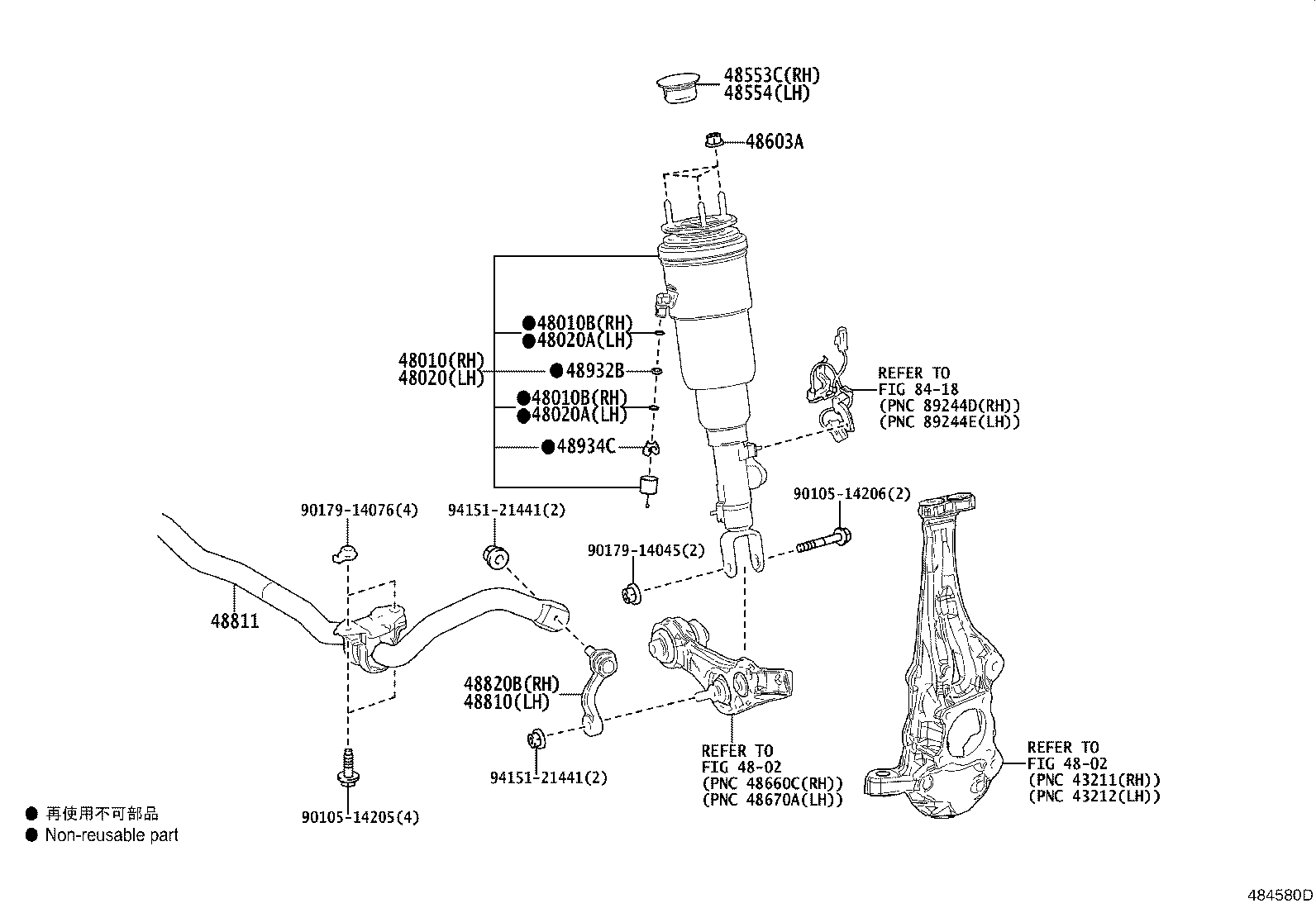

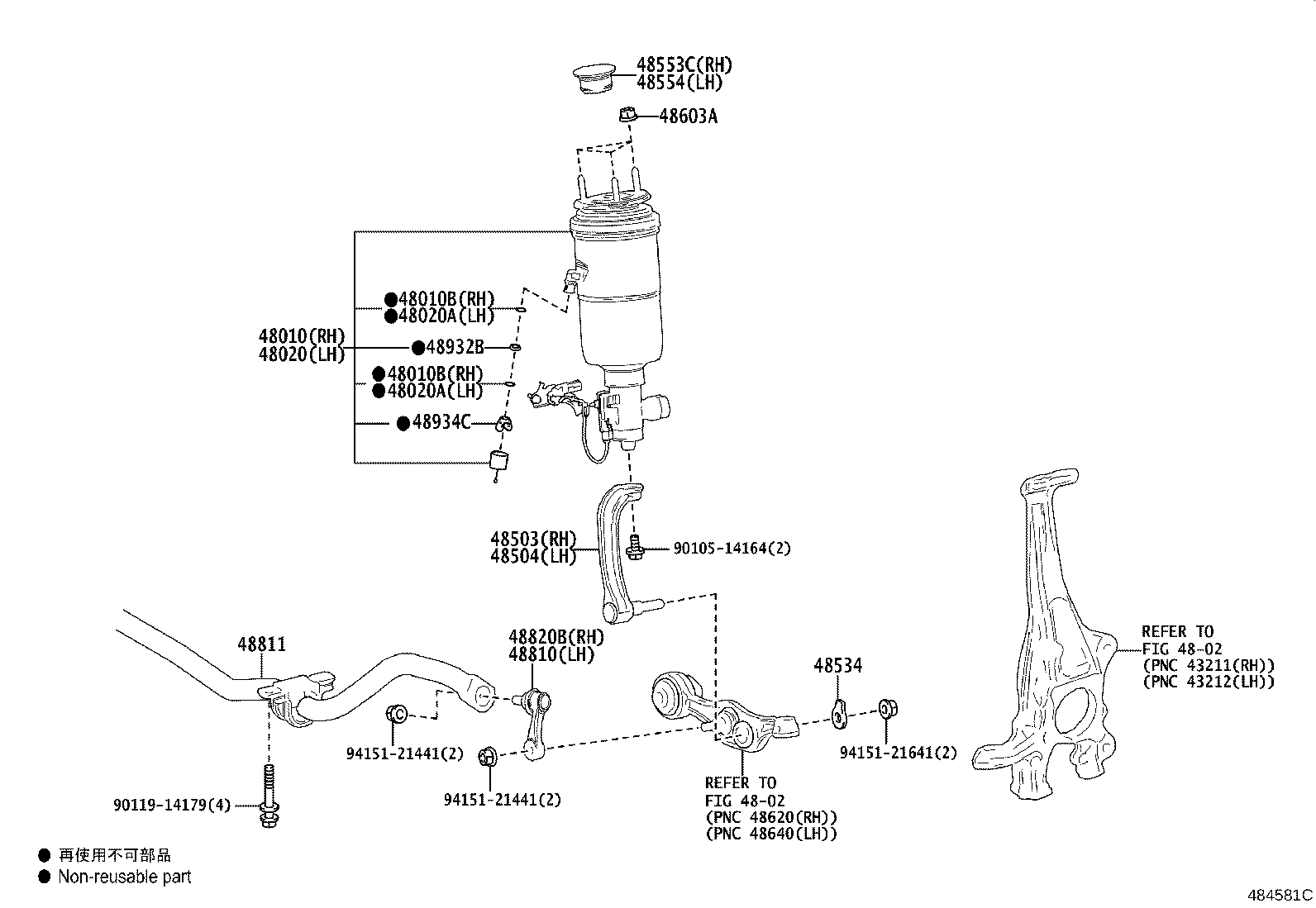

PNC	Description
48010	Cylinder Assy, Pneumatic, Front RH W/Shock Absorber
48010B	Ring, O(FOR FRONT PNEUMATIC CYLINDER RH)
48020	Cylinder Assy, Pneumatic, Front LH W/Shock Absorber
48020A	Ring, O(FOR FRONT PNEUMATIC CYLINDER LH)
48131	Spring, Front Coil, RH
48132	Spring, Front Coil, LH
48157B	Insulator, Front Coil Spring, Upper RH
48157C	Insulator, Front Coil Spring, Upper LH
48158B	Insulator, Front Coil Spring, Lower RH
48158C	Insulator, Front Coil Spring, Lower LH
48331B	Bumper, Front Spring, RH
48331C	Bumper, Front Spring, LH
48503	Bracket Sub-assy, Front Shock Absorber, Lower RH
48504	Bracket Sub-assy, Front Shock Absorber, Lower LH
48510	Absorber Assy, Shock, Front RH
48520	Absorber Assy, Shock, Front LH
48534	Plate, Front Shock Absorber Upper Bracket
48553C	Cap, Front Shock Absorber, RH
48554	Cap, Front Shock Absorber, LH
48603	Support Sub-assy, Front Suspension, RH
48603A	Nut(FOR FRONT SUSPENSION SUPPORT)
48609	Support Sub-assy, Front Suspension, LH
48680A	Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810	Link Assy, Front Stabilizer, LH
48811	Bar, Stabilizer, Front
48815D	Bush, Front Stabilizer Bar, RH
48815E	Bush, Front Stabilizer Bar, LH
48820B	Link Assy, Front Stabilizer, RH
48824A	Bracket, Front Stabilizer, NO.1 RH
48827	Bracket, Front Stabilizer, NO.2 RH
48828	Bracket, Front Stabilizer, NO.2 LH
48829A	Bracket, Front Stabilizer, NO.1 LH
48860B	Actuator Assy, Front Active Stabilizer Control
48932B	Plate, Height Control Tube
48934C	Connector, Height Control Tube

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
