Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

28 part groups · 8 illustrations

Illustrations

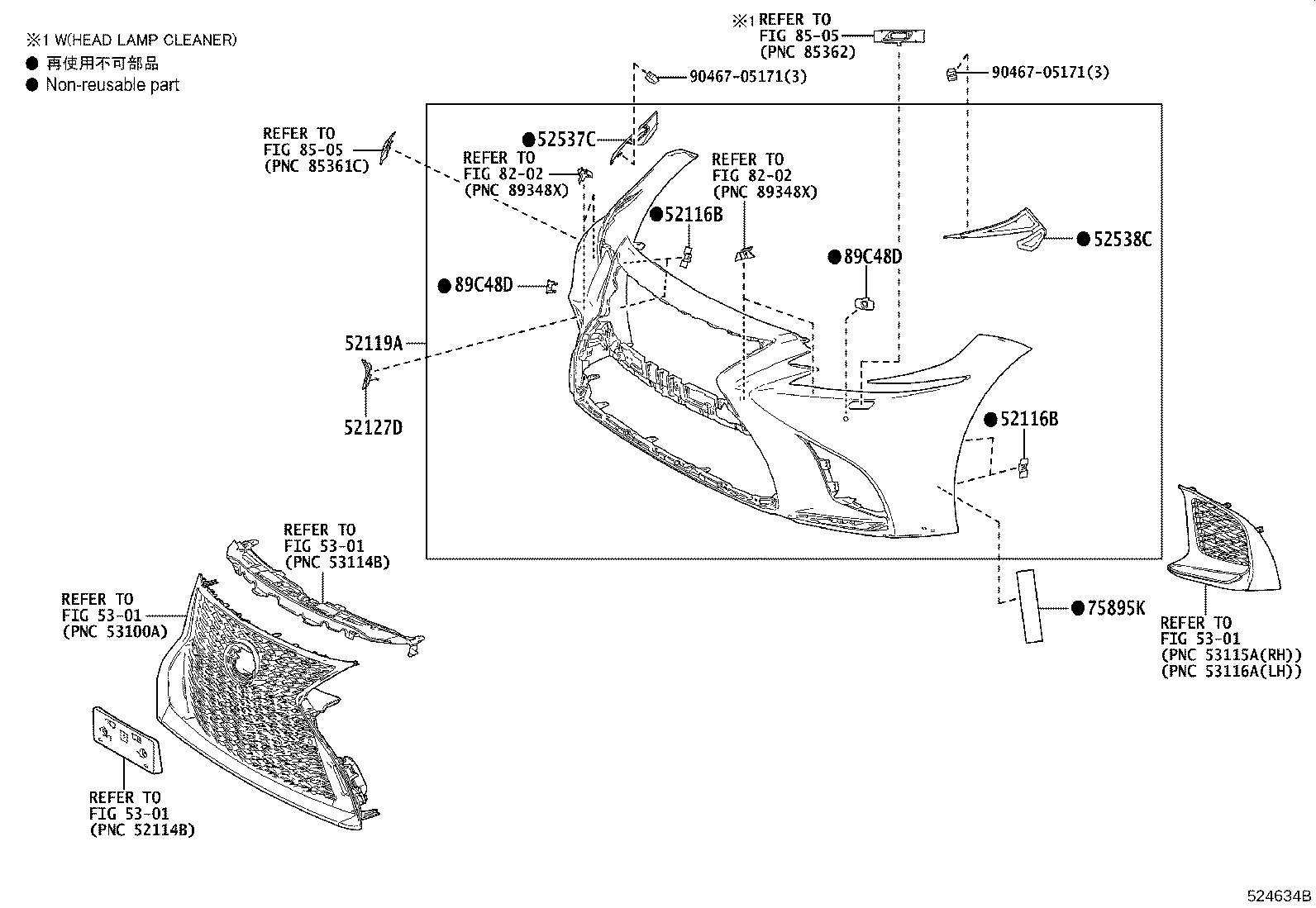

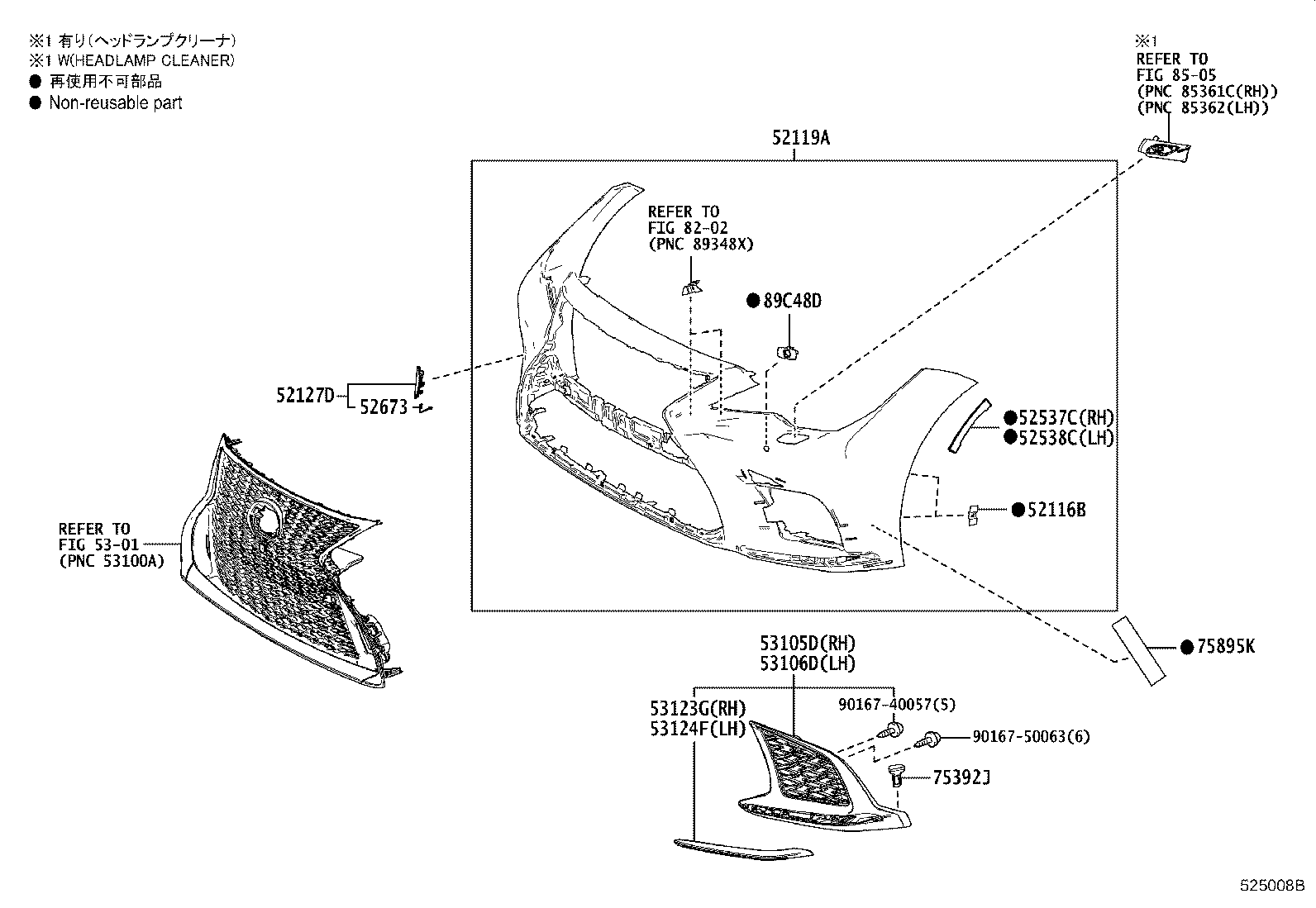

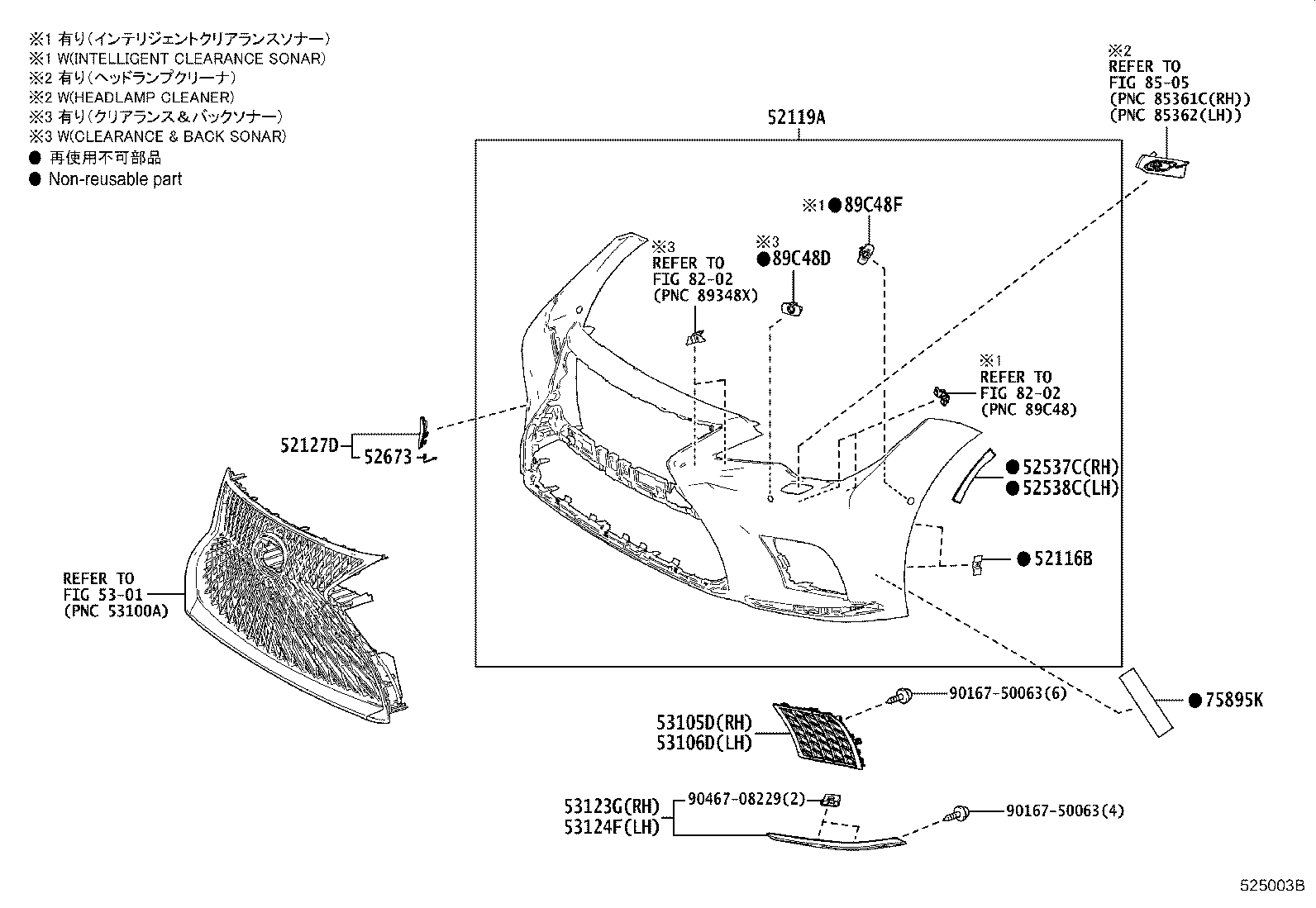

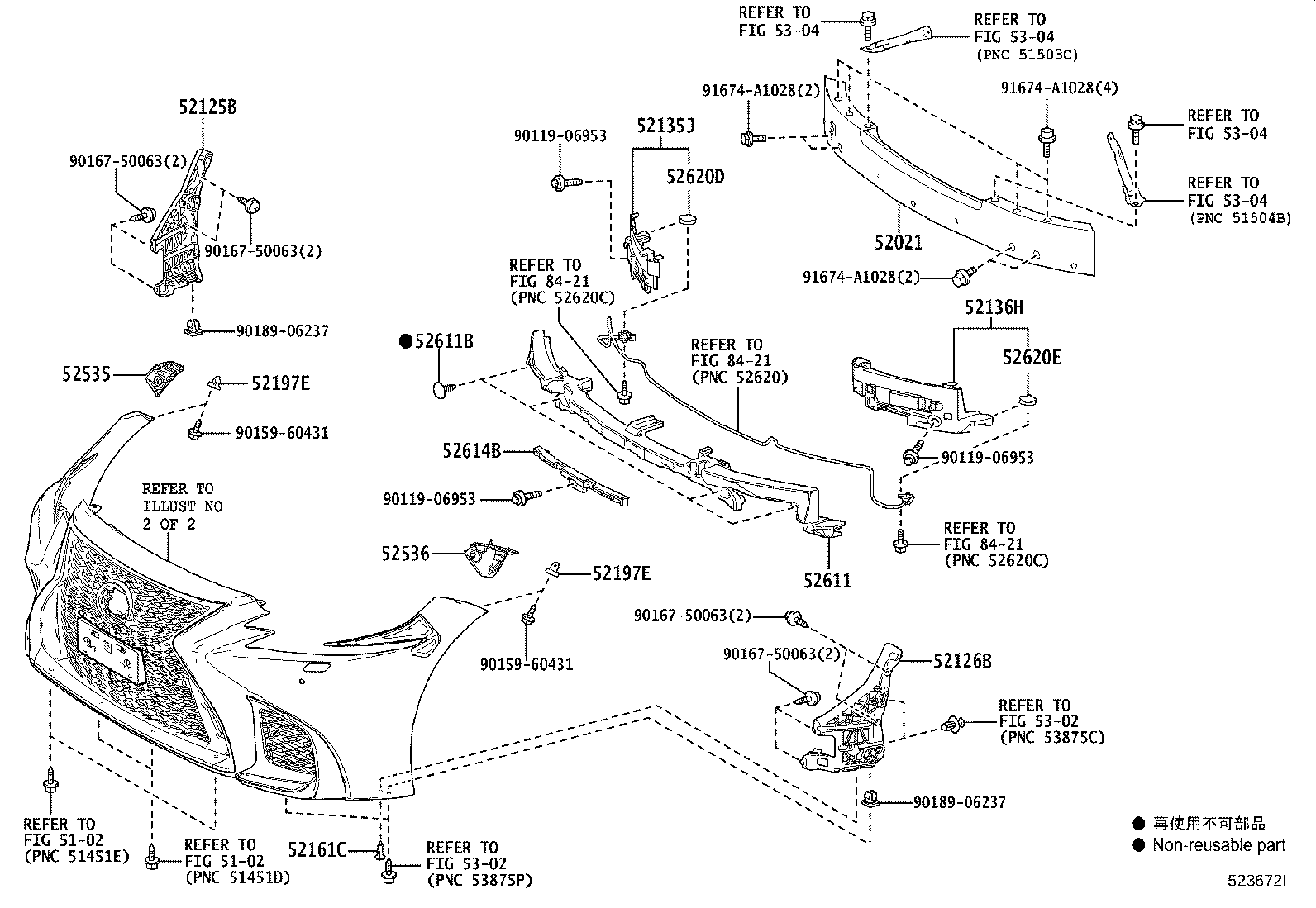

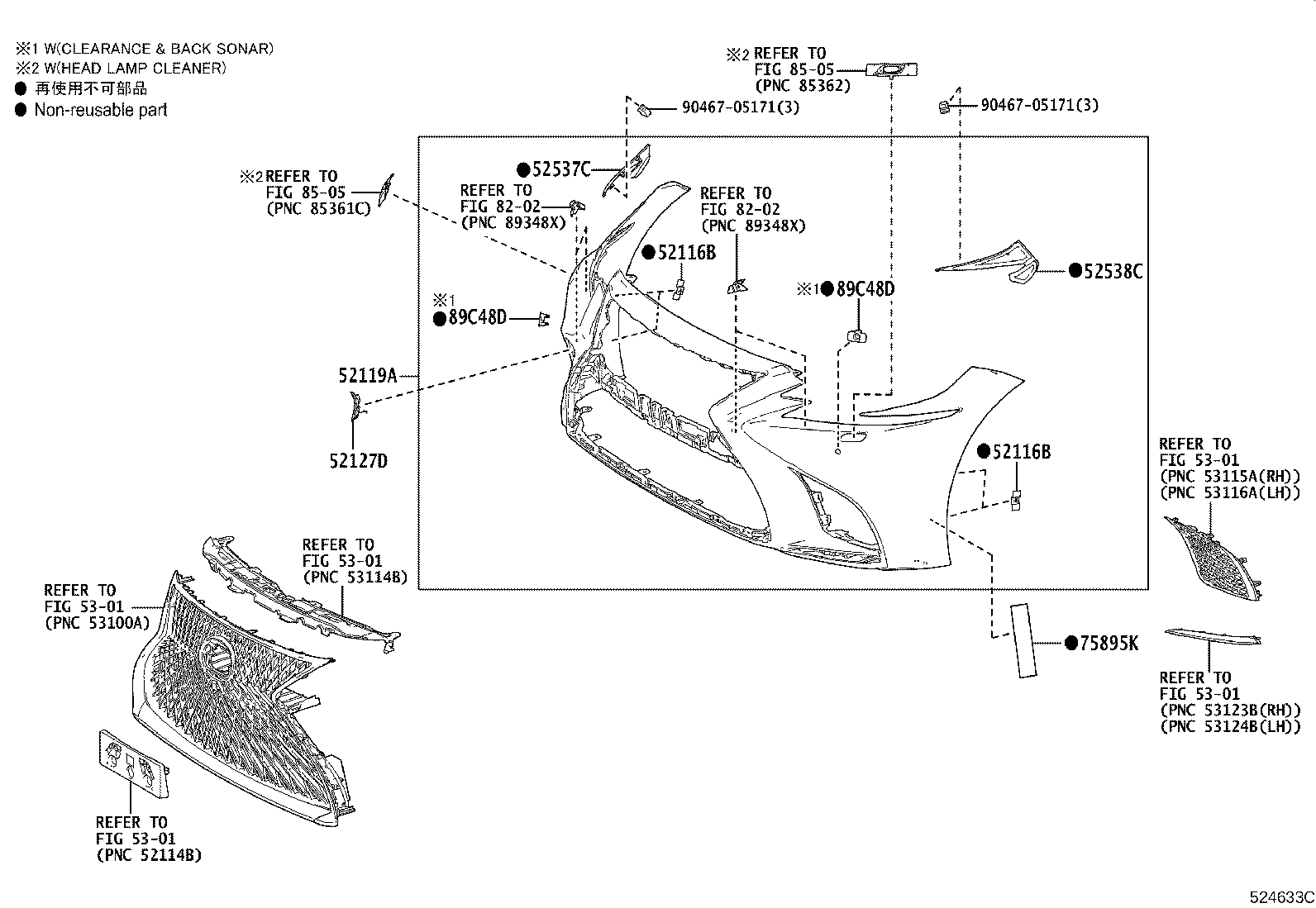

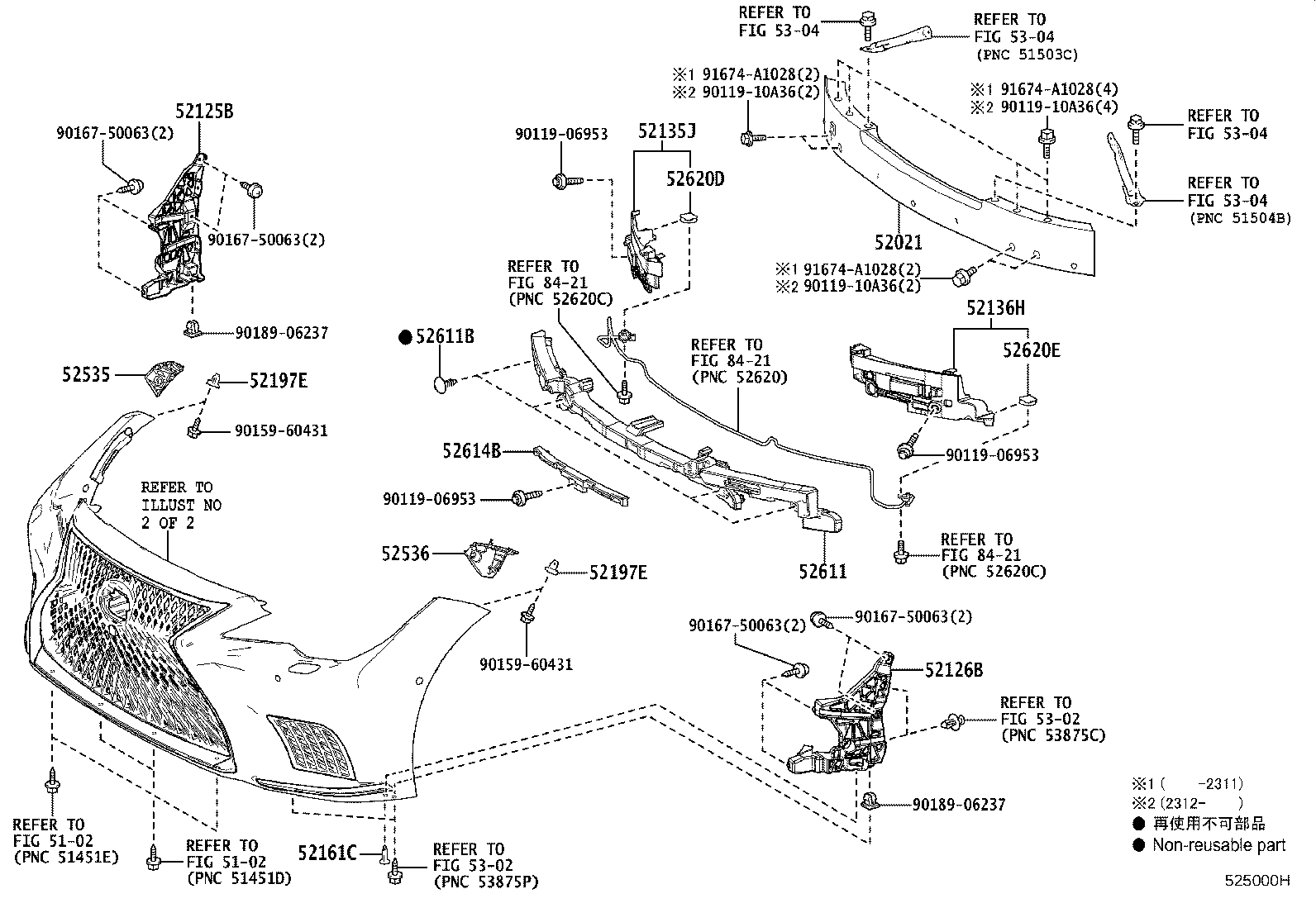

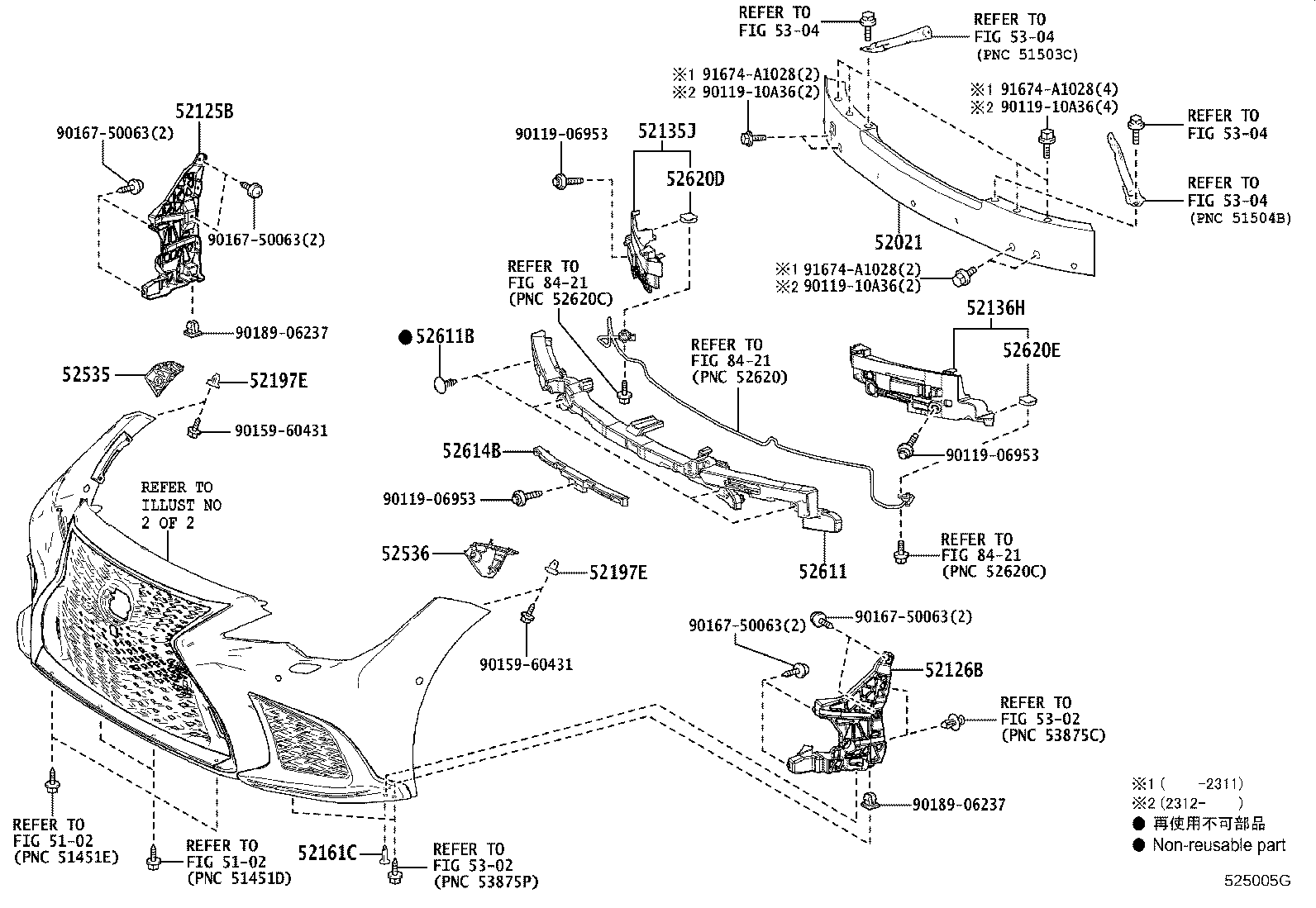

Figure 523671K 523671K 2017-10 → 2020-10 Figure 524633B 524633B 2017-10 → 2020-10 Figure 523672I 523672I 2017-10 → 2020-10 Figure 524634B 524634B 2017-10 → 2020-10 Figure 525000H 525000H 2020-10 → — Figure 525003B 525003B 2020-10 → — Figure 525005G 525005G 2020-10 → — Figure 525008B 525008B 2020-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52125B Extension, Front Bumper Reinforcement, RH
52126B Extension, Front Bumper Reinforcement, LH
52127D Cover, Front Bumper Hole, RH
52135J Reinforcement, Front Energy Absorber Mounting, RH
52136H Reinforcement, Front Energy Absorber Mounting, LH
52161C Piece, Front Bumper
52197E Bracket, Front Bumper Seal
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
52611 Absorber, Front Bumper Energy
52611B Clip, Front Bumper Energy Absorber
52614B Absorber, Front Bumper Energy, NO.2
52620D Nut, Pedestrian Detection Chamber, RH
52620E Nut, Pedestrian Detection Chamber, LH
52673 Arm, Front Bumper, NO.1
53105D Garnish Sub-assy, Radiator Grille, RH
53106D Garnish Sub-assy, Radiator Grille, LH
53123G Moulding, Radiator Grille Side, RH
53124F Moulding, Radiator Grille Side, LH
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
