Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States
Supported model
Data version 2020-10
Luggage Compartment Door & Lock

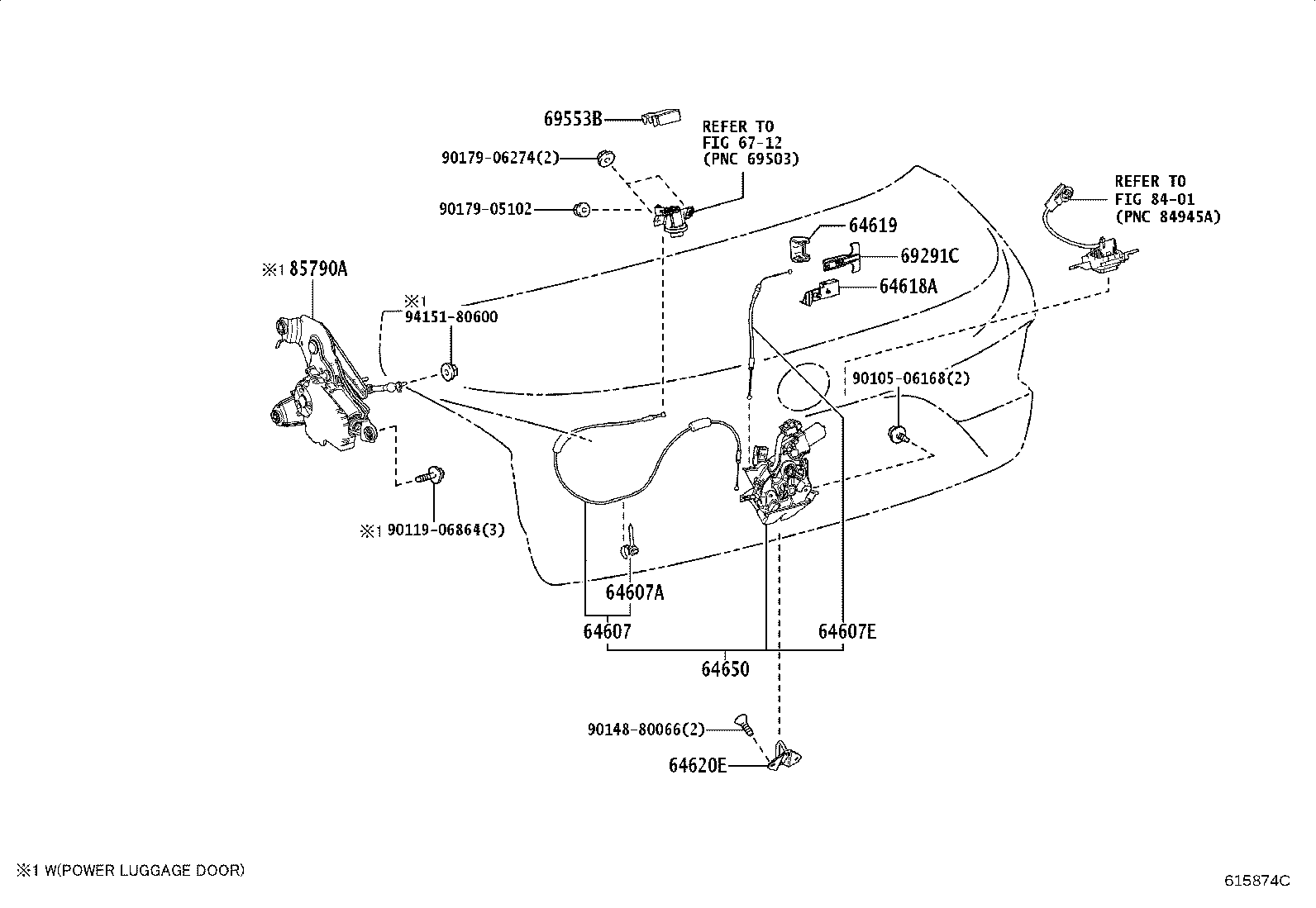

29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61617E | Retainer, Back Door Bracket |
| 64128A | Support, Luggage Compartment Door Torsion Bar, NO.2 |
| 64165F | Cover, Upper Back Panel Hole, NO.1 |
| 64401 | Panel Sub-assy, Luggage Compartment Door |
| 64459 | Cushion, Luggage Compartment Door |
| 64461 | Weatherstrip, Luggage Compartment Door |
| 64510 | Hinge Assy, Luggage Compartment Door, RH |
| 64520 | Hinge Assy, Luggage Compartment Door, LH |
| 64531 | Bar, Luggage Door Hinge Torsion, RH |
| 64532 | Bar, Luggage Door Hinge Torsion, LH |
| 64571B | Cover, Luggage Compartment Door Hinge, RH |
| 64571C | Cover, Luggage Compartment Door, RH |
| 64571D | Clip(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER) |
| 64572 | Cover, Luggage Compartment Door Hinge, LH |
| 64572A | Cover, Luggage Compartment Door, LH |
| 64607 | Cable Sub-assy, Luggage Door Lock Control |
| 64607A | Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) |
| 64607E | Cable Sub-assy, Luggage Door Lock Control |
| 64618A | Clamp, Luggage Lock Control Cable |
| 64619 | Plate, Luggage Lock Control Cable |
| 64620E | Striker Assy, Luggage Compartment Door |
| 64650 | Closer Assy, Luggage Door |
| 69291C | Handle, Luggage Compartment Door, Inside |
| 69553B | Protector, Luggage Compartment Key Cylinder |
| 75129B | Cushion, Rear Licence Plate |
| 75545F | Clip, Windshield Outside Moulding, NO.1 |
| 75547A | Clip, Windshield Outside Moulding, NO.3 |
| 75575F | Moulding, Back Window, Outside Lower |
| 85790A | Motor Assy, Luggage Closer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
