Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

28 part groups · 3 illustrations

Illustrations

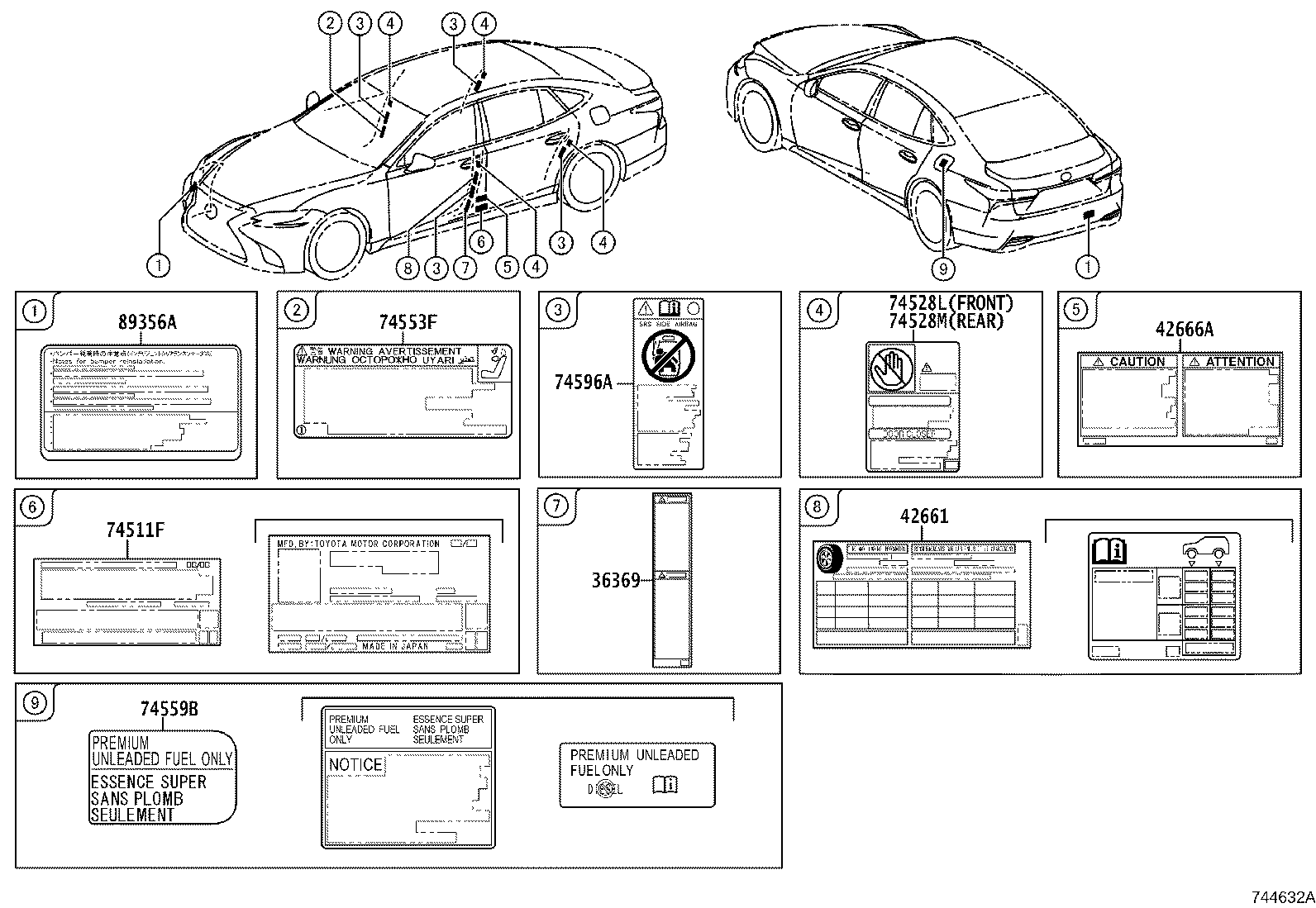

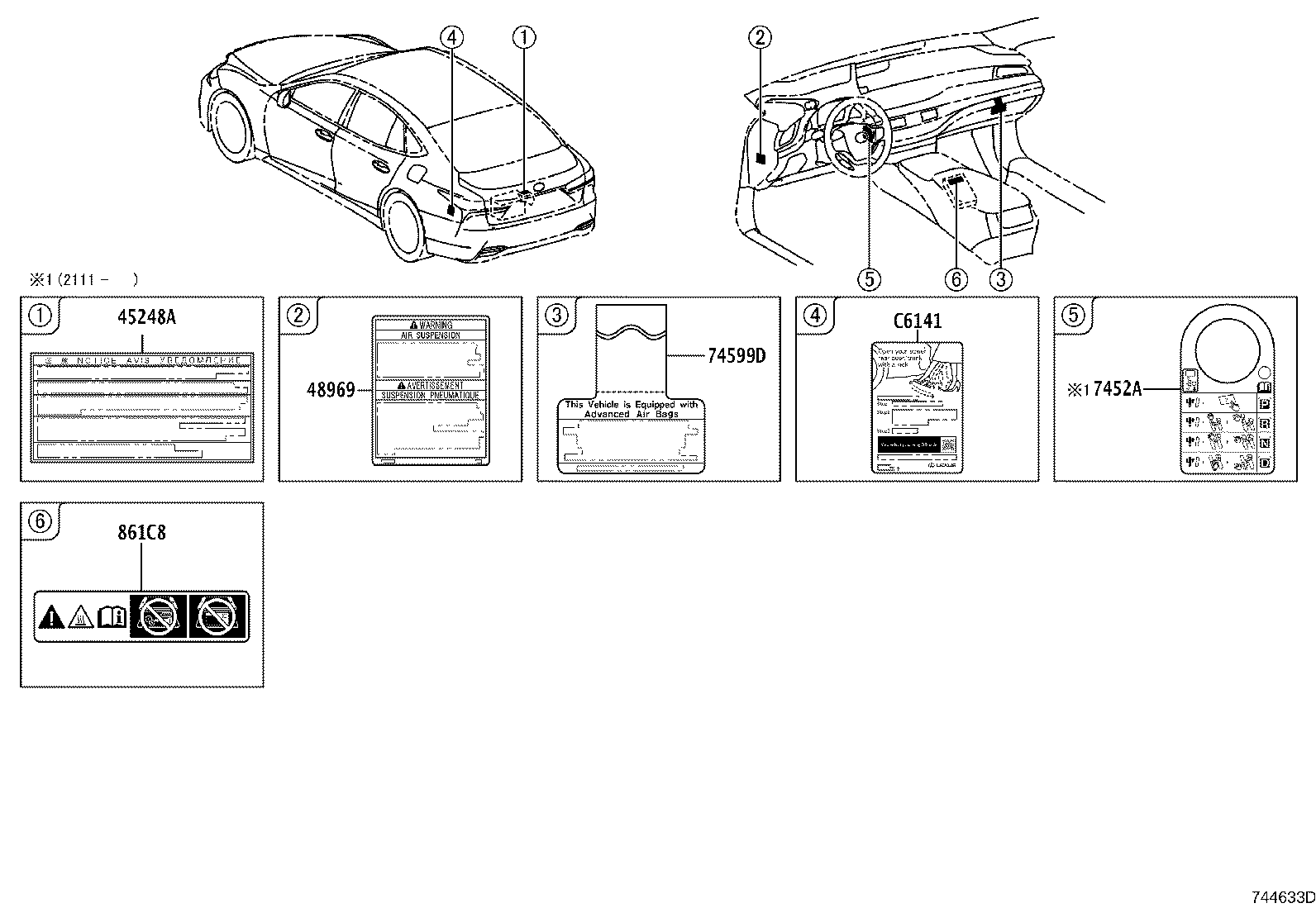

Figure 744631D 744631D 2017-10 → — Figure 744632A 744632A 2017-10 → — Figure 744633D 744633D 2017-10 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11293D Label, Engine Caution
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
16793B Label, Cooling Fan Information
28812A Label, Sub-battery Information
288A2 Label, Battery Location
36369 Label, Transfer Information
42661 Label, Tire Pressure Information
42666A Label, Run Flat Tire Caution
45248A Label, Steering Actuator Caution
48969 Label, Jack UP Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528L Label, Door Closer Caution, Front
74528M Label, Door Closer Caution, Rear
7452A Label, Shift Control Information
74553F Label, Front Seat Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74599D Label, Driver & Passenger Airbag Information
861C8 Label, Mobile Wireless Charger Caution
88723J Label, Cooler Service Caution, NO.2
89356A Label, Clearance Warning Information
C6141 Label, Back Door OR Luggage Compartment Door Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
