Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

96 part groups · 9 illustrations

Illustrations

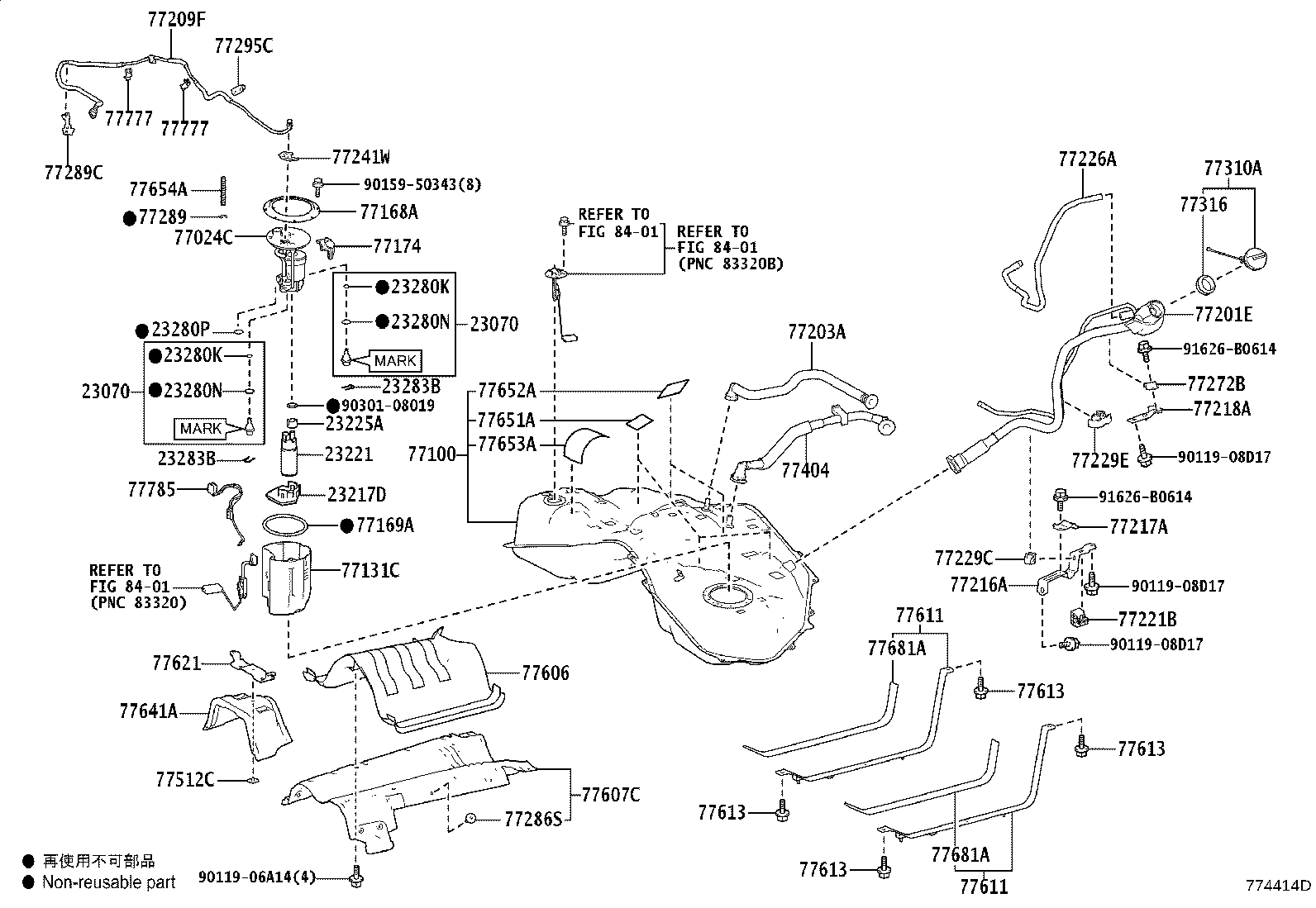

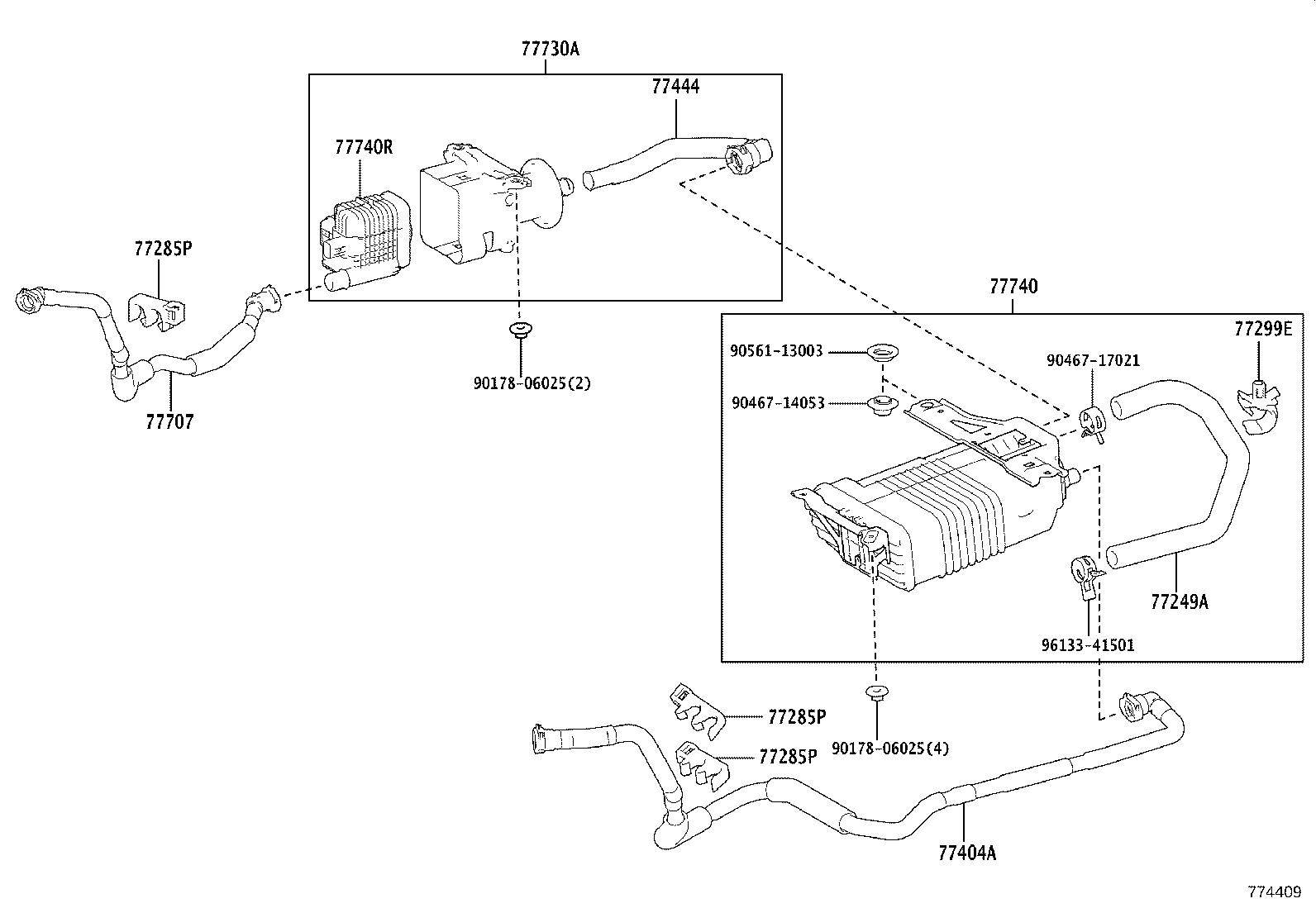

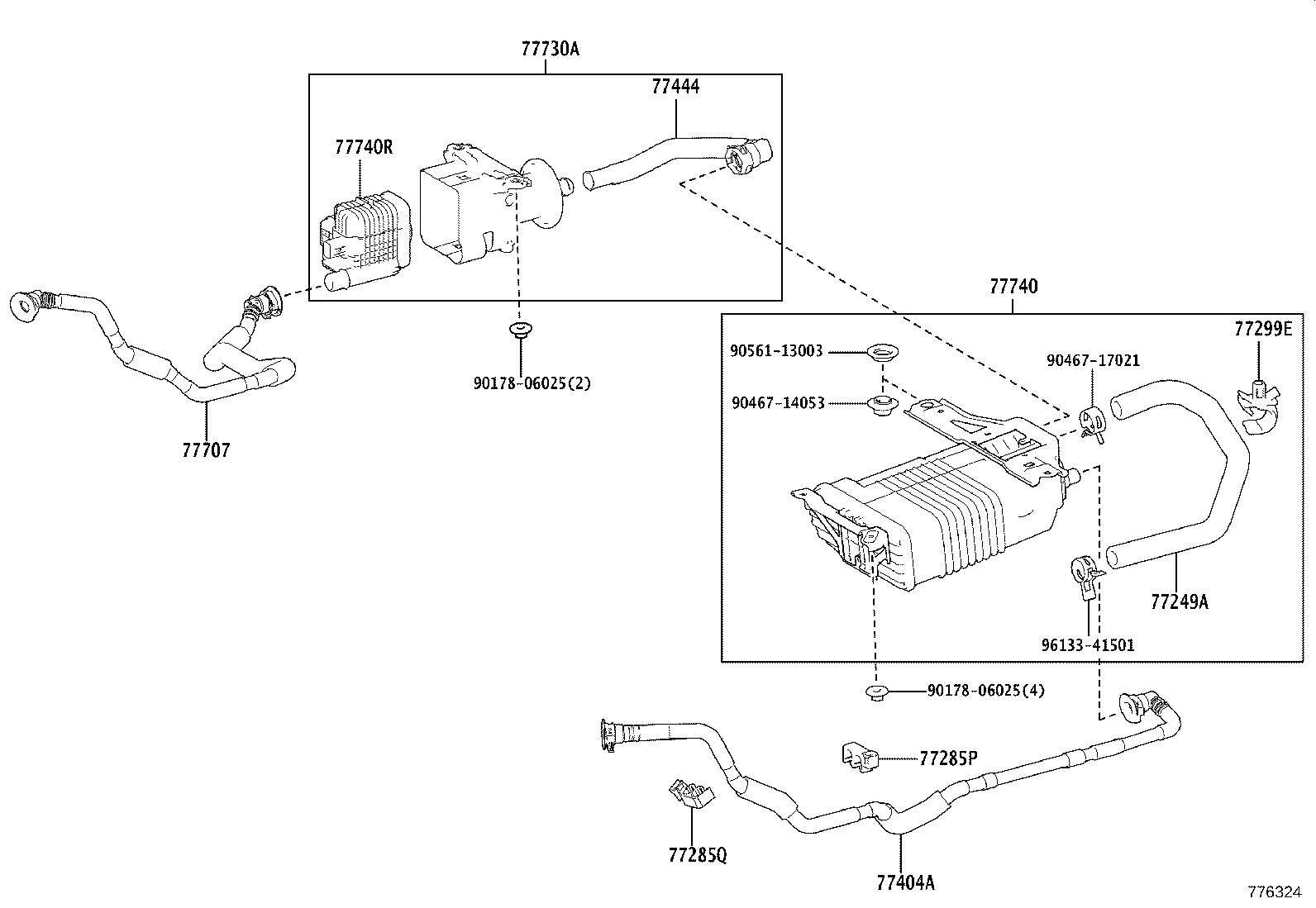

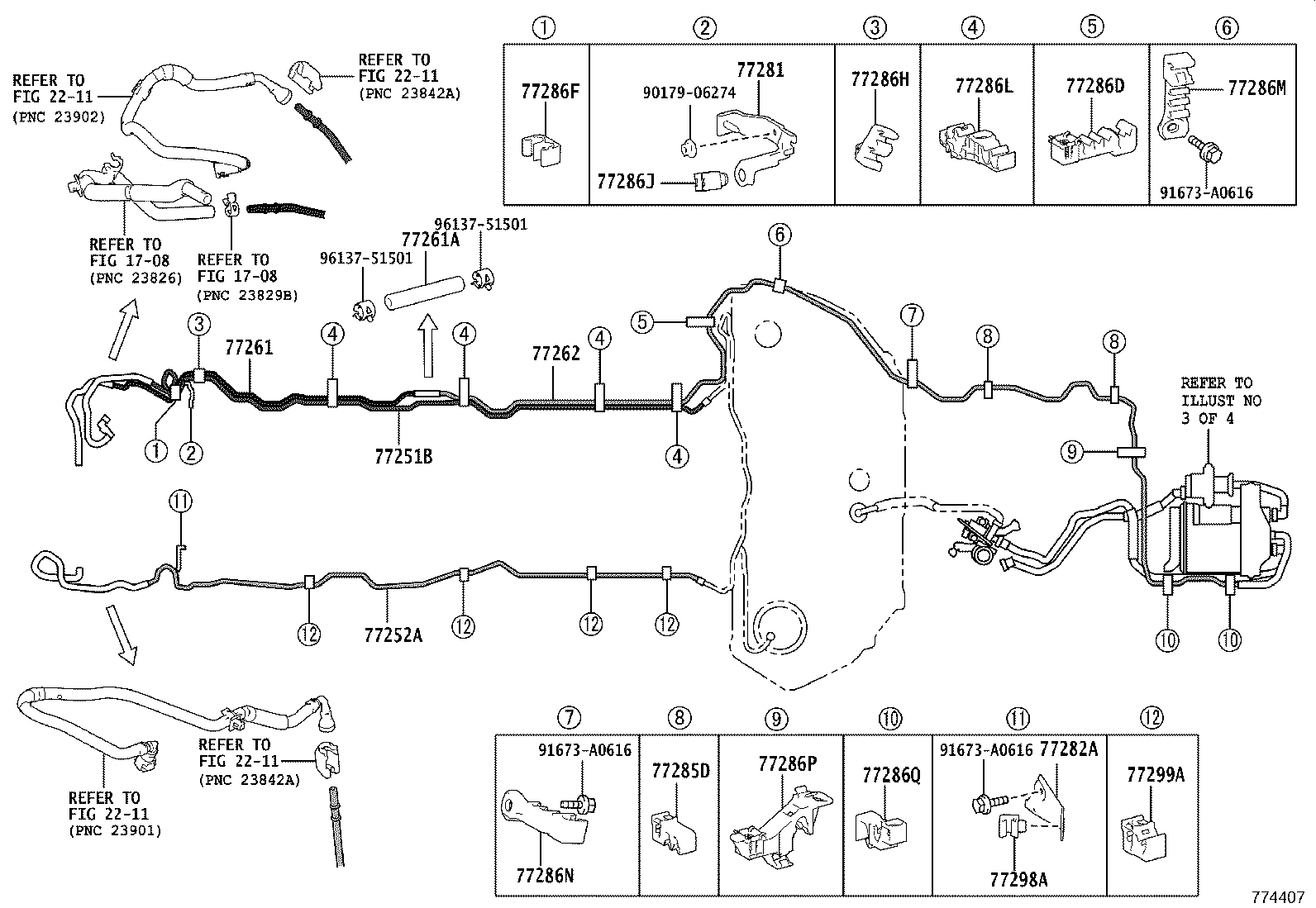

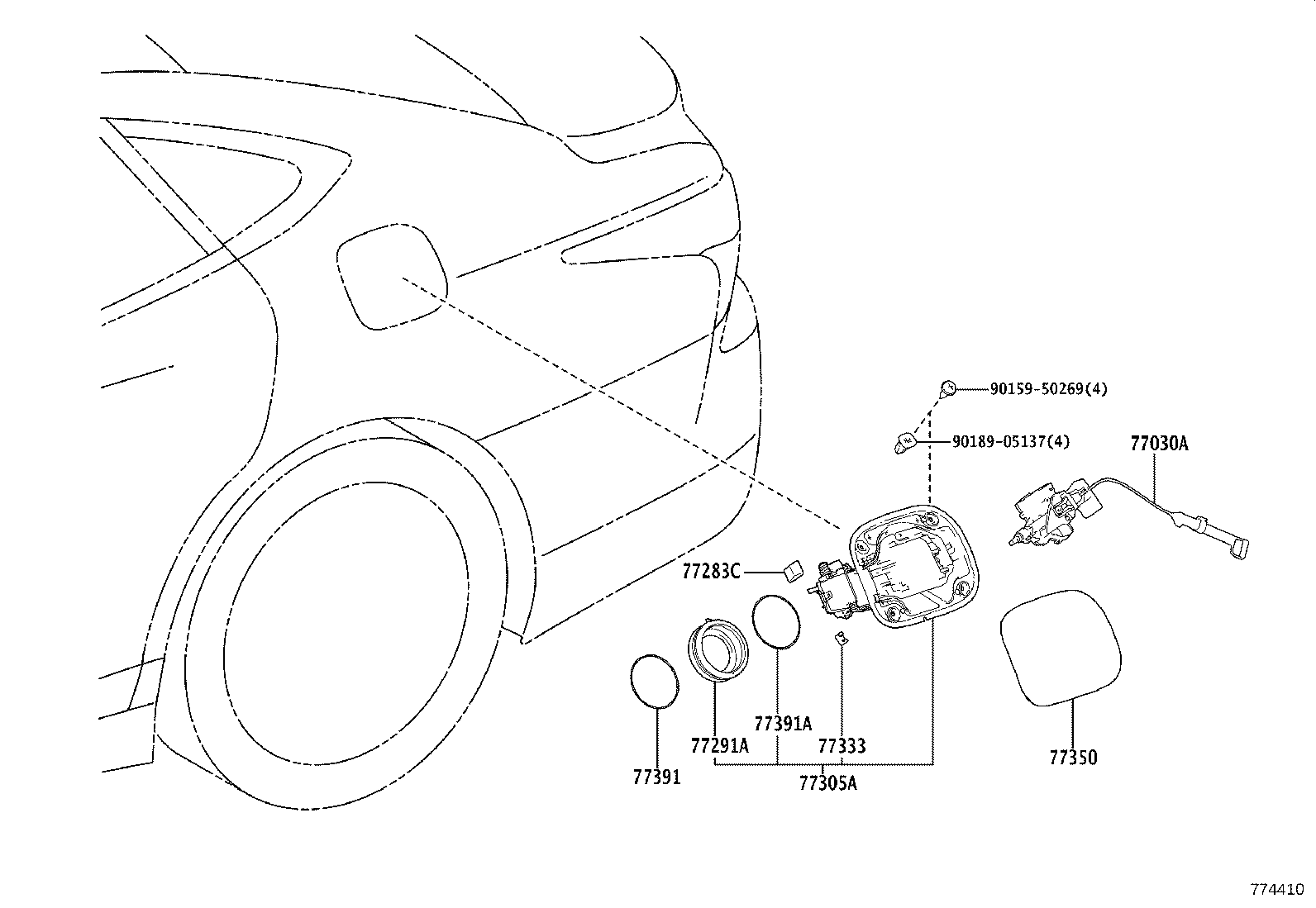

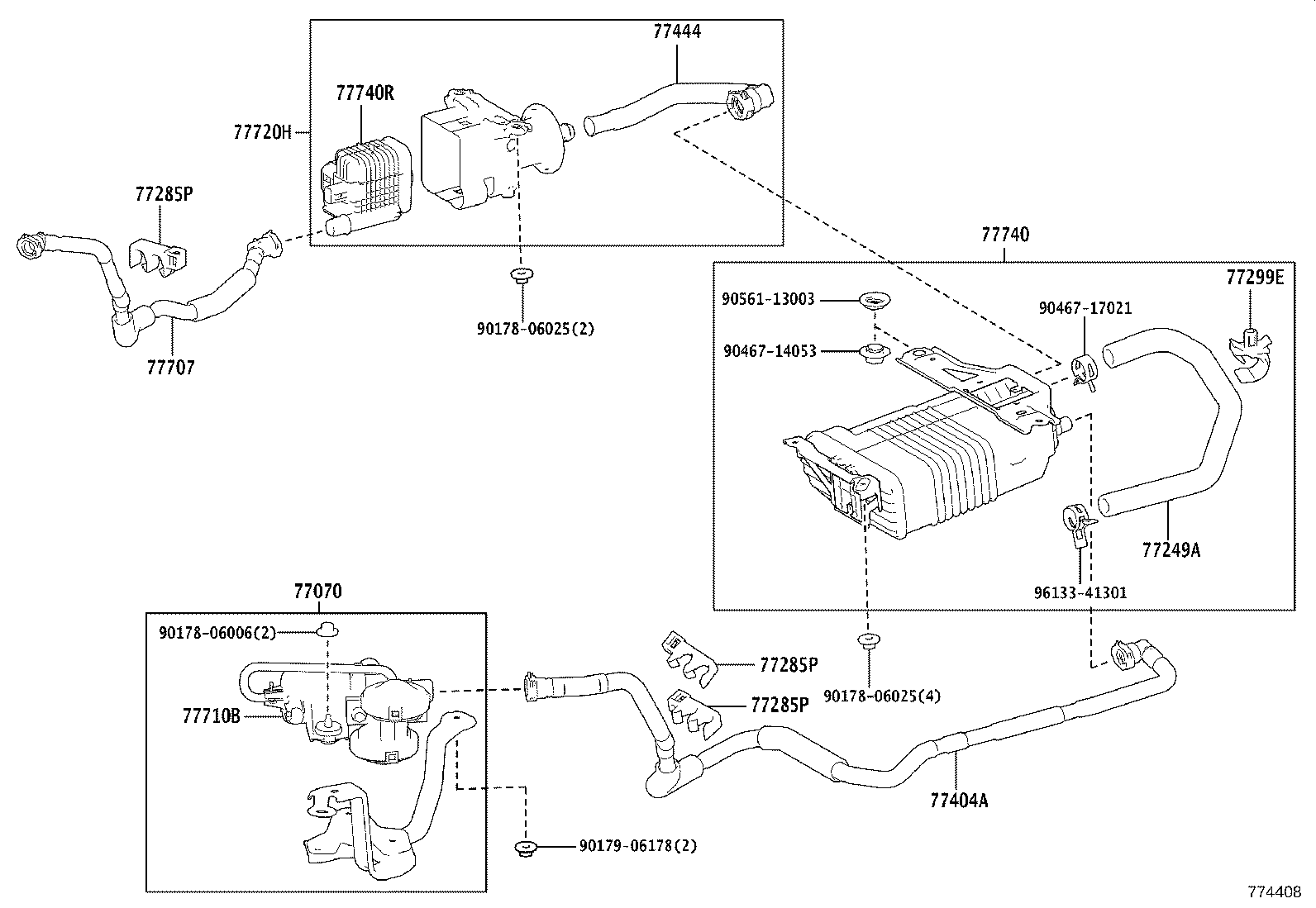

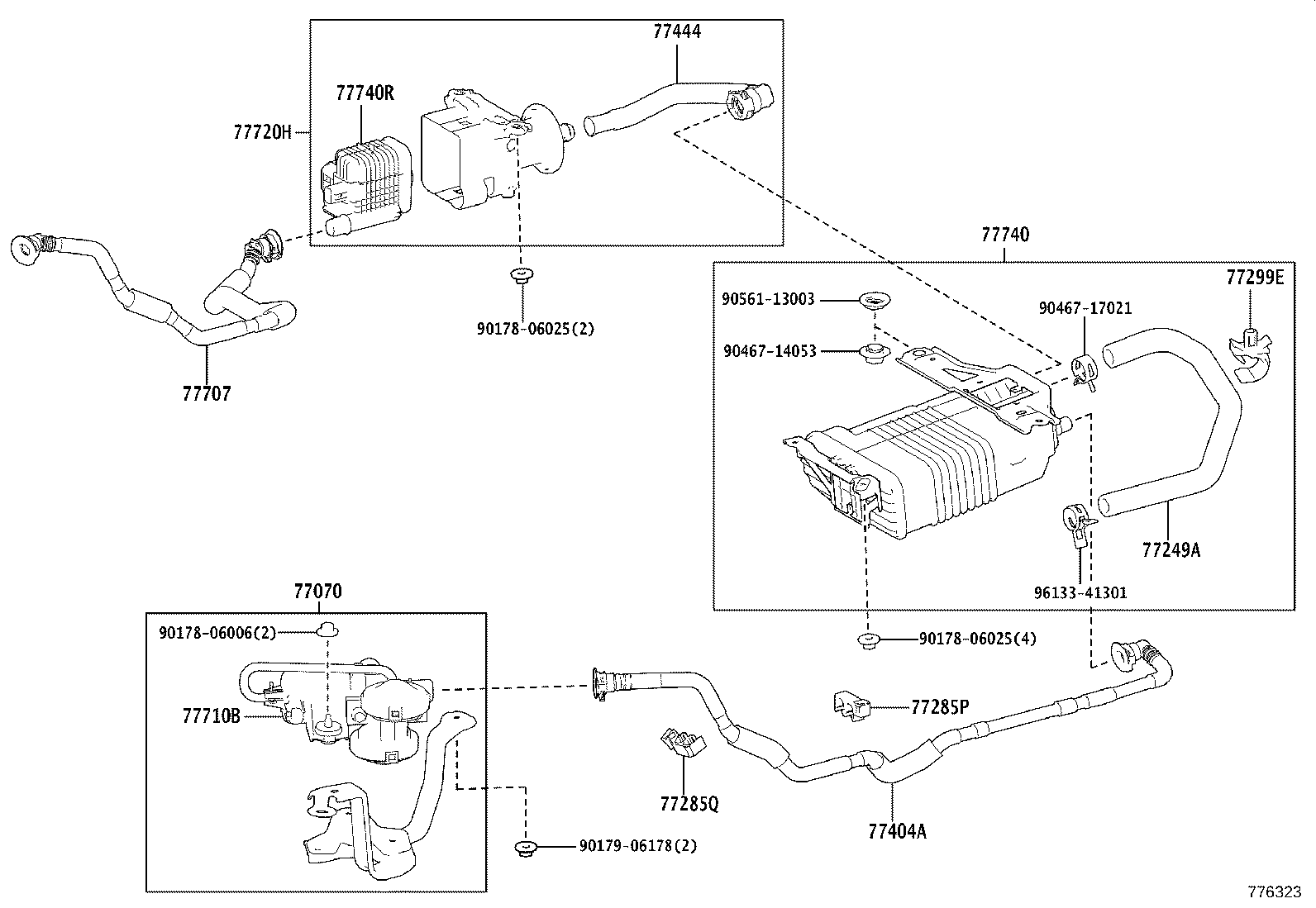

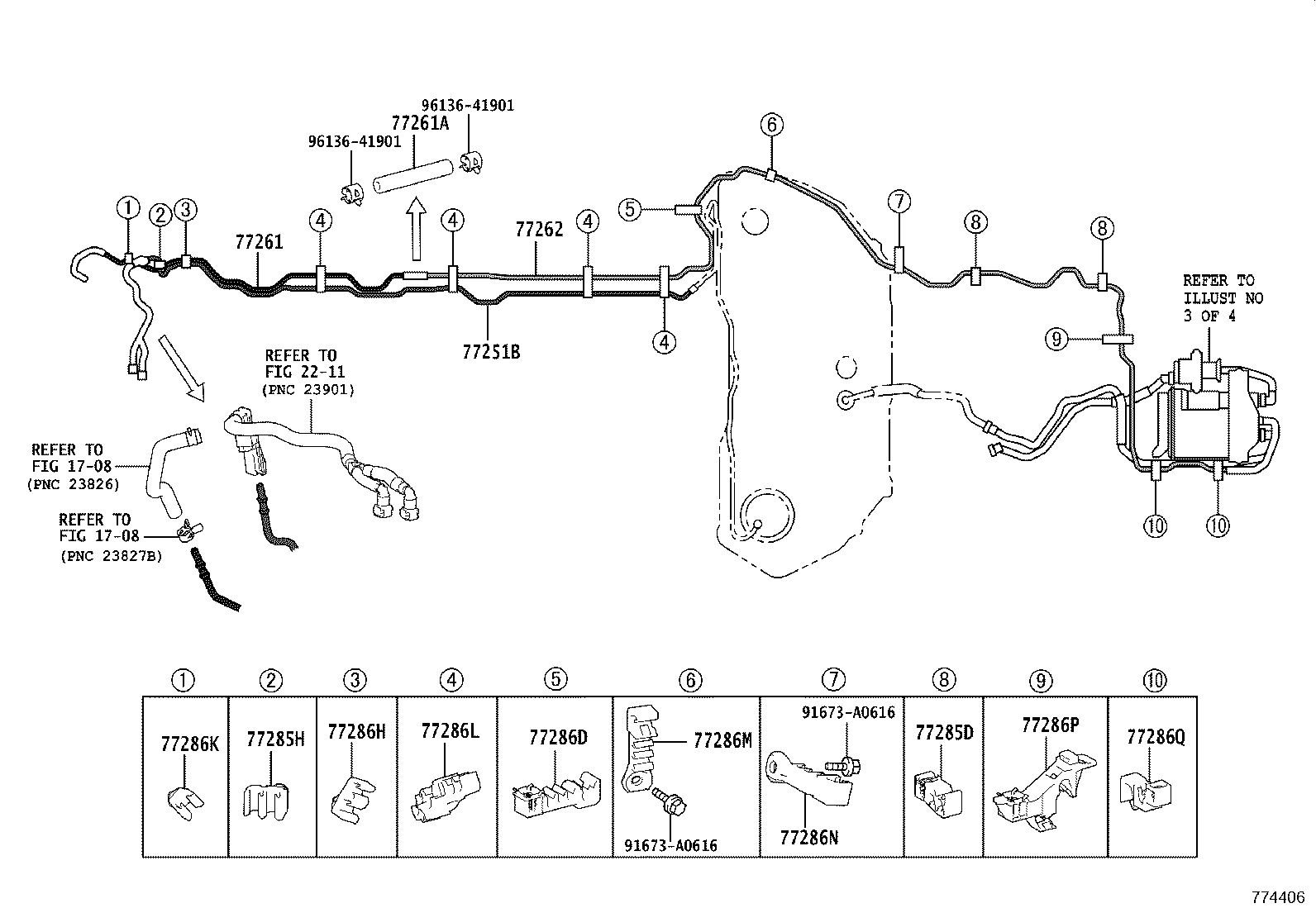

Figure 774413F 774413F 2017-10 → — Figure 774414D 774414D 2017-12 → — Figure 774407 774407 2017-10 → — Figure 774406A 774406A 2017-12 → — Figure 774408 774408 2017-10 → 2023-10 Figure 776323 776323 2023-10 → — Figure 774409 774409 2017-12 → 2023-10 Figure 776324 776324 2023-10 → — Figure 774410 774410 2017-10 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23217D Filter, Fuel Pump
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23280P Ring, O(FOR FUEL PRESSURE REGULATOR), NO.3
23283B Holder, Fuel Pressure Regulator
77024C Plate Sub-assy, Fuel Suction W/Fuel Filter
77030A Lock Assy, Fuel Lid W/Motor
77070 Valve Assy, Fuel Tank Solenoid W/Hose
77100 Tank Assy, Fuel
77106 Plate Sub-assy, Fuel Tank Side, Rear
77131C Sub-tank, Fuel, NO.1
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77179A Gasket, Fuel Tank Breather Tube
77201E Pipe Sub-assy, Fuel Tank Filler
77203A Tube Sub-assy, Fuel Suction
77209F Tube Sub-assy, Fuel Tank Main
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77221B Clamp, Breathr Tube
77226A Tube, Fuel Tank Breather, NO.6
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77241V Clip, Tube Joint
77241W Clip, Tube Joint
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77261 Tube Sub-assy, Fuel Emission
77261A Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
77262 Tube, Fuel Emission, NO.2
77272B Support, Breather Tube, NO.1
77281 Bracket, Fuel Main Tube, NO.1
77282A Bracket, Fuel Main Tube, NO.2
77283C Bracket, Fuel Tank Protector
77285D Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77285P Clamp, NO.1(FOR CHARCOAL CANISTER PIPE)
77285Q Clamp, NO.2(FOR CHARCOAL CANISTER PIPE)
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286S Cushion, Fuel Tank Protector
77289 Holder, Fuel Tank Pipe Setting
77289B Clamp, Fuel Tube, NO.3
77289C Clamp, Fuel Tube, NO.4
77289D Clamp, Fuel Tube, NO.5
77291A Shield, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77299E Clamp (FOR CHARCOAL CANISTER PIPE)
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77333 Clip, Fuel Lid Switch
77350 Lid Assy, Fuel Filler Opening
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77444 Hose, Fuel Tank Vent
77512C Bracket, Fuel Tank
77606 Protector Sub-assy, Fuel Tank, NO.1
77606C Protector, Fuel Tank, NO.2
77607C Protector Sub-assy, Fuel Tank, NO.2
77611 Band, Fuel Tank
77613 Bolt, Fuel Tank Band Set
77621 Bracket, Fuel Tank Protector
77641A Protector, Fuel Tank, NO.1
77643A Protector, Fuel Tank, NO.3
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77654A Cushion, Fuel Tank, NO.4
77681A Seat, Fuel Tank Band
77707 Tube Sub-assy, Charcoal Canister Outlet
77710B Valve Assy, Fuel Tank Solenoid Main
77720H Valve Assy, Fuel Outlet
77730A Canister Assy, Trap W/Outlet Valve
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77777 Bracket, Fuel Tube Clamp
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
