Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 6 illustrations

Illustrations

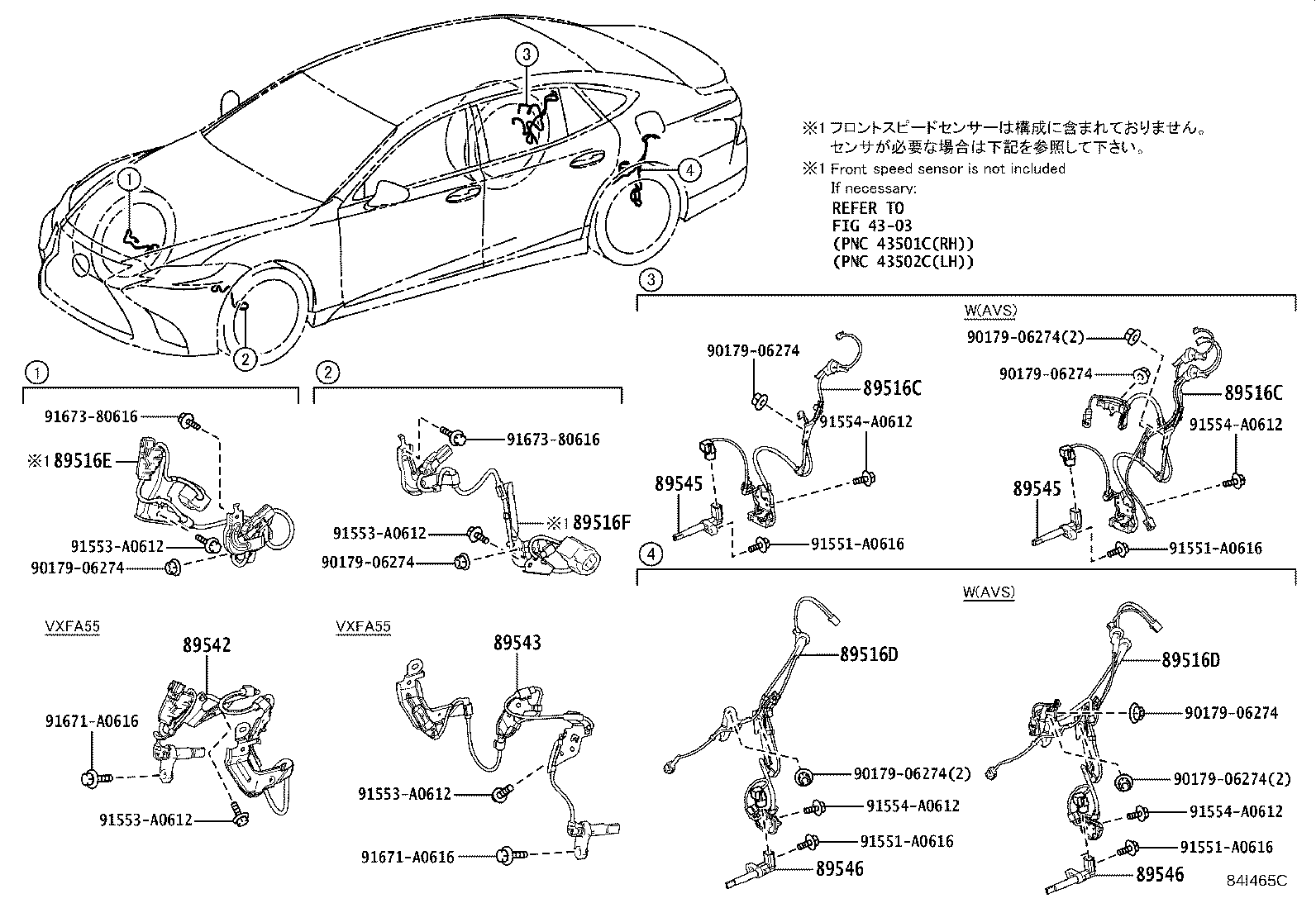

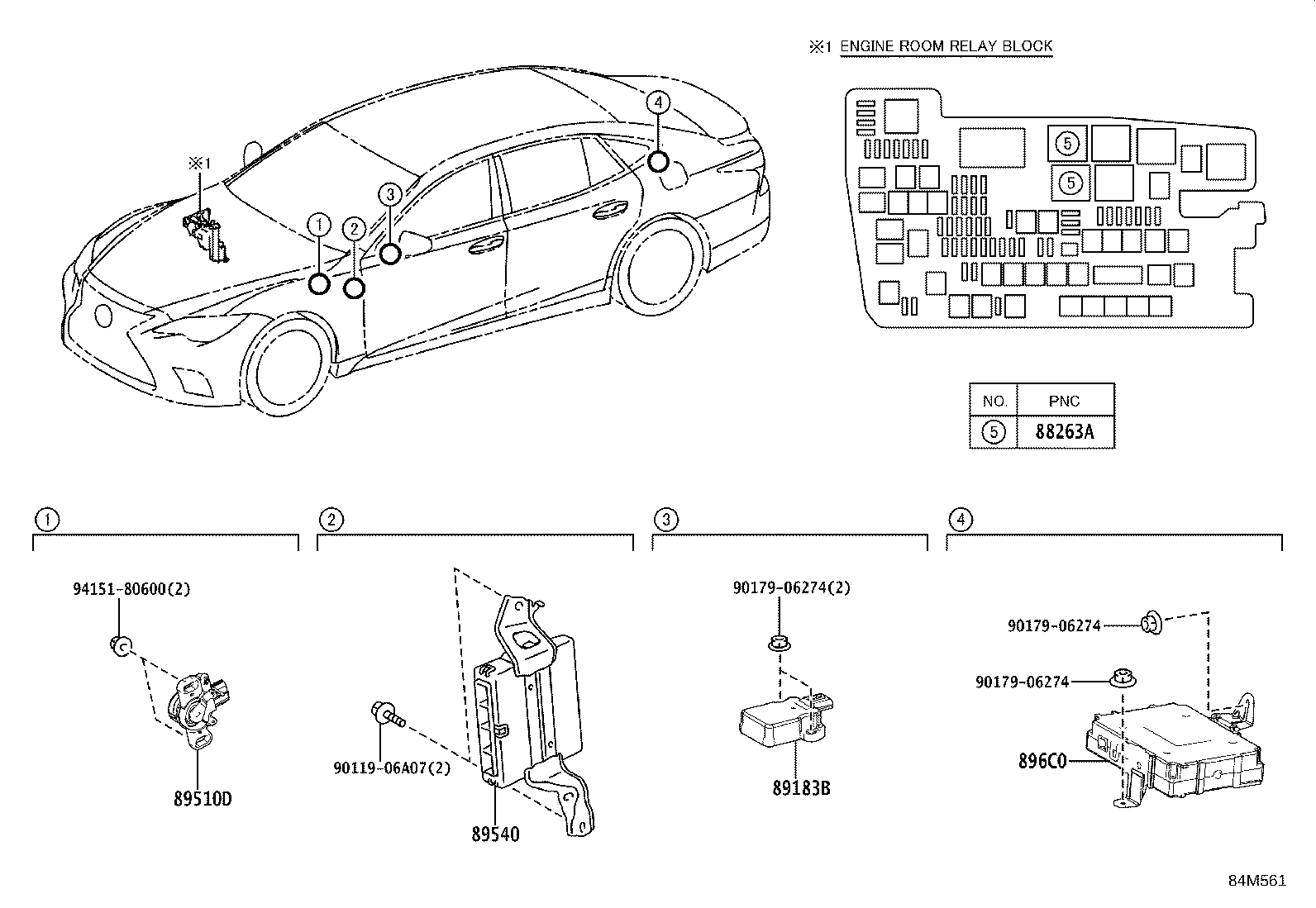

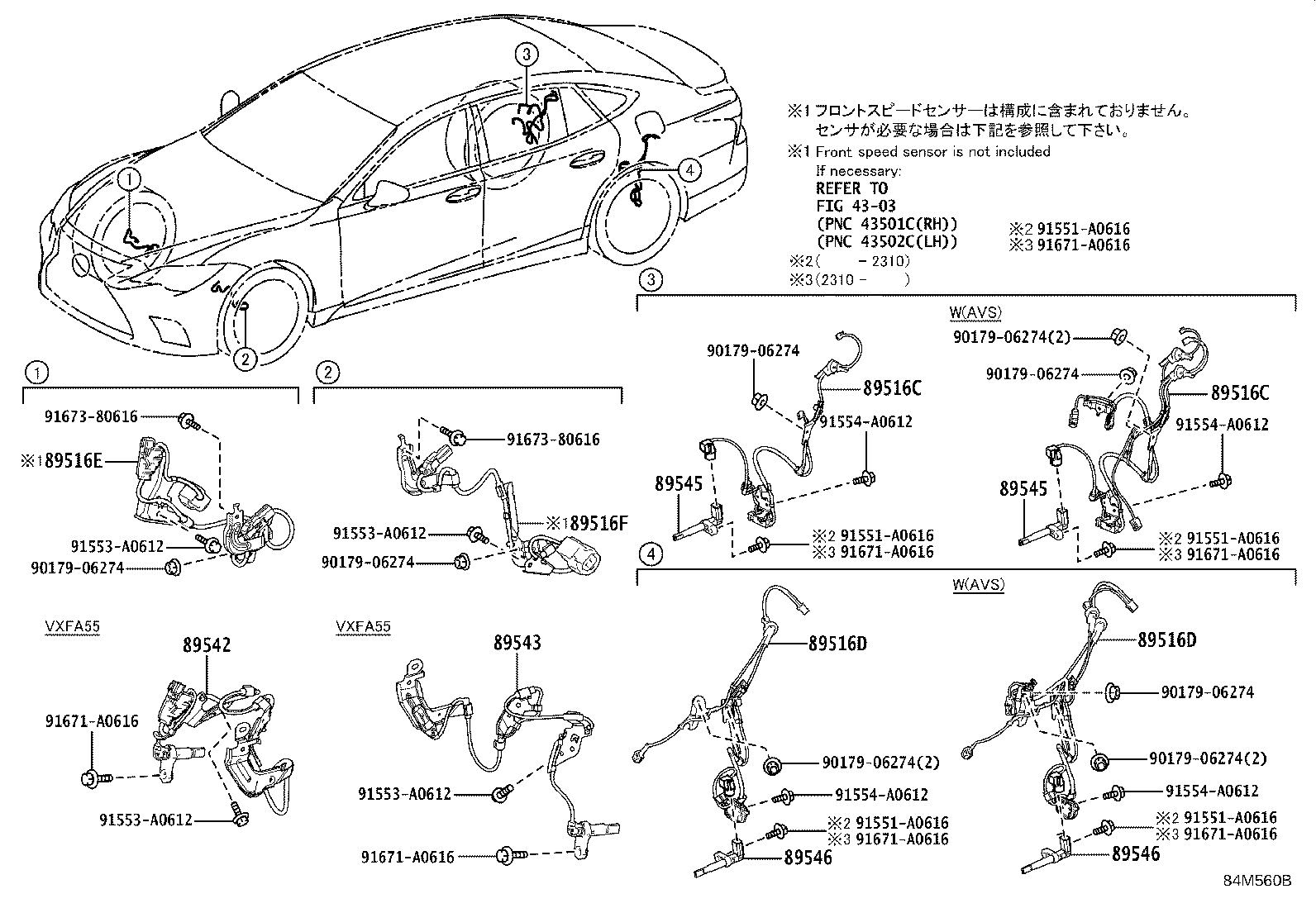

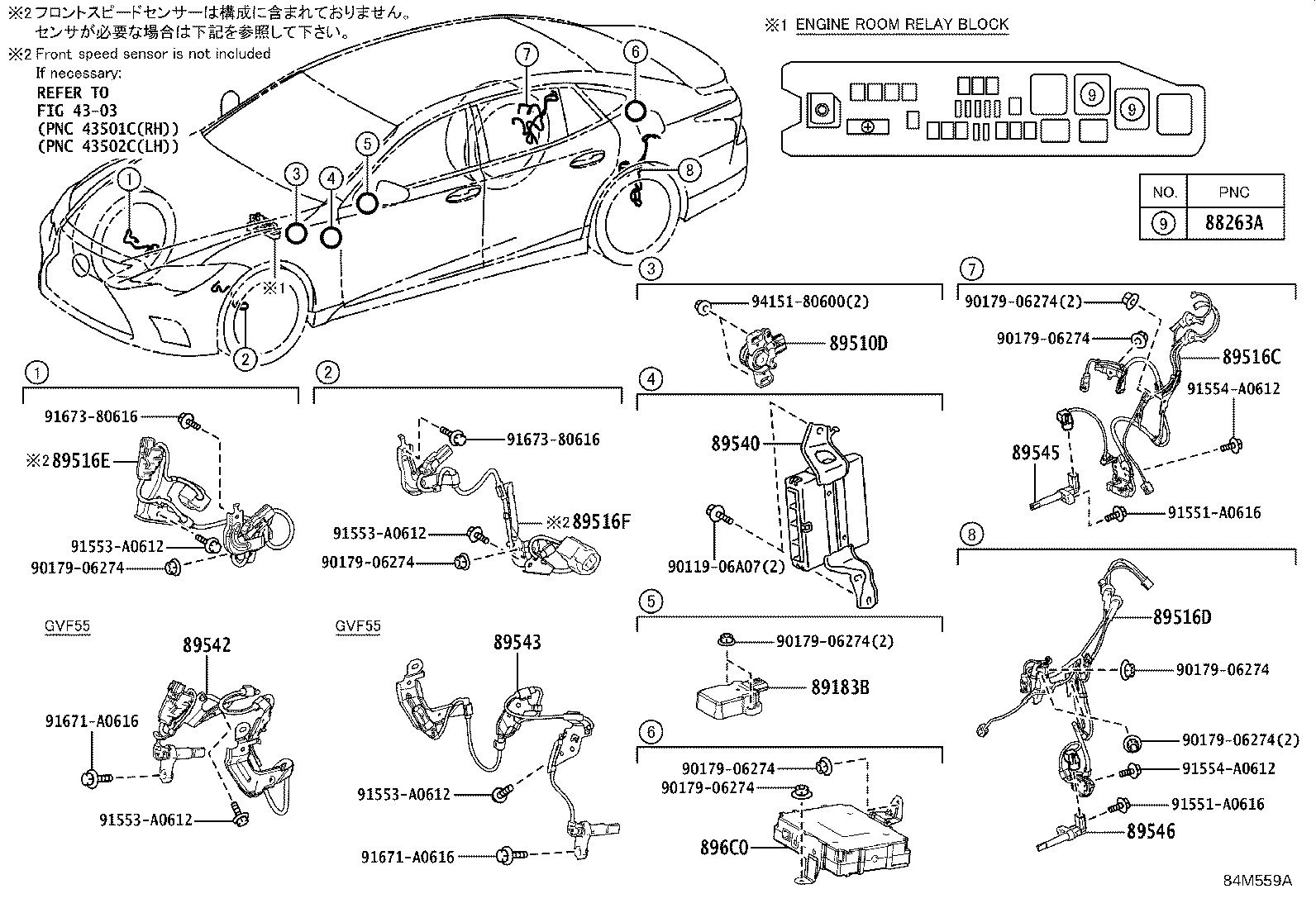

Figure 84I431B 84I431B 2017-10 → 2020-10 Figure 84M559A 84M559A 2020-10 → — Figure 84I465C 84I465C 2017-12 → 2020-10 Figure 84M560B 84M560B 2020-10 → — Figure 84I432 84I432 2017-12 → 2020-10 Figure 84M561 84M561 2020-10 → —

Part groups

PNCDescription
88263A Relay, Skid Control
89183B Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
896C0 Supply Assy, Brake Control Power W/Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
