Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 3 illustrations

Illustrations

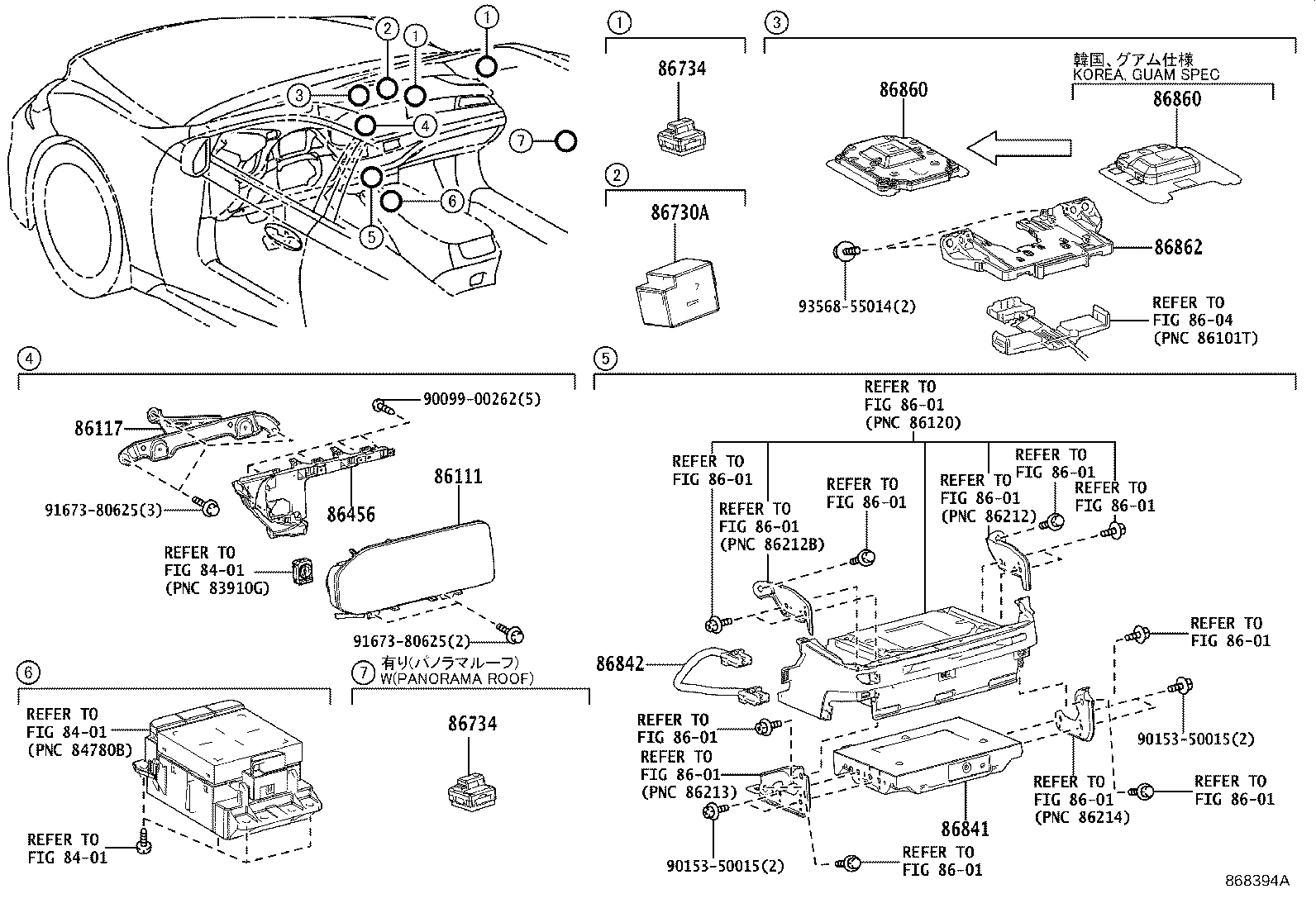

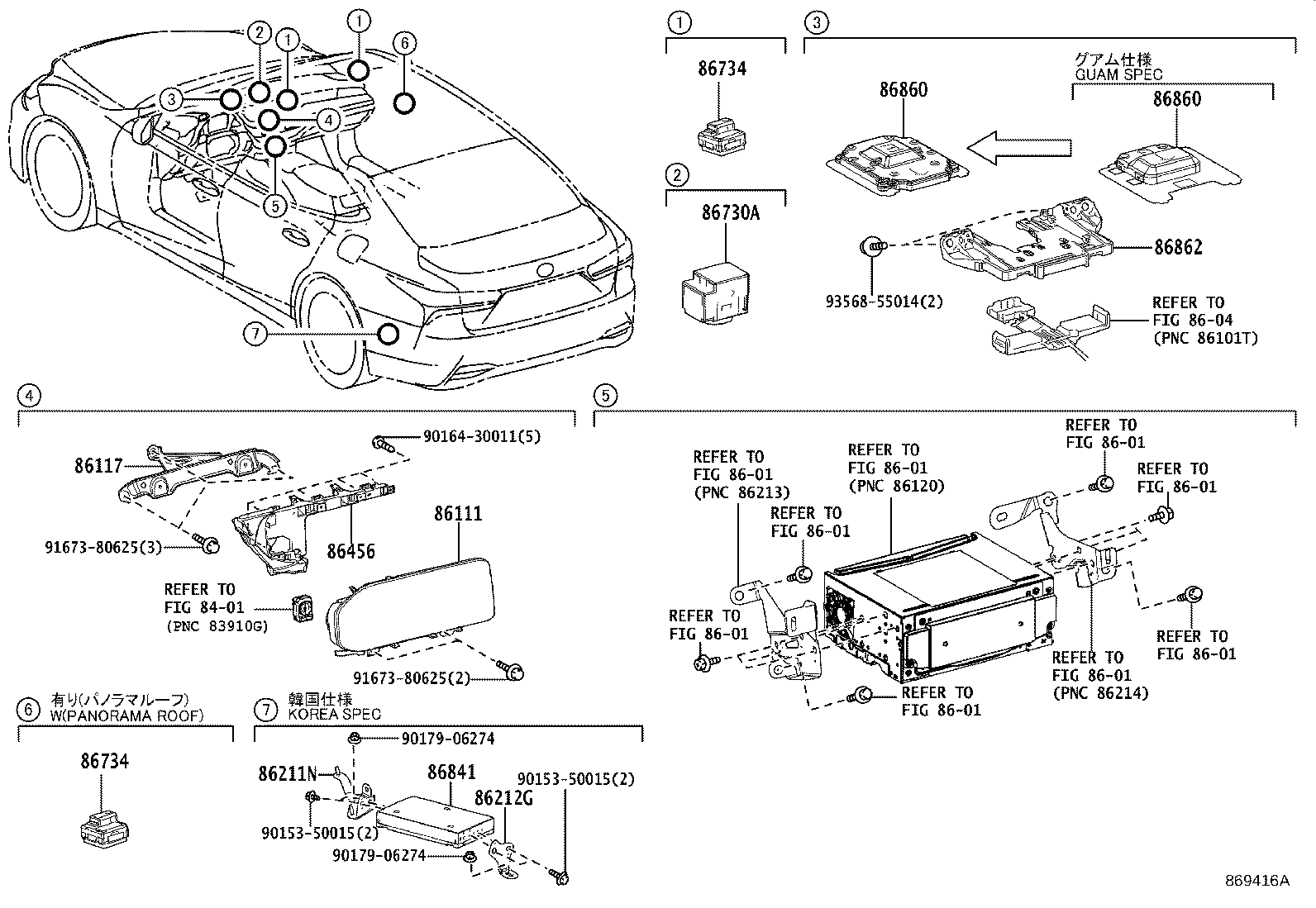

Figure 867039B 867039B 2017-10 → 2020-10 Figure 868394A 868394A 2020-10 → 2022-10 Figure 869416A 869416A 2022-10 → —

Part groups

PNCDescription
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86211N Bracket, Navigation Computer, NO.1
86212G Bracket, Navigation Computer, NO.2
86456 Cover, Multi-media Module
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
