Toyota Lexus LS500/500H
2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States
Supported model
Data version 2020-10
Pre-collision System

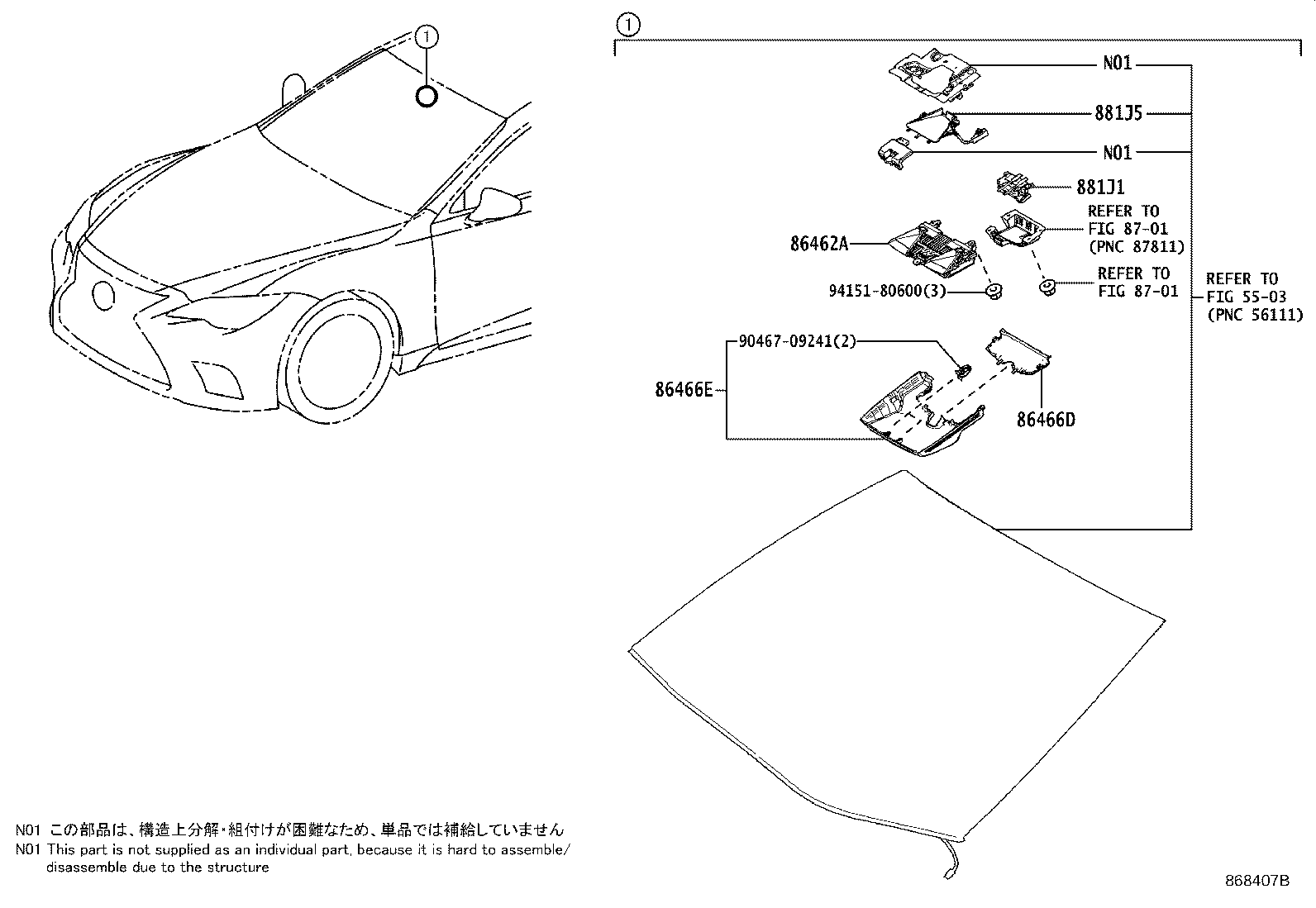

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86401 | Hood Sub-assy, Forward Recognition W/Heater |
| 86461 | Hood, Forward Recognition |
| 86462A | Camera, Object Recognition |
| 86464A | Latch, Forward Recognition |
| 86466D | Cover, Forward Recognition, NO.1 |
| 86466E | Cover, Forward Recognition, NO.2 |
| 8646C | Camera, Forward Recognition |
| 881J1 | Camera, Advanced Drive |
| 881J5 | Hood, Advanced Drive W/Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
