Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

61 part groups · 14 illustrations

Illustrations

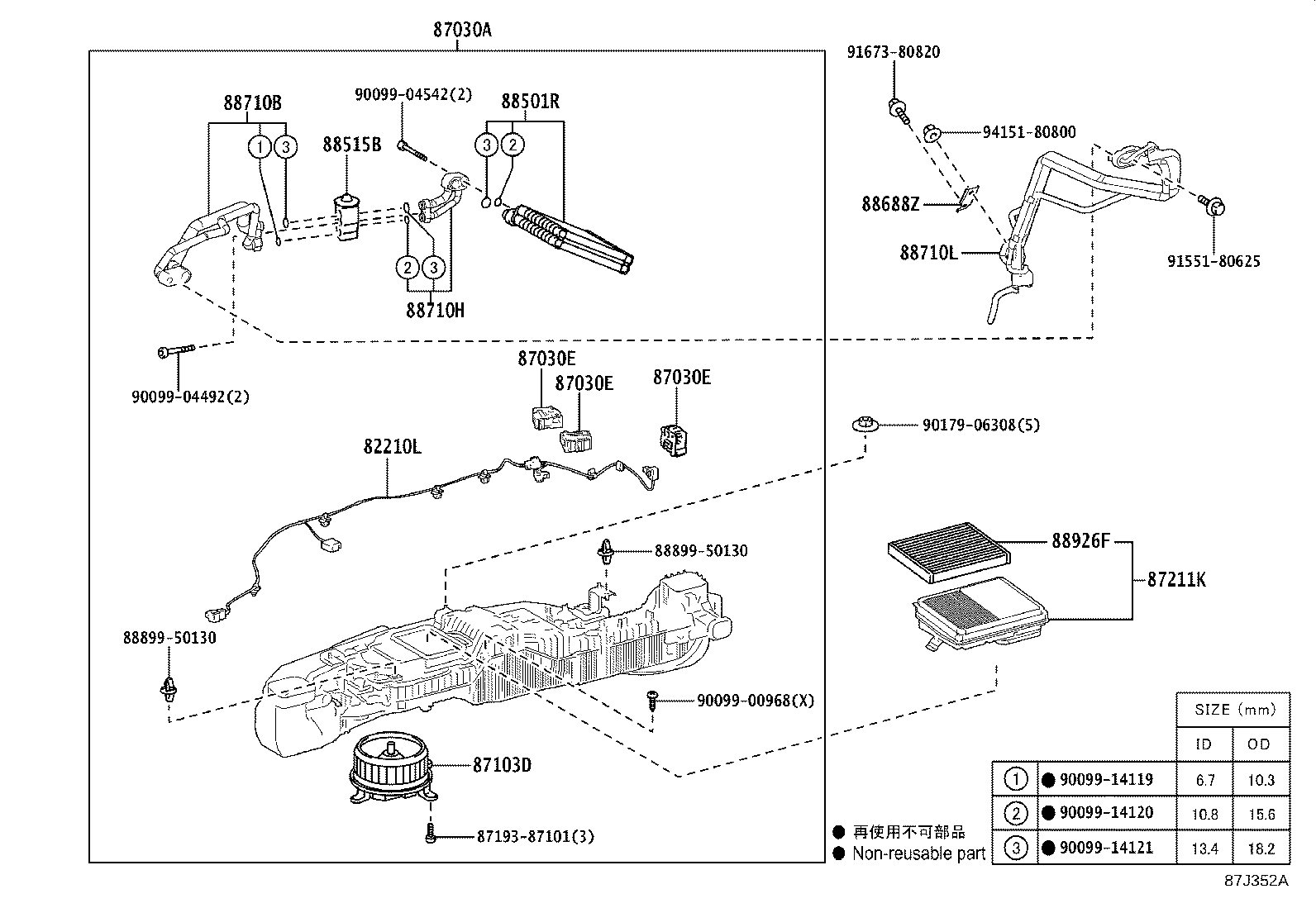

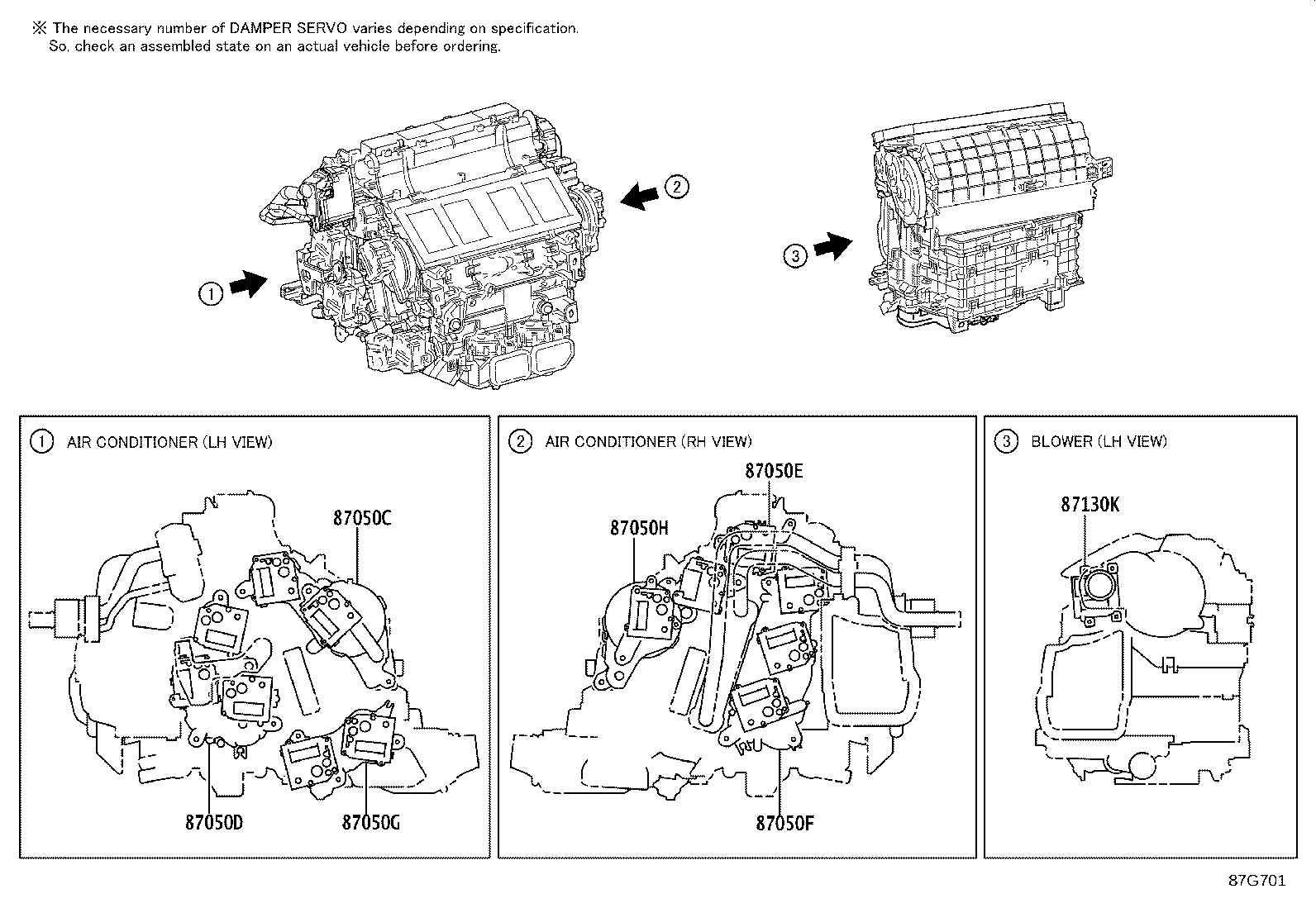

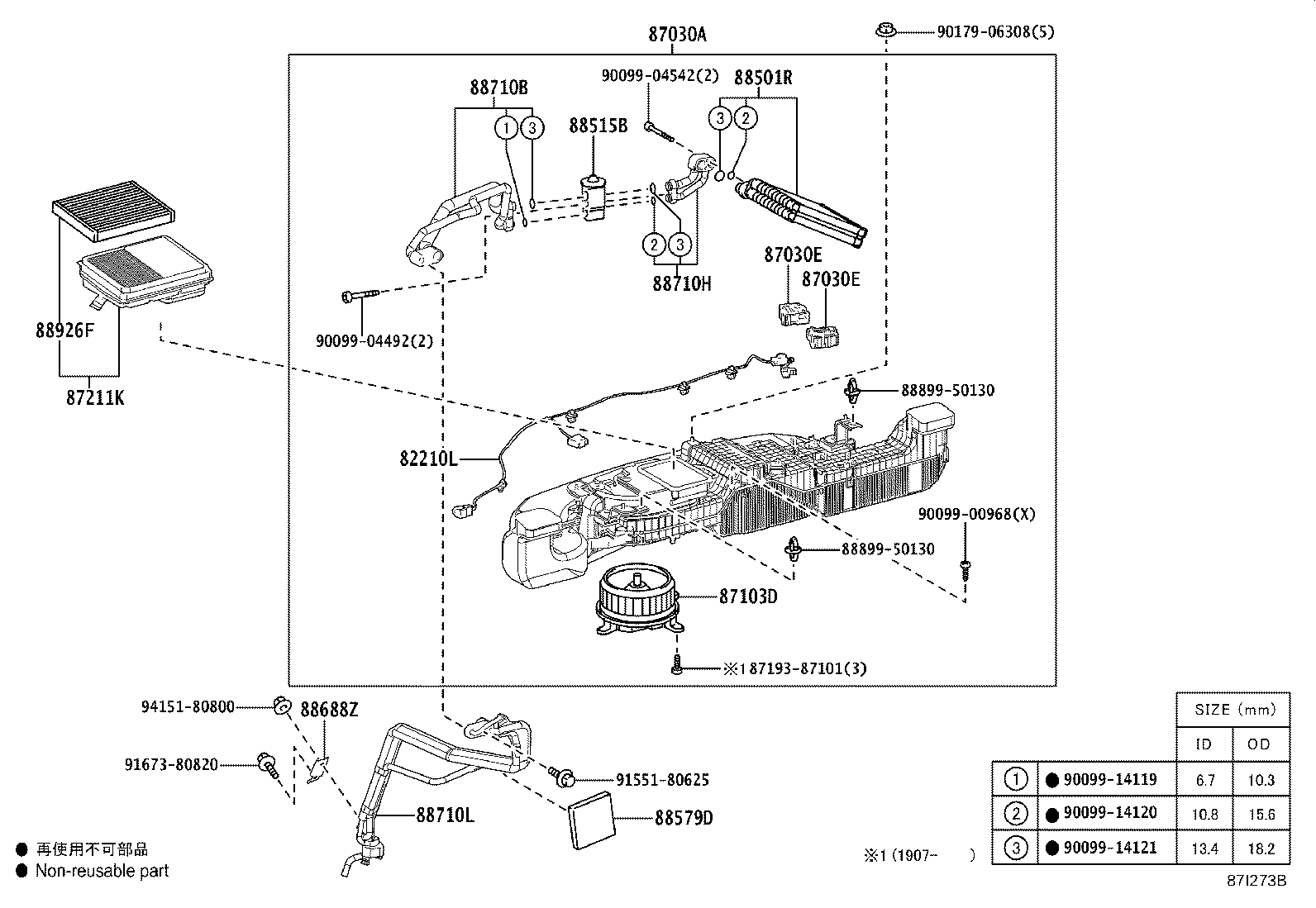

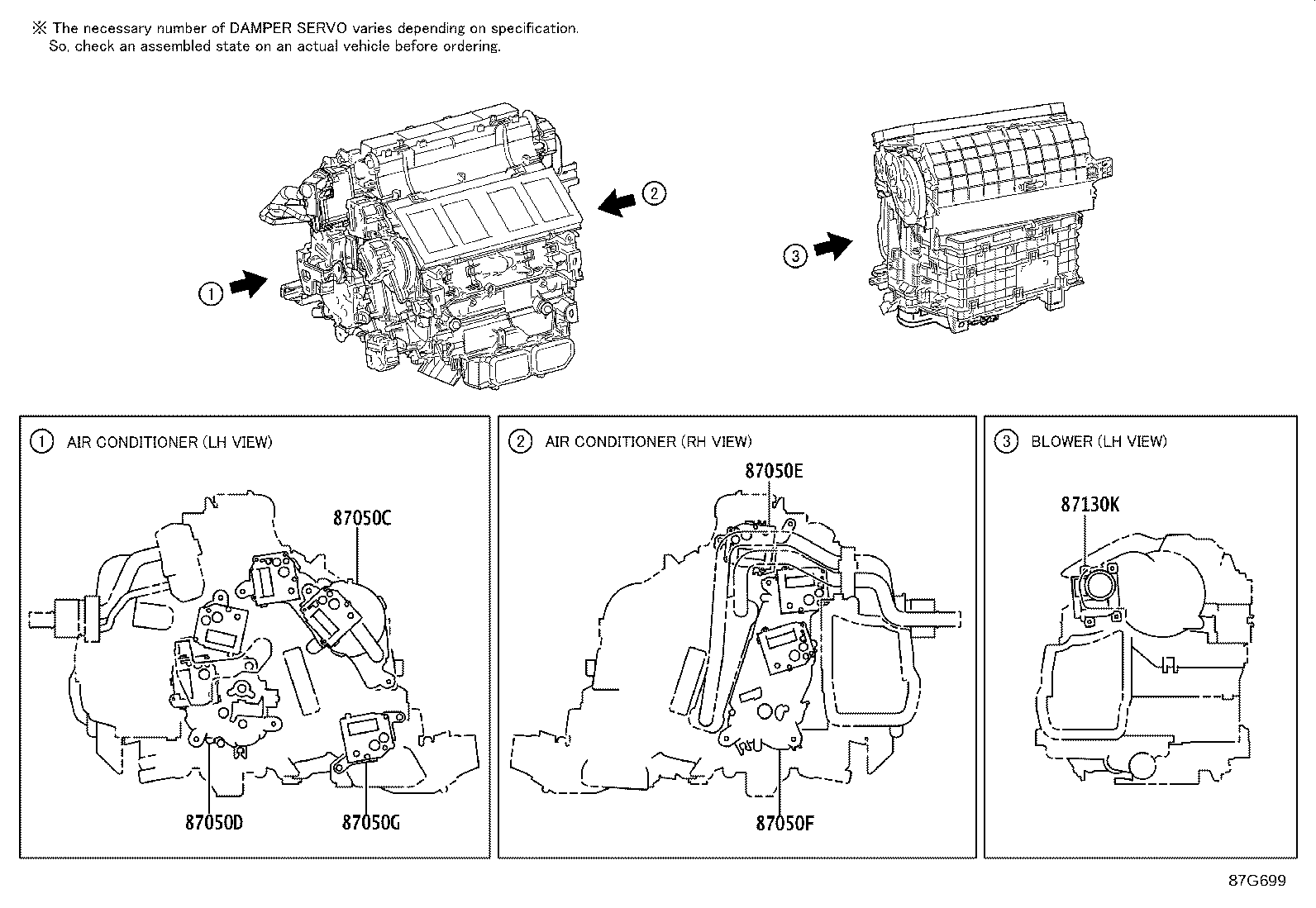

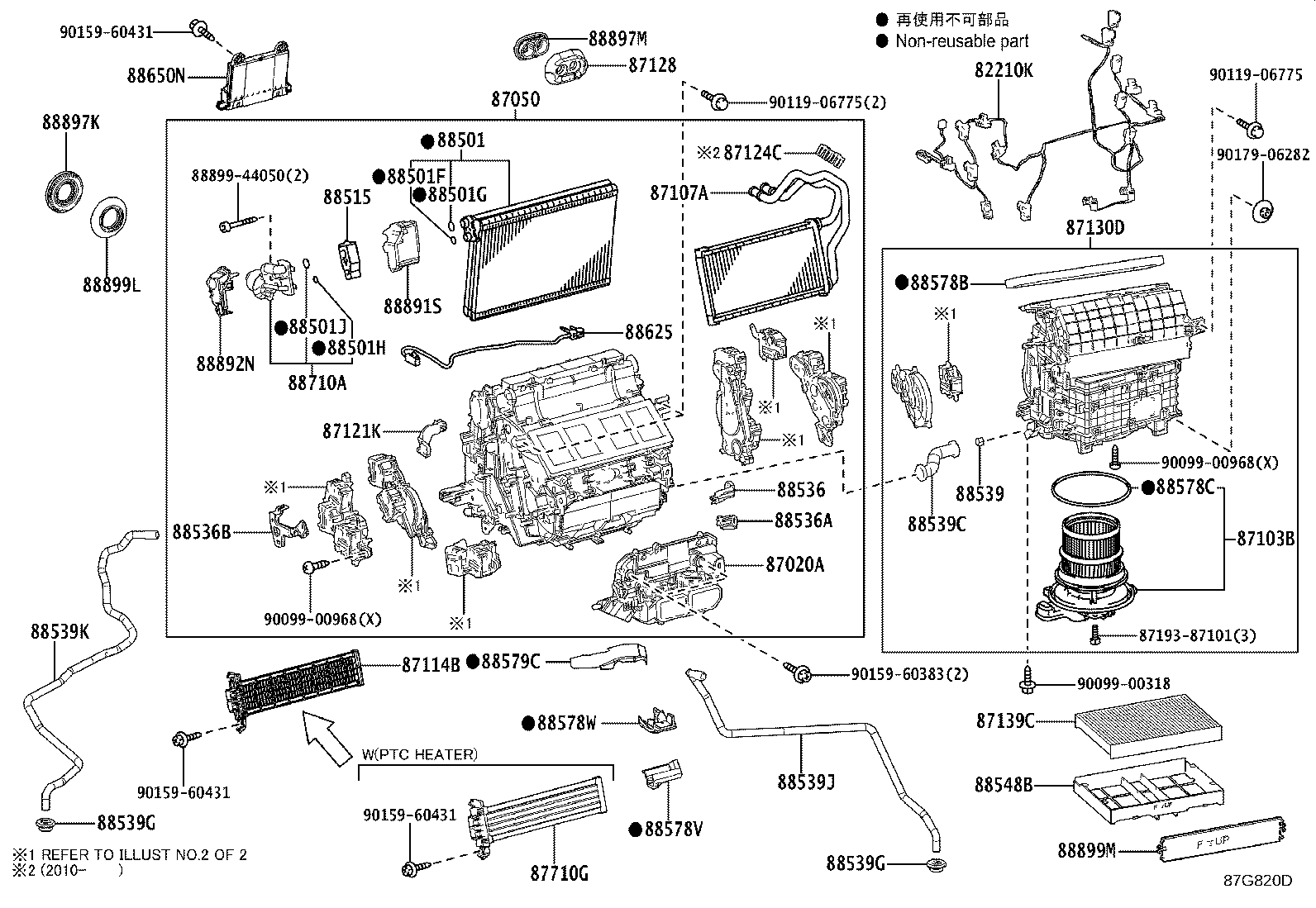

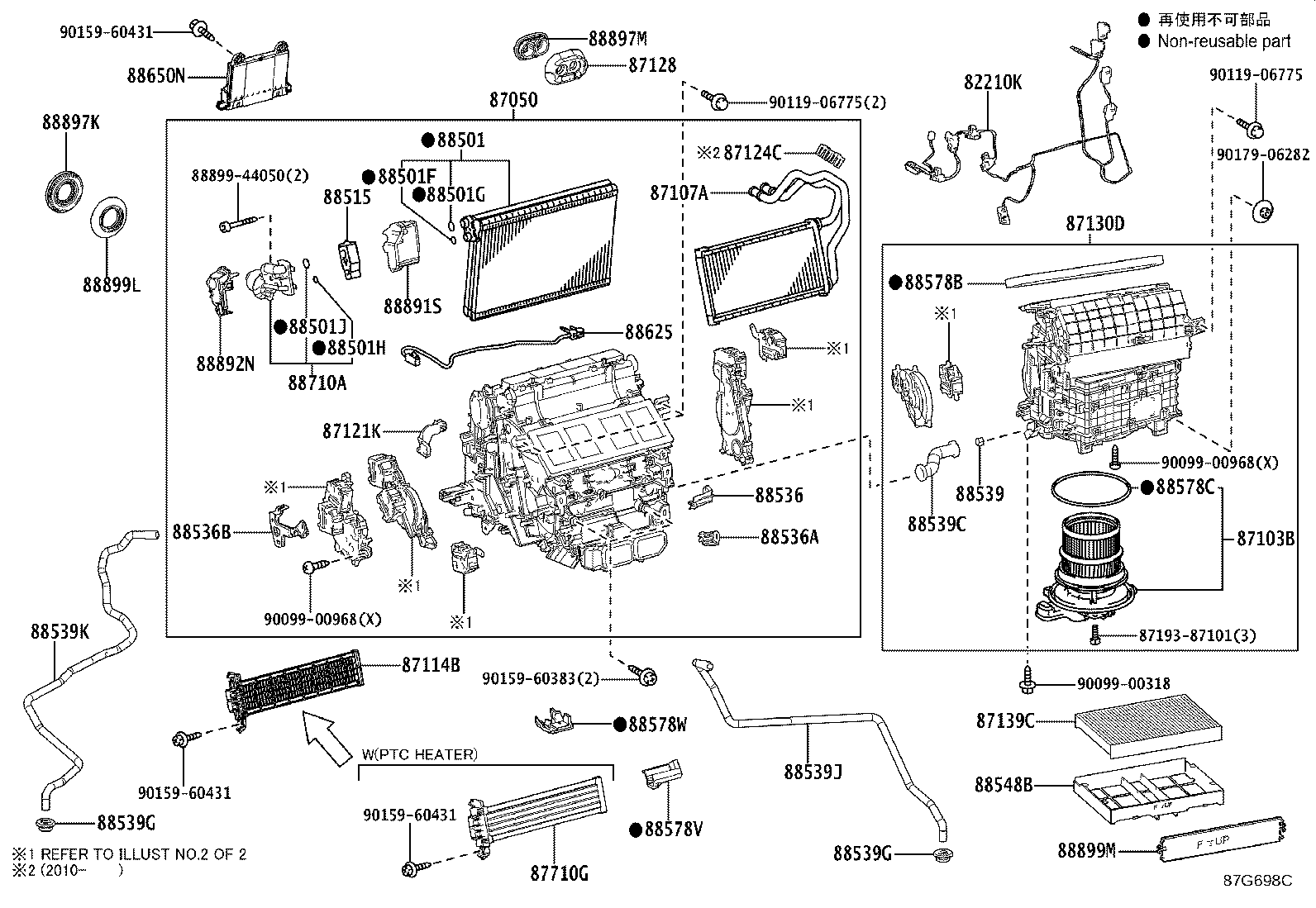

Figure 87G700D 87G700D 2017-10 → 2020-10 Figure 87G700D 87G700D 2020-10 → — Figure 87G820D 87G820D 2017-12 → 2020-10 Figure 87G820D 87G820D 2020-10 → — Figure 87G698C 87G698C 2017-12 → 2020-10 Figure 87G698C 87G698C 2020-10 → — Figure 87G701 87G701 2017-10 → 2020-10 Figure 87G701 87G701 2020-10 → — Figure 87G821 87G821 2017-12 → 2020-10 Figure 87G821 87G821 2020-10 → — Figure 87G699 87G699 2017-12 → 2020-10 Figure 87G699 87G699 2020-10 → — Figure 87I273B 87I273B 2020-10 → — Figure 87J352A 87J352A 2020-10 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87020A Damper Assy, Heater Air
87030A Unit Assy, Cooling, Rear
87030E Damper Servo Sub-assy, Rear Cooling Unit, NO.1
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87050F Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
87050G Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
87050H Damper Servo Sub-assy, Air Conditioner Radiator, NO.6
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87121K Bracket, Heater
87124C Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87139C Filter, Clean Air
87211K Duct, Air
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88501H O-ring, Cooler Evaporator NO.2(DISCHARGE)
88501J O-ring, Cooler Evaporator NO.2(SUCTION)
88501R Evaporator Sub-assy (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88579C Packing, Cooling Unit, NO.5
88579D Packing, Cooling Unit, NO.6
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88688Z Bracket
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88710L Tube & Accessory Assy, Air Conditioner, NO.2
88891S Cover, Cooler, NO.1
88892N Cover, Cooler, NO.2
88897K Grommet, (FOR COOLER PIPE)
88897M Grommet (FOR HEATER PIPE)
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
88926F Filter, Rear Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
