Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

46 part groups · 10 illustrations

Illustrations

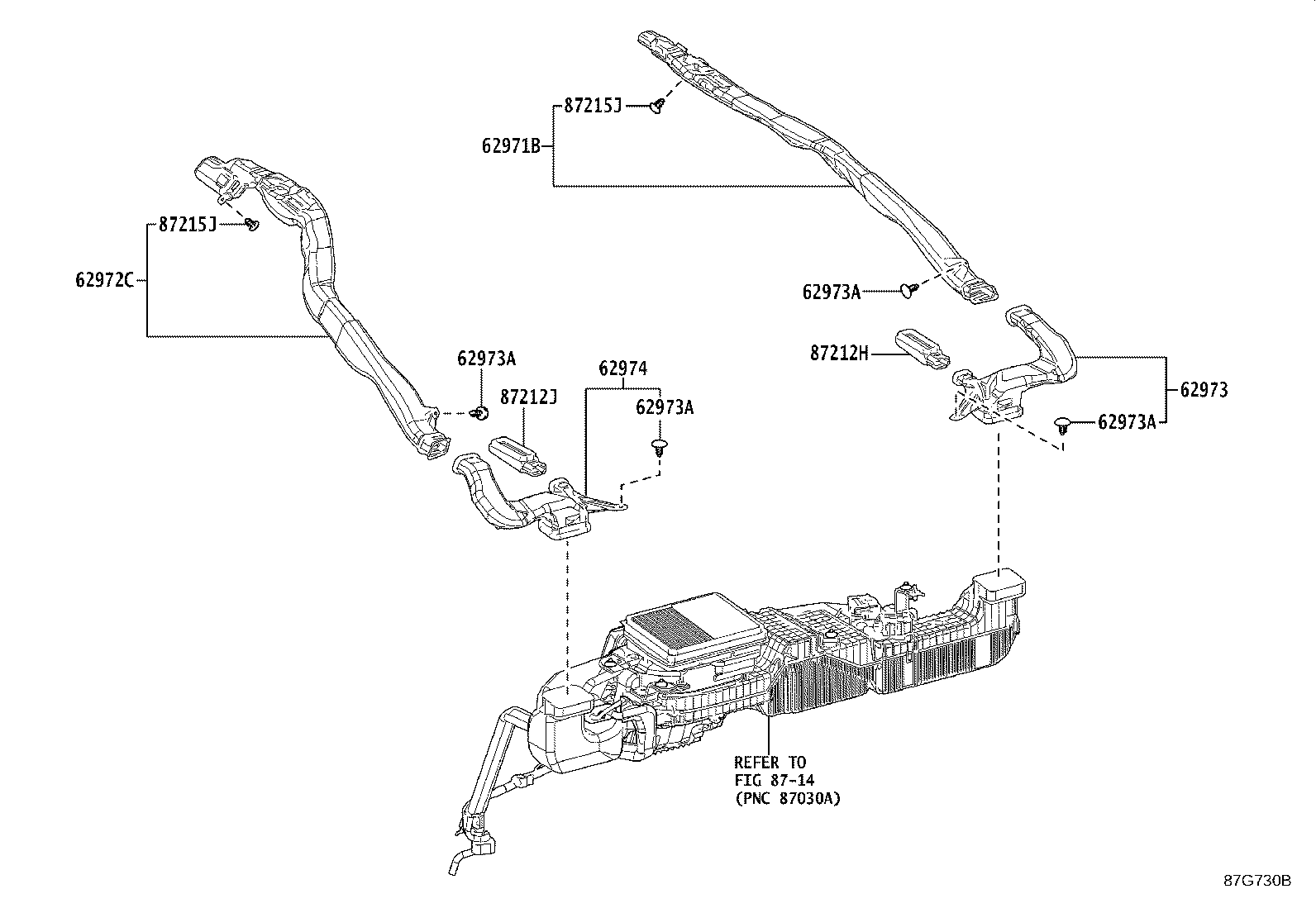

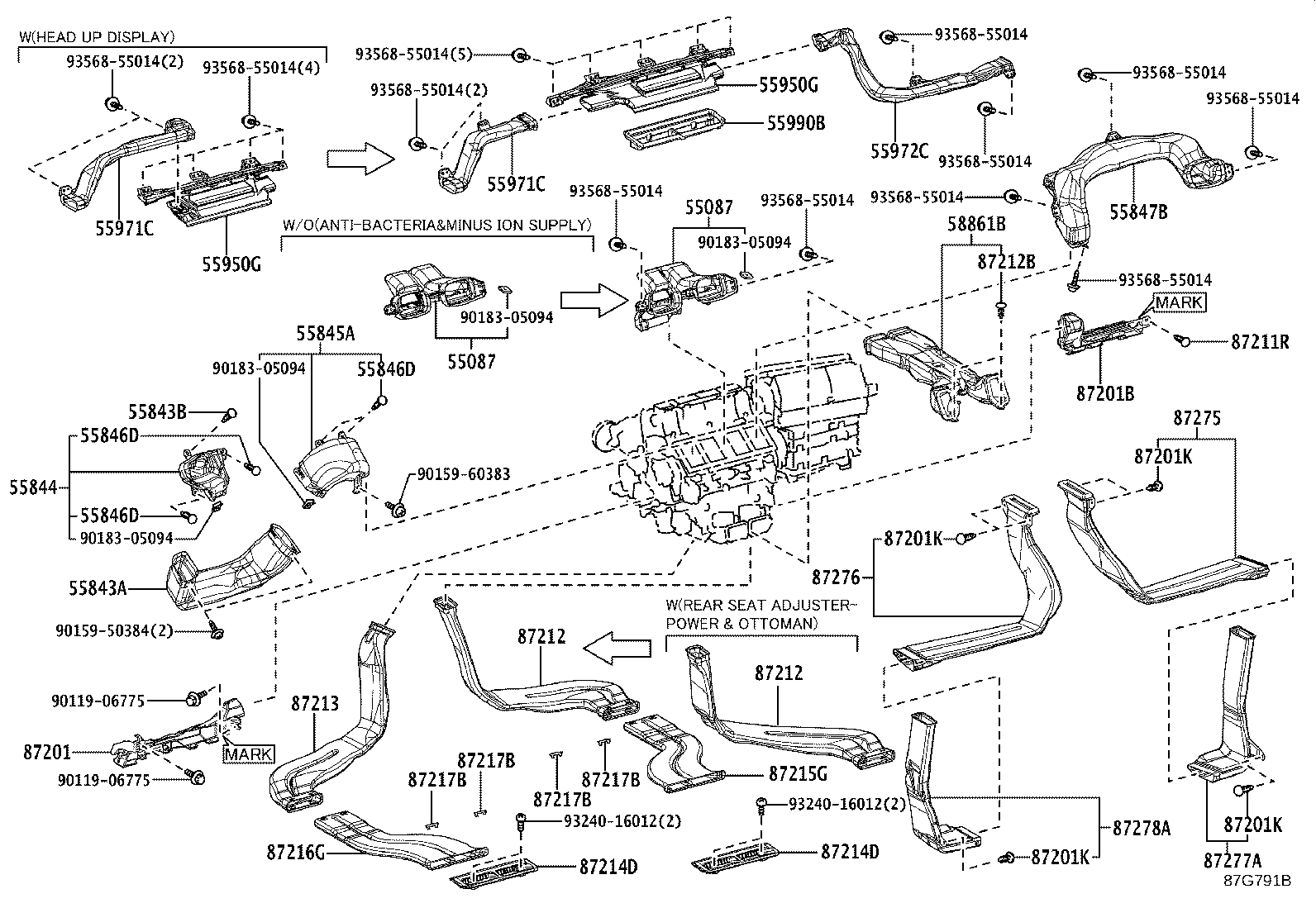

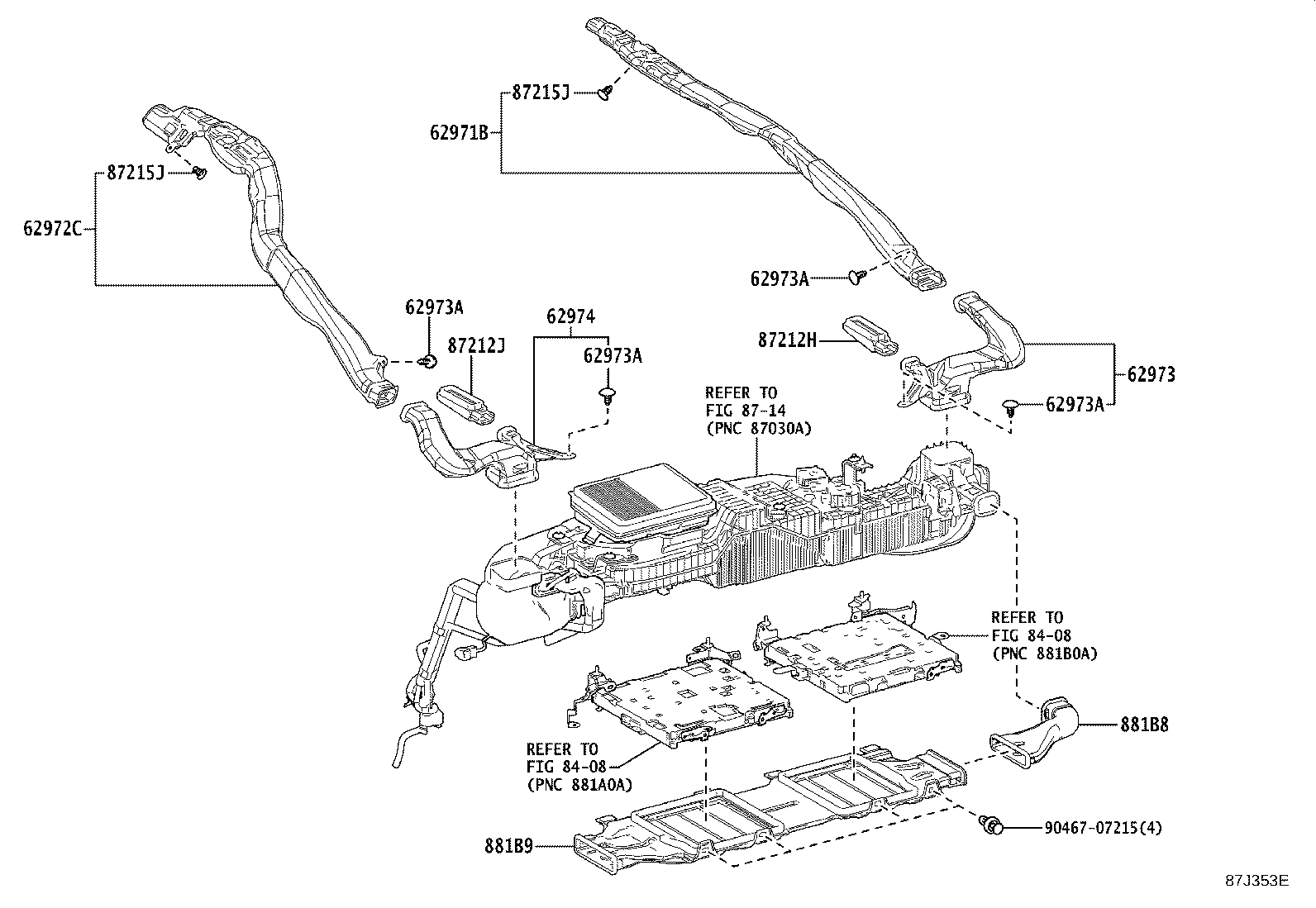

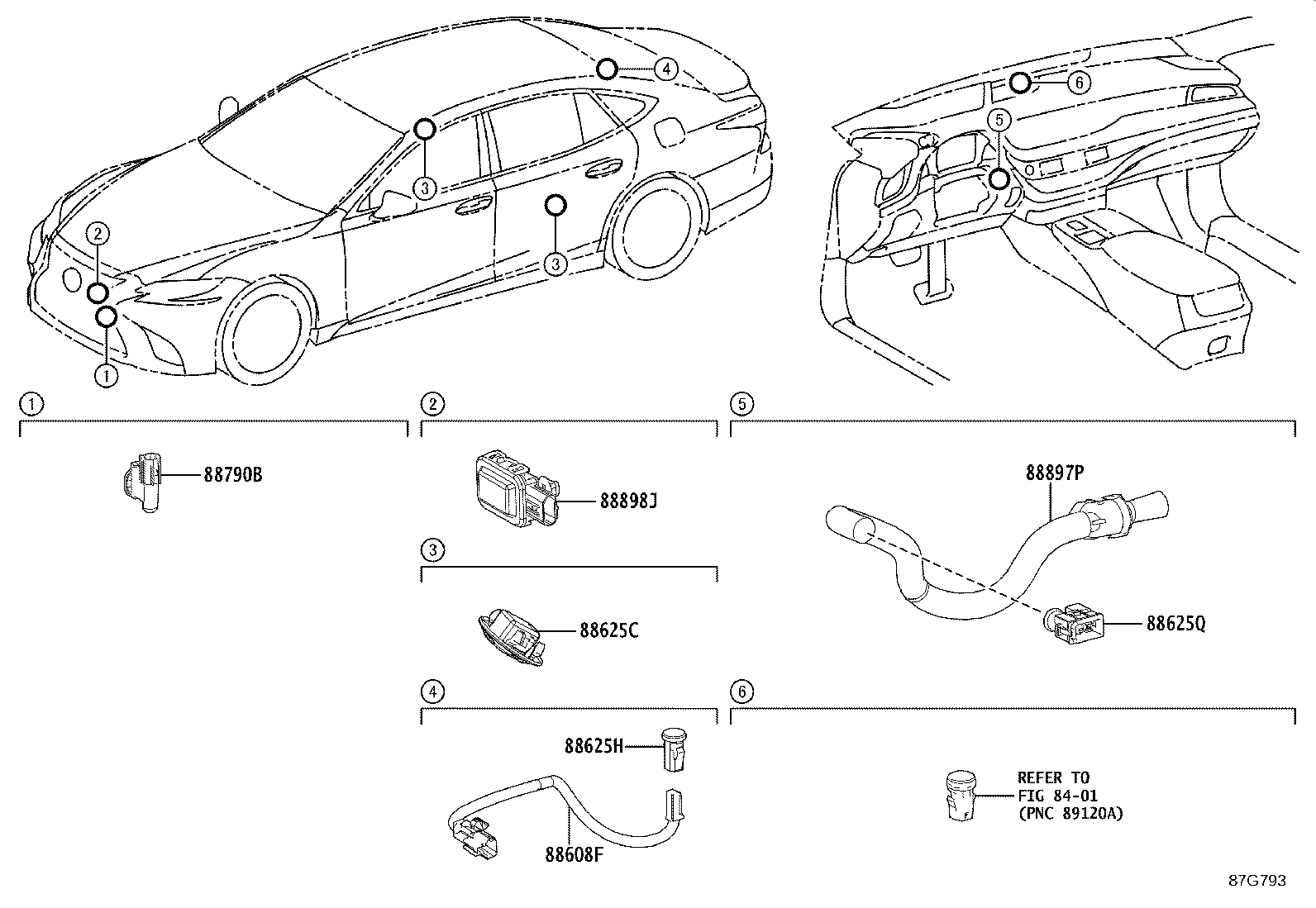

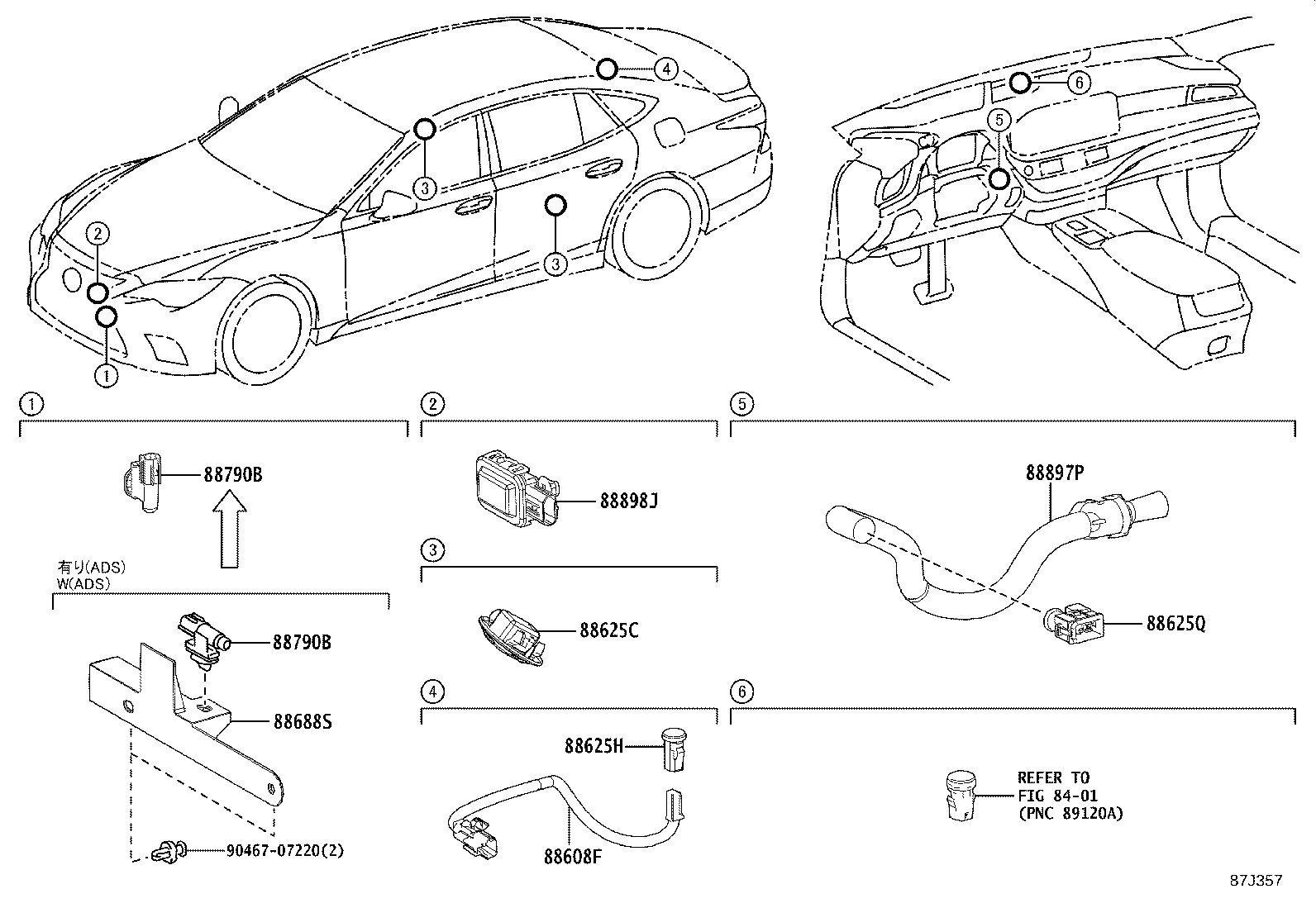

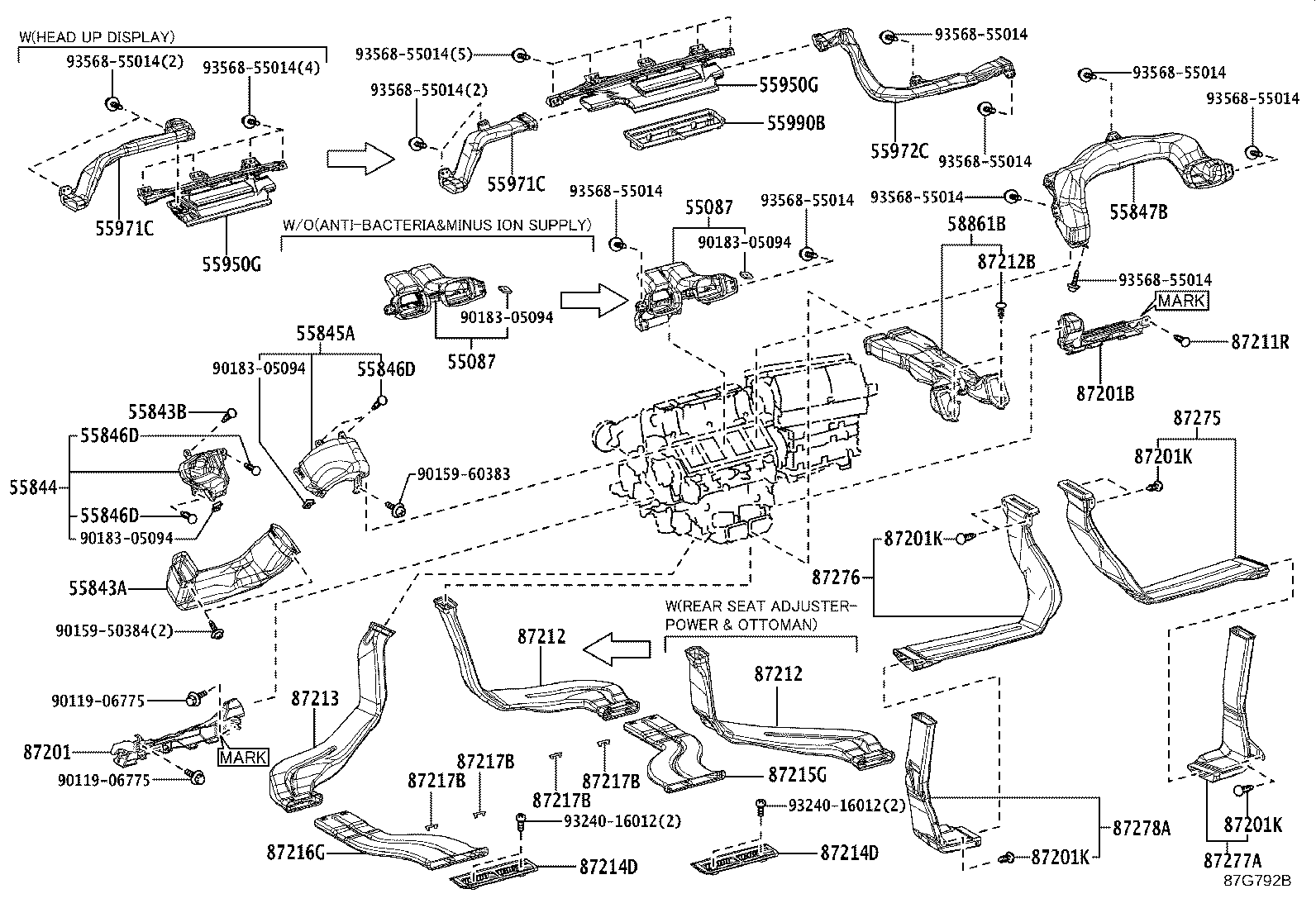

Figure 87G732A 87G732A 2017-10 → 2020-10 Figure 87G732A 87G732A 2020-10 → — Figure 87G791B 87G791B 2017-10 → 2020-10 Figure 87G791B 87G791B 2020-10 → — Figure 87G792B 87G792B 2017-10 → 2020-10 Figure 87G792B 87G792B 2020-10 → — Figure 87G730B 87G730B 2020-10 → — Figure 87J353E 87J353E 2020-10 → — Figure 87G793 87G793 2017-10 → 2020-10 Figure 87J357 87J357 2020-10 → —

Part groups

PNCDescription
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55843B Clip, Heater TO Register Duct
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846D Clip, Heater TO Register Duct
55847B Duct, Heater TO Register, NO.5
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
62971B Duct, Roof Side Air, NO.1 RH
62972C Duct, Roof Side Air, NO.1 LH
62973 Duct, Roof Side Air, NO.2 RH
62973A Clip, Air Duct
62974 Duct, Roof Side Air, NO.2 LH
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201K Clip (FOR AIR DUCT)
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87215G Guide, Air Duct, Rear RH
87215J Clip (FOR AIR REAR DUCT)
87216G Guide, Air Duct, Rear LH
87217B Plug, Air Duct
87275 Duct, Floor Heater Air, NO.1 RH
87276 Duct, Floor Heater Air, NO.1 LH
87277A Duct, Floor Heater Air, NO.2 RH
87278A Duct, Floor Heater Air, NO.2 LH
881B8 Duct, Advanced Drive, NO.2
881B9 Duct, Advanced Drive, NO.3
88608F Harness Sub-assy, Wiring Air Indicator, NO.2
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88790B Thermistor Assy
88897P Aspirator
88898J Sensor, Smog Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
