Toyota Lexus LS500/500H

2017-10 → present · chassis GVF5#,VXFA5# · catalogue 431460 · United States

Supported model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

31 part groups · 10 illustrations

Illustrations

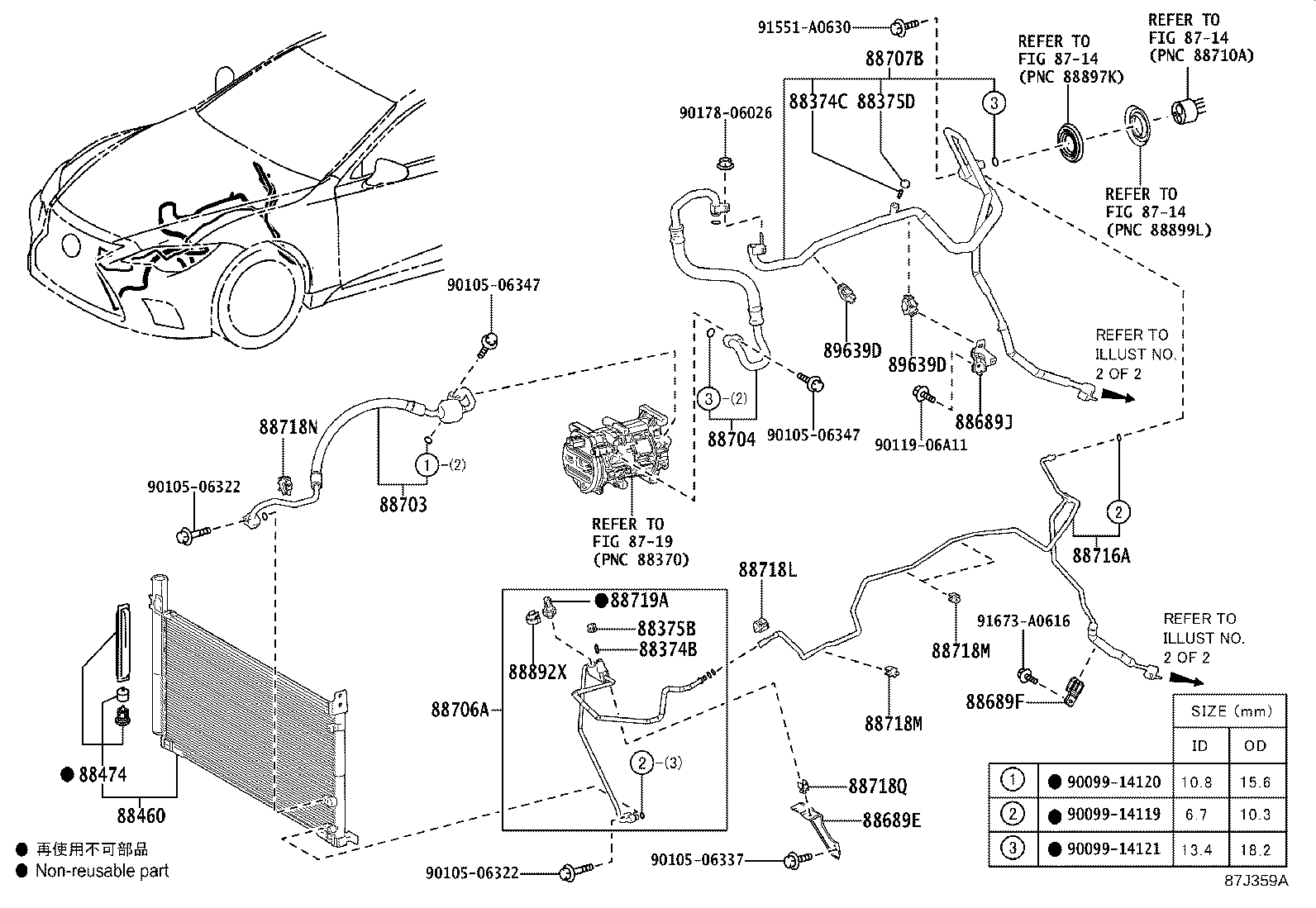

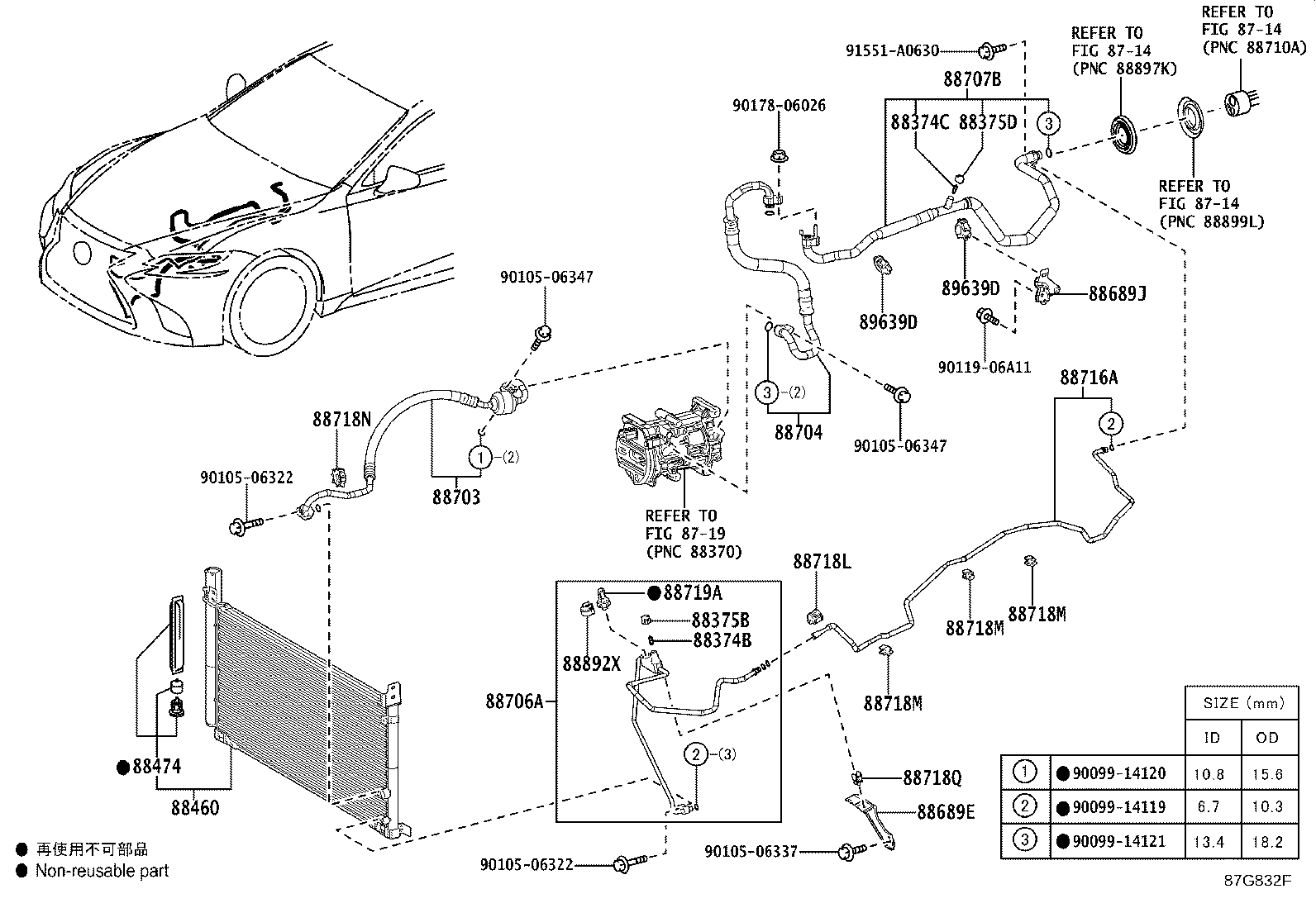

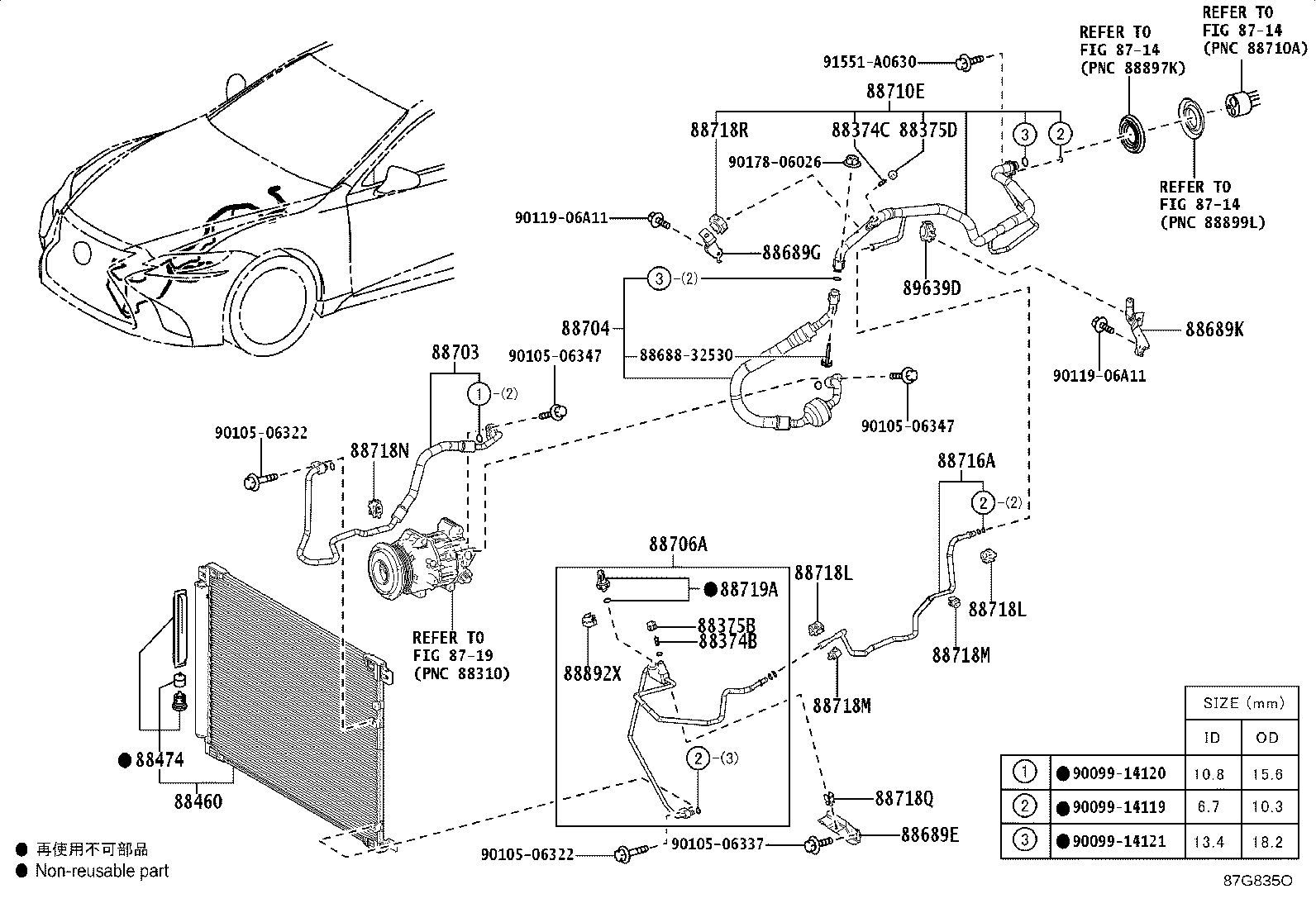

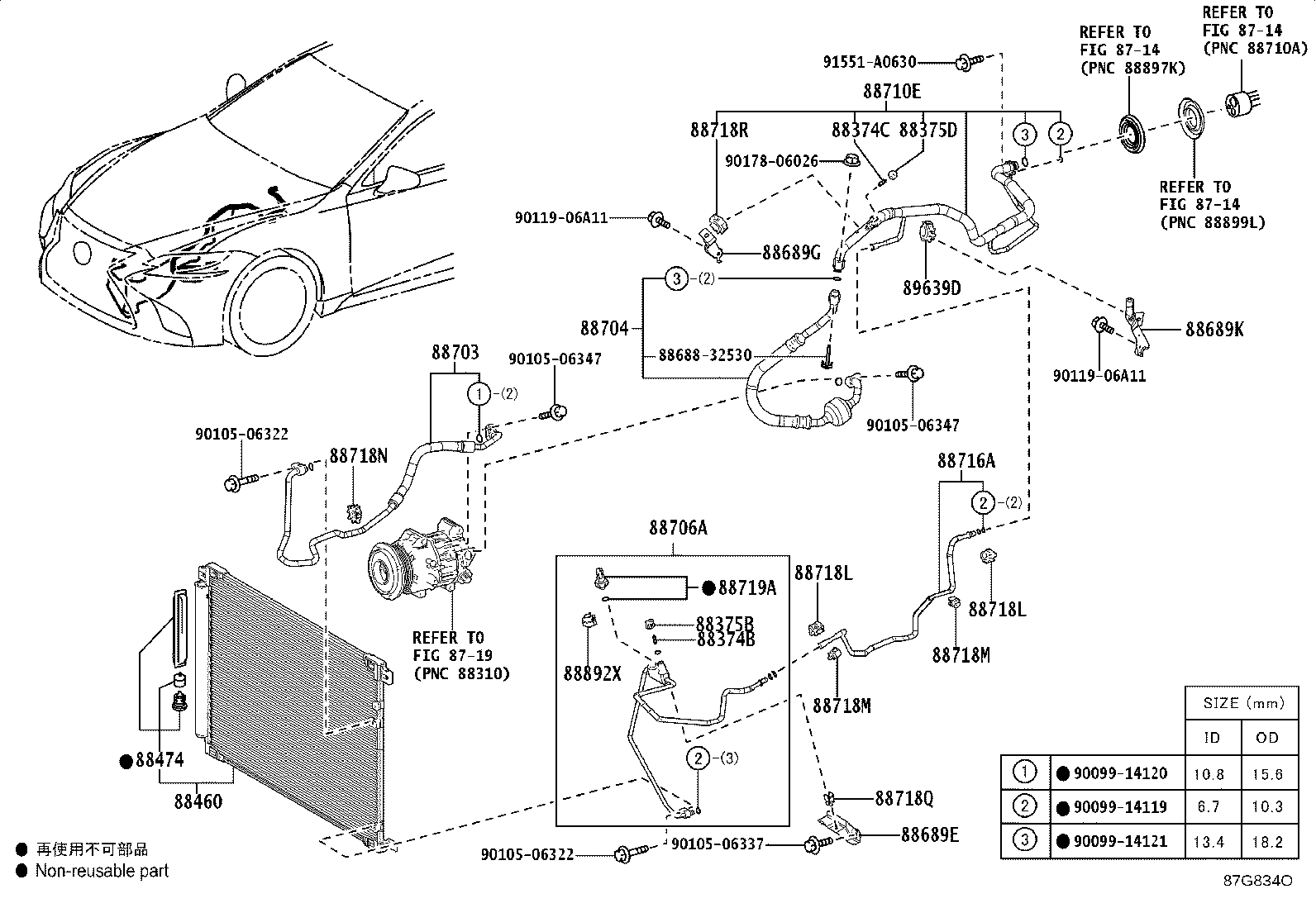

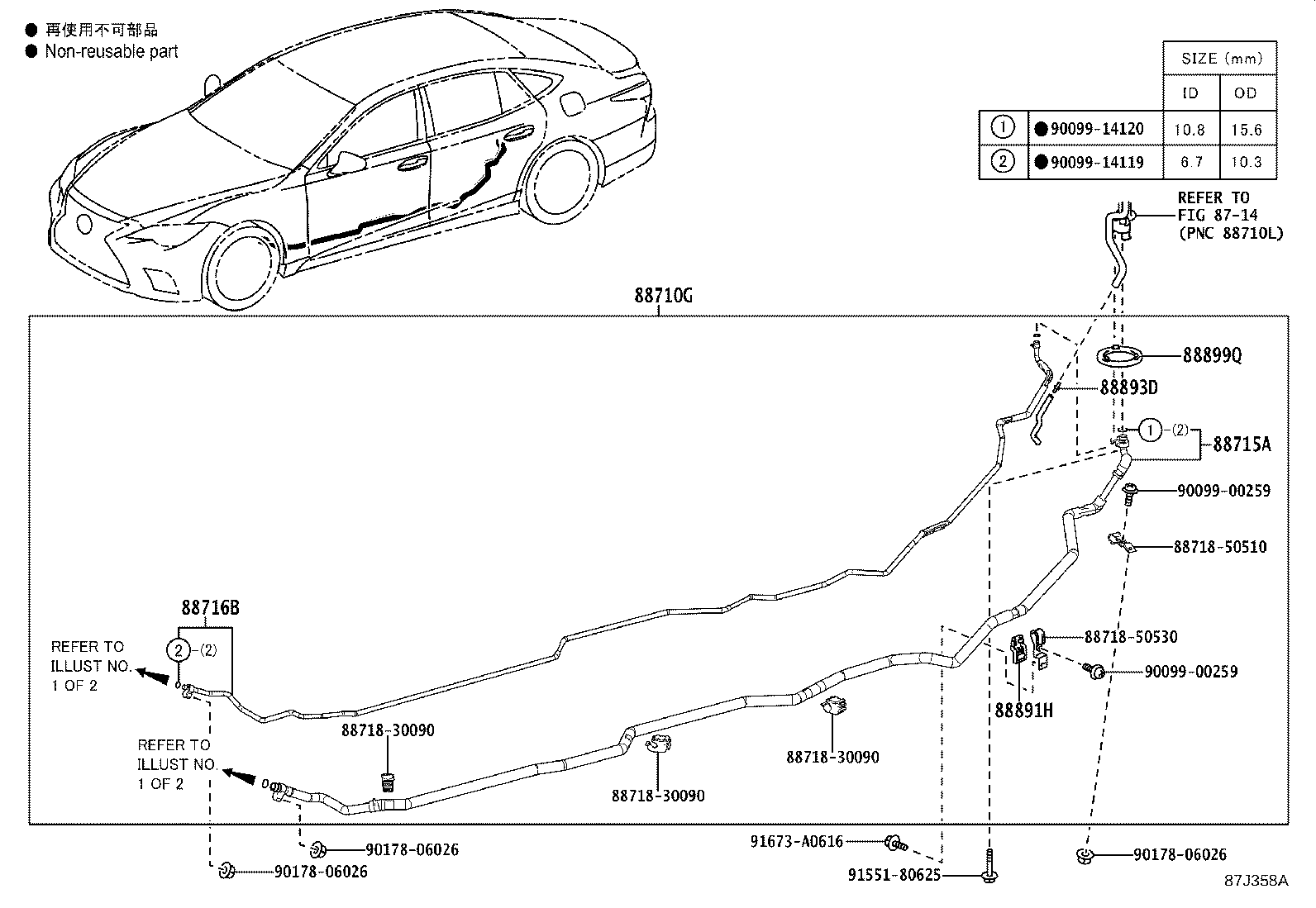

Figure 87G831G 87G831G 2017-10 → 2020-10 Figure 87G831G 87G831G 2020-10 → — Figure 87G832F 87G832F 2017-10 → 2020-10 Figure 87G832F 87G832F 2020-10 → — Figure 87G834O 87G834O 2017-12 → 2020-10 Figure 87G834O 87G834O 2020-10 → — Figure 87G835O 87G835O 2017-12 → 2020-10 Figure 87G835O 87G835O 2020-10 → — Figure 87J359A 87J359A 2020-10 → — Figure 87J358A 87J358A 2020-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689J Bracket, Cooler, NO.5
88689K Bracket, Cooler, NO.6
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88892X Cover, Cooler, NO.2
88893D Pipe, Drain Cooler
88899Q Plate, Cover
89639D Clamp, Airconditioner Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
