Toyota Lexus LS600HL
2007-04 → 2012-09 · chassis UVF46 · catalogue 432410 · United States
Supported model
Data version 2012-10

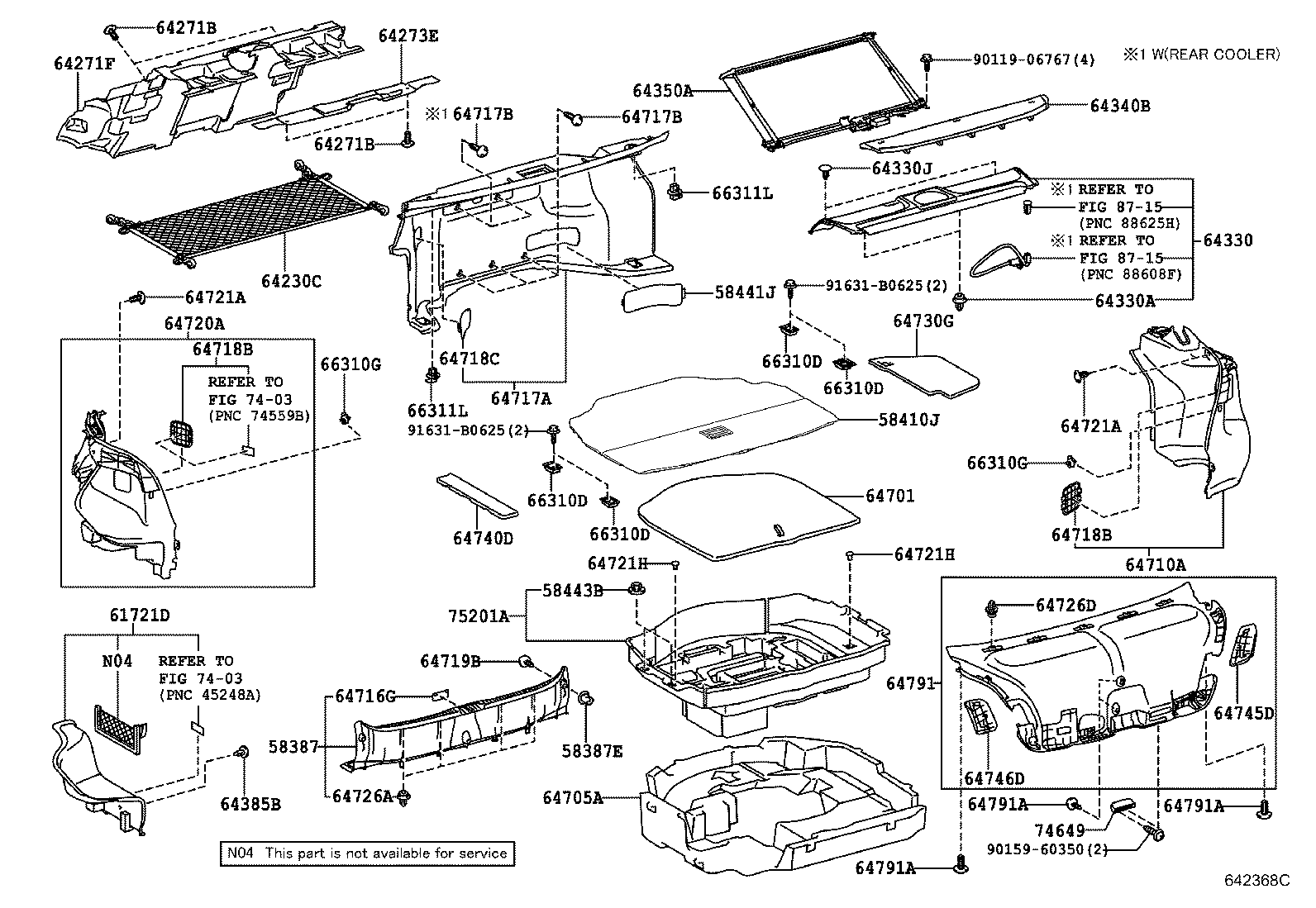

Package Tray Panel & Luggage Compartment Mat
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58410J | Board Assy, Deck |
| 58441J | Cover, Battery Service Hole |
| 58443B | Cushion, Deck Board, NO.1 |
| 61721D | Cover, Battery Service Hole, LH |
| 64230C | Net Assy, Room Partition |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271F | Trim, Room Partition |
| 64273E | Pad, Room Partition |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64385B | Clip |
| 64701 | Mat Sub-assy, Luggage Compartment |
| 64705A | Guard Sub-assy, Spare Wheel |
| 64707H | Guard Sub-assy, Spare Wheel, NO.2 |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718B | Cover, Luggage Trim Service Hole |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64720A | Cover Assy, Luggage Compartment Trim, LH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726A | Clip, Luggage Trim, Rear |
| 64726D | Clip, Luggage Trim, Rear |
| 64730G | Board, Deck Trim Side, RH |
| 64740D | Board, Deck Trim Side, LH |
| 64745D | Cover, Rear Combination Lamp Service, RH |
| 64746D | Cover, Rear Combination Lamp Service, LH |
| 64777 | Clamp, Spare Wheel Cover |
| 64791 | Cover, Back Door Trim |
| 64791A | Clip(FOR BACK DOOR TRIM) |
| 66310D | Hook Assy, Rope |
| 66310G | Hook Assy, Rope |
| 66311L | Hook,Rope |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
