Toyota Lexus LS600HL
2007-04 → 2012-09 · chassis UVF46 · catalogue 432410 · United States
Supported model
Data version 2012-10
Meter
7 part groups · 2 illustrations
Part groups

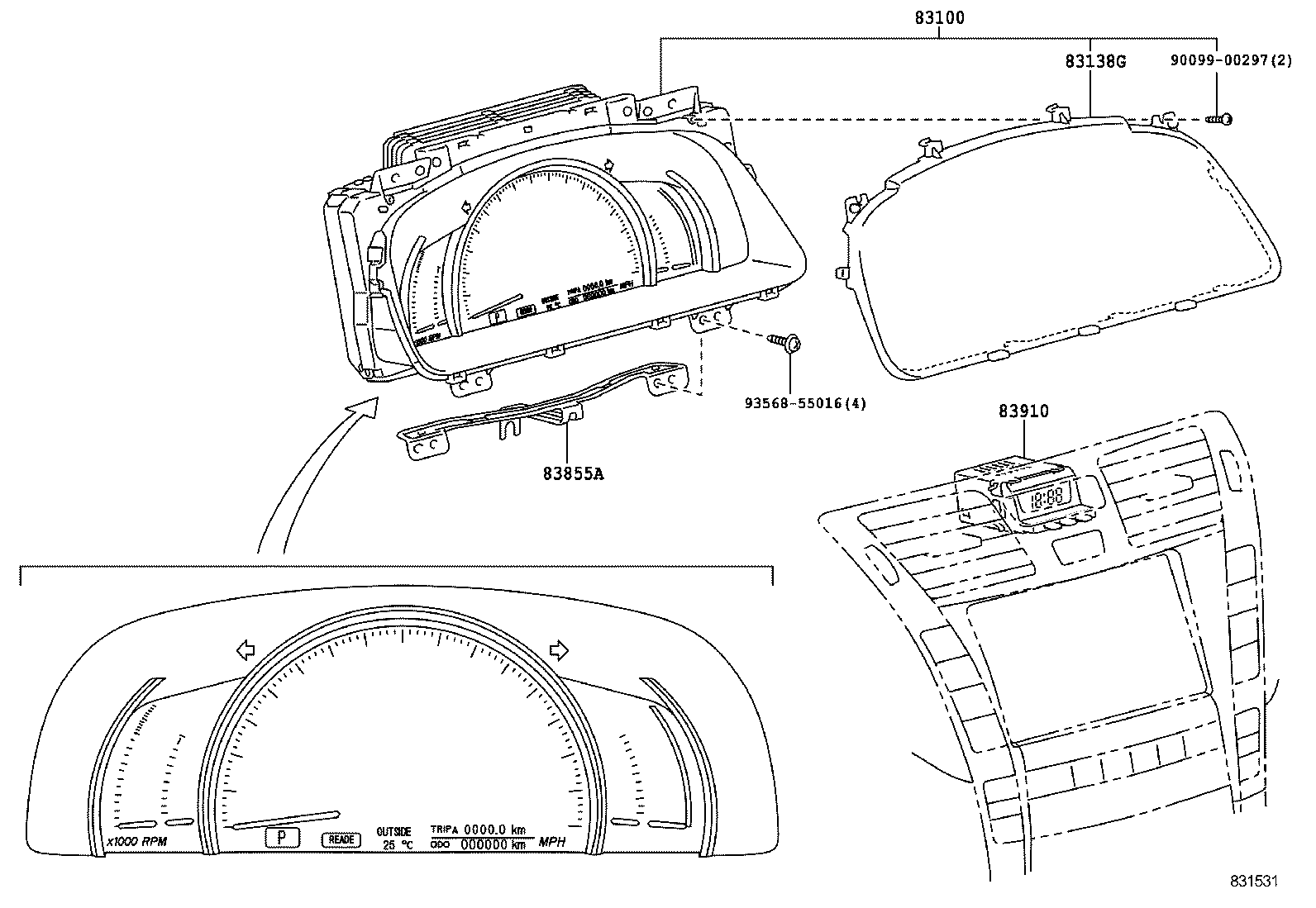

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83138G | Glass, Combination Meter |
| 83295 | Panel, Meter Display |
| 83801 | Computer Sub-assy, Meter NO.1 |
| 83855 | Bracket, Combination Meter, NO.1 |
| 83855A | Bracket, Combination Meter, NO.1 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
