Toyota Lexus LS600HL

2007-04 → 2012-09 · chassis UVF46 · catalogue 432410 · United States

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

18 part groups · 3 illustrations

Illustrations

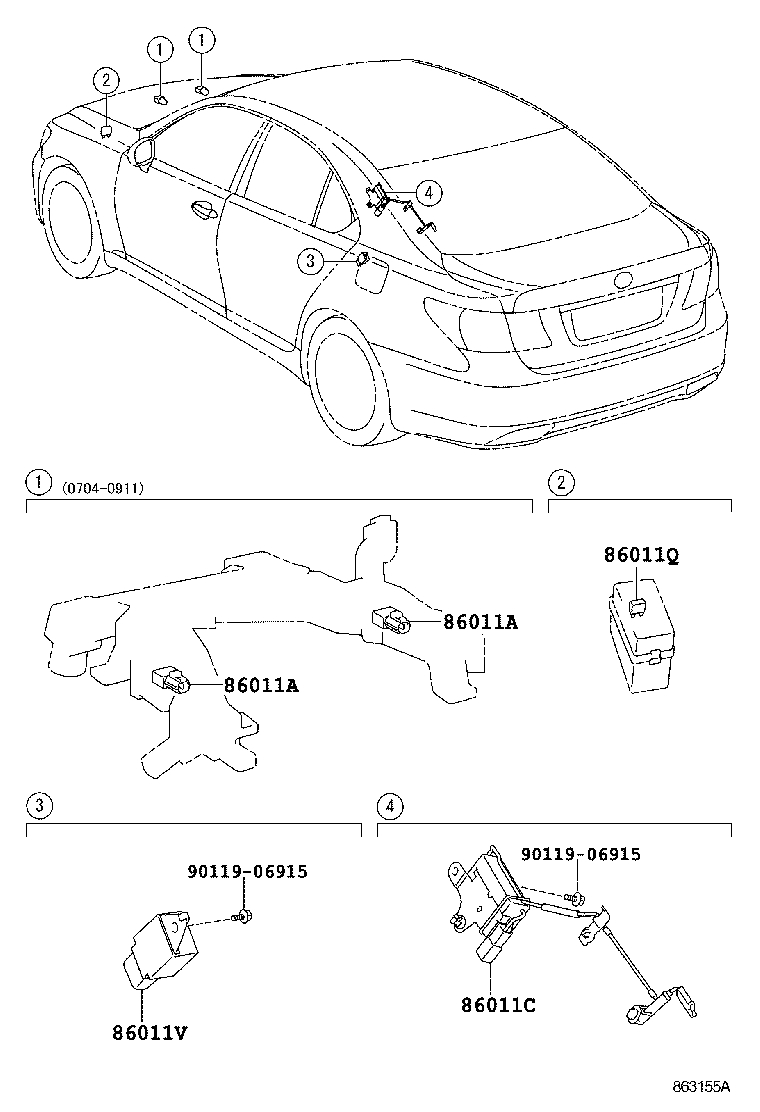

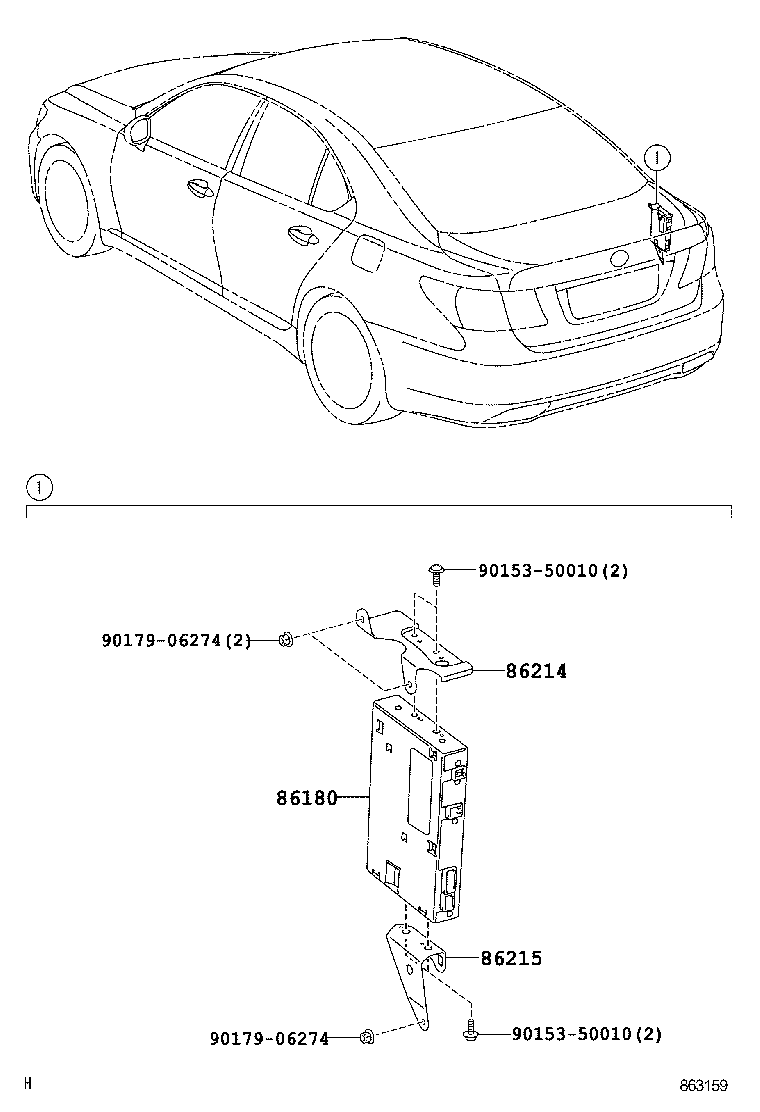

Figure 864066B 864066B 2007-04 → — Figure 863159 863159 2007-04 → 2009-11 Figure 863155A 863155A 2007-04 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86180 Tuner Assy, Stereo Component
86190C Adapter Assy, Stereo Jack, NO.1
86191B Terminal, Video(VIDEO ADAPTER)
861A0 Computer Assy, Multi-media Interface
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86214 Bracket, Radio, NO.4
86215 Bracket, Radio, NO.5
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
