Toyota Lexus LS600HL

2007-04 → 2012-09 · chassis UVF46 · catalogue 432410 · United States

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

11 part groups · 2 illustrations

Illustrations

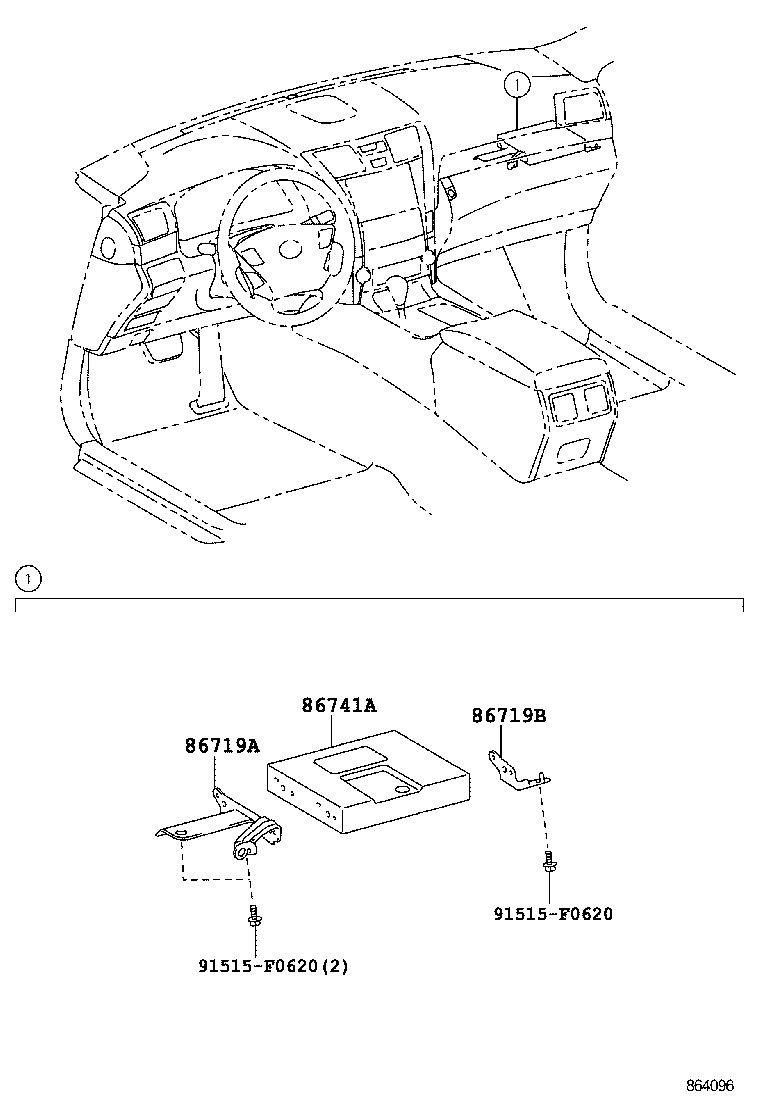

Figure 863164 863164 2007-04 → 2009-11 Figure 864096 864096 2009-11 → —

Part groups

PNCDescription
86710 Computer Assy, Telephone
86713 Wire, Telephone Computer
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86729A Bracket, Mobilephone, NO.1
86729B Bracket, Mobilephone, NO.2
86729C Bracket, Mobilephone, NO.3
86729F Bracket, Mobilephone, NO.4
86741A Transceiver, Telematics
86777 Battery, Mayday
89112 Computer, Bus Buffer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
