Toyota Lexus LS600HL

2012-09 → 2017-08 · chassis UVF46 · catalogue 432420 · United States

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

24 part groups · 2 illustrations

Illustrations

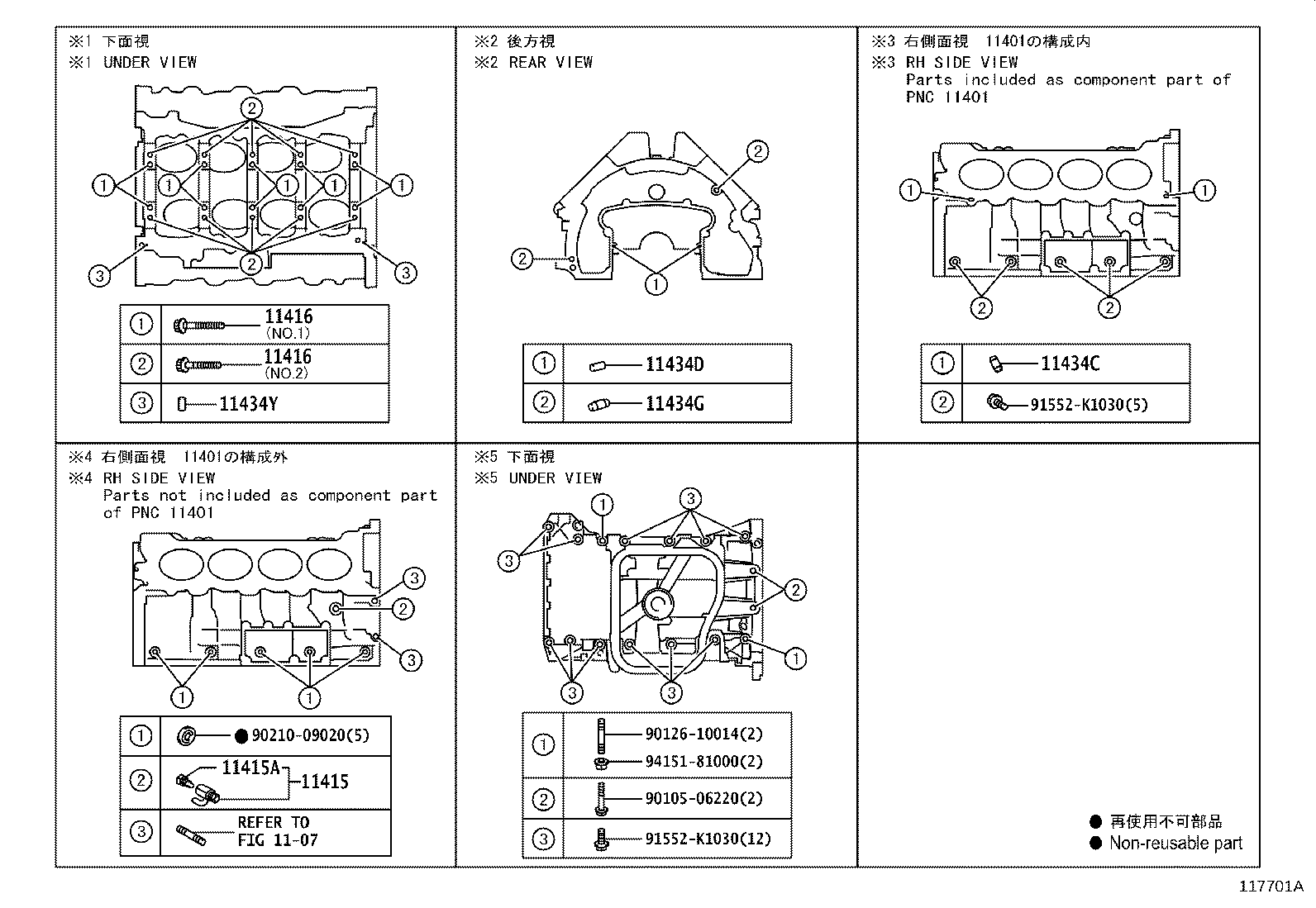

Figure 117700B 117700B 2012-09 → — Figure 117701A 117701A 2012-09 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434Y Pin, Straight(FOR OIL PAN)
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12122 Plate, Oil Pan Baffle, NO.2
12258A Gasket, Oil Return Pipe
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
28193 Insulator, Starter Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
