Toyota Lexus LS600HL
2012-09 → 2017-08 · chassis UVF46 · catalogue 432420 · United States
Supported model
Data version 2018-03

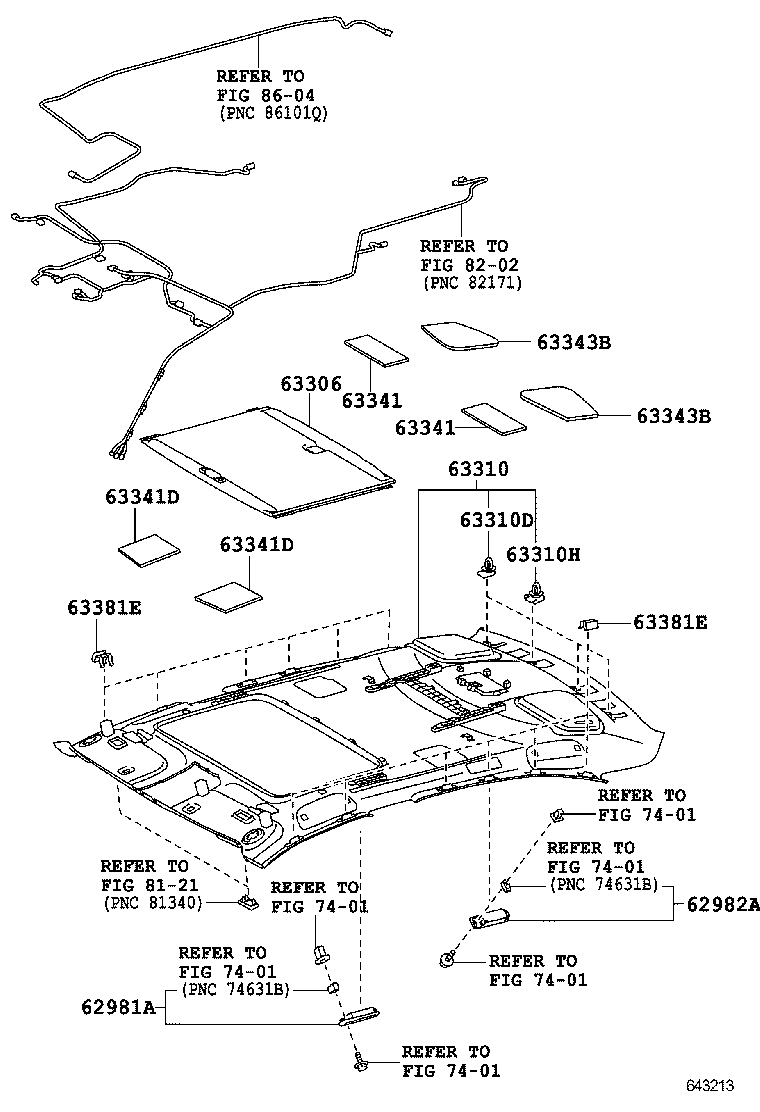

Roof Headlining & Silencer Pad
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62981A | Bezel, Roof Side Register, RH |
| 62982A | Bezel, Roof Side Register, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341D | Pad, Roof Silencer, Front |
| 63341G | Pad, Roof Silencer |
| 63343B | Pad, Roof Silencer, Rear |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63395 | Clip, Roof Headlining Trim |
| 63412B | Retainer, Roof Console |
| 63650A | Box Assy, Roof Console |
| 63662B | Plate, Roof Console |
| 88644 | Sensor, Air Conditioner Infrared Rays |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
