Toyota Lexus LS600HL
2012-09 → 2017-08 · chassis UVF46 · catalogue 432420 · United States
Supported model
Data version 2018-03
Caution Plate (EXTERIOR & INTERIOR)
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

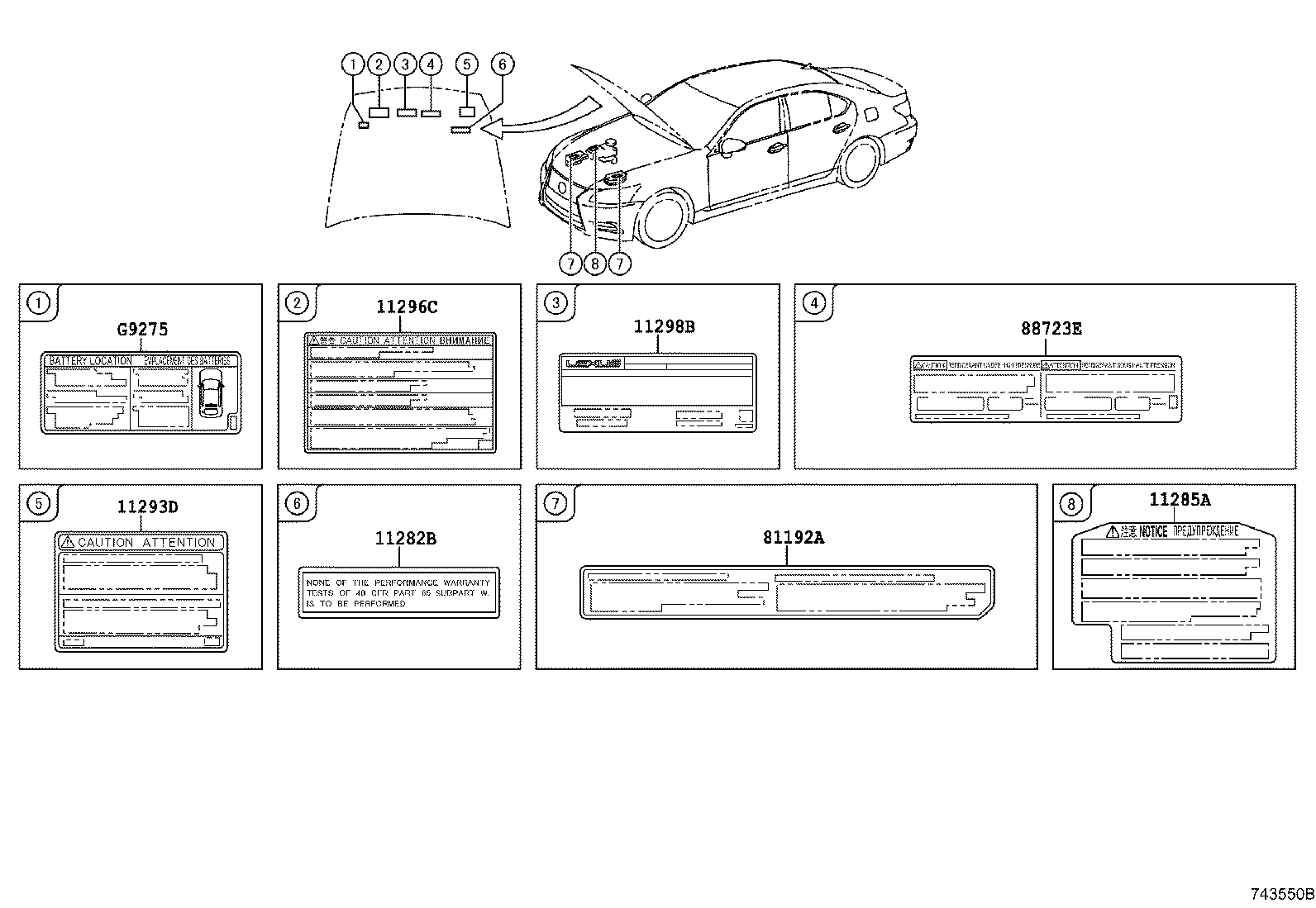

| 11282B | Label, Loaded Testing Caution |
| 11285A | Label, Coolant System Notice |
| 11285F | Label, Coolant System Caution |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 45248A | Label, Steering Actuator Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |

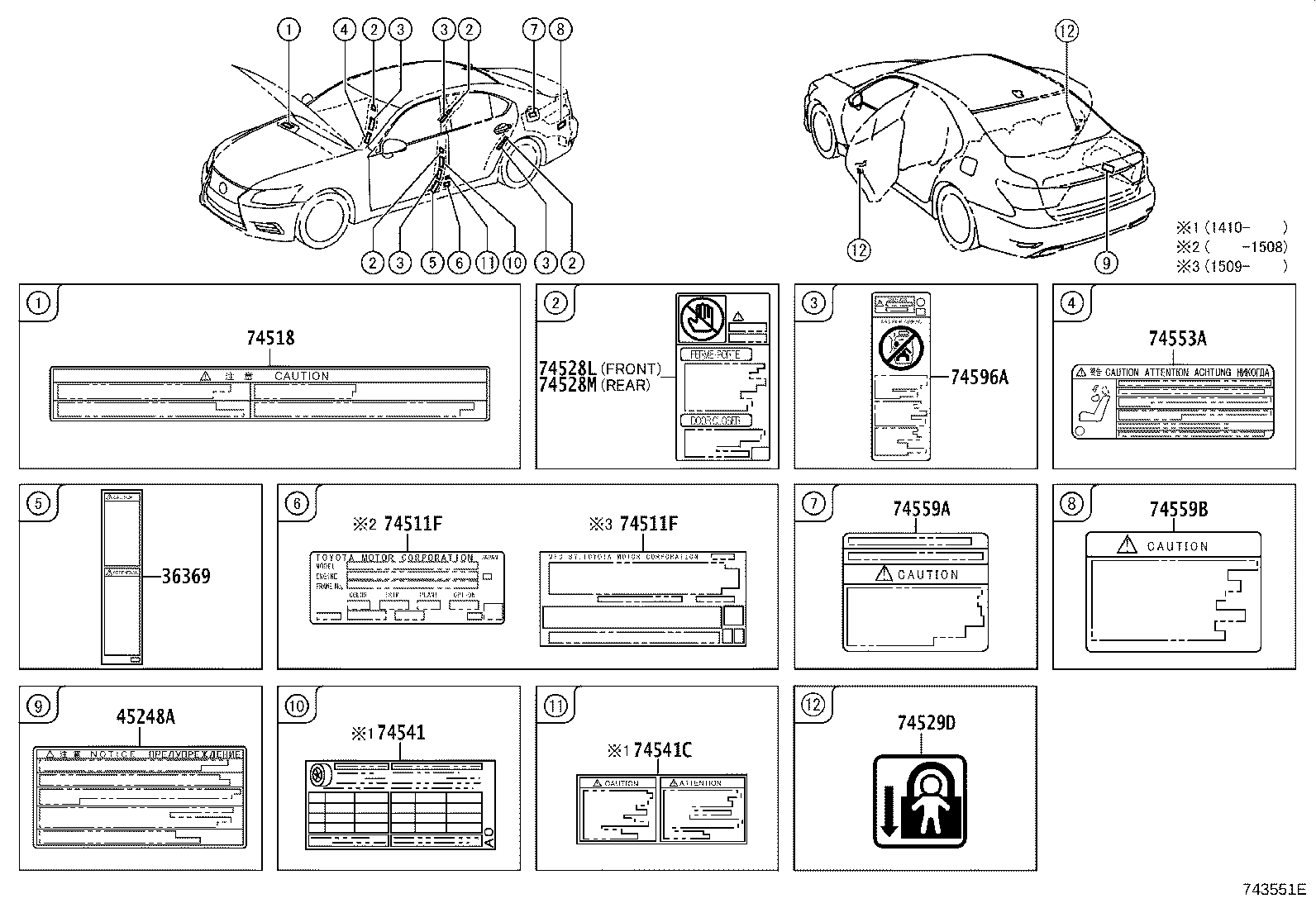

| 74518 | Plate, Maintenance Caution |
| 74528L | Label, Door Closer Caution, Front |
| 74528M | Label, Door Closer Caution, Rear |
| 74529D | Plate, Child Protector Lock Caution |

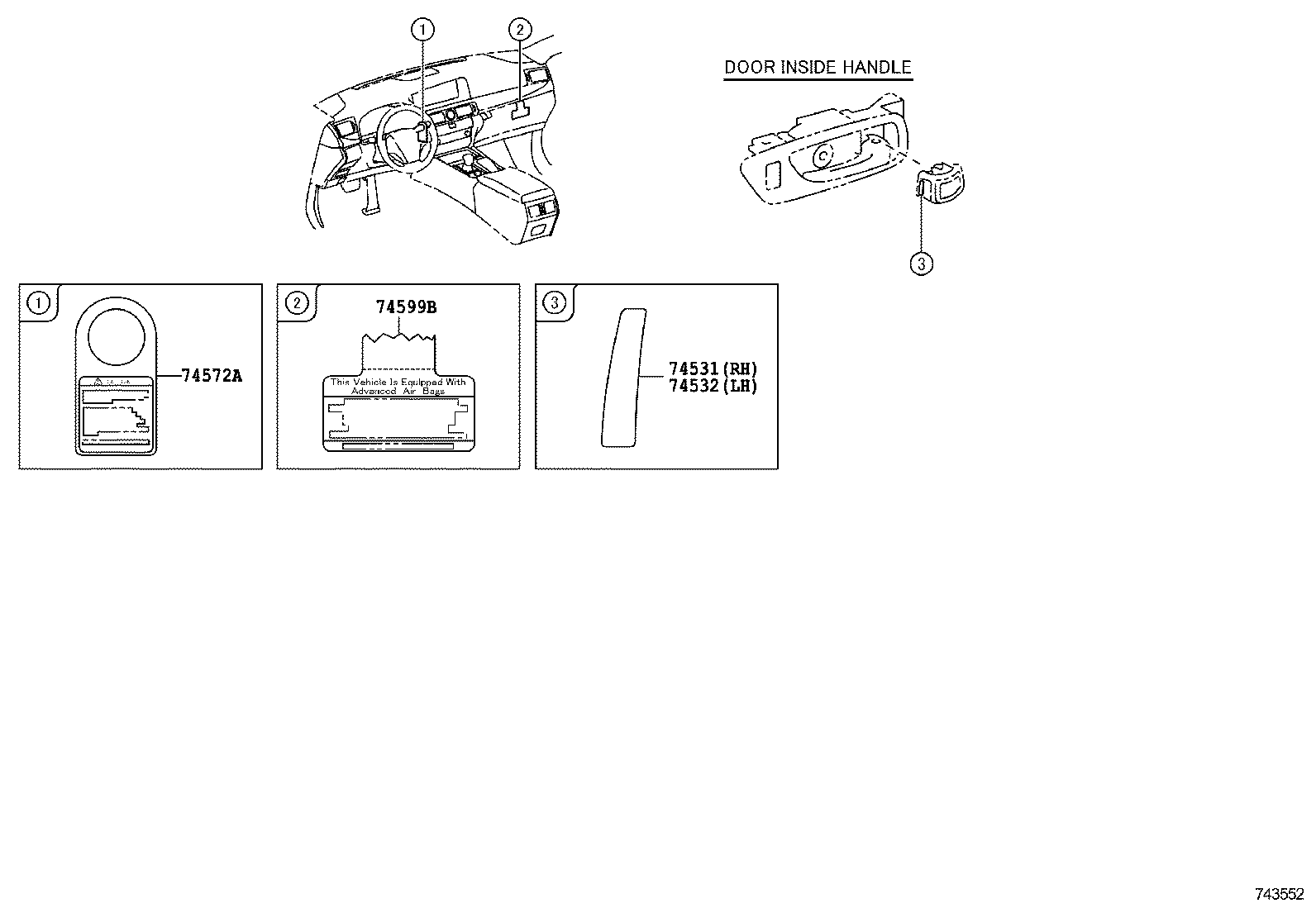

| 74531 | Plate, Door Inside Handle Caution, RH |
| 74532 | Plate, Door Inside Handle Caution, LH |
| 74541 | Plate, Tire Pressure Caution |
| 74541C | Plate, Runflat Tire Caution |
| 74553A | Plate, Front Seat Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74572A | Label, Fuel Inlet Operational Information |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 81192A | Seal, Headlamp |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
