Toyota Lexus LS600HL

2012-09 → 2017-08 · chassis UVF46 · catalogue 432420 · United States

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

20 part groups · 3 illustrations

Illustrations

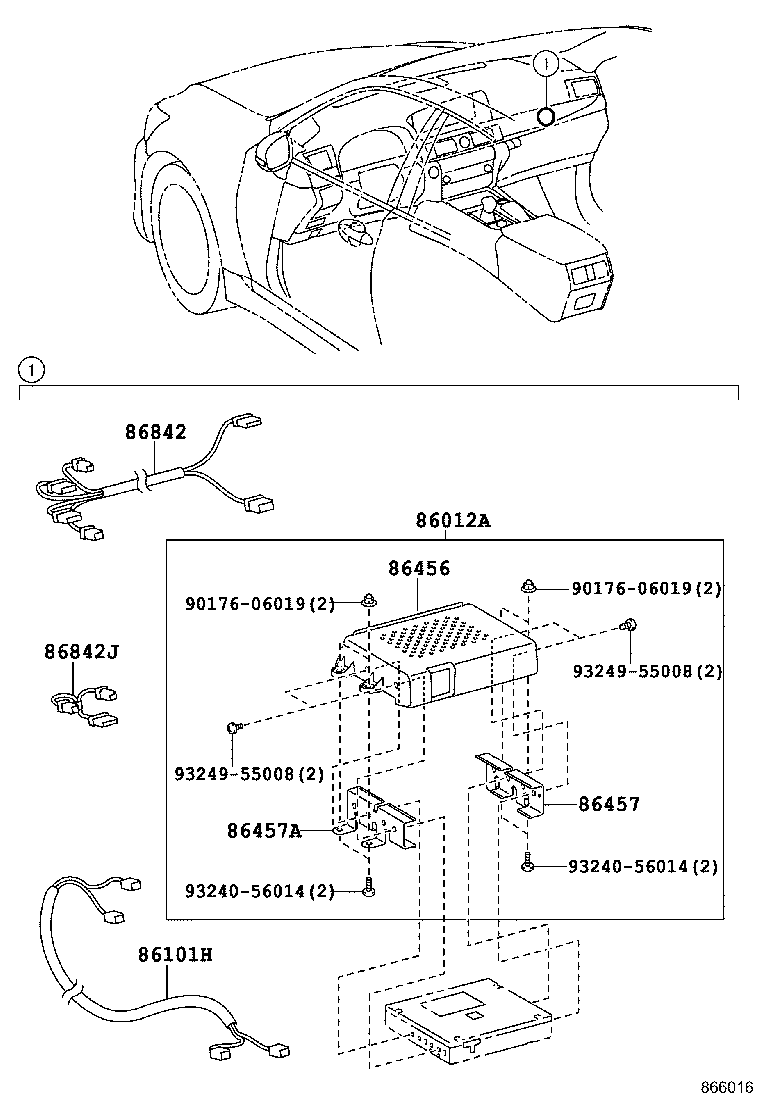

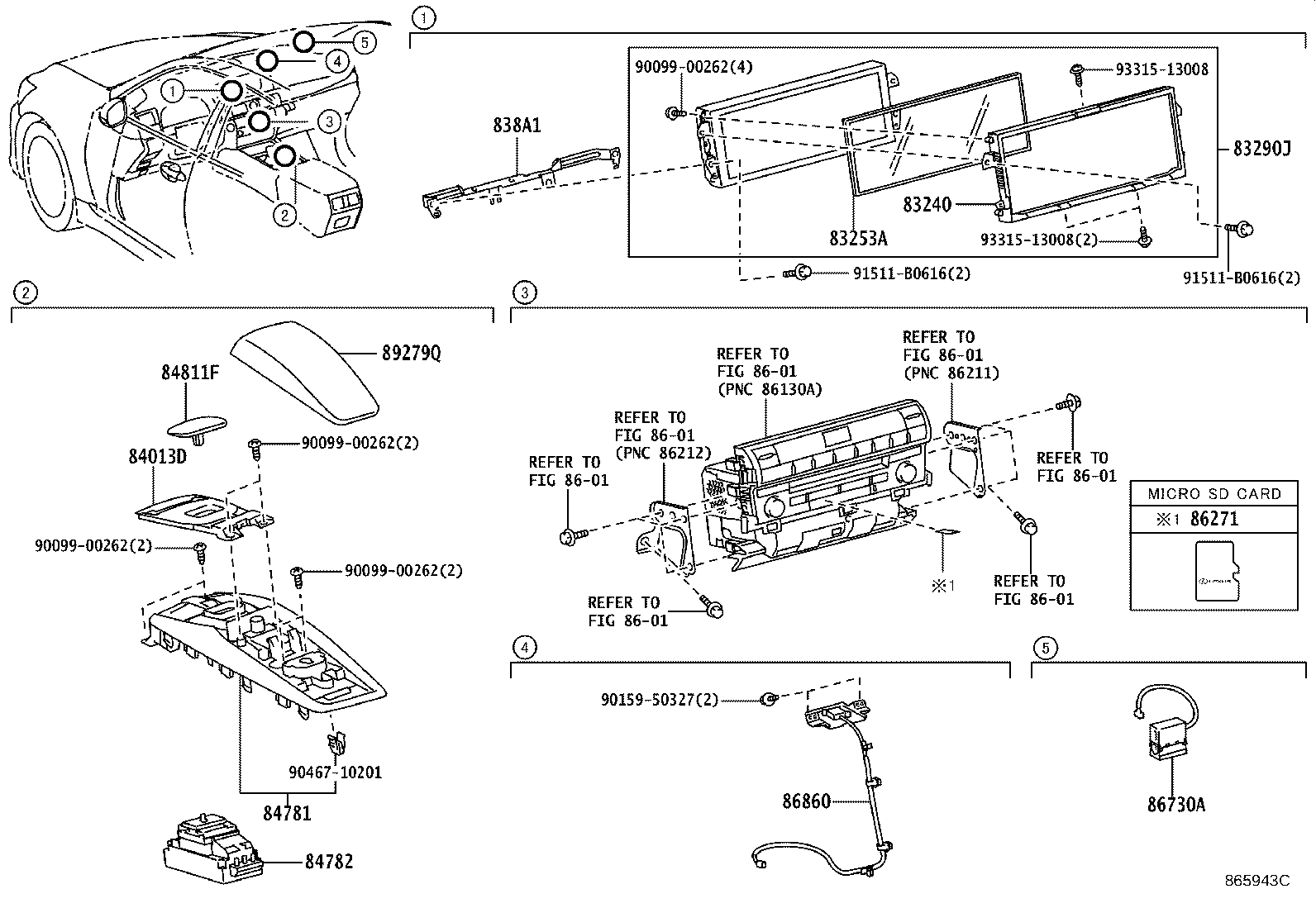

Figure 865289E 865289E 2012-09 → 2014-10 Figure 865943C 865943C 2014-10 → — Figure 866016 866016 2014-10 → —

Part groups

PNCDescription
83240 Case Assy, Multi Information Display
83253A Glass, Accessory Meter
83290J Meter Assy, Accessory
838A1 Bracket, Combination Meter
84013D Panel Sub-assy, Integration
84781 Switch, Remote Operation
84782 Board, Remote Operation
84811F Knob, Switch
86012A Parts Set, Radio Setting
86101H Cord Sub-assy, Antenna
86271 Disc, Disc Player
86271L Hard Disc
86456 Cover, Multi-media Module
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86860 Antenna Assy, Navigation
89279Q Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
