Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433410 · United States

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

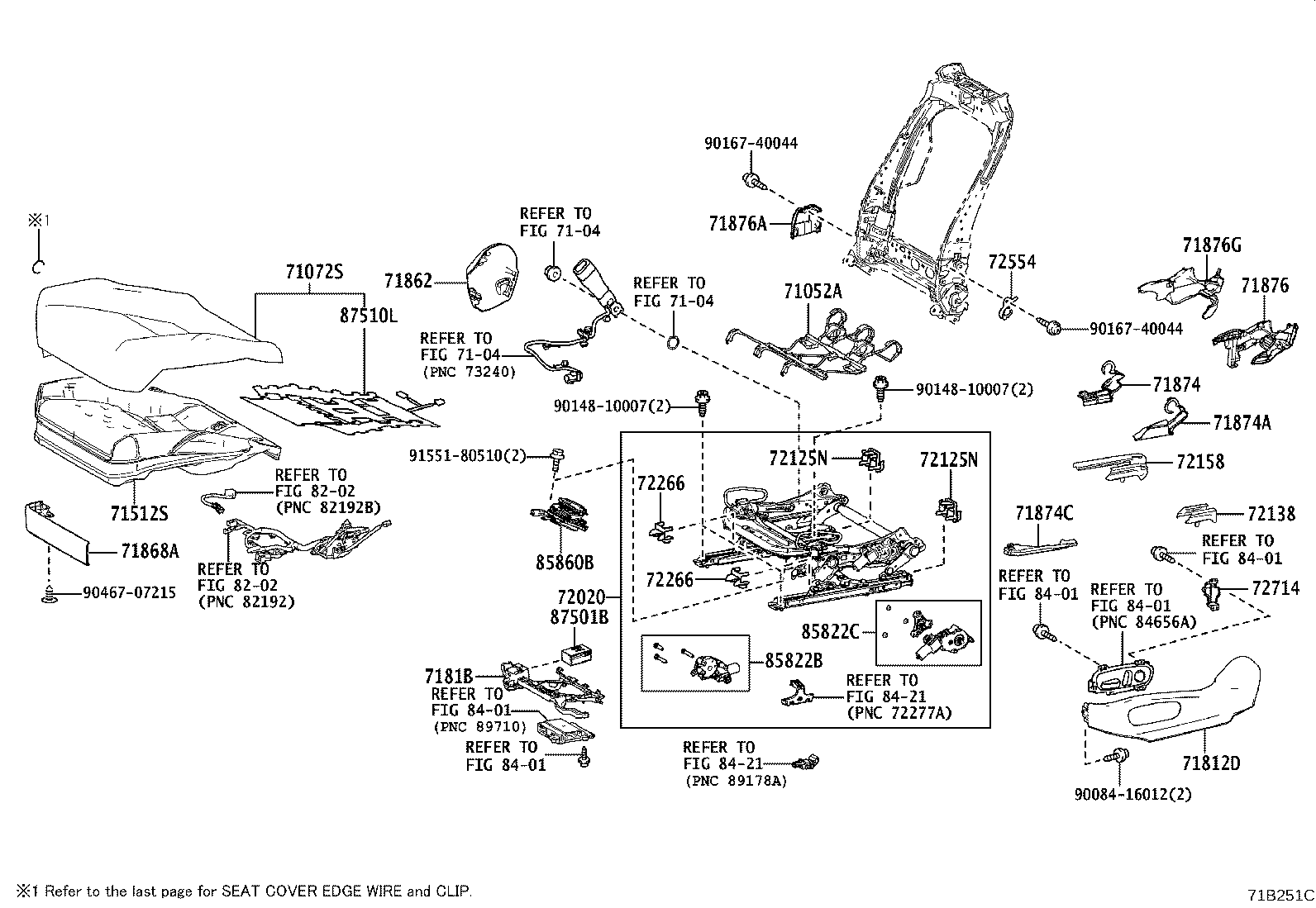

Exploded illustration 71B251C 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (46 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (1 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (46 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (1 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (7 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (7 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71874C — SHIELD, FRONT SEAT CUSHION, LOWER (1 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (7 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (7 parts) 72138 — COVER, SEAT TRACK, OUTER LH (3 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (3 parts) 72554 — PROTECTOR, RECLINING COVER, LH (1 parts) 72714 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH (1 parts) 85860B — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH (1 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (1 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (1 parts) 9008416012 — not listed in this catalogue 9014810007 — not listed in this catalogue 9014810007 — not listed in this catalogue 9016740044 — not listed in this catalogue 9046707215 — not listed in this catalogue 9155180510 — not listed in this catalogue 7104 — not listed in this catalogue 8421 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8421 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72266 — COVER, SEAT TRACK UPPER RAIL, LH (1 parts) 72125N — COVER, SEAT TRACK, UPPER NO.4 (1 parts) 72125N — COVER, SEAT TRACK, UPPER NO.4 (1 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (1 parts) 85822C — MOTOR ASSY, POWER SEAT LIFTER, LH (1 parts) 85822B — MOTOR ASSY, POWER SEAT TILT, LH (1 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9016740044 — not listed in this catalogue 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts)
71B251C · 27 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
143 parts on this figure
Part number Description Fitment Price
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-11010 Spring Sub-assy, Front Seat Cushion, LH
2017-01 → —
GWZ100,URZ100 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-11040-C6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11040-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2021-11 ended
GWZ100,URZ100 —
71072-11040-C8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11040-D6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11040-D7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11040-E4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11040-E5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2021-11 ended
GWZ100,URZ100 —
71072-11040-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11080-20 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-20 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-22 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → 2022-02 ended
GWZ100,URZ100 —
71072-11080-22 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → 2022-02 ended
GWZ100,URZ100 —
71072-11080-22 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → —
GWZ100,URZ100 —
71072-11080-22 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → —
GWZ100,URZ100 —
71072-11080-23 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11080-23 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11080-25 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → —
GWZ100,URZ100 —
71072-11080-25 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → —
GWZ100,URZ100 —
71072-11080-A3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-A3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-A5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11080-A5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11080-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-C8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-C8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-D6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-D6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-D7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11080-D7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11080-D8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-D8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-D9 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11080-D9 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11080-E4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-E4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-01 → 2018-09 ended
GWZ100,URZ100 —
71072-11080-E5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-E5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11080-E5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71072-11080-E5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11080-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11080-E6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-11 → —
GWZ100,URZ100 —
71072-11120-A4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71072-11120-A4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71072-11180-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71072-11180-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-11010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-01 → —
GWZ100,URZ100 —
71812D — Shield, Front Seat Cushion, LH
71812-11020 note Shield, Front Seat Cushion, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71812-11020 note Shield, Front Seat Cushion, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71812-11020-C3 note Shield, Front Seat Cushion, LH
2017-01 → —
GWZ100,URZ100 —
71812-11020-C3 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-C3 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-11 → 2022-01 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-C8 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-C9 note Shield, Front Seat Cushion, LH
2022-02 → —
GWZ100,URZ100 —
71812-11020-C9 note Shield, Front Seat Cushion, LH
2022-02 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2017-01 → 2019-09 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E3 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E6 note Shield, Front Seat Cushion, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-11 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → —
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2021-01 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-E8 note Shield, Front Seat Cushion, LH
2020-04 → 2021-11 ended
GWZ100,URZ100 —
71812-11020-J2 note Shield, Front Seat Cushion, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71812-11020-J2 note Shield, Front Seat Cushion, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-11010 Holder, Front Seat Cushion Wire Harness, LH
2017-01 → —
GWZ100,URZ100 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-11010-C1 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71862-11010-C1 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71862-11010-C1 note Shield, Front Seat Cushion, Inner LH
2017-01 → —
GWZ100,URZ100 —
71862-11010-E1 note Shield, Front Seat Cushion, Inner LH
2017-01 → —
GWZ100,URZ100 —
71862-11010-E3 note Shield, Front Seat Cushion, Inner LH
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71862-11010-J0 note Shield, Front Seat Cushion, Inner LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71862-11010-J0 note Shield, Front Seat Cushion, Inner LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-11010-C2 note Shield, Front Seat Cushion, Inner NO.1 LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71868-11010-C2 note Shield, Front Seat Cushion, Inner NO.1 LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71868-11010-C2 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → —
GWZ100,URZ100 —
71868-11010-E3 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → —
GWZ100,URZ100 —
71868-11010-E5 note Shield, Front Seat Cushion, Inner NO.1 LH
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71868-11010-J0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71868-11010-J0 note Shield, Front Seat Cushion, Inner NO.1 LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71874 — Shield, Front Seat Cushion, Lower LH
71874-11010-C1 note Shield, Front Seat Cushion, Lower LH
2017-01 → —
GWZ100,URZ100 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-47070 Shield, Front Seat Cushion, Lower LH
2017-01 → —
GWZ100,URZ100 —
71874C — Shield, Front Seat Cushion, Lower
71874-47090 Shield, Front Seat Cushion, Lower
2017-01 → —
GWZ100,URZ100 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-11020-C1 note Cover, Reclining Adjuster Inside, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71876-11020-C1 note Cover, Reclining Adjuster Inside, LH
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71876-11020-C1 note Cover, Reclining Adjuster Inside, LH
2017-01 → —
GWZ100,URZ100 —
71876-11020-E1 note Cover, Reclining Adjuster Inside, LH
2017-01 → —
GWZ100,URZ100 —
71876-11020-E3 note Cover, Reclining Adjuster Inside, LH
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71876-11020-J0 note Cover, Reclining Adjuster Inside, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71876-11020-J0 note Cover, Reclining Adjuster Inside, LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71876A — Cover, Reclining Adjuster Inside, LH
71876-11030 Cover, Reclining Adjuster Inside, LH
2017-01 → —
GWZ100,URZ100 —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-11010-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 —
71876-11010-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71876-11010-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-09 → 2019-06 ended
GWZ100,URZ100 —
71876-11010-E1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → —
GWZ100,URZ100 —
71876-11010-E3 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2019-09 → 2020-04 ended
GWZ100,URZ100 —
71876-11010-J0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → 2020-04 ended
GWZ100,URZ100 —
71876-11010-J0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-01 → 2020-04 ended
GWZ100,URZ100 —
72020 — Adjuster Assy, Front Seat, LH
72020-11020 Adjuster Assy, Front Seat, LH
2017-01 → —
GWZ100,URZ100 —
72125N — Cover, Seat Track, Upper NO.4
72125-47020 Cover, Seat Track, Upper NO.4
2017-01 → —
GWZ100,URZ100 —
72138 — Cover, Seat Track, Outer LH
72137-11010-C1 note Cover, Seat Track, Outer LH
2017-01 → —
GWZ100,URZ100 —
72137-11010-E1 note Cover, Seat Track, Outer LH
2017-01 → —
GWZ100,URZ100 —
72137-11010-J0 note Cover, Seat Track, Outer LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-11010-C1 note Cover, Seat Track Bracket, Inner LH
2017-01 → —
GWZ100,URZ100 —
72158-11010-E1 note Cover, Seat Track Bracket, Inner LH
2017-01 → —
GWZ100,URZ100 —
72158-11010-J0 note Cover, Seat Track Bracket, Inner LH
2017-01 → 2020-04 ended
GWZ100,URZ100 —
72266 — Cover, Seat Track Upper Rail, LH
72265-47020 Cover, Seat Track Upper Rail, LH
2017-01 → —
GWZ100,URZ100 —
72554 — Protector, Reclining Cover, LH
72554-11010 Protector, Reclining Cover, LH
2017-01 → —
GWZ100,URZ100 —
72714 — Bracket, Seat Adjuster Shield Clamp, LH
72714-11010 Bracket, Seat Adjuster Shield Clamp, LH
2017-01 → —
GWZ100,URZ100 —
85822B — Motor Assy, Power Seat Tilt, LH
85801-11040 Motor Assy, Power Seat Tilt, LH
2017-01 → —
GWZ100,URZ100 —
85822C — Motor Assy, Power Seat Lifter, LH
85801-11050 Motor Assy, Power Seat Lifter, LH
2017-01 → —
GWZ100,URZ100 —
85860B — Blower Assy, Seat Cushion Climate Control, LH
85802-11010 Blower Assy, Seat Cushion Climate Control, LH
2017-01 → —
GWZ100,URZ100 —
87501B — Control Sub-assy, Seat Heater, LH
87501-11010 Control Sub-assy, Seat Heater, LH
2017-01 → —
GWZ100,URZ100 —
87510L — Heater Assy, Front Seat Cushion, LH
87510-11020 Heater Assy, Front Seat Cushion, LH
2017-01 → —
GWZ100,URZ100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
