Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433410 · United States

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 2 illustrations

Illustrations

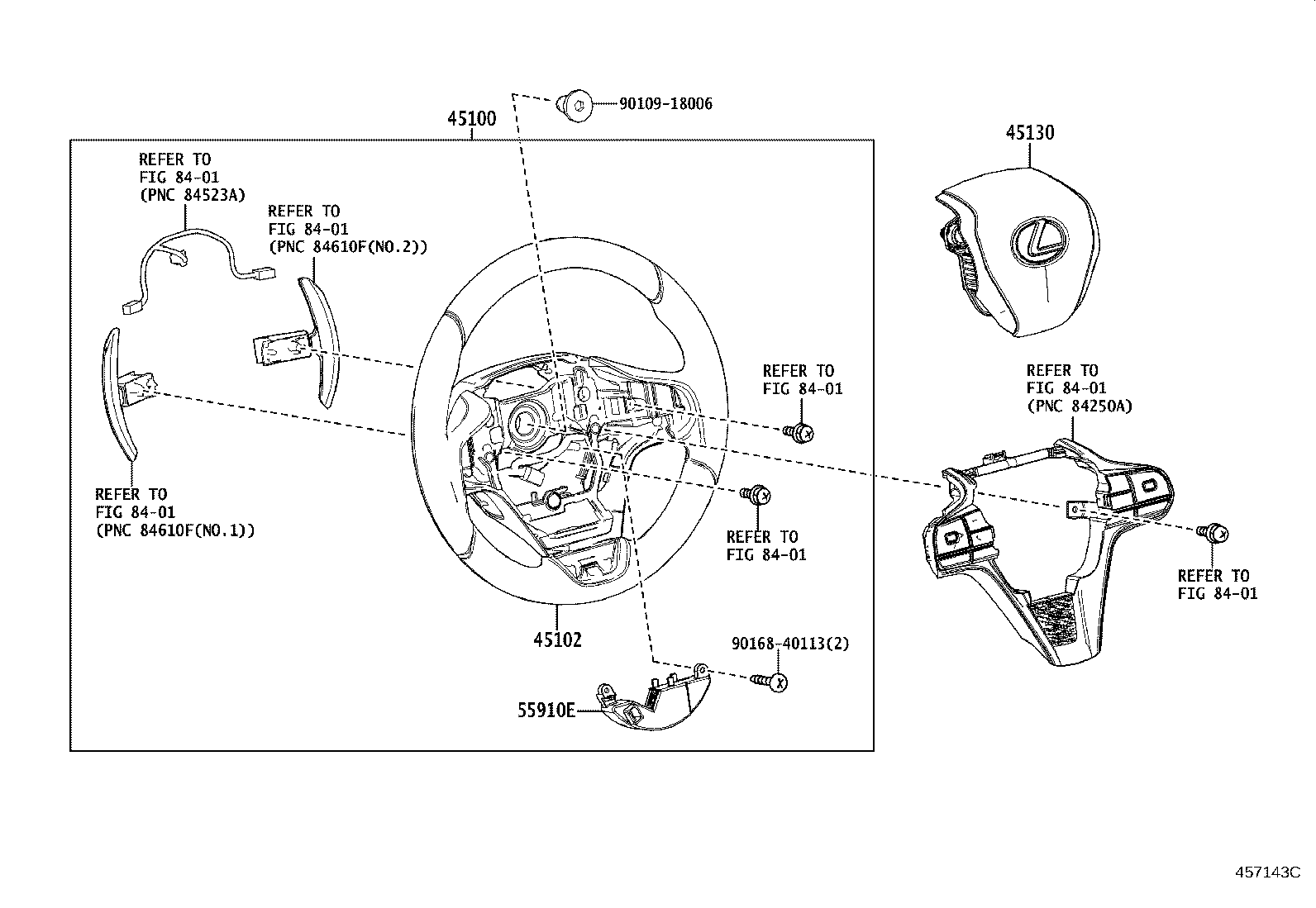

Figure 457166C 457166C 2017-01 → — Figure 457143C 457143C 2017-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
55910E Control Assy, Steering Wheel Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
