Toyota Lexus LC500/500H(CP)
2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433410 · United States
Supported model
Data version 2024-06
Console Box & Bracket
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55620B | Holder, Instrument Panel Cup |
| 58810J | Box Assy, Console |
| 58811 | Plate, Console, Front |
| 58811J | Plate, Console |
| 58812A | Box, Console, Lower |
| 58813 | Box, Console, Upper |
| 58820B | Panel Assy, Console, Upper |
| 58838 | Plug, Console Box Hole |
| 58840K | Cover Assy, Shifting Hole |
| 58857A | Bracket, Console Support, Upper NO.1 |
| 58861A | Support, Console Box, NO.1 |
| 58862C | Support, Console Box, NO.2 |
| 58885A | Panel, Equipment Set |
| 58886A | Cover, Equipment Set Panel |

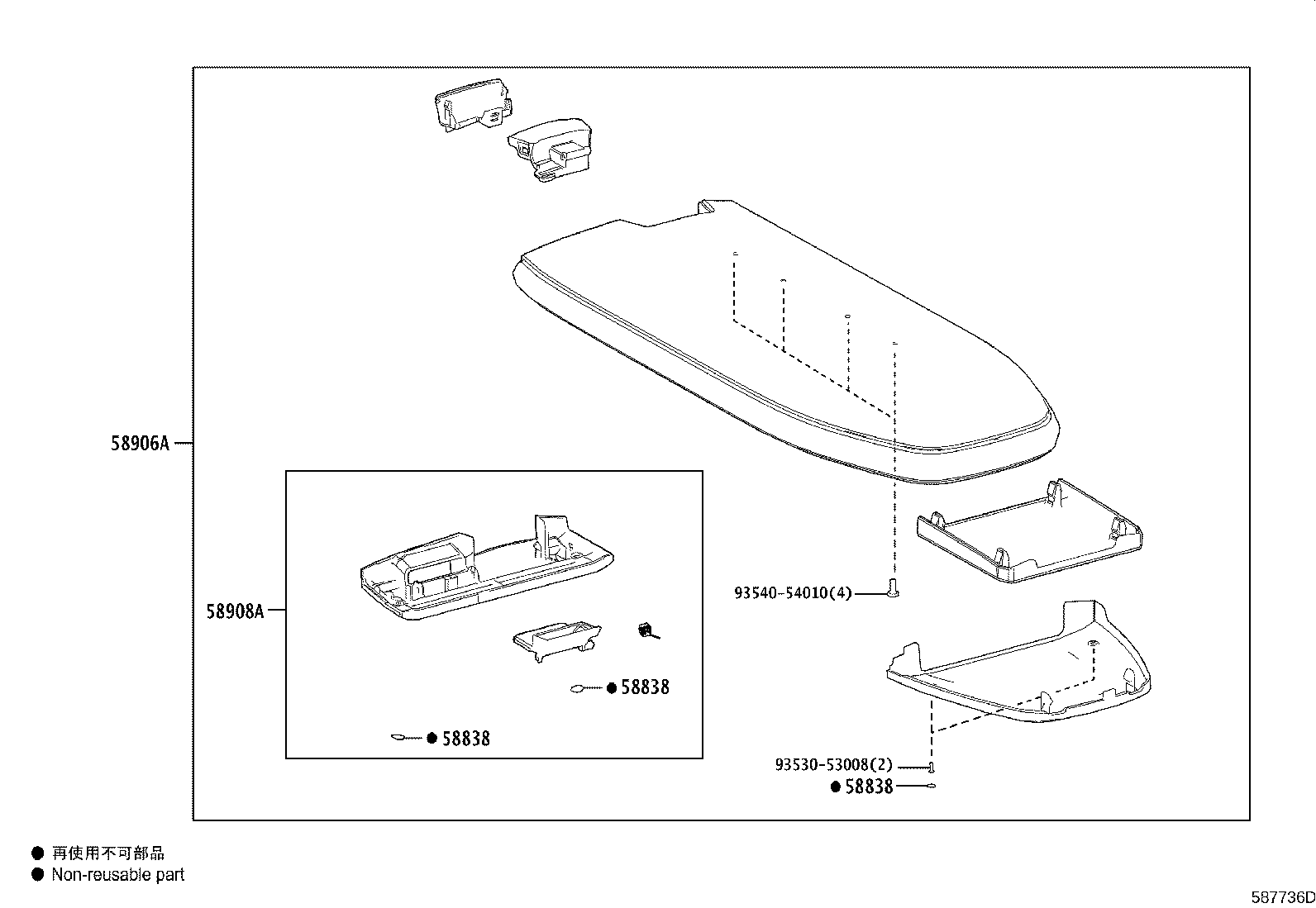

| 58906A | Pad Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58925A | Pocket, Console Box, Rear |
| 58995A | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
