Toyota Lexus LC500/500H(CP)
2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433410 · United States
Supported model
Data version 2024-06

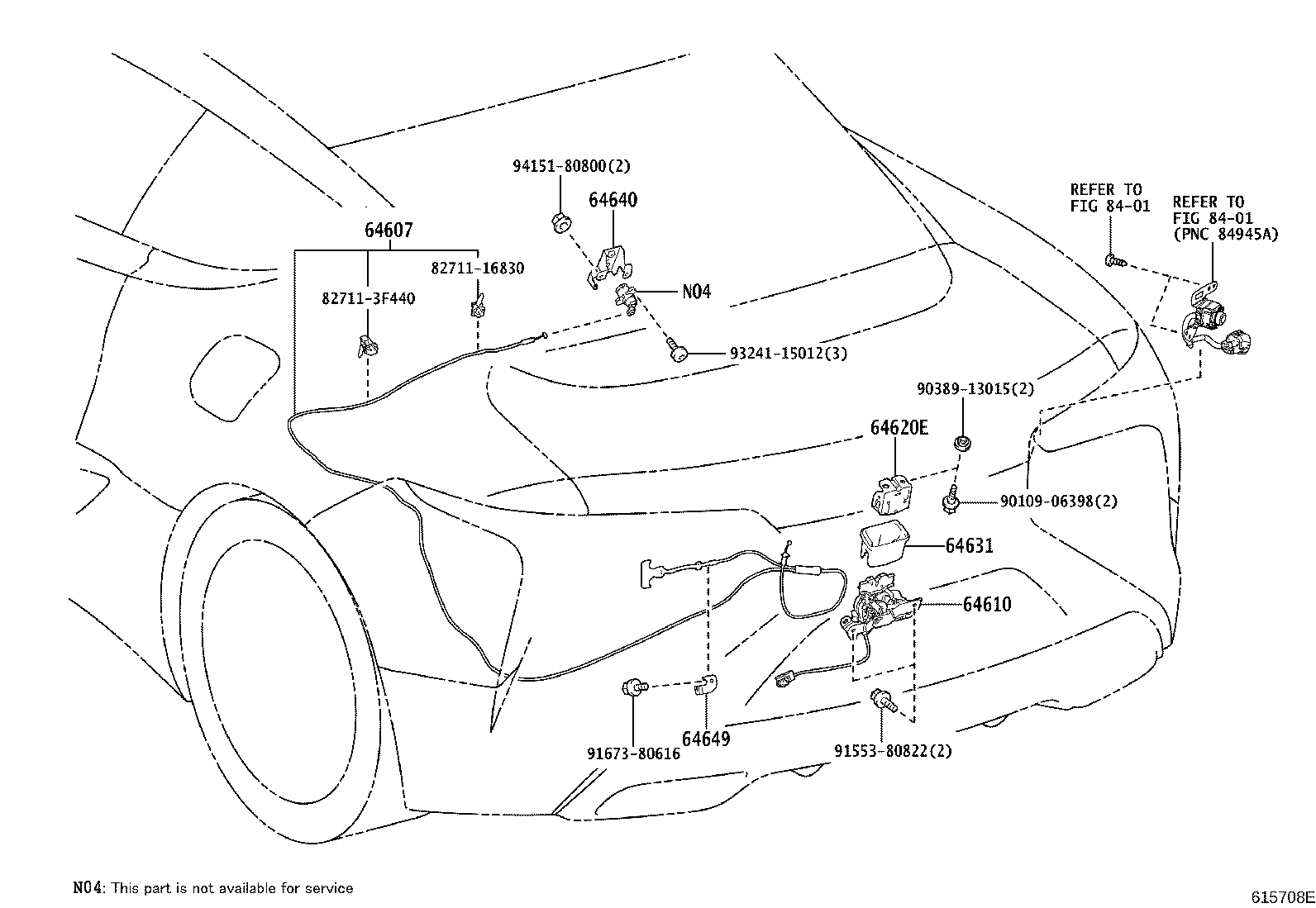

Luggage Compartment Door & Lock
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64401 | Panel Sub-assy, Luggage Compartment Door |
| 64401A | Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL) |
| 64443 | Housing, Luggage Compartment Door |
| 64459 | Cushion, Luggage Compartment Door |
| 64461 | Weatherstrip, Luggage Compartment Door |
| 64510 | Hinge Assy, Luggage Compartment Door, RH |
| 64520 | Hinge Assy, Luggage Compartment Door, LH |
| 64530A | Support Assy, Luggage Compartment Door |
| 64554 | Stopper, Luggage Door Balancer |
| 64571B | Cover, Luggage Compartment Door Hinge, RH |
| 64572 | Cover, Luggage Compartment Door Hinge, LH |
| 64607 | Cable Sub-assy, Luggage Door Lock Control |
| 64610 | Lock Assy, Luggage Compartment Door |
| 64620E | Striker Assy, Luggage Compartment Door |
| 64631 | Protector, Luggage Door Lock |
| 64640 | Opener Assy, Luggage Door Lock |
| 64649 | Retainer, Luggage Door Lock Control Base |
| 64713J | Cover, Luggage Compartment Upper, NO.1 RH |
| 64714N | Cover, Luggage Compartment Upper, NO.1 LH |
| 65896F | Cap, Cover Top Set Bolt |
| 75575F | Moulding, Back Window, Outside Lower |
| 76817A | Clip, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
