Toyota Lexus LC500/500H(CP)

2017-01 → 2023-05 · chassis GWZ100,URZ100 · catalogue 433410 · United States

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 4 illustrations

Illustrations

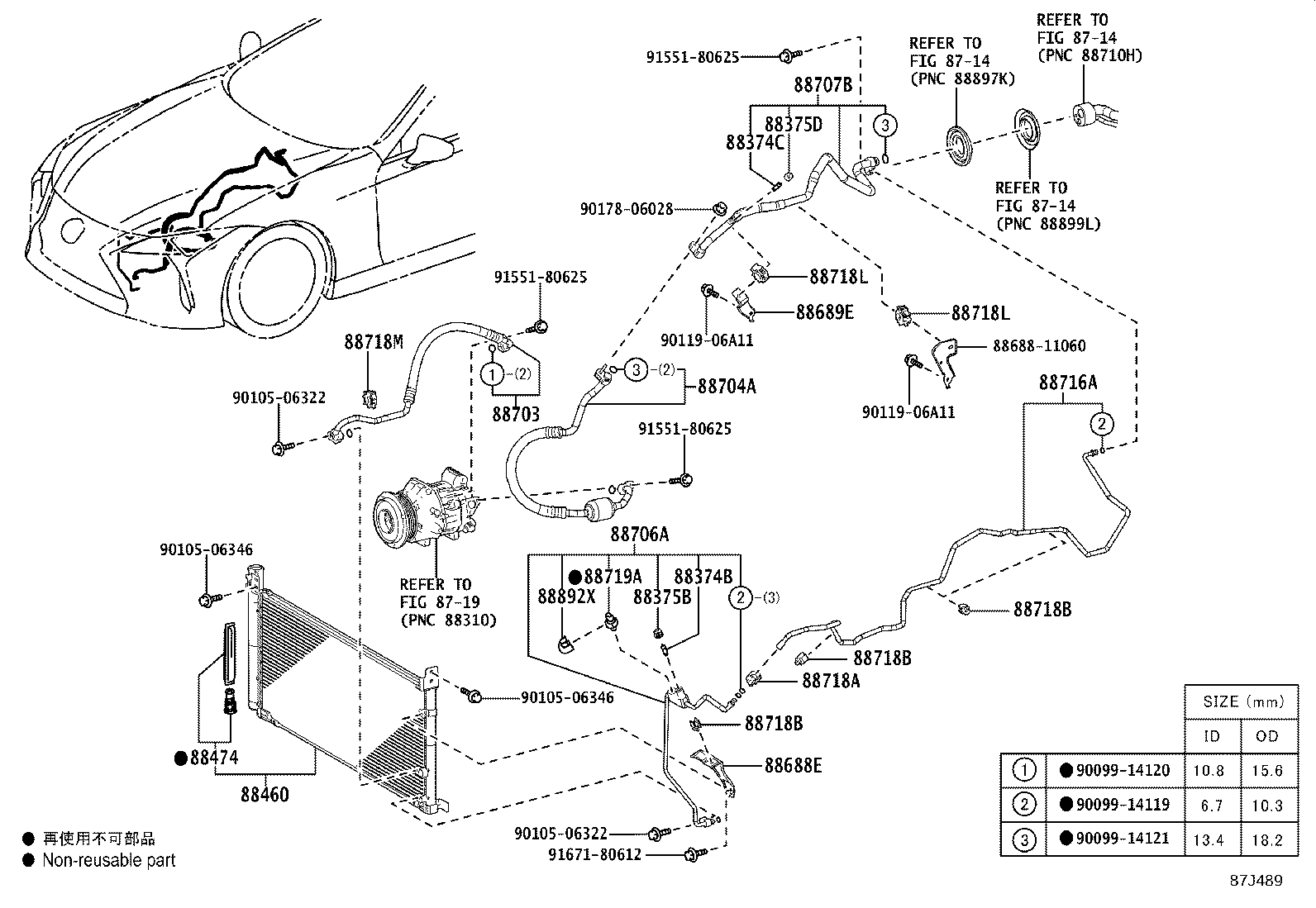

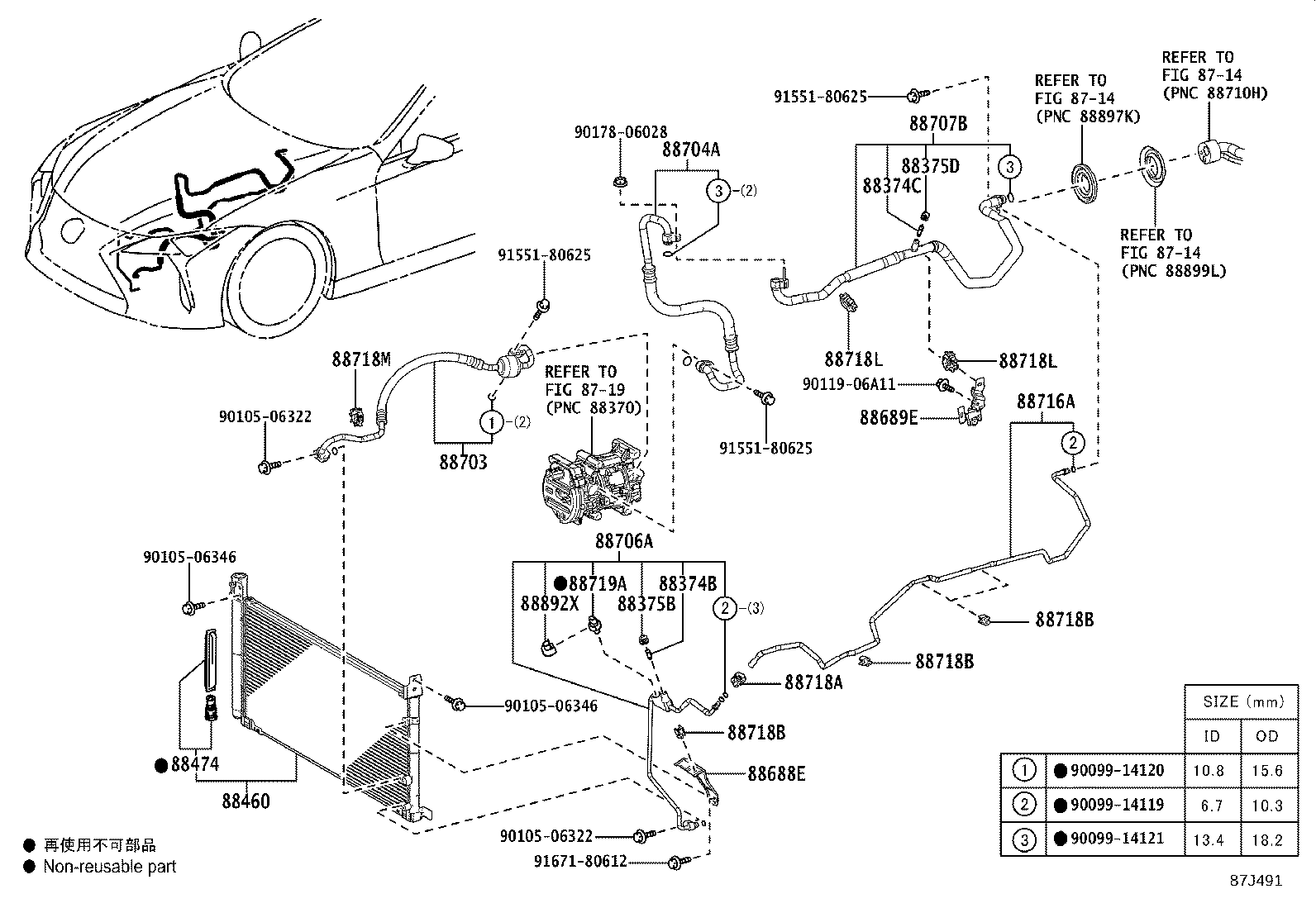

Figure 87J492 87J492 2017-01 → 2019-05 Figure 87J491 87J491 2019-05 → — Figure 87J490 87J490 2017-03 → 2019-06 Figure 87J489 87J489 2019-06 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88689E Bracket, Cooler, NO.1
88703 Hose Sub-assy, Discharge
88704A Hose Sub-assy, Suction, A
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88716A Pipe, Cooler Refrigerant Liquid, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
