Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

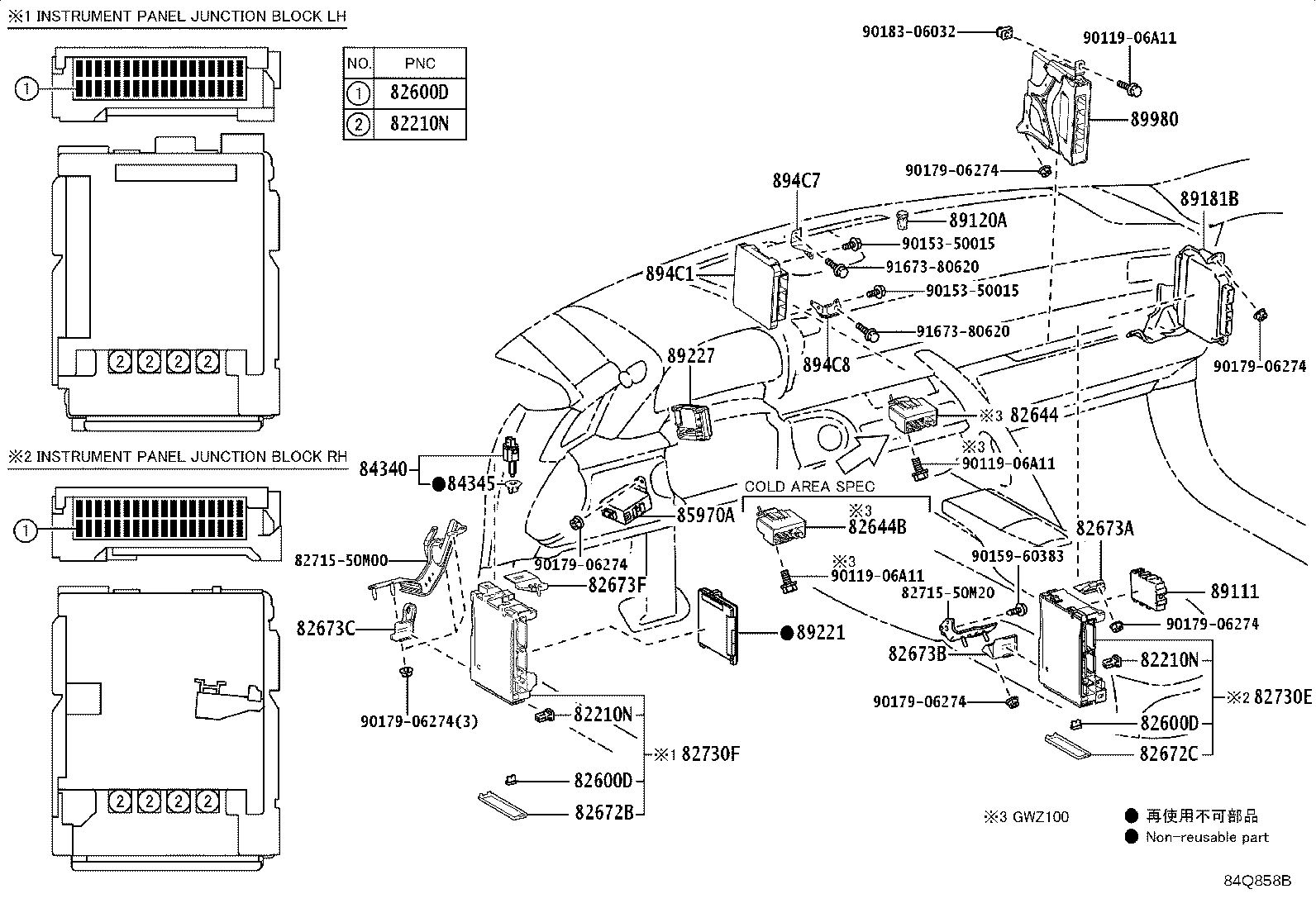

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08306 note |
Instrument Panel Fusible Link
2023-05 → —
|
GWZ100,URZ100 | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2023-05 → —
|
GWZ100,URZ100 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2023-05 → —
|
GWZ100,URZ100 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2023-05 → —
|
GWZ100,URZ100 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2023-05 → —
|
GWZ100,URZ100 | — | |
| 90982-09024 note |
Instrument Panel Fuse
2023-05 → —
|
GWZ100,URZ100 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2023-05 → —
|
GWZ100,URZ100 | — | |
| 82644 — Computer, Semiconductor Power Integration | ||||
| 82644-50040 |
Computer, Semiconductor Power Integration
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82644B — Computer, Semiconductor Power Integration, NO.2 | ||||
| 82644-50030 note |
Computer, Semiconductor Power Integration, NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82672B — Cover, Junction Block | ||||
| 82672-50370 |
Cover, Junction Block
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82672-50370 |
Cover, Junction Block
2023-05 → —
|
URZ100 | — | |
| 82672C — Cover, Junction Block | ||||
| 82672-50350 |
Cover, Junction Block
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82672-50350 |
Cover, Junction Block
2023-05 → —
|
URZ100 | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-50040 |
Bracket, Junction Block, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82673-50040 |
Bracket, Junction Block, NO.1
2023-05 → —
|
URZ100 | — | |
| 82673B — Bracket, Junction Block, NO.2 | ||||
| 82673-50050 |
Bracket, Junction Block, NO.2
2023-05 → —
|
URZ100 | — | |
| 82673-50050 |
Bracket, Junction Block, NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82673C — Bracket, Junction Block | ||||
| 82673-48130 |
Bracket, Junction Block
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82673-48130 |
Bracket, Junction Block
2023-05 → —
|
URZ100 | — | |
| 82673F — Bracket, Junction Block | ||||
| 82673-50060 |
Bracket, Junction Block
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82673-50060 |
Bracket, Junction Block
2023-05 → —
|
URZ100 | — | |
| 82730E — Block Assy, Junction, RH | ||||
| 82730-5A591 |
Block Assy, Junction, RH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82730-5A591 |
Block Assy, Junction, RH
2023-05 → —
|
URZ100 | — | |
| 82730F — Block Assy, Junction, LH | ||||
| 82730-5A571 |
Block Assy, Junction, LH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 82730-5A571 |
Block Assy, Junction, LH
2023-05 → —
|
URZ100 | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-19075 |
Switch Assy, Stop Lamp
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84340-19075 |
Switch Assy, Stop Lamp
2023-05 → —
|
URZ100 | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2023-05 → —
|
URZ100 | — | |
| 85970A — Relay Assy, Double Lock Door Control | ||||
| 85970-11030 note |
Relay Assy, Double Lock Door Control
2023-05 → 2024-10
ended
|
GWZ100,URZ100 | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-50070 |
Computer, Network Gateway
2023-05 → —
|
URZ100 | — | |
| 89111-50080 |
Computer, Network Gateway
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-30020 |
Sensor, Automatic Light Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89121-30020 |
Sensor, Automatic Light Control
2023-05 → —
|
URZ100 | — | |
| 89181B — Computer, Steering Control, FR | ||||
| 89181-11140 note |
Computer, Steering Control, FR
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89181-11160 note |
Computer, Steering Control, FR
2023-05 → —
|
URZ100 CP | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89220-11N80 note |
Computer, Multiplex Network Body
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89220-11N80 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CP | — | |
| 89220-11N90 note |
Computer, Multiplex Network Body
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89220-11N90 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CP | — | |
| 89220-11P00 note |
Computer, Multiplex Network Body
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89220-11P00 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CP | — | |
| 89220-11P10 |
Computer, Multiplex Network Body
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89220-11P10 |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CP | — | |
| 89220-11P20 note |
Computer, Multiplex Network Body
2023-05 → 2024-10
ended
|
GWZ100,URZ100 CP | — | |
| 89220-11P30 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CP | — | |
| 89220-11T60 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CONV | — | |
| 89220-11T70 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CONV | — | |
| 89220-11T80 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CONV | — | |
| 89220-11T90 |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CONV | — | |
| 89220-11U00 note |
Computer, Multiplex Network Body
2023-05 → 2024-10
ended
|
URZ100 CONV | — | |
| 89220-11U10 note |
Computer, Multiplex Network Body
2023-05 → —
|
URZ100 CONV | — | |
| 89220-11X50 note |
Computer, Multiplex Network Body
2024-10 → —
|
URZ100 CP | — | |
| 89220-11X70 note |
Computer, Multiplex Network Body
2024-10 → —
|
URZ100 CONV | — | |
| 89227 — Computer, Multiplex Tilt & Telescopic | ||||
| 89227-48070 |
Computer, Multiplex Tilt & Telescopic
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89227-48070 |
Computer, Multiplex Tilt & Telescopic
2023-05 → —
|
URZ100 | — | |
| 894C1 — Computer, Shift Control | ||||
| 894C1-11070 |
Computer, Shift Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 894C1-11080 |
Computer, Shift Control
2023-05 → —
|
URZ100 | — | |
| 894C7 — Bracket, Shift Control Computer, NO.1 | ||||
| 894C7-11020 |
Bracket, Shift Control Computer, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 894C7-11020 |
Bracket, Shift Control Computer, NO.1
2023-05 → —
|
URZ100 | — | |
| 894C8 — Bracket, Shift Control Computer, NO.2 | ||||
| 894C8-11020 |
Bracket, Shift Control Computer, NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 894C8-11020 |
Bracket, Shift Control Computer, NO.2
2023-05 → —
|
URZ100 | — | |
| 89980 — Computer Assy, Hybrid Vehicle Control | ||||
| 89980-11330 |
Computer Assy, Hybrid Vehicle Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
