Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

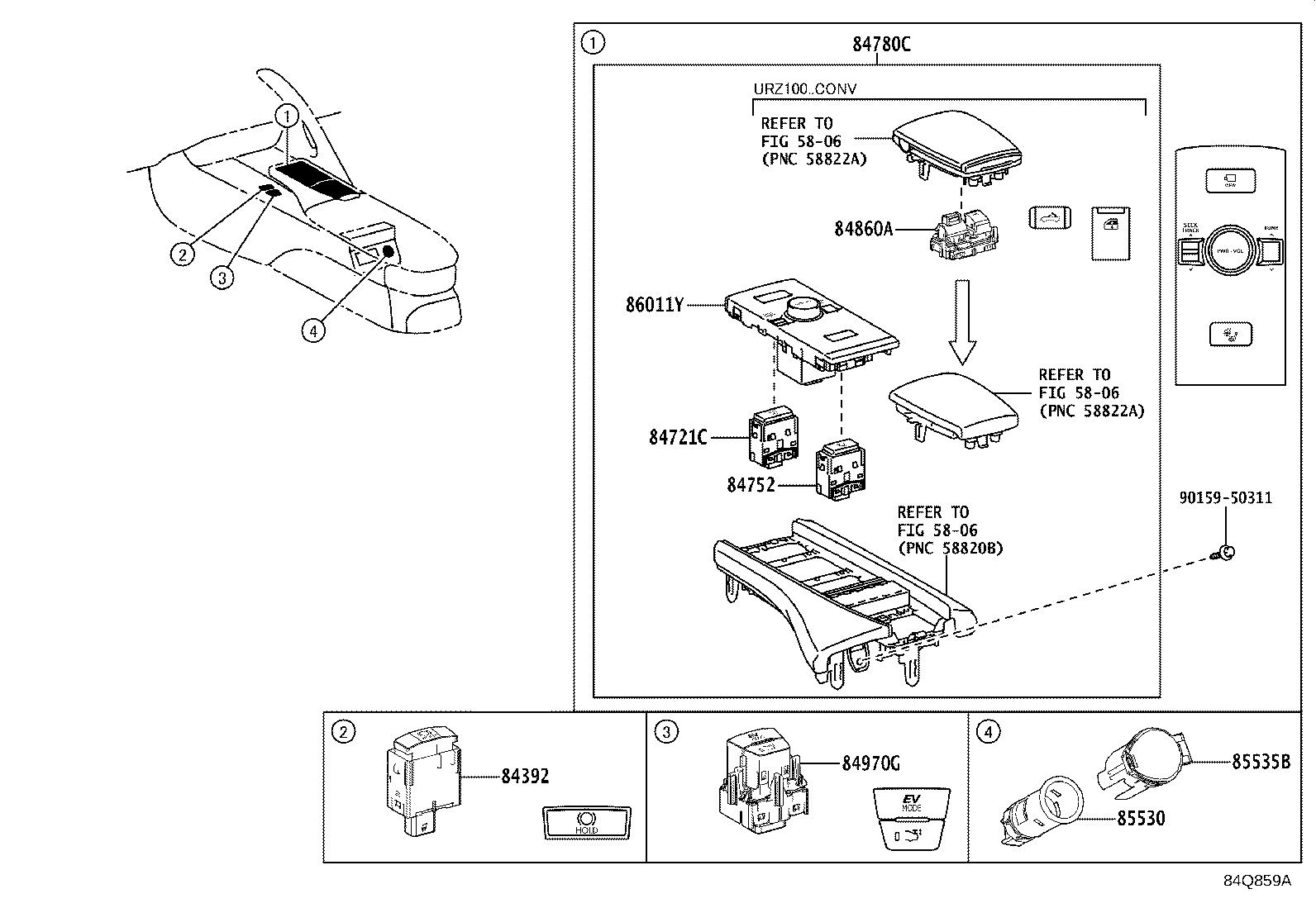

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84392 — Switch, Brake Hold | ||||
| 84392-11010 |
Switch, Brake Hold
2023-05 → —
|
URZ100 | — | |
| 84392-11010 |
Switch, Brake Hold
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84721C — Switch, Pattern Select | ||||
| 84721-11010 |
Switch, Pattern Select
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84721-11010 |
Switch, Pattern Select
2023-05 → —
|
URZ100 | — | |
| 84752 — Switch, Refreshing Seat | ||||
| 84752-11010 note |
Switch, Refreshing Seat
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84752-11010 note |
Switch, Refreshing Seat
2023-05 → —
|
URZ100 | — | |
| 84752-11020 |
Switch, Refreshing Seat
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84752-11020 |
Switch, Refreshing Seat
2023-05 → —
|
URZ100 | — | |
| 84780C — Switch Assy, Radio Remote Tuning | ||||
| 84780-11230-A1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11230-A1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-08
ended
|
URZ100 CP | — | |
| 84780-11230-C1 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CP | — | |
| 84780-11230-C1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11230-D1 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CP | — | |
| 84780-11230-D1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11230-E1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11230-E1 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CP | — | |
| 84780-11240-A1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11240-A1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-08
ended
|
URZ100 CP | — | |
| 84780-11240-C1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11240-C1 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CP | — | |
| 84780-11240-D1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11240-D1 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CP | — | |
| 84780-11240-E1 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84780-11240-E1 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CP | — | |
| 84780-11290-A0 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-08
ended
|
URZ100 CONV | — | |
| 84780-11290-C0 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CONV | — | |
| 84780-11290-D0 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CONV | — | |
| 84780-11290-E0 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CONV | — | |
| 84780-11290-J0 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2024-09
ended
|
URZ100 CONV | — | |
| 84780-11300-A0 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2025-08
ended
|
URZ100 CONV | — | |
| 84780-11300-C0 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CONV | — | |
| 84780-11300-D0 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CONV | — | |
| 84780-11300-E0 note |
Switch Assy, Radio Remote Tuning
2023-05 → —
|
URZ100 CONV | — | |
| 84780-11300-J0 note |
Switch Assy, Radio Remote Tuning
2023-05 → 2024-09
ended
|
URZ100 CONV | — | |
| 84780-11350-J0 note |
Switch Assy, Radio Remote Tuning
2023-09 → 2024-10
ended
|
URZ100 CP | — | |
| 84780-11360-J0 note |
Switch Assy, Radio Remote Tuning
2023-09 → 2024-10
ended
|
URZ100 CP | — | |
| 84860A — Switch Assy, Sliding Roof | ||||
| 84860-11010 |
Switch Assy, Sliding Roof
2023-05 → —
|
URZ100 CONV | — | |
| 84970G — Switch Assy, Combination, NO.4 | ||||
| 84970-11180 note |
Switch Assy, Combination, NO.4
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84970-11190 note |
Switch Assy, Combination, NO.4
2023-05 → —
|
URZ100 CP | — | |
| 84970-11200 |
Switch Assy, Combination, NO.4
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2023-05 → —
|
URZ100 | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 85535-30020 |
Cover, Power Outlet Socket, NO.1
2023-05 → —
|
URZ100 | — | |
| 86011Y — Switch & Volume, Set | ||||
| 86011-11050 |
Switch & Volume, Set
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86011-11050 |
Switch & Volume, Set
2023-05 → —
|
URZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
