Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

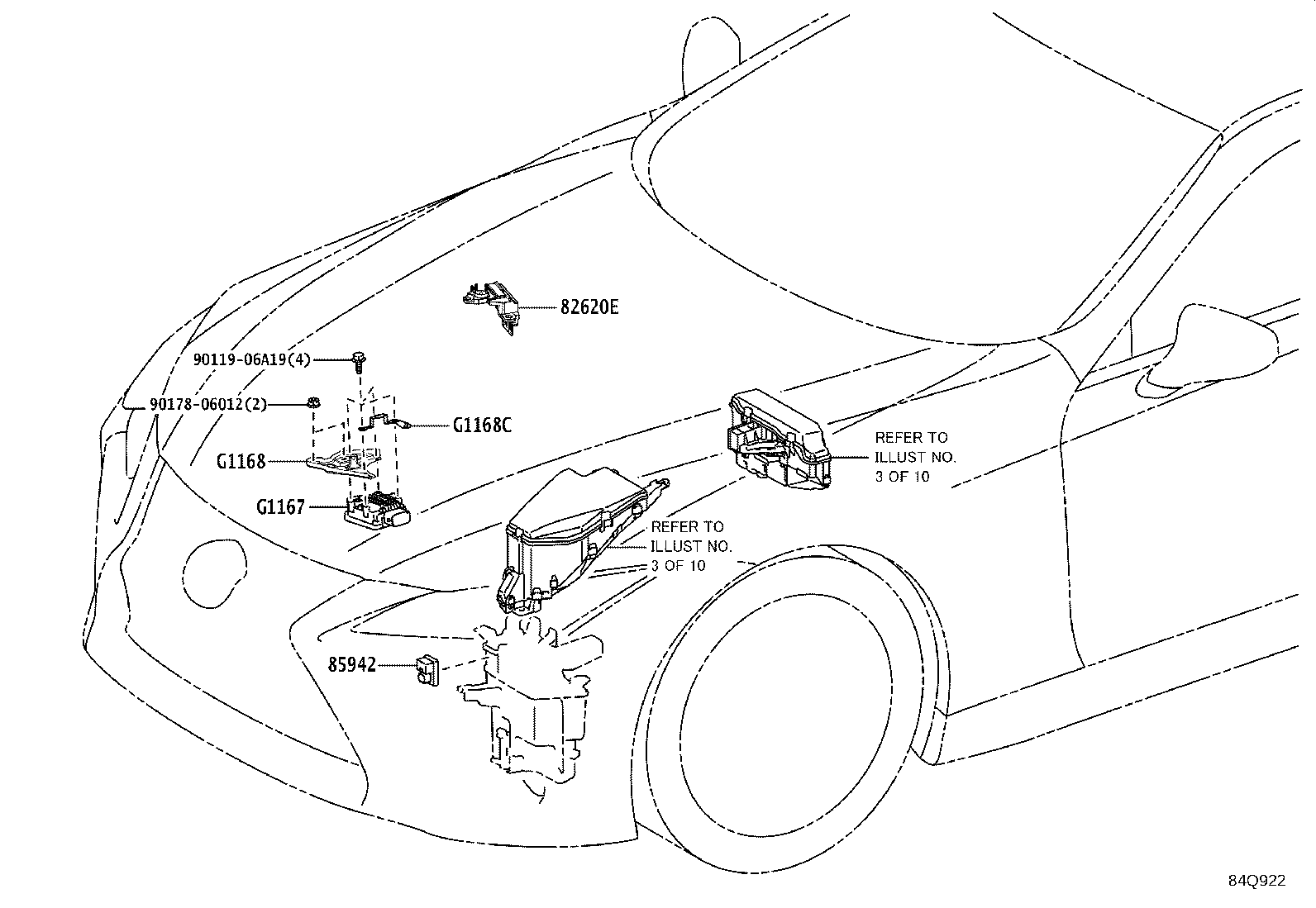

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82620E — Block Assy, Fusible Link | ||||
| 82620-50200 |
Block Assy, Fusible Link
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 85942 — Relay, Headlamp Cleaner Control | ||||
| 85942-53020 note |
Relay, Headlamp Cleaner Control
2023-05 → 2024-10
ended
|
GWZ100,URZ100 | — | |
| G1167 — Controller, Oil Pump Motor | ||||
| G1167-50020 |
Controller, Oil Pump Motor
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| G1168 — Bracket, Oil Pump Motor Controller | ||||
| G1168-11010 |
Bracket, Oil Pump Motor Controller
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| G1168C — Bracket, Oil Pump Motor Controller, NO.2 | ||||
| G1168-11051 |
Bracket, Oil Pump Motor Controller, NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
