Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

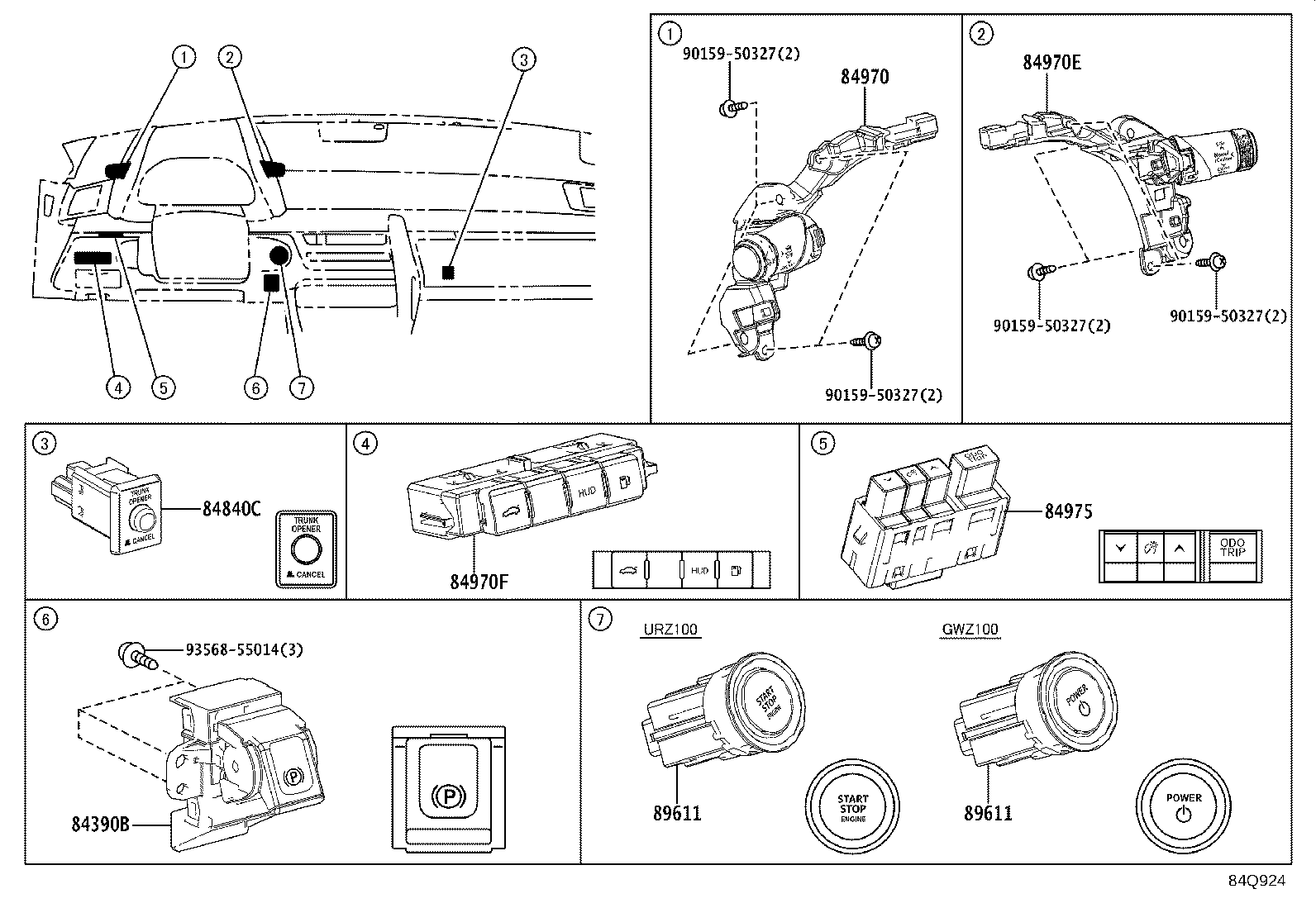

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84390B — Switch Assy, Electric Parking Brake | ||||
| 84390-11010 |
Switch Assy, Electric Parking Brake
2023-05 → —
|
URZ100 | — | |
| 84390-11010 |
Switch Assy, Electric Parking Brake
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84840C — Switch Assy, Luggage Door Opening, Cancel | ||||
| 84840-24020 |
Switch Assy, Luggage Door Opening, Cancel
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84840-24020 |
Switch Assy, Luggage Door Opening, Cancel
2023-05 → —
|
URZ100 | — | |
| 84970 — Switch Assy, Combination | ||||
| 84970-11061 |
Switch Assy, Combination
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84970-11061 |
Switch Assy, Combination
2023-05 → —
|
URZ100 | — | |
| 84970E — Switch Assy, Combination NO.2 | ||||
| 84970-11011 |
Switch Assy, Combination NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84970-11011 |
Switch Assy, Combination NO.2
2023-05 → —
|
URZ100 | — | |
| 84970F — Switch Assy, Combination, NO.3 | ||||
| 84970-11070 note |
Switch Assy, Combination, NO.3
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84970-11070 note |
Switch Assy, Combination, NO.3
2023-05 → —
|
URZ100 | — | |
| 84970-11080 |
Switch Assy, Combination, NO.3
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84970-11080 |
Switch Assy, Combination, NO.3
2023-05 → —
|
URZ100 | — | |
| 84975 — Switch, Trip | ||||
| 84975-11010 |
Switch, Trip
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84975-11010 |
Switch, Trip
2023-05 → —
|
URZ100 | — | |
| 89611 — Switch, Push Start | ||||
| 89611-11011 |
Switch, Push Start
2023-05 → 2024-04
ended
|
URZ100 | — | |
| 89611-11012 |
Switch, Push Start
2024-05 → —
|
URZ100 | — | |
| 89611-76010 |
Switch, Push Start
2023-05 → 2024-04
ended
|
GWZ100 | — | |
| 89611-76011 |
Switch, Push Start
2024-05 → 2025-07
ended
|
GWZ100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
