Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

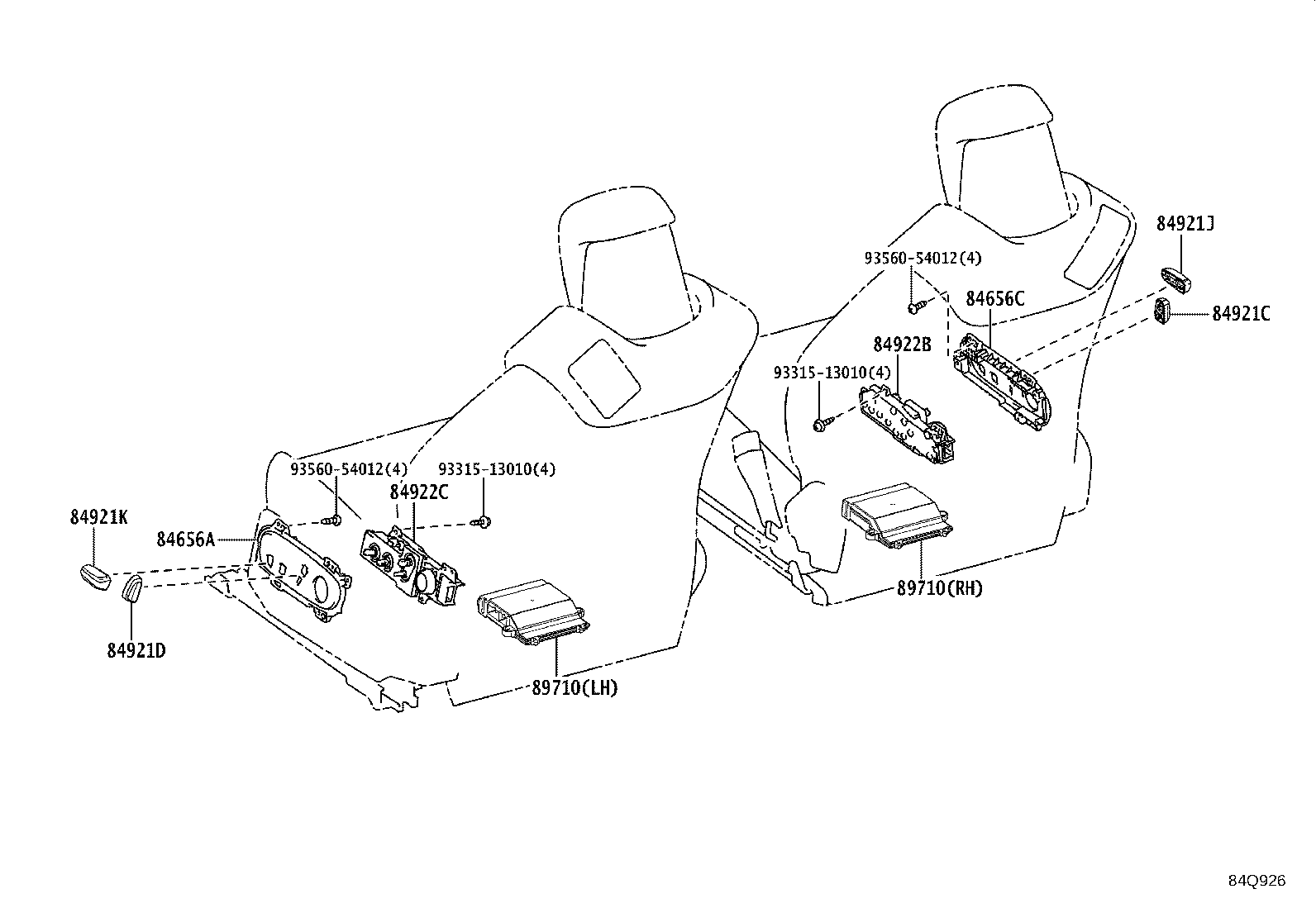

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84656A — Bezel, Switch | ||||
| 84656-11010-A1 note |
Bezel, Switch
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84656-11010-A1 note |
Bezel, Switch
2023-05 → —
|
URZ100 | — | |
| 84656-11010-C1 note |
Bezel, Switch
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84656-11010-C1 note |
Bezel, Switch
2023-05 → —
|
URZ100 | — | |
| 84656-11010-E0 note |
Bezel, Switch
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84656-11010-E0 note |
Bezel, Switch
2023-05 → —
|
URZ100 | — | |
| 84656-11010-J0 note |
Bezel, Switch
2023-05 → 2024-09
ended
|
URZ100 CP | — | |
| 84656-11010-J0 note |
Bezel, Switch
2023-05 → 2024-09
ended
|
URZ100 CONV | — | |
| 84656C — Bezel, Switch NO.2 | ||||
| 84656-11020-A1 note |
Bezel, Switch NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84656-11020-A1 note |
Bezel, Switch NO.2
2023-05 → —
|
URZ100 | — | |
| 84656-11020-C1 note |
Bezel, Switch NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84656-11020-C1 note |
Bezel, Switch NO.2
2023-05 → —
|
URZ100 | — | |
| 84656-11020-E0 note |
Bezel, Switch NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84656-11020-E0 note |
Bezel, Switch NO.2
2023-05 → —
|
URZ100 | — | |
| 84656-11020-J0 note |
Bezel, Switch NO.2
2023-05 → 2024-09
ended
|
URZ100 CONV | — | |
| 84656-11020-J0 note |
Bezel, Switch NO.2
2023-05 → 2024-09
ended
|
URZ100 CP | — | |
| 84921C — Knob, Power Seat Switch, RH | ||||
| 84921-11040 |
Knob, Power Seat Switch, RH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84921-11040 |
Knob, Power Seat Switch, RH
2023-05 → —
|
URZ100 | — | |
| 84921D — Knob, Power Seat Switch, LH | ||||
| 84921-11020 |
Knob, Power Seat Switch, LH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84921-11020 |
Knob, Power Seat Switch, LH
2023-05 → —
|
URZ100 | — | |
| 84921J — Knob, Power Seat Switch, RH | ||||
| 84921-11030 |
Knob, Power Seat Switch, RH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84921-11030 |
Knob, Power Seat Switch, RH
2023-05 → —
|
URZ100 | — | |
| 84921K — Knob, Power Seat Switch, LH | ||||
| 84921-11010 |
Knob, Power Seat Switch, LH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84921-11010 |
Knob, Power Seat Switch, LH
2023-05 → —
|
URZ100 | — | |
| 84922B — Switch, Front Power Seat, RH | ||||
| 84922-11020 |
Switch, Front Power Seat, RH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84922-11020 |
Switch, Front Power Seat, RH
2023-05 → —
|
URZ100 CP | — | |
| 84922-11040 note |
Switch, Front Power Seat, RH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84922-11040 |
Switch, Front Power Seat, RH
2023-05 → —
|
URZ100 CONV | — | |
| 84922-11040 note |
Switch, Front Power Seat, RH
2023-05 → —
|
URZ100 CP | — | |
| 84922C — Switch, Front Power Seat, LH | ||||
| 84922-11010 |
Switch, Front Power Seat, LH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84922-11010 |
Switch, Front Power Seat, LH
2023-05 → —
|
URZ100 CP | — | |
| 84922-11030 note |
Switch, Front Power Seat, LH
2023-05 → —
|
URZ100 CP | — | |
| 84922-11030 |
Switch, Front Power Seat, LH
2023-05 → —
|
URZ100 CONV | — | |
| 84922-11030 note |
Switch, Front Power Seat, LH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89710 — Computer Assy, Position Control | ||||
| 89710-11032 note |
Computer Assy, Position Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89710-11032 note |
Computer Assy, Position Control
2023-05 → —
|
URZ100 CP | — | |
| 89710-11042 note |
Computer Assy, Position Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89710-11042 note |
Computer Assy, Position Control
2023-05 → —
|
URZ100 CP | — | |
| 89710-11072 note |
Computer Assy, Position Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89710-11072 note |
Computer Assy, Position Control
2023-05 → —
|
URZ100 CP | — | |
| 89710-11082 note |
Computer Assy, Position Control
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89710-11082 note |
Computer Assy, Position Control
2023-05 → —
|
URZ100 CP | — | |
| 89710-11120 note |
Computer Assy, Position Control
2023-05 → —
|
URZ100 CONV | — | |
| 89710-11130 note |
Computer Assy, Position Control
2023-05 → —
|
URZ100 CONV | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
