Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

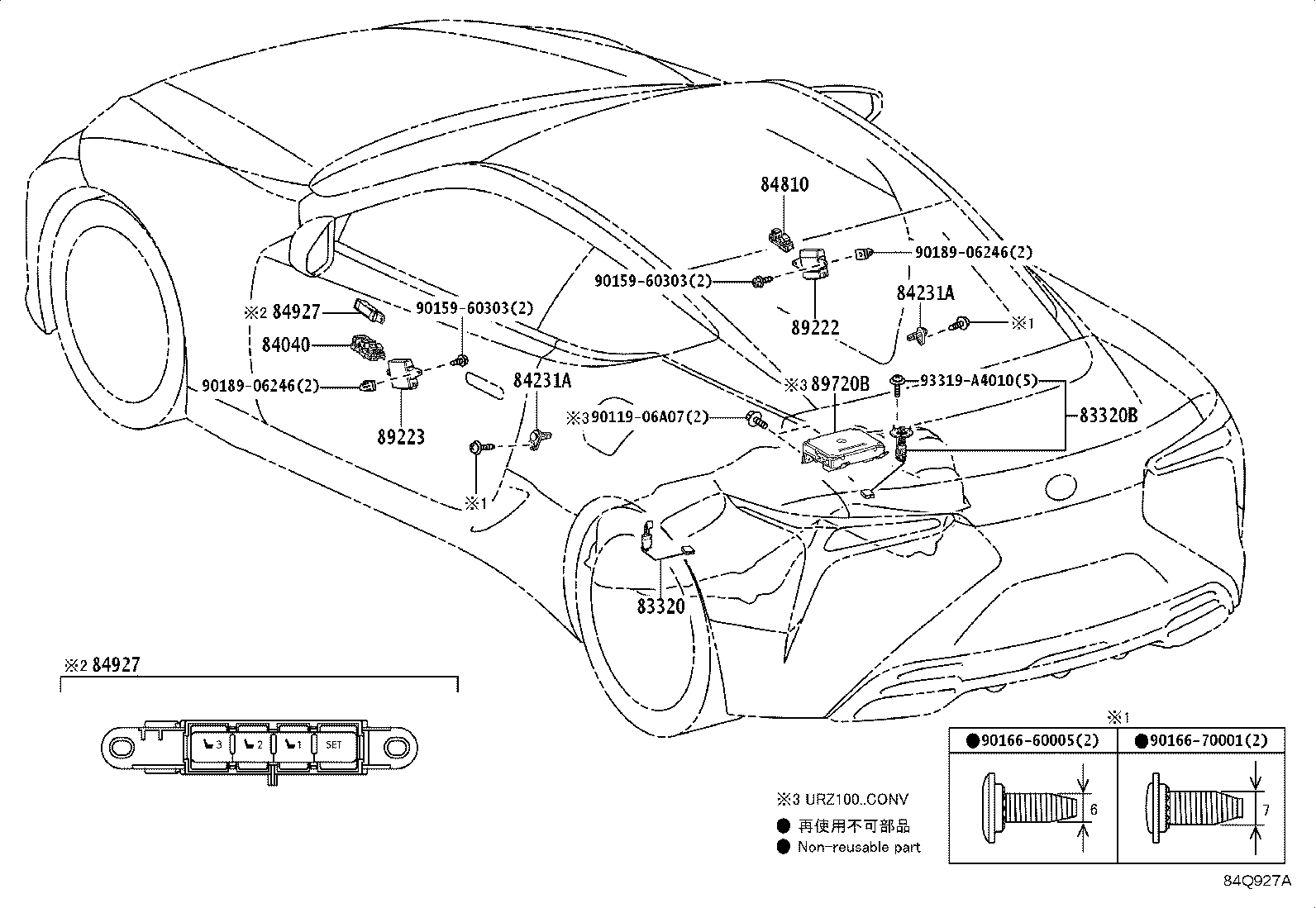

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-11080 |
Gage Assy, Fuel Sender
2023-05 → —
|
URZ100 | — | |
| 83320-11080 |
Gage Assy, Fuel Sender
2023-05 → 2025-04
ended
|
GWZ100 | — | |
| 83320B — Gage Assy, Fuel Sender, NO.2 | ||||
| 83320-80526 |
Gage Assy, Fuel Sender, NO.2
2023-05 → 2025-04
ended
|
GWZ100 | — | |
| 83320-80526 |
Gage Assy, Fuel Sender, NO.2
2023-05 → —
|
URZ100 | — | |
| 84040 — Master Switch Assy,Multiplex Network | ||||
| 84040-11010 |
Master Switch Assy,Multiplex Network
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84040-11010 |
Master Switch Assy,Multiplex Network
2023-05 → —
|
URZ100 | — | |
| 84231A — Switch, Courtesy Lamp | ||||
| 84231-30380 |
Switch, Courtesy Lamp
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84231-30380 |
Switch, Courtesy Lamp
2023-05 → —
|
URZ100 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-11010 |
Switch Assy, Power Window Regulator
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84810-11010 |
Switch Assy, Power Window Regulator
2023-05 → —
|
URZ100 | — | |
| 84927 — Switch, Seat Memory | ||||
| 84927-11010 |
Switch, Seat Memory
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 84927-11010 |
Switch, Seat Memory
2023-05 → —
|
URZ100 | — | |
| 89222 — Computer, Multiplex Network Door, Front RH | ||||
| 89222-11010 |
Computer, Multiplex Network Door, Front RH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89222-11010 |
Computer, Multiplex Network Door, Front RH
2023-05 → —
|
URZ100 | — | |
| 89223 — Computer, Multiplex Network Door, Front LH | ||||
| 89223-11010 |
Computer, Multiplex Network Door, Front LH
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 89223-11010 |
Computer, Multiplex Network Door, Front LH
2023-05 → —
|
URZ100 | — | |
| 89720B — Computer Assy, Removable Roof Control | ||||
| 89720-11010 |
Computer Assy, Removable Roof Control
2023-05 → —
|
URZ100 CONV | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
