Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

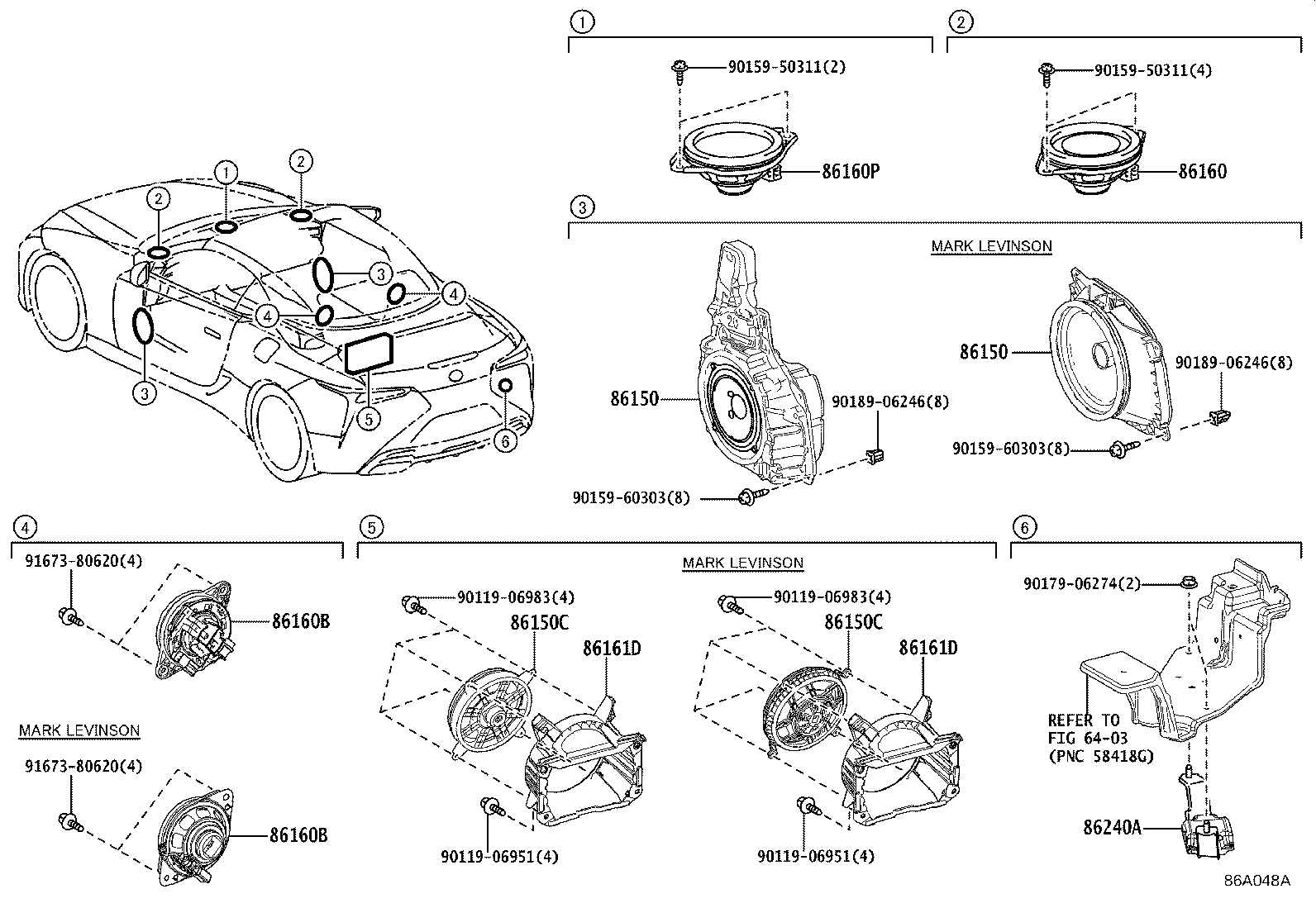

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86150 — Speaker Assy, W/Box, NO.1 | ||||
| 86150-11020 note |
Speaker Assy, W/Box, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-11020 note |
Speaker Assy, W/Box, NO.1
2023-05 → 2024-10
ended
|
GWZ100 | — | |
| 86150-11020 note |
Speaker Assy, W/Box, NO.1
2023-05 → —
|
URZ100 | — | |
| 86150-11020 note |
Speaker Assy, W/Box, NO.1
2023-05 → —
|
URZ100 | — | |
| 86150-11030 note |
Speaker Assy, W/Box, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-11030 note |
Speaker Assy, W/Box, NO.1
2023-05 → —
|
URZ100 | — | |
| 86150-11070 note |
Speaker Assy, W/Box, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-11070 note |
Speaker Assy, W/Box, NO.1
2023-05 → —
|
URZ100 | — | |
| 86150-11090 note |
Speaker Assy, W/Box, NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-11090 note |
Speaker Assy, W/Box, NO.1
2023-05 → —
|
URZ100 | — | |
| 86150C — Speaker Assy, W/Box, NO.3 | ||||
| 86150-0W660 note |
Speaker Assy, W/Box, NO.3
2023-05 → —
|
URZ100 CONV | — | |
| 86150-0W720 note |
Speaker Assy, W/Box, NO.3
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-0W720 note |
Speaker Assy, W/Box, NO.3
2023-05 → —
|
URZ100 CP | — | |
| 86150-11080 |
Speaker Assy, W/Box, NO.3
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-11080 |
Speaker Assy, W/Box, NO.3
2023-05 → —
|
URZ100 CP | — | |
| 86150-33070 |
Speaker Assy, W/Box, NO.3
2023-05 → —
|
URZ100 CONV | — | |
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-0WP80 note |
Speaker Assy, Front NO.1
2023-05 → —
|
URZ100 | — | |
| 86160-0WP80 note |
Speaker Assy, Front NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86160-60730 |
Speaker Assy, Front NO.1
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86160-60730 note |
Speaker Assy, Front NO.1
2023-05 → 2024-10
ended
|
GWZ100 | — | |
| 86160-60730 |
Speaker Assy, Front NO.1
2023-05 → —
|
URZ100 | — | |
| 86160-60730 note |
Speaker Assy, Front NO.1
2023-05 → —
|
URZ100 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86150-0W470 note |
Speaker Assy, Rear
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-0W470 note |
Speaker Assy, Rear
2023-05 → —
|
URZ100 CP | — | |
| 86150-11050 |
Speaker Assy, Rear
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86150-11050 |
Speaker Assy, Rear
2023-05 → —
|
URZ100 CP | — | |
| 86160-78070 |
Speaker Assy, Rear
2023-05 → —
|
URZ100 CONV | — | |
| 86160-78090 note |
Speaker Assy, Rear
2023-05 → —
|
URZ100 CONV | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-0WP80 note |
Speaker Assy, Front NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86160-0WP80 note |
Speaker Assy, Front NO.2
2023-05 → —
|
URZ100 | — | |
| 86160-11060 note |
Speaker Assy, Front NO.2
2023-05 → 2024-10
ended
|
GWZ100 | — | |
| 86160-11060 |
Speaker Assy, Front NO.2
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86160-11060 |
Speaker Assy, Front NO.2
2023-05 → —
|
URZ100 | — | |
| 86160-11060 note |
Speaker Assy, Front NO.2
2023-05 → —
|
URZ100 | — | |
| 86161D — Bracket, Speaker Mounting, NO.1 | ||||
| 86161-11010 |
Bracket, Speaker Mounting, NO.1
2023-05 → —
|
URZ100 CONV | — | |
| 86240A — Equalizer Assy,Stereo Component | ||||
| 86240-11030 |
Equalizer Assy,Stereo Component
2023-05 → 2025-07
ended
|
GWZ100 | — | |
| 86240-11030 |
Equalizer Assy,Stereo Component
2023-05 → —
|
URZ100 CP | — | |
| 86240-11040 |
Equalizer Assy,Stereo Component
2023-05 → —
|
URZ100 CONV | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
