Toyota Lexus LC500/500H

2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

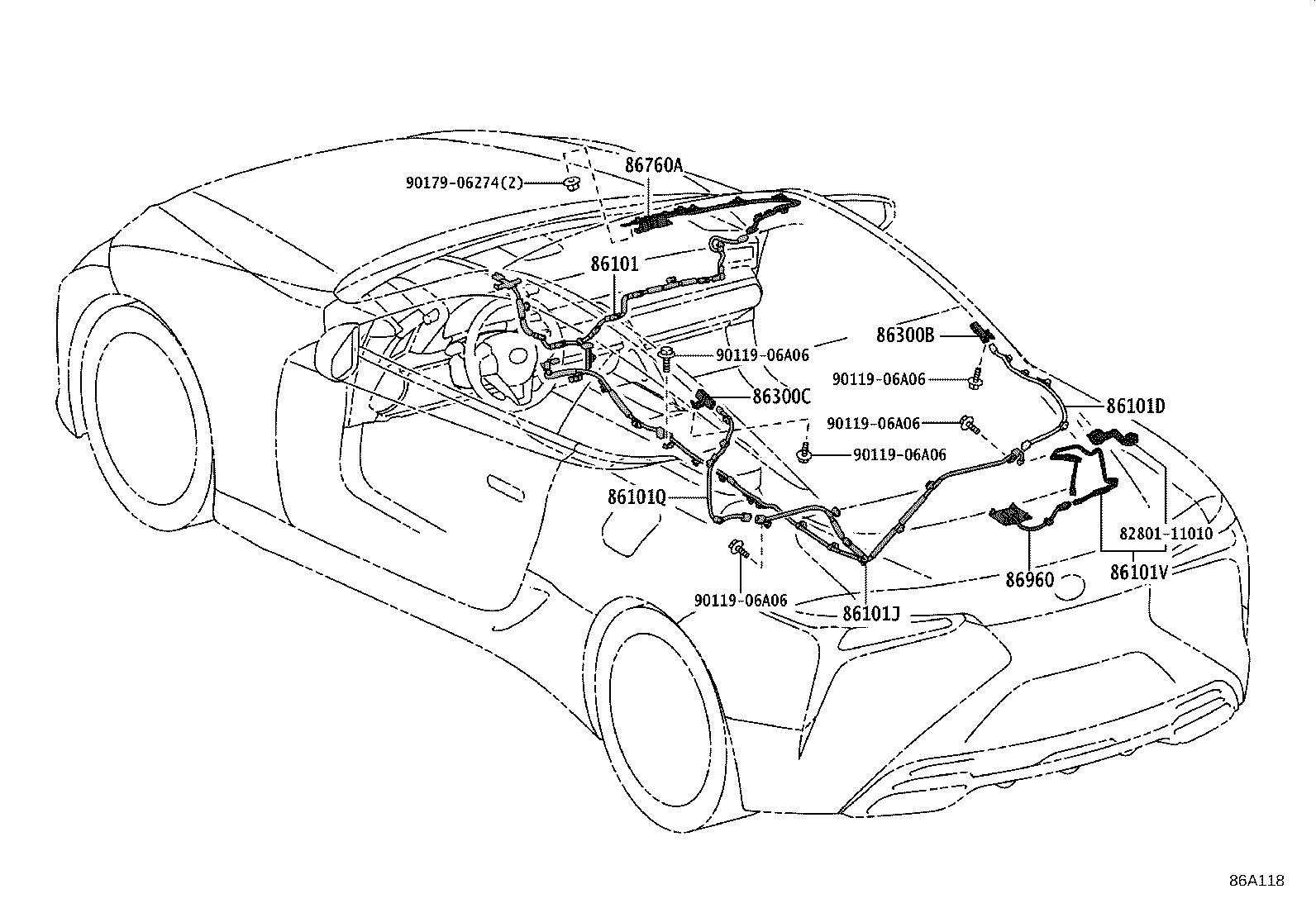

Exploded illustration 86A118 86101 — CORD SUB-ASSY, ANTENNA (15 parts) 86101D — CORD SUB-ASSY, ANTENNA, NO.3 (3 parts) 86101J — CORD SUB-ASSY, ANTENNA, NO.2 (15 parts) 86960 — ANTENNA ASSY, SATELLITE RADIO (10 parts) 86101Q — CORD SUB-ASSY, ANTENNA, NO.4 (3 parts) 86300C — ANTENNA ASSY, AMPLIFIER, NO.2 (3 parts) 86300B — ANTENNA ASSY, AMPLIFIER, NO.1 (3 parts) 86760A — ANTENNA ASSY, TELEPHONE (7 parts) 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9017906274 — not listed in this catalogue 86101V — CORD SUB-ASSY, ANTENNA, NO.6 (8 parts) 8280111010 — not listed in this catalogue
86A118 · 9 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
86101 — Cord Sub-assy, Antenna
86101-11810 Cord Sub-assy, Antenna
2023-05 → 2025-07 ended
GWZ100 —
86101-11810 Cord Sub-assy, Antenna
2023-05 → —
URZ100 CP —
86101-11840 note Cord Sub-assy, Antenna
2024-10 → —
URZ100 CP —
86101-11850 note Cord Sub-assy, Antenna
2023-05 → 2024-10 ended
GWZ100,URZ100 CP —
86101-11850 note Cord Sub-assy, Antenna
2023-05 → 2025-07 ended
GWZ100 —
86101-11850 note Cord Sub-assy, Antenna
2023-05 → 2025-07 ended
GWZ100 —
86101-11850 note Cord Sub-assy, Antenna
2023-05 → —
URZ100 CP —
86101-11850 note Cord Sub-assy, Antenna
2023-05 → —
URZ100 CP —
86101-11850 note Cord Sub-assy, Antenna
2023-05 → —
URZ100 CP —
86101-11A00 Cord Sub-assy, Antenna
2023-05 → —
URZ100 CONV —
86101-11A30 note Cord Sub-assy, Antenna
2024-10 → —
URZ100 CONV —
86101-11A40 note Cord Sub-assy, Antenna
2023-05 → —
URZ100 CONV —
86101-11A40 note Cord Sub-assy, Antenna
2023-05 → —
URZ100 CONV —
86101-11A40 note Cord Sub-assy, Antenna
2023-05 → —
URZ100 CONV —
86101-11A40 note Cord Sub-assy, Antenna
2023-05 → 2024-10 ended
URZ100 CONV —
86101D — Cord Sub-assy, Antenna, NO.3
86101-11320 Cord Sub-assy, Antenna, NO.3
2023-05 → 2025-07 ended
GWZ100 —
86101-11320 Cord Sub-assy, Antenna, NO.3
2023-05 → —
URZ100 CP —
86101-11540 note Cord Sub-assy, Antenna, NO.3
2024-10 → —
URZ100 CONV —
86101J — Cord Sub-assy, Antenna, NO.2
86101-11050 Cord Sub-assy, Antenna, NO.2
2023-05 → 2025-07 ended
GWZ100 —
86101-11050 Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CP —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2023-05 → 2024-10 ended
GWZ100,URZ100 CP —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2023-05 → 2025-07 ended
GWZ100 —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2023-05 → 2025-07 ended
GWZ100 —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CP —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CP —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CP —
86101-11090 note Cord Sub-assy, Antenna, NO.2
2024-10 → —
URZ100 CP —
86101-11730 Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CONV —
86101-11740 note Cord Sub-assy, Antenna, NO.2
2023-05 → 2024-10 ended
URZ100 CONV —
86101-11740 note Cord Sub-assy, Antenna, NO.2
2024-10 → —
URZ100 CONV —
86101-11740 note Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CONV —
86101-11740 note Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CONV —
86101-11740 note Cord Sub-assy, Antenna, NO.2
2023-05 → —
URZ100 CONV —
86101Q — Cord Sub-assy, Antenna, NO.4
86101-11070 Cord Sub-assy, Antenna, NO.4
2023-05 → —
URZ100 CONV —
86101-11370 Cord Sub-assy, Antenna, NO.4
2023-05 → 2025-07 ended
GWZ100 —
86101-11370 Cord Sub-assy, Antenna, NO.4
2023-05 → —
URZ100 CP —
86101V — Cord Sub-assy, Antenna, NO.6
86101-11390 Cord Sub-assy, Antenna, NO.6
2023-05 → 2025-07 ended
GWZ100 —
86101-11390 Cord Sub-assy, Antenna, NO.6
2023-05 → —
URZ100 CP —
86101-11580 Cord Sub-assy, Antenna, NO.6
2023-05 → —
URZ100 CONV —
86101-11590 note Cord Sub-assy, Antenna, NO.6
2023-05 → 2024-10 ended
URZ100 CONV —
86101-11590 note Cord Sub-assy, Antenna, NO.6
2023-05 → —
URZ100 CONV —
86101-11590 note Cord Sub-assy, Antenna, NO.6
2023-05 → —
URZ100 CONV —
86101-11590 note Cord Sub-assy, Antenna, NO.6
2023-05 → —
URZ100 CONV —
86101-11590 note Cord Sub-assy, Antenna, NO.6
2024-10 → —
URZ100 CONV —
86300B — Antenna Assy, Amplifier, NO.1
86300-11020 Antenna Assy, Amplifier, NO.1
2023-05 → 2025-07 ended
GWZ100 —
86300-11020 Antenna Assy, Amplifier, NO.1
2023-05 → —
URZ100 CP —
86300-11040 Antenna Assy, Amplifier, NO.1
2023-05 → —
URZ100 CONV —
86300C — Antenna Assy, Amplifier, NO.2
86300-11030 Antenna Assy, Amplifier, NO.2
2023-05 → 2025-07 ended
GWZ100 —
86300-11030 Antenna Assy, Amplifier, NO.2
2023-05 → —
URZ100 CP —
8630B-11010 Antenna Assy, Amplifier, NO.2
2023-05 → —
URZ100 CONV —
86760A — Antenna Assy, Telephone
86760-11060 Antenna Assy, Telephone
2023-05 → —
URZ100 CONV —
86760-11060 note Antenna Assy, Telephone
2023-05 → —
URZ100 CONV —
86760-11090 note Antenna Assy, Telephone
2023-05 → 2023-12 ended
GWZ100 —
86760-11090 Antenna Assy, Telephone
2023-05 → 2025-07 ended
GWZ100 —
86760-11090 Antenna Assy, Telephone
2023-05 → —
URZ100 CP —
86760-11090 note Antenna Assy, Telephone
2023-05 → —
URZ100 CP —
86760-11100 note Antenna Assy, Telephone
2023-05 → 2024-10 ended
GWZ100,URZ100 CP —
86960 — Antenna Assy, Satellite Radio
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → 2023-10 ended
GWZ100,URZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → 2023-12 ended
GWZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → 2024-10 ended
GWZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → 2024-10 ended
GWZ100 —
86960-11010 Antenna Assy, Satellite Radio
2023-05 → 2025-07 ended
GWZ100 —
86960-11010 Antenna Assy, Satellite Radio
2023-05 → —
URZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → —
URZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → —
URZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → —
URZ100 —
86960-11010 note Antenna Assy, Satellite Radio
2023-05 → —
URZ100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
