Toyota Lexus LC500/500H
2023-05 → present · chassis GWZ100,URZ100 · catalogue 433420 · United States
Supported model
Data version 2023-05

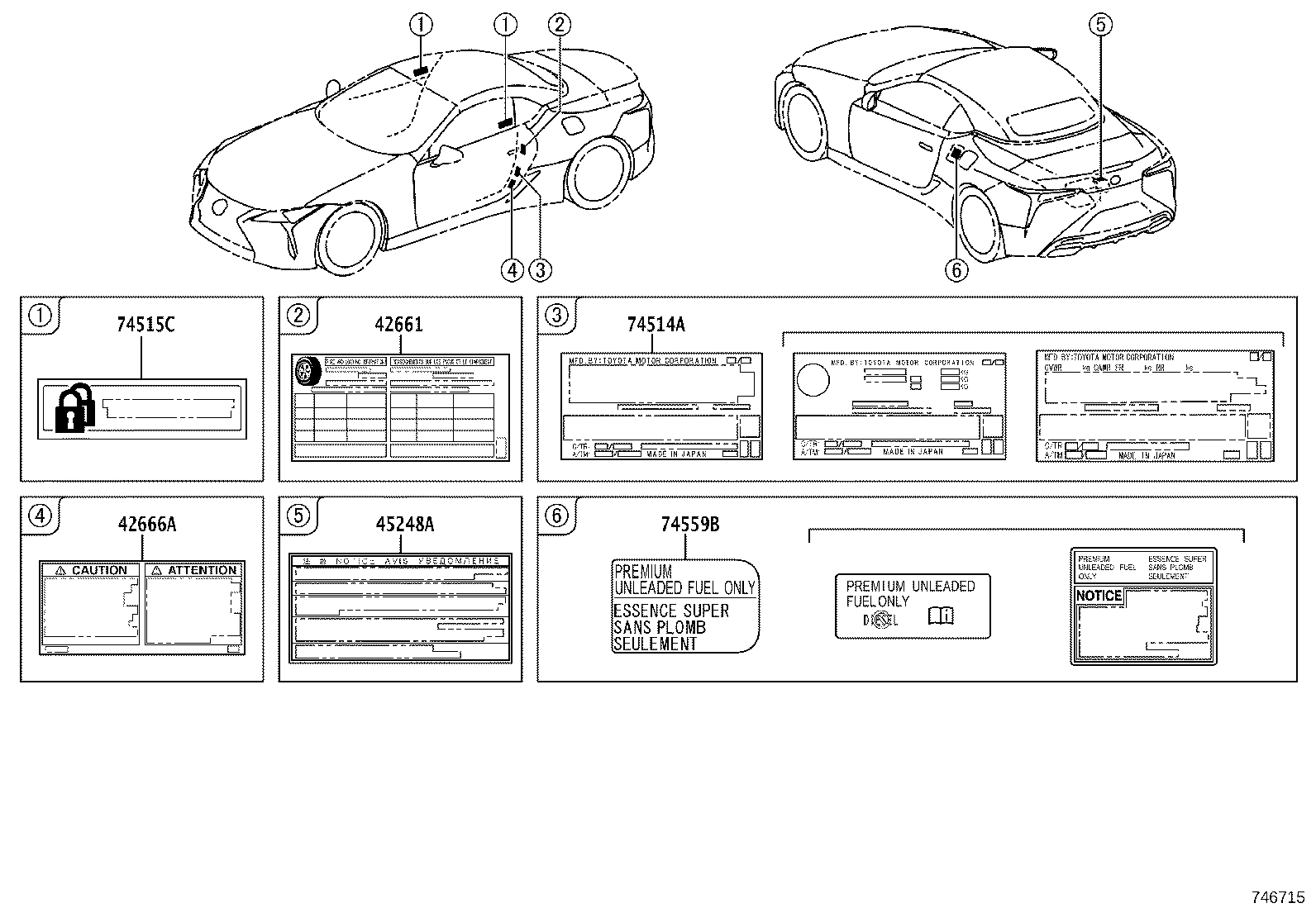

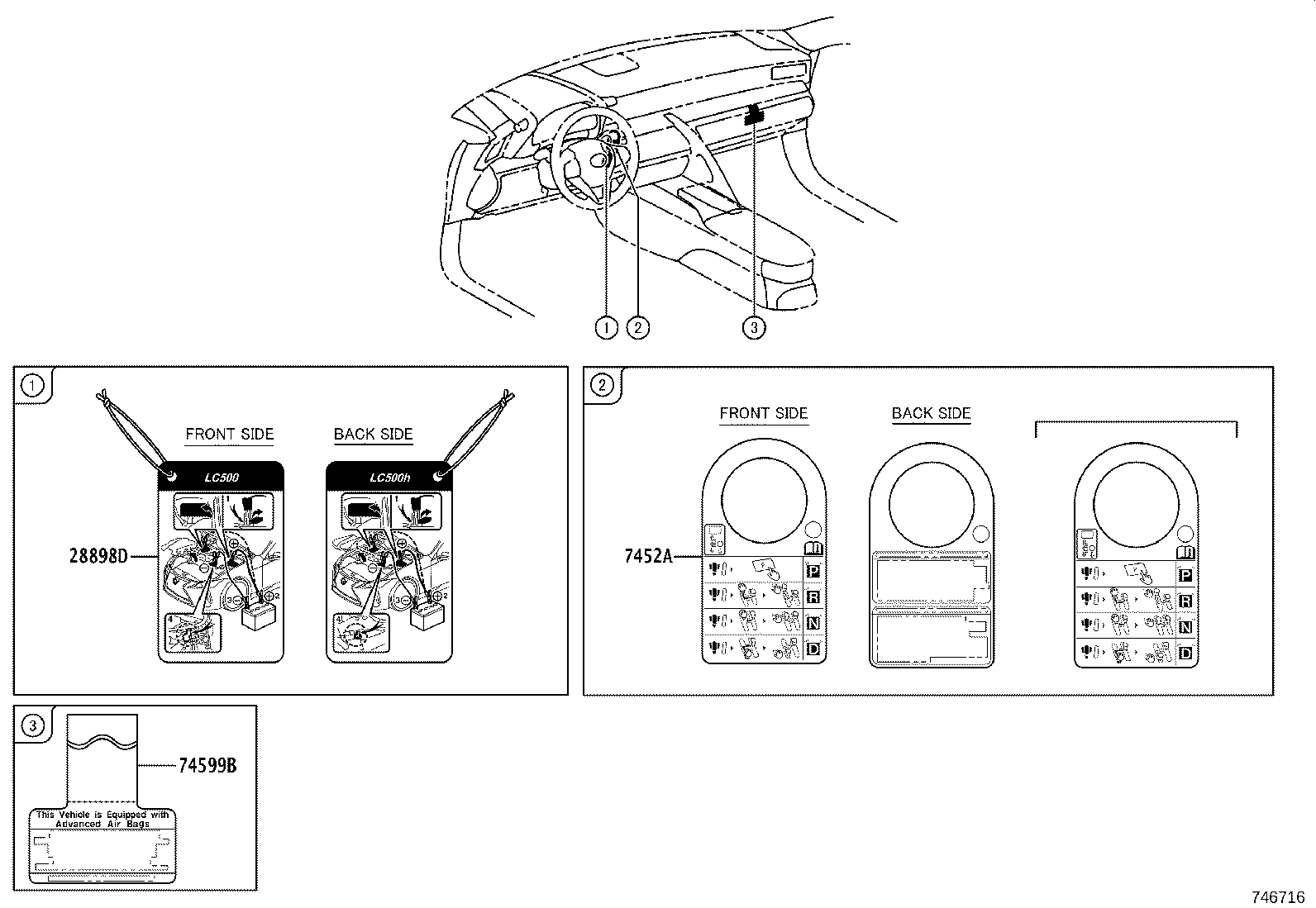

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793B | Label, Cooling Fan Information |
| 28898D | Label, Battery Information |
| 42661 | Label, Tire Pressure Information |
| 42666A | Label, Run Flat Tire Caution |
| 45248A | Label, Steering Actuator Caution |
| 74514A | Label, Certification Regulation Information |
| 74515C | Label, Theft Warning Information |
| 7452A | Label, Shift Control Information |
| 74559B | Label, Fuel Information |
| 74599B | Label, Driver & Passenger Airbag Information |
| 81192A | Seal, Headlamp |
| 88723J | Label, Cooler Service Caution, NO.2 |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
