Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434410 · United States
Supported model
Data version 2024-06
Switch & Relay & Computer

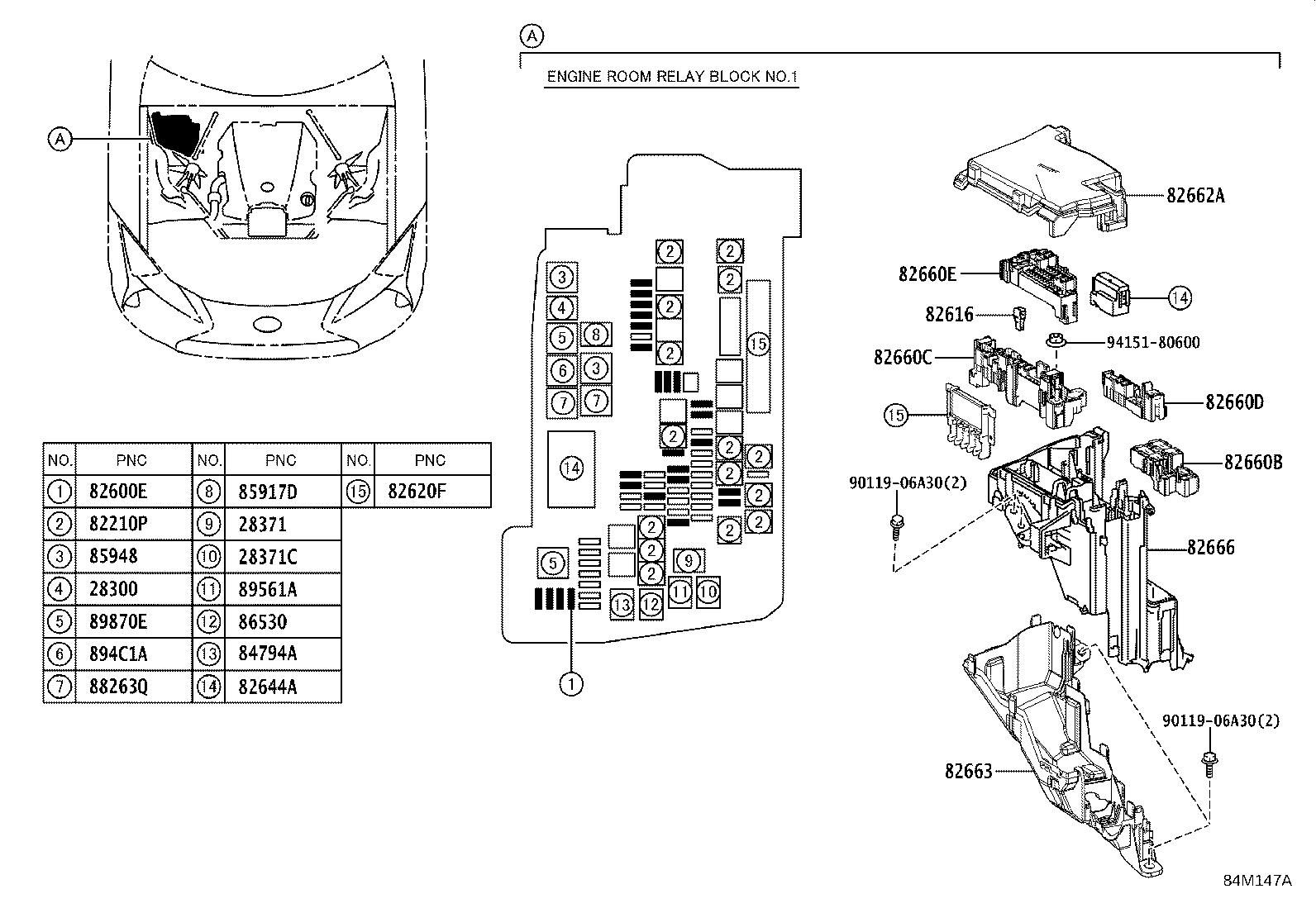

122 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 28800T | Relay, Sub-battery, NO.2 |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 82210J | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600L | Luggage Room Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82644A | Computer, Semiconductor Power Integration, NO.1 |
| 82644B | Computer, Semiconductor Power Integration, NO.2 |

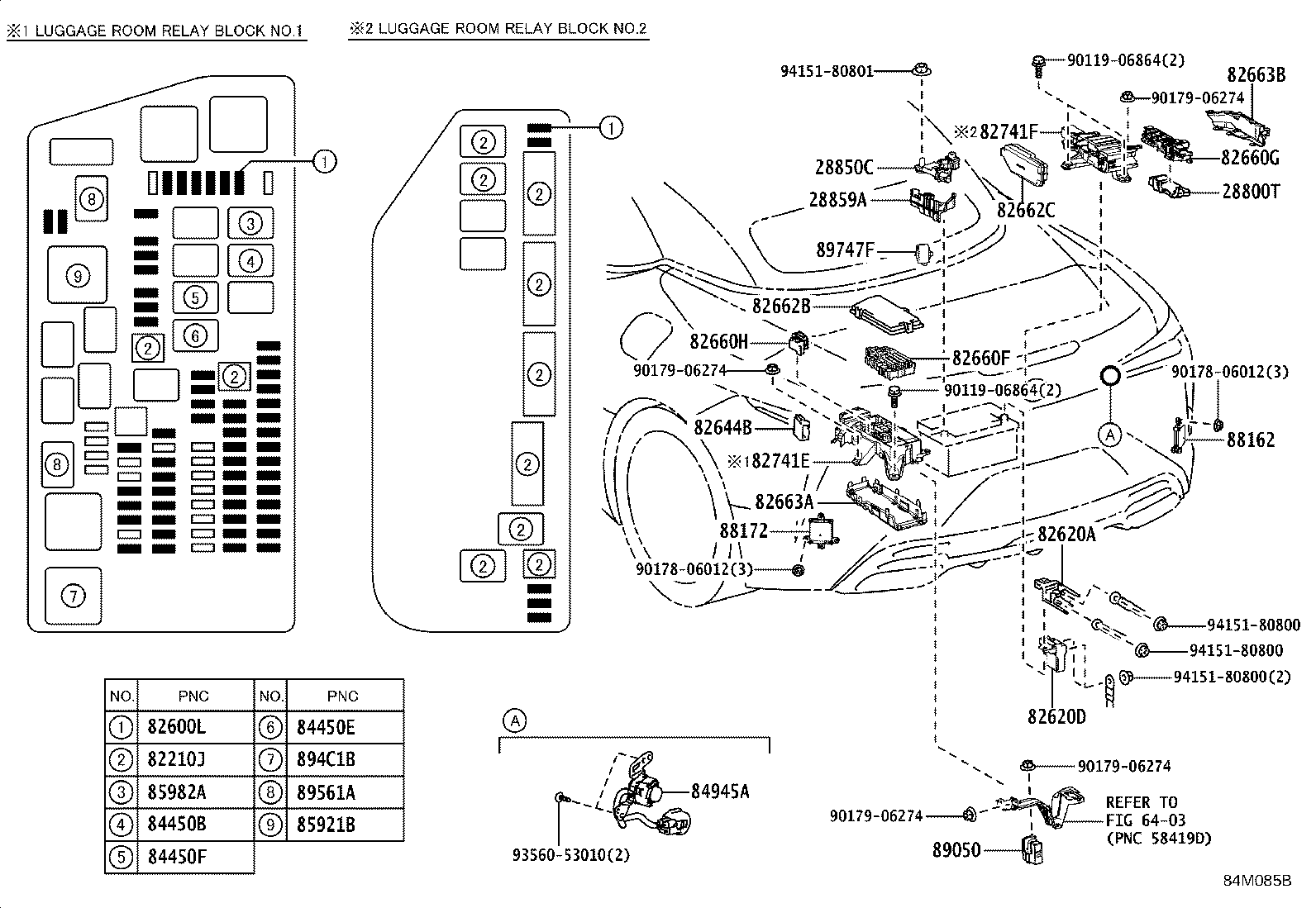

| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82673F | Bracket, Junction Block |

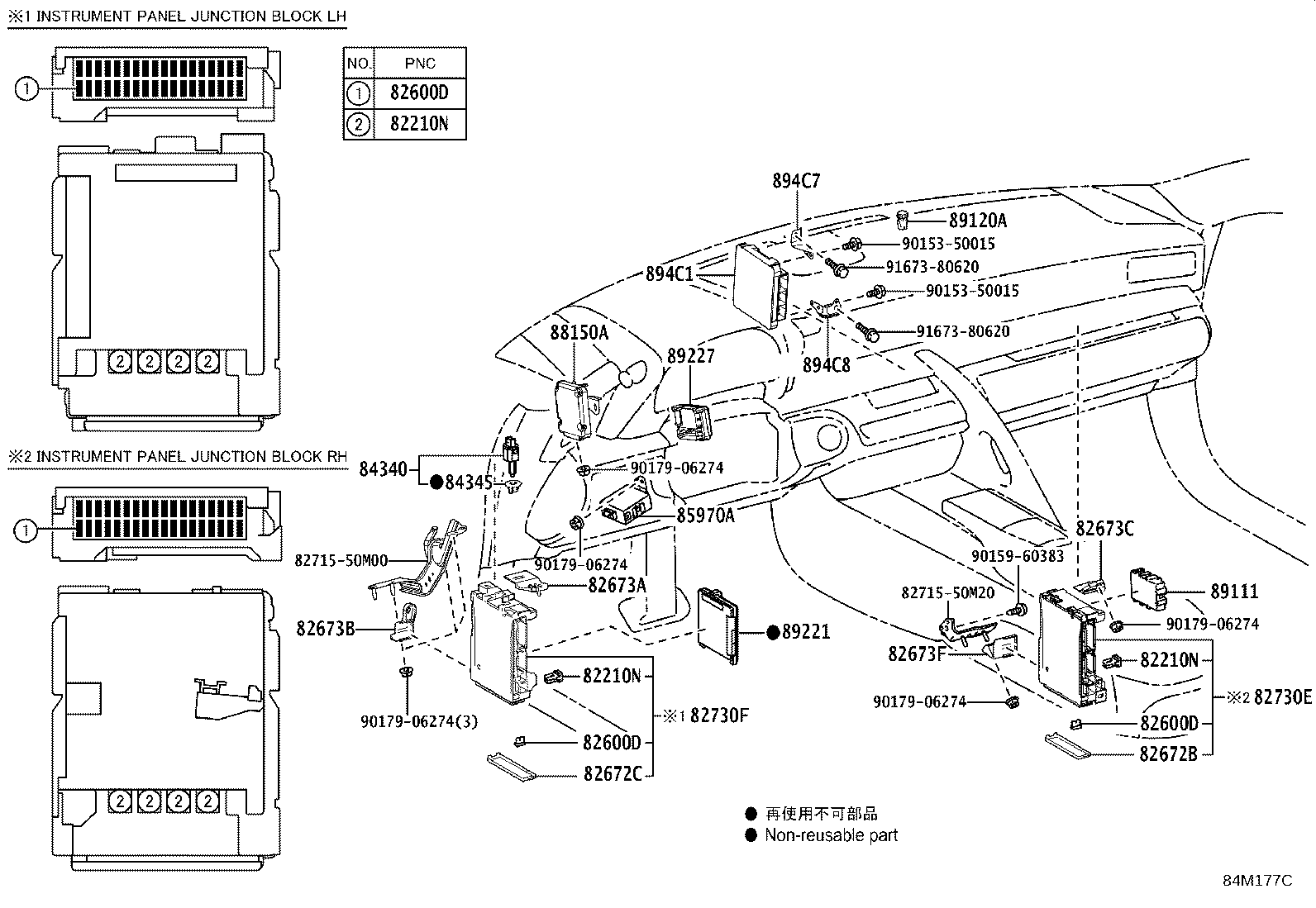

| 82730E | Block Assy, Junction, RH |
| 82730F | Block Assy, Junction, LH |
| 82741E | Block, Luggage Room Relay, NO.1 |
| 82741F | Block, Luggage Room Relay, NO.2 |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 83950M | Lamp Assy, Telltale |

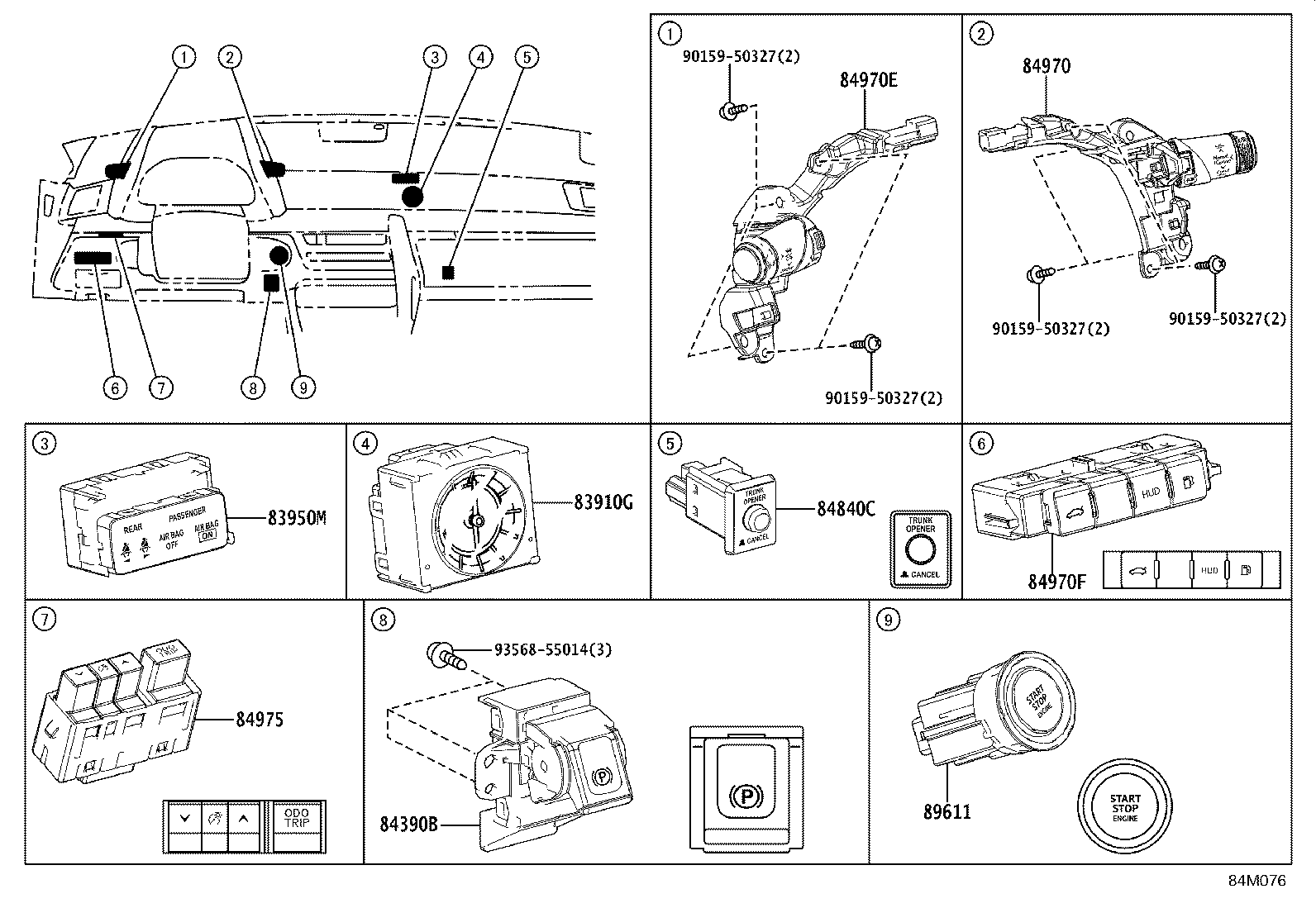

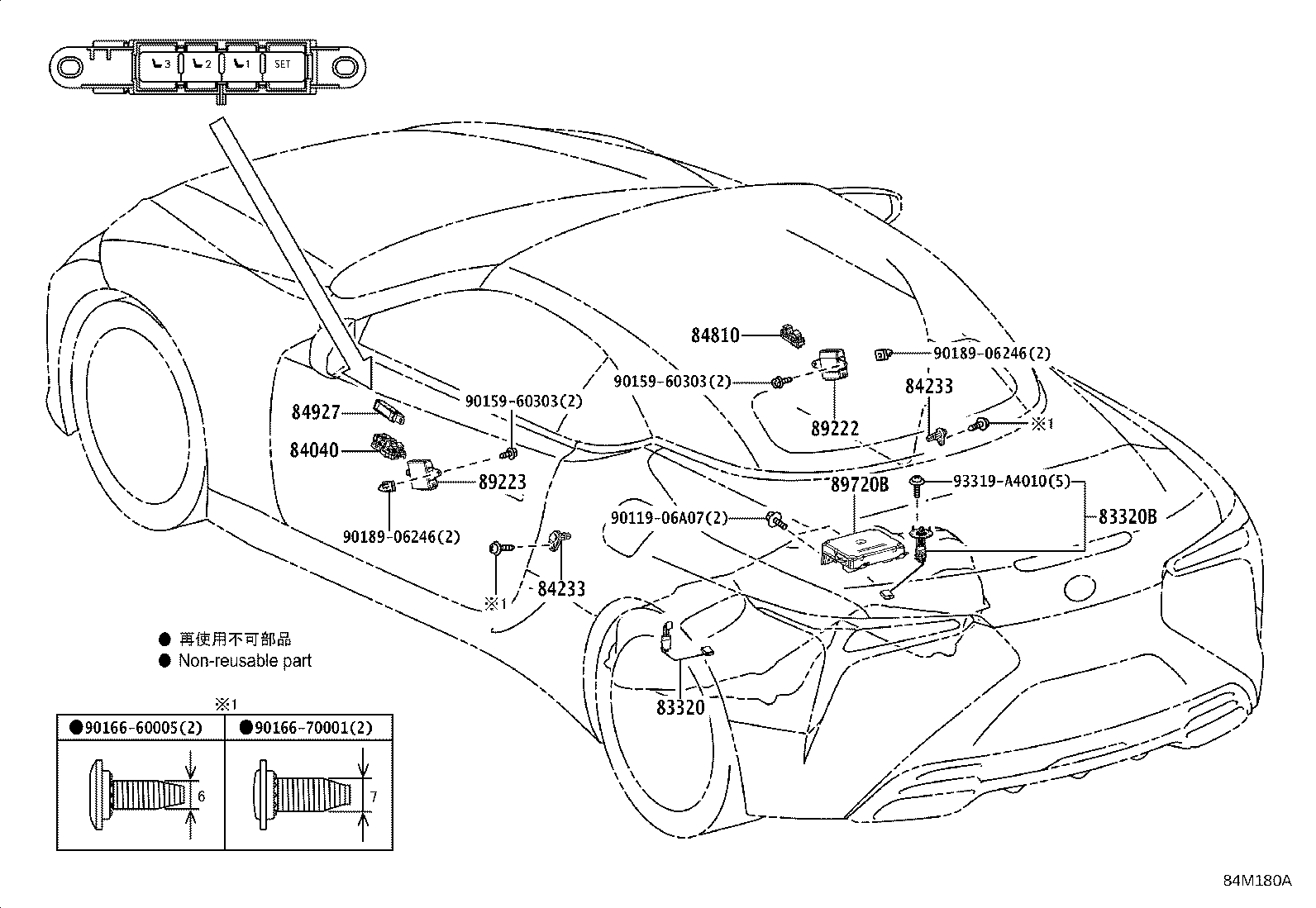

| 84040 | Master Switch Assy,Multiplex Network |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |

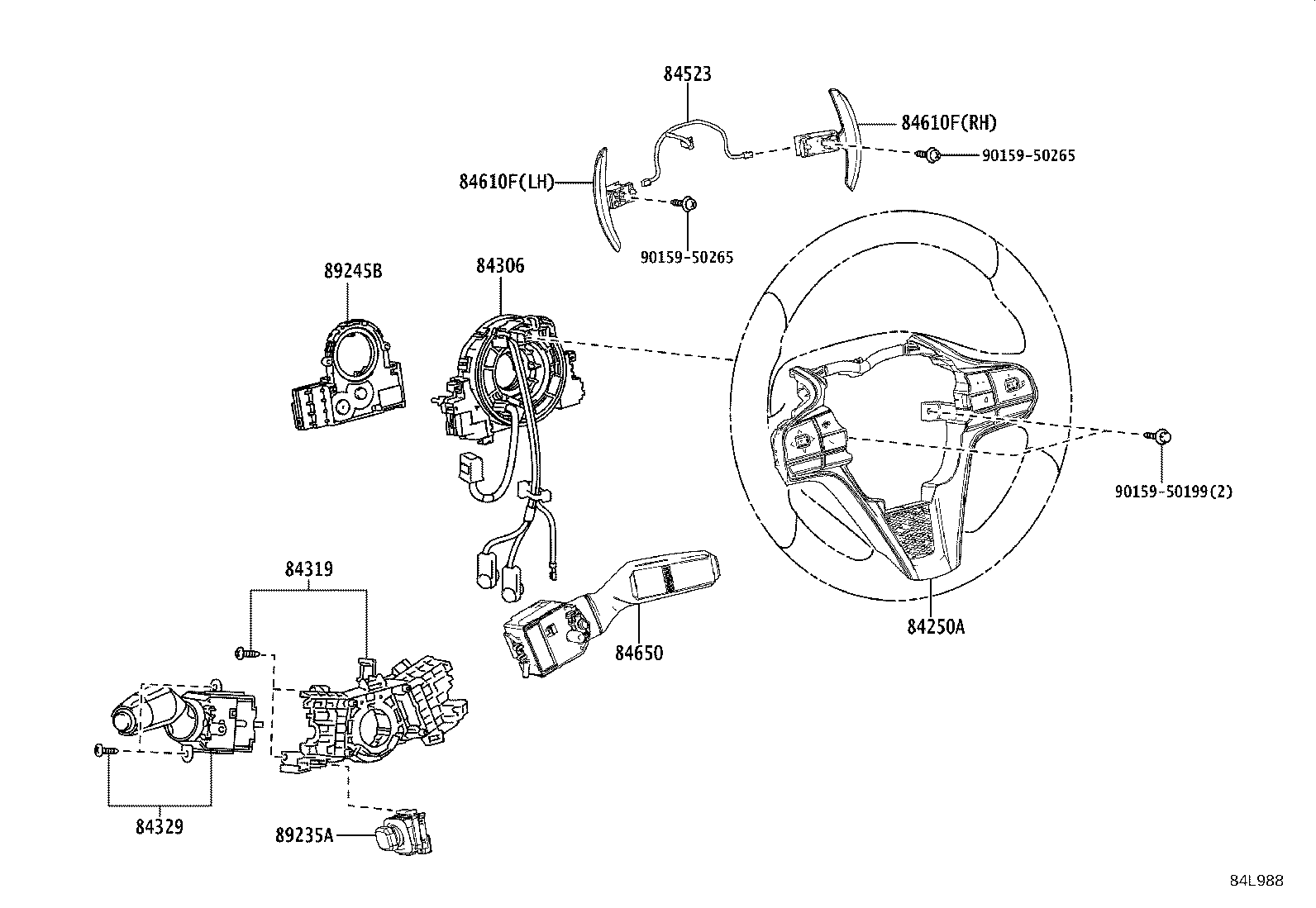

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |

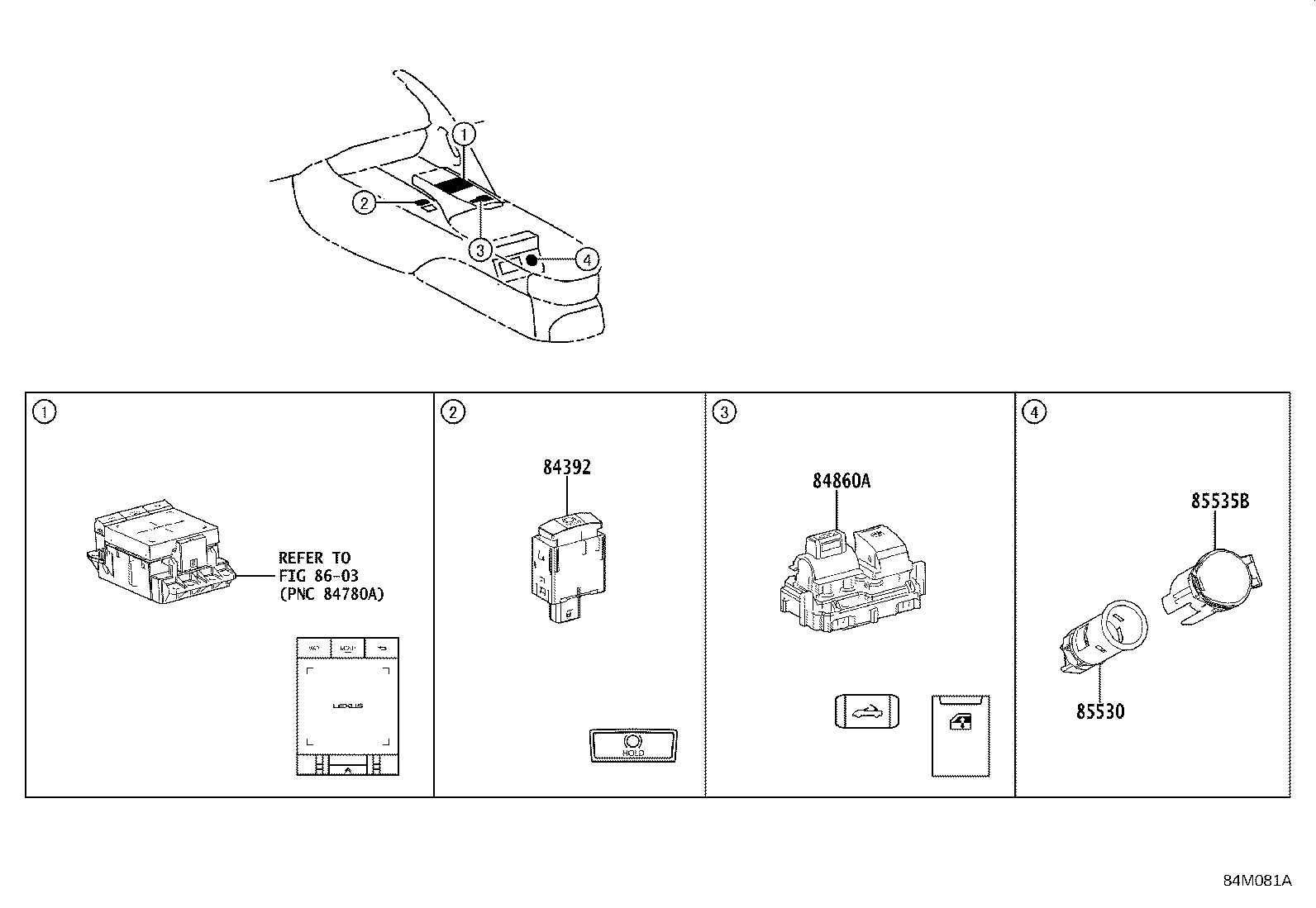

| 84392 | Switch, Brake Hold |
| 84450B | Relay, Luggage Accessory |
| 84450E | Relay, Luggage Ignition 1, NO.1 |
| 84450F | Relay, Luggage Ignition 1, NO.2 |
| 84523 | Wire, Switch NO.1 |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84656C | Bezel, Switch NO.2 |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84840C | Switch Assy, Luggage Door Opening, Cancel |
| 84860A | Switch Assy, Sliding Roof |
| 84921C | Knob, Power Seat Switch, RH |
| 84921D | Knob, Power Seat Switch, LH |
| 84921J | Knob, Power Seat Switch, RH |
| 84921K | Knob, Power Seat Switch, LH |

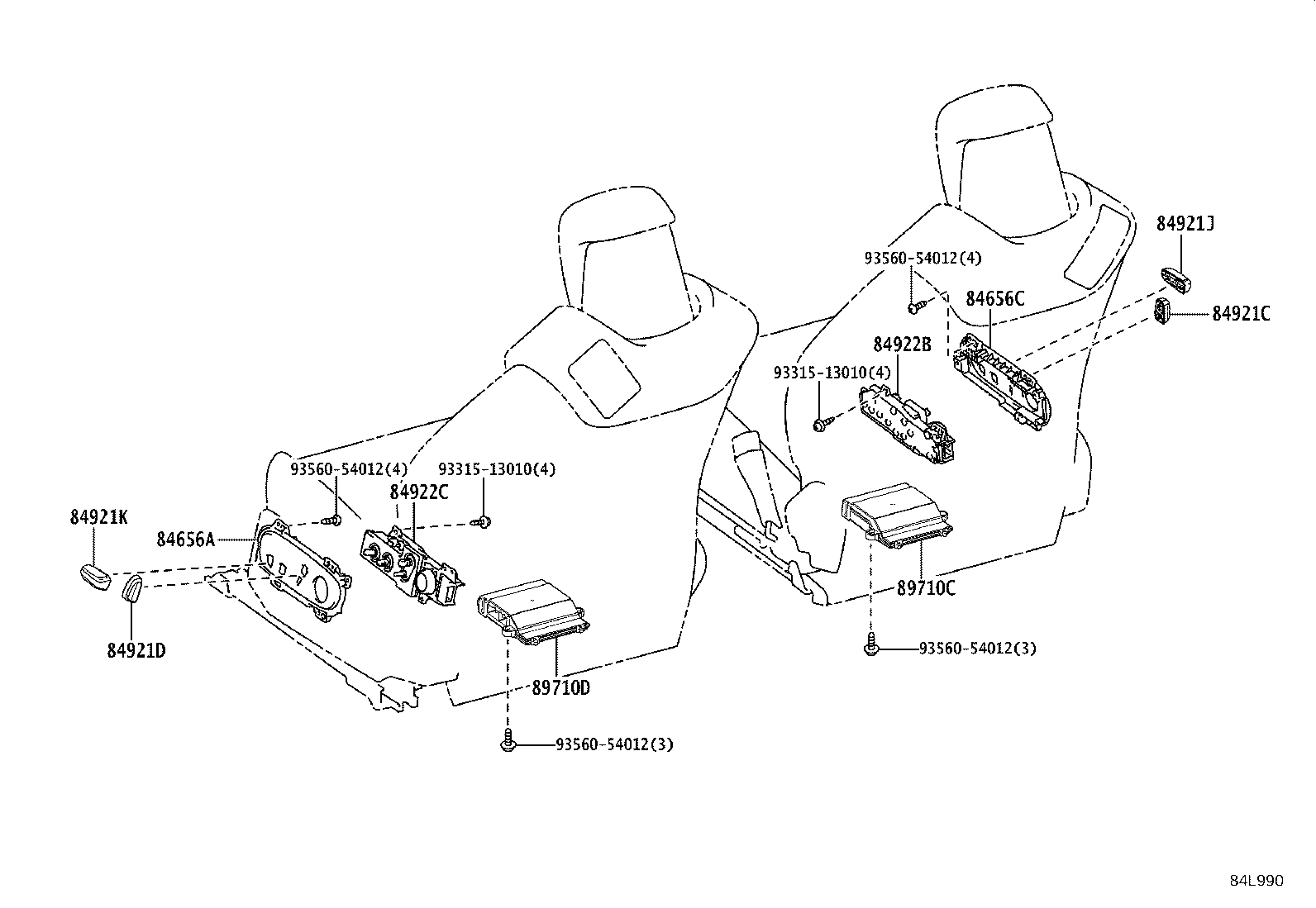

| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84945A | Switch, Luggage Electrical Key |
| 84970 | Switch Assy, Combination |
| 84970E | Switch Assy, Combination NO.2 |
| 84970F | Switch Assy, Combination, NO.3 |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85917D | Relay, Heater(FOR AIR FUEL RATIO SENSOR) |
| 85921B | Relay, Convertible Roof Control |

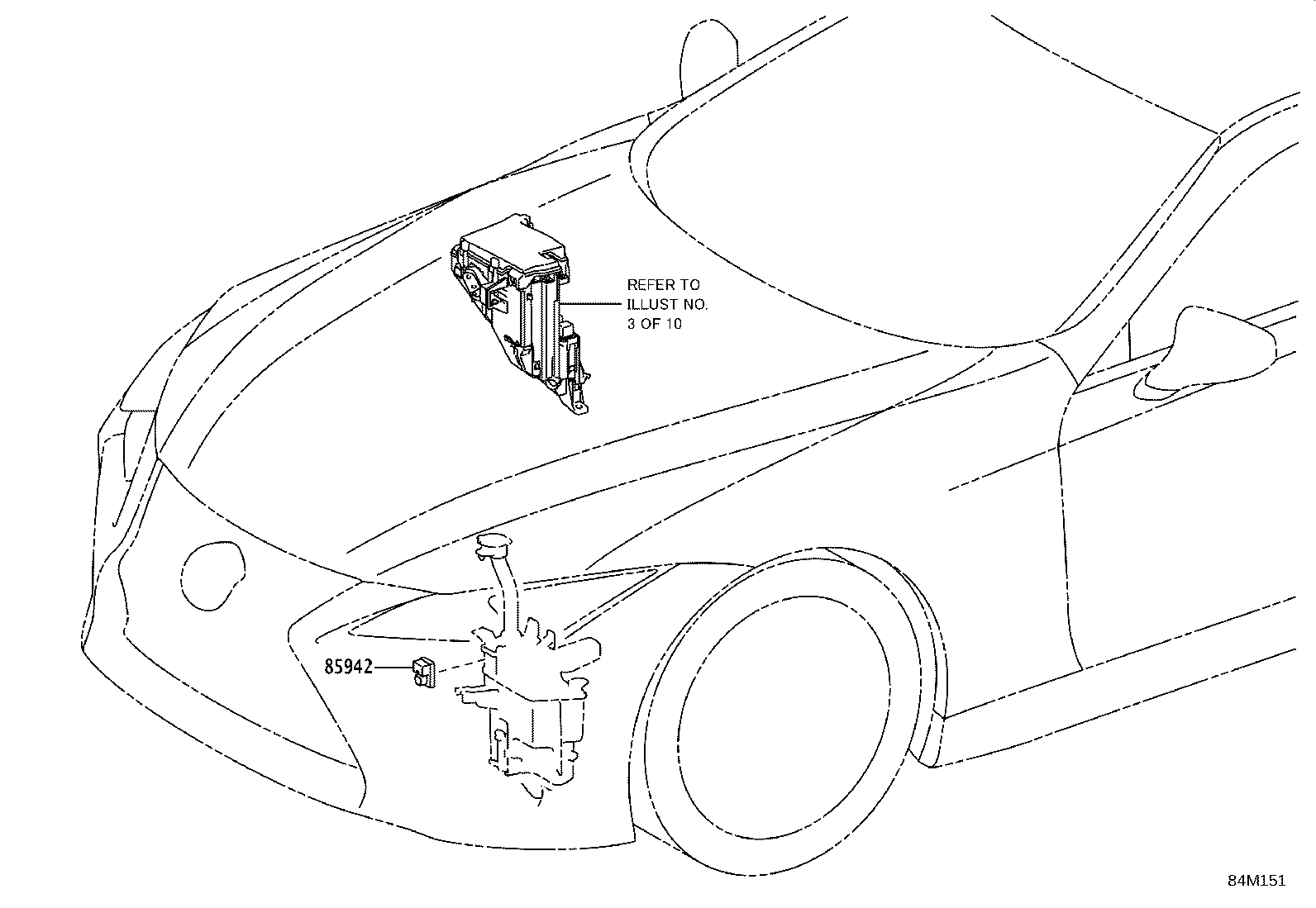

| 85942 | Relay, Headlamp Cleaner Control |
| 85948 | Relay, Windshield Wiper |
| 85970A | Relay Assy, Double Lock Door Control |
| 85982A | Relay, Luggage Opener |
| 86530 | Relay Assy, Horn |
| 88150A | Computer Assy, Driving Support |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88263Q | Relay, Abs Motor |
| 89050 | Computer Assy, Parking Brake |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89222 | Computer, Multiplex Network Door, Front RH |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89429 | Sensor, Oil Temperature |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 894C1 | Computer, Shift Control |
| 894C1A | Relay, Parking Control Motor, NO.1 |
| 894C1B | Relay, Parking Control Motor, NO.2 |
| 894C7 | Bracket, Shift Control Computer, NO.1 |
| 894C8 | Bracket, Shift Control Computer, NO.2 |
| 89561A | Relay, Efi |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710C | Computer Assy, Position Control, RH |
| 89710D | Computer Assy, Position Control, LH |
| 89720B | Computer Assy, Removable Roof Control |
| 89747F | Buzzer, Blind Spot Monitor |
| 89870E | Relay, Electronic Driver Unit |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
