Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481410 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

19 part groups · 2 illustrations

Illustrations

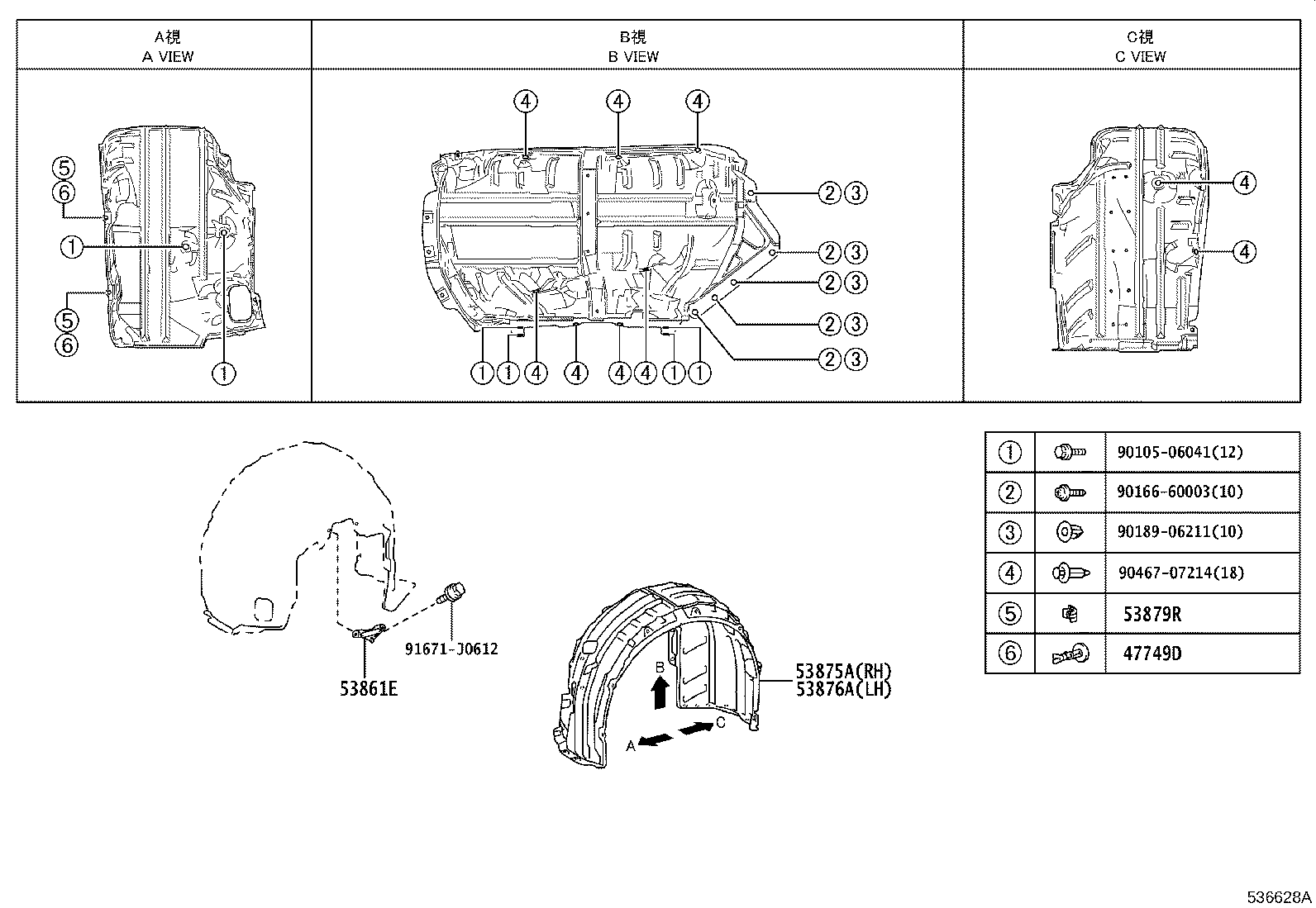

Figure 533347C 533347C 2010-12 → — Figure 536628A 536628A 2010-12 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53100 Grille Assy, Radiator, RH
53110 Grille Assy, Radiator, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53861E Bracket, Front Fender Liner
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879R Retainer, Front Fender Liner
53882C Seal, Front Fender Main
53883M Seal, Front Fender
53899B Support, Front Fender Panel
58426R Bolt(FOR FRONT FENDER)
64479A Clip, Engine Hood Side Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
