Toyota Lexus Lfa
2010-12 → 2012-12 · chassis LFA10 · catalogue 481410 · United States
Supported model
Data version 2013-07

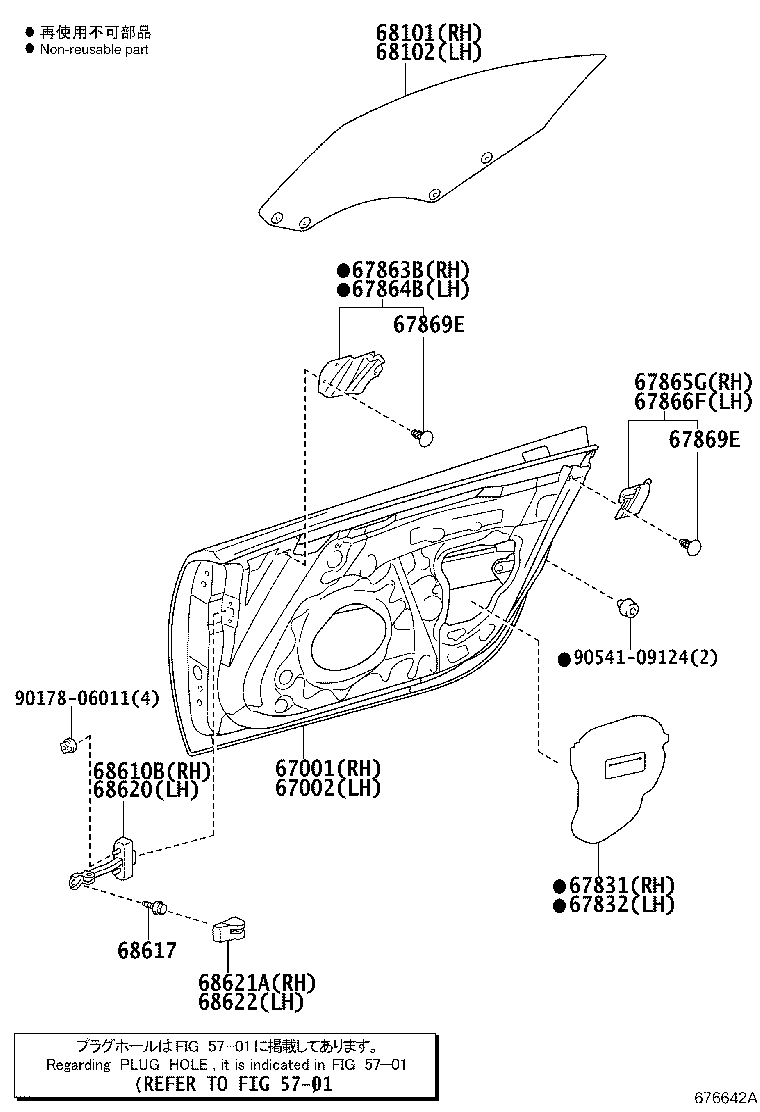

Front Door Panel & Glass
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67863B | Weatherstrip, Front Door, NO.2 RH |
| 67864B | Weatherstrip, Front Door, NO.2 LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866F | Weatherstrip, Front Door, NO.3 LH |
| 67869E | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68610B | Check Assy, Front Door, RH |
| 68617 | Pin, Front Door Check |
| 68620 | Check Assy, Front Door, LH |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
| 74611R | Cover, Assist Grip, LH |
| 74611S | Clip |
| 74612J | Cover, Assist Grip, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
