Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481410 · United States

Supported model Data version 2013-07

Front Seat & Seat Track

37 part groups · 4 illustrations

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH

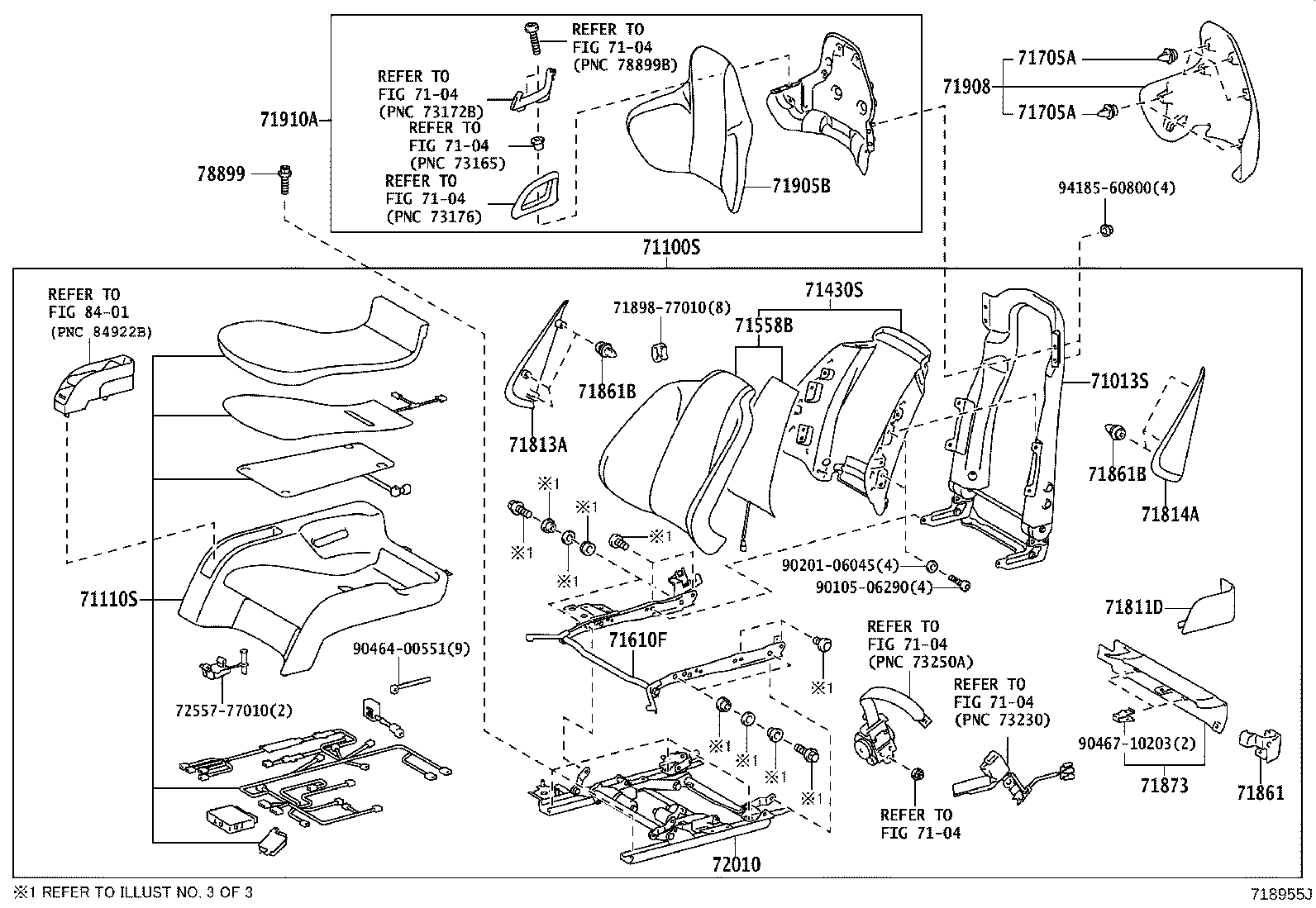

71100S	Seat Assy, Front RH
71110S	Cushion Assy, Front Seat, RH

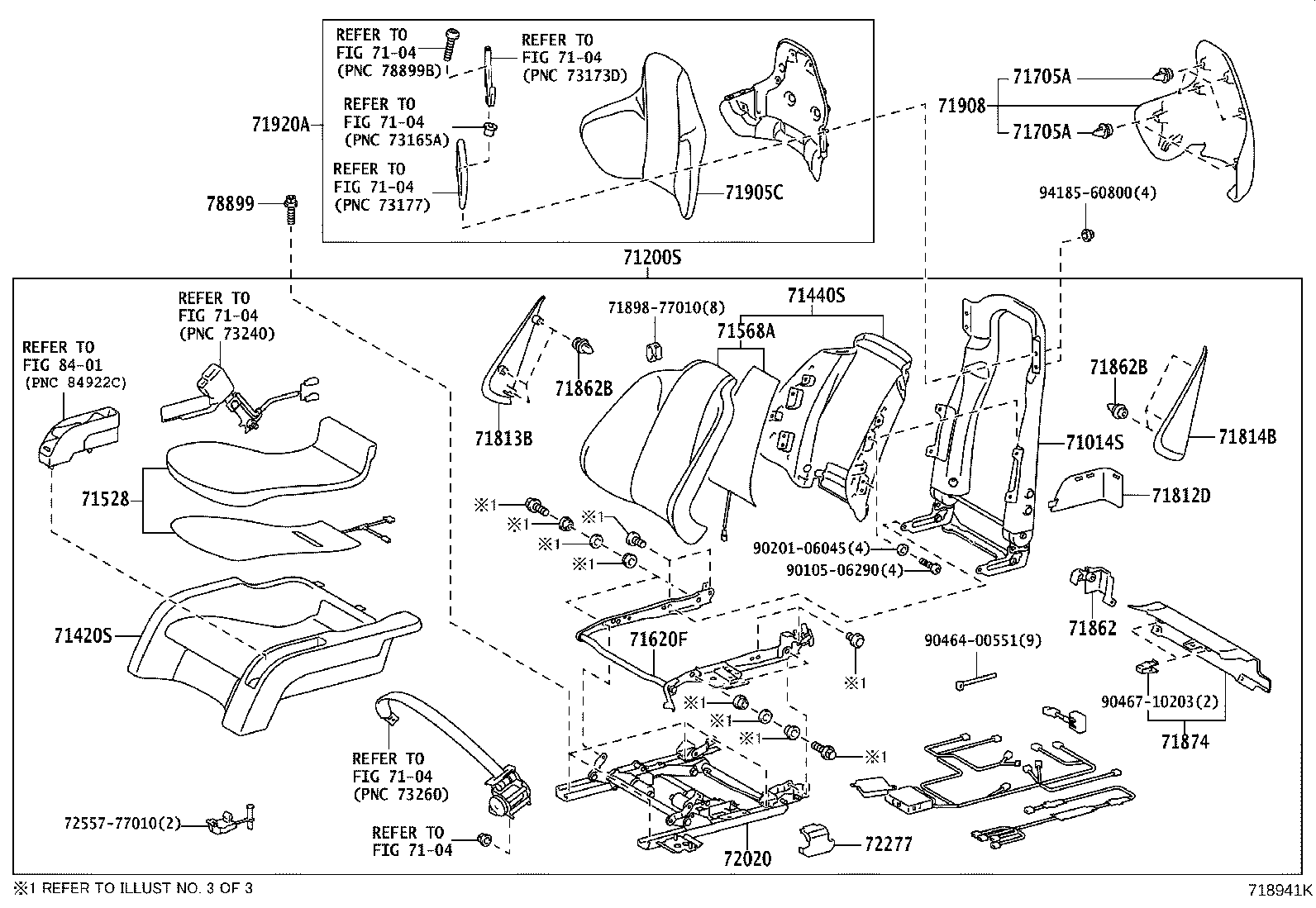

71200S	Seat Assy, Front LH
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71528	Pad, Front Seat Cushion W/Cover, LH
71558B	Pad, Front Seatback W/Cover, RH
71568A	Pad, Front Seatback W/Cover, LH
71610F	Frame Sub-assy, Front Seat Cushion, RH
71620F	Frame Sub-assy, Front Seat Cushion, LH
71705A	Clip(FOR FRONT SEATBACK BOARD)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71813A	Shield, Front Seatback, RH
71813B	Shield, Front Seatback, RH
71814A	Shield, Front Seatback, LH
71814B	Shield, Front Seatback, LH
71861	Shield, Front Seat Cushion, Inner RH
71861B	Clip(FOR FRONT SEAT SHIELD, RH)
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71905B	Pad, Front Seat Headrest W/Cover, RH
71905C	Pad, Front Seat Headrest W/Cover, LH
71908	Cover Sub-assy, Front Seat Headrest
71910A	Headrest Assy, Front Seat
71920A	Headrest Assy, Front Seat, LH
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72277	Protector, Seat Slide Position Sensor,

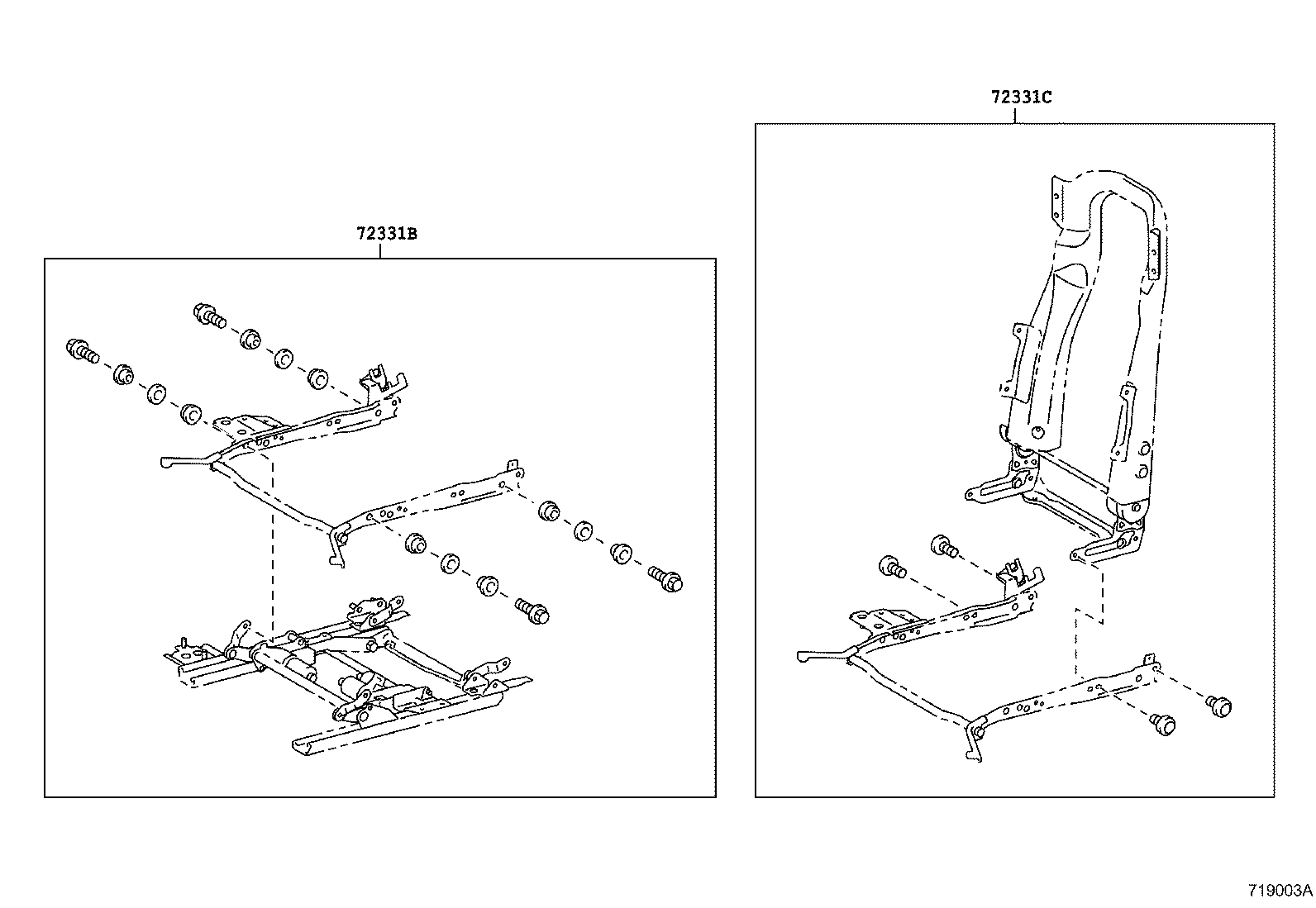

72331B	Fitting Parts Kit, Front Seat Adjuster
72331C	Fitting Parts Kit, Front Seatback Frame
78899	Bolt, Front Seat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
