Toyota Lexus Lfa
2010-12 → 2012-12 · chassis LFA10 · catalogue 481410 · United States
Supported model
Data version 2013-07
Fuel Tank & Tube
50 part groups · 3 illustrations
Part groups

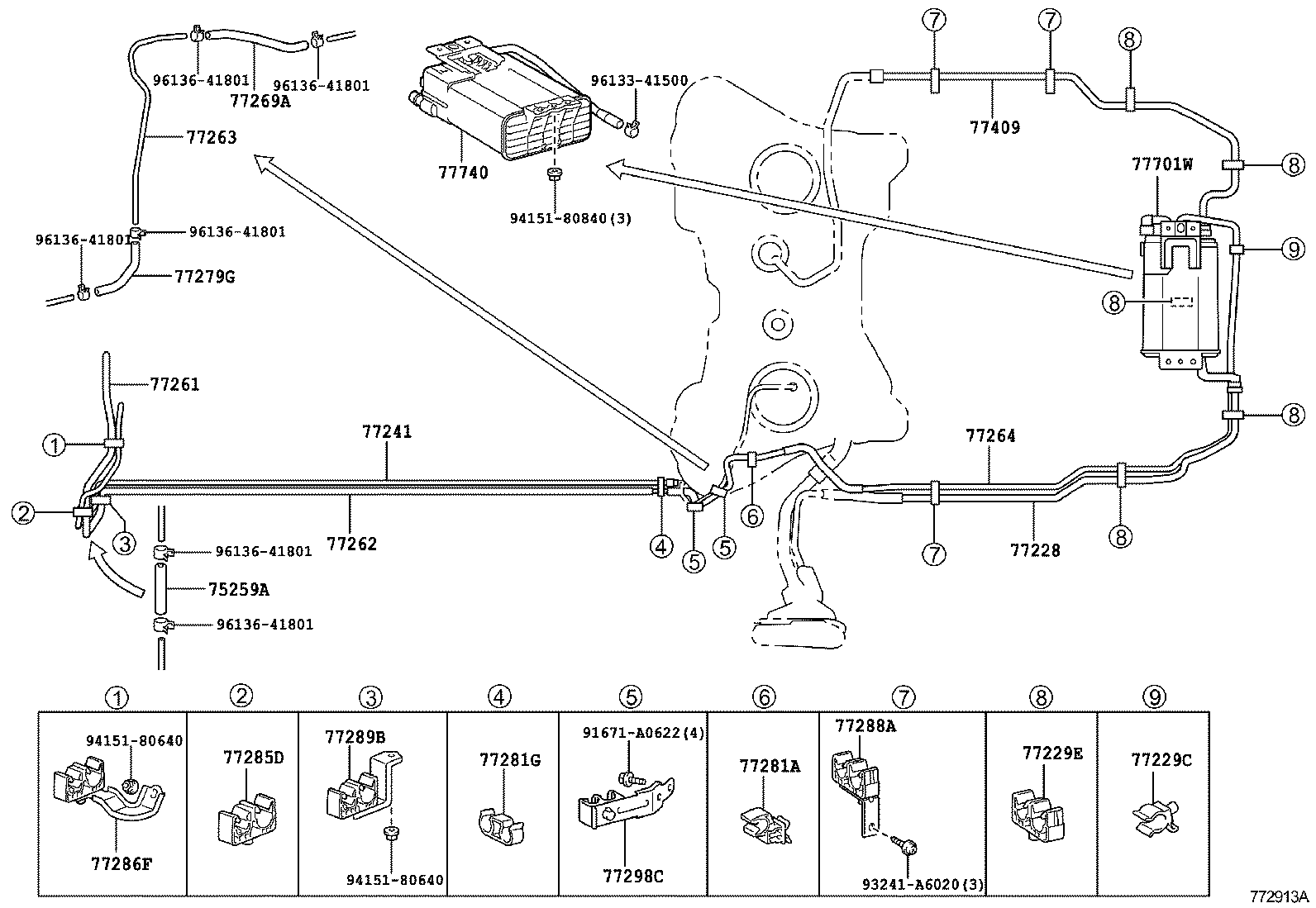

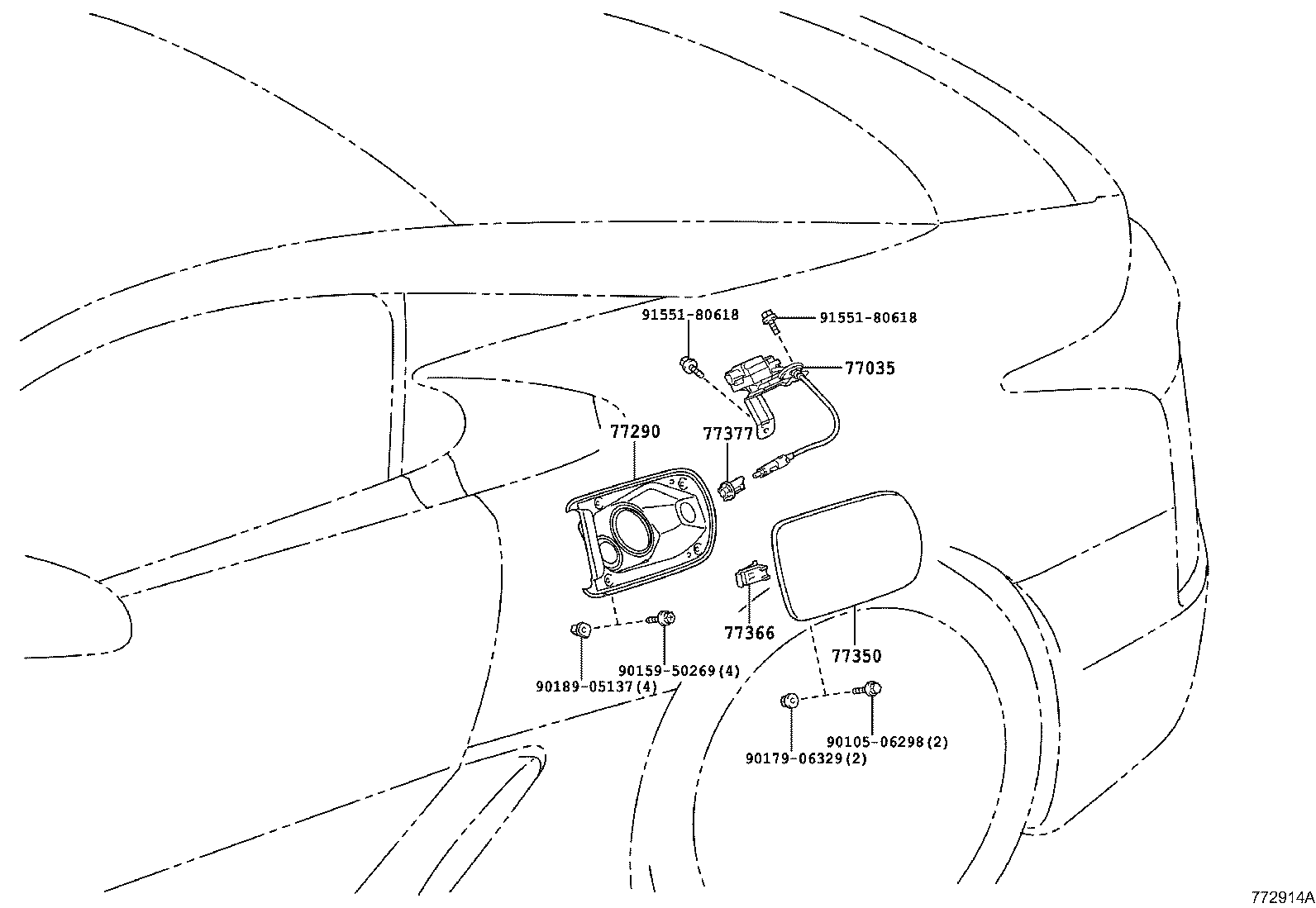

| PNC | Description |
|---|---|
| 23220C | Pump Assy, Fuel W/Filter NO.1 |
| 23220D | Pump Assy, Fuel W/Filter NO.2 |
| 23225A | Spacer, Fuel Pump |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 75259A | Hose, Fuel |
| 77001A | Tank Sub-assy, Fuel |
| 77010 | Tube Assy, Fuel Tank Vent |
| 77016H | Tube Sub-assy, Fuel Return Vent |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77214 | Pipe, Fuel Tank Filler |
| 77228 | Tube, Fuel Tank Evaporation Vent, NO.2 |
| 77229C | Clamp, Breather Tube |
| 77229E | Clamp, Breather Tube |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241V | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77264 | Tube, Canister TO Front Side Member |
| 77269A | Hose, Fuel Tank Breather |
| 77279G | Hose, Fuel, NO.2 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77281G | Clamp, Fuel Hose |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77287 | Support, Tank TO Canister Tube, NO.1 |
| 77288A | Support, Tank TO Canister Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77409 | Hose Sub-assy, Fuel, NO.3 |
| 77511B | Bracket, Fuel Tank |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77608C | Cushion Set, Fuel Tank |
| 77651B | Cushion, Fuel Tank |
| 77655B | Cushion, Fuel Tank |
| 77655C | Cushion, Fuel Tank |
| 77701W | Hose Sub-assy, Canister Outlet, NO.1 |
| 77740 | Canister Assy, Charcoal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
