Toyota Lexus Lfa
2010-12 → 2012-12 · chassis LFA10 · catalogue 481410 · United States
Supported model
Data version 2013-07
Navigation & Front Monitor Display

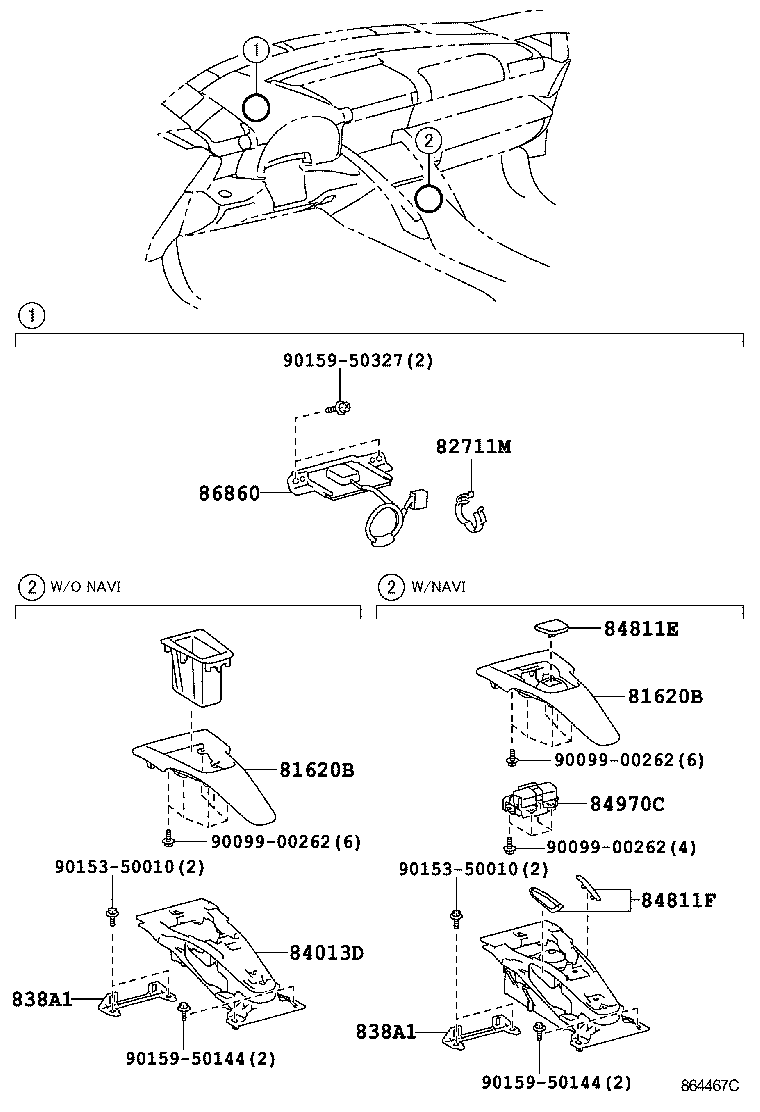

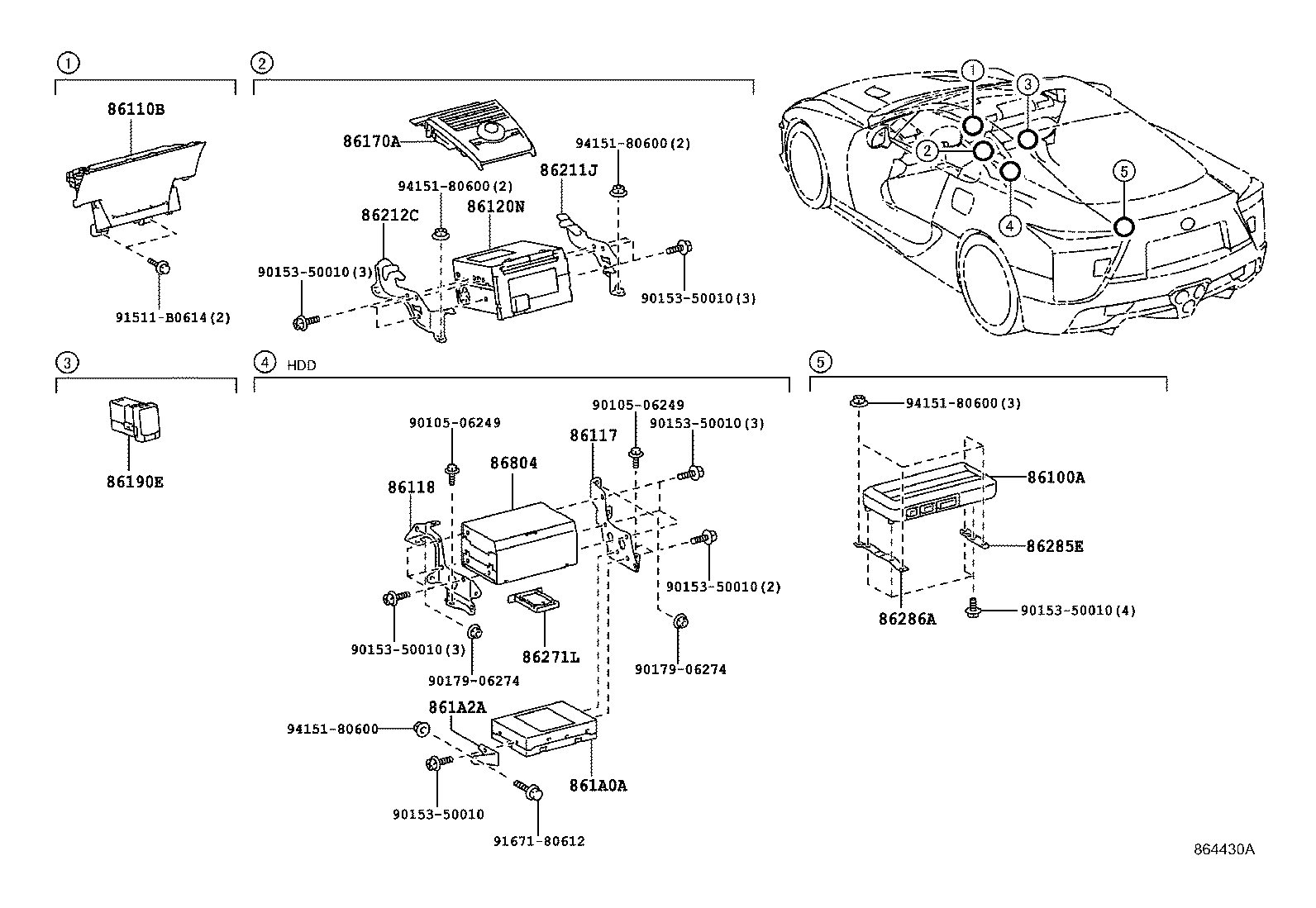

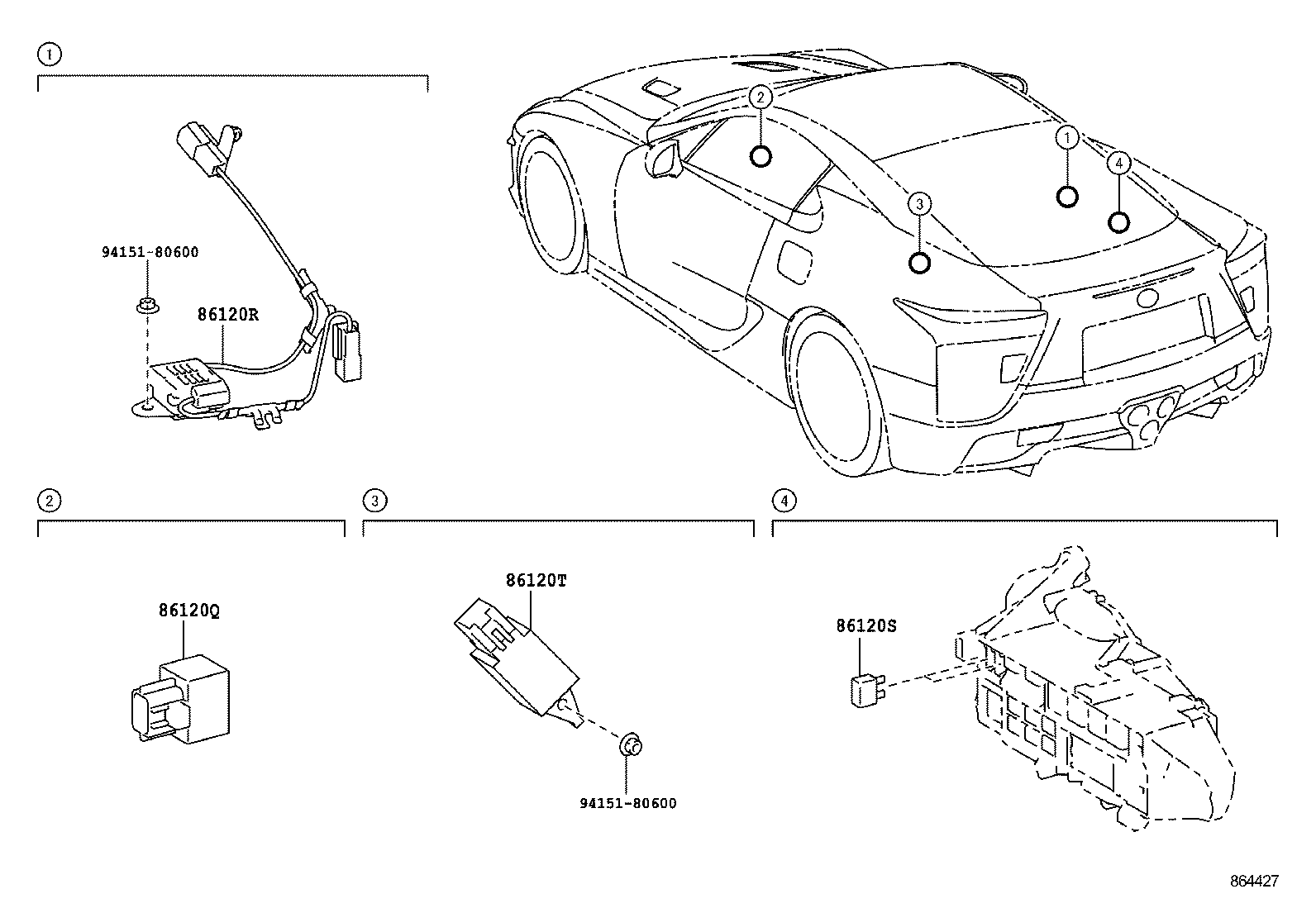

27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81620B | Cover Assy LH |
| 82711M | Clamp, Wiring Harness |
| 838A1 | Bracket, Combination Meter |
| 84013D | Panel Sub-assy, Integration |
| 84811E | Knob, Switch |
| 84811F | Knob, Switch |
| 84970C | Switch Assy, Combination |
| 86100A | Amplifier Assy |
| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86120N | Receiver Assy, Radio |
| 86120Q | Condenser |
| 86120R | Condenser |
| 86120S | Condenser |
| 86120T | Condenser |
| 86170A | Switch & Volume Assy |
| 86190E | Adapter Assy, Stereo Jack |
| 861A0A | Computer Assy, Multi-media Interface |
| 861A2A | Bracket, Multi-media Interface, NO.1 |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86271L | Hard Disc |
| 86285E | Bracket, Amplifier, NO.1 |
| 86286A | Bracket, Amplifier, NO.2 |
| 86804 | Cover Sub-assy, Navigation Computer |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
