Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

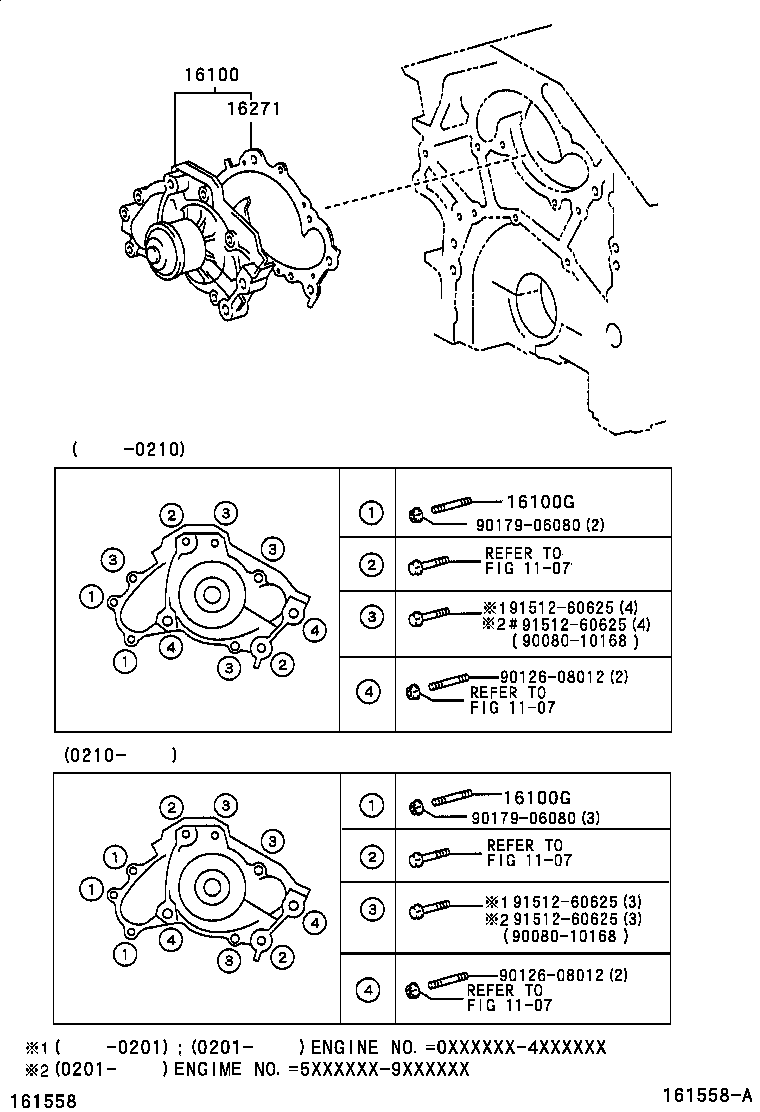

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09070 note |
Pump Assy, Engine Water
2002-01 → —
|
1MZFE MCU10 | — | |
| 16100-29085 note |
Pump Assy, Engine Water
1998-01 → —
|
1MZFE MCU1# | — | |
| 16100G — Bolt, Stud(FOR WATER PUMP SET) | ||||
| 90116-06144 |
Bolt, Stud(FOR WATER PUMP SET)
1998-01 → 2002-10
ended
|
1MZFE MCU1# | — | |
| 90116-06144 |
Bolt, Stud(FOR WATER PUMP SET)
2002-10 → —
|
1MZFE MCU1# | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-20020 |
Gasket, Water Pump
1998-01 → —
|
1MZFE MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
