Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

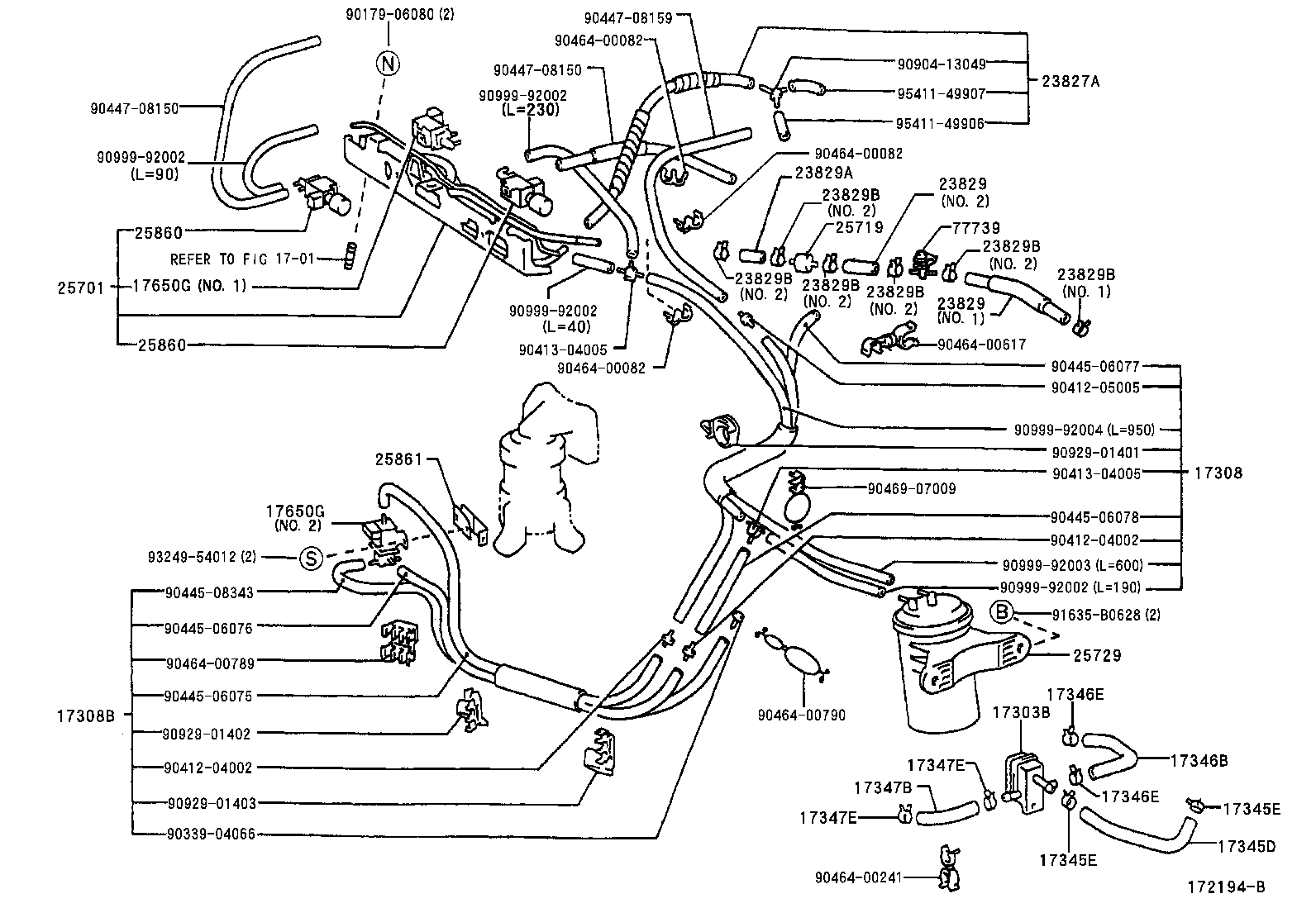

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17303B — Pipe Sub-assy, Air, NO.1 | ||||
| 17303-0A010 note |
Pipe Sub-assy, Air, NO.1
2002-01 → —
|
1MZFE MCU10 | — | |
| 17303-20010 |
Pipe Sub-assy, Air, NO.1
1998-01 → 2002-01
ended
|
1MZFE MCU1# | — | |
| 17303-20010 note |
Pipe Sub-assy, Air, NO.1
2002-01 → —
|
1MZFE MCU10 | — | |
| 17303-20010 |
Pipe Sub-assy, Air, NO.1
2002-01 → —
|
1MZFE MCU15 | — | |
| 17308 — Hose Sub-assy, Vacuum(FOR IDLE-UP) | ||||
| 17308-20060 |
Hose Sub-assy, Vacuum(FOR IDLE-UP)
1998-01 → 1999-08
ended
|
1MZFE MCU1# | — | |
| 17308-20130 |
Hose Sub-assy, Vacuum(FOR IDLE-UP)
1999-08 → —
|
1MZFE MCU1# | — | |
| 17308B — Hose Sub-assy, Vacuum | ||||
| 17308-20080 |
Hose Sub-assy, Vacuum
1998-01 → —
|
1MZFE MCU1# | — | |
| 17345D — Hose, Air, NO.5 | ||||
| 17345-0A030 note |
Hose, Air, NO.5
2002-01 → —
|
1MZFE MCU10 | — | |
| 17345-20030 |
Hose, Air, NO.5
1998-01 → 2002-01
ended
|
1MZFE MCU1# | — | |
| 17345-20030 |
Hose, Air, NO.5
2002-01 → —
|
1MZFE MCU15 | — | |
| 17345-20030 note |
Hose, Air, NO.5
2002-01 → —
|
1MZFE MCU10 | — | |
| 17345E — Clamp OR Clip(FOR AIR HOSE, NO.5) | ||||
| 90467-16003 |
Clamp OR Clip(FOR AIR HOSE, NO.5)
1998-01 → —
|
1MZFE MCU1# | — | |
| 17346B — Hose, Air, NO.6 | ||||
| 17346-0A010 note |
Hose, Air, NO.6
2002-01 → —
|
1MZFE MCU10 | — | |
| 17346-20010 note |
Hose, Air, NO.6
2002-01 → —
|
1MZFE MCU10 | — | |
| 17346-20010 |
Hose, Air, NO.6
2002-01 → —
|
1MZFE MCU15 | — | |
| 17346-20010 |
Hose, Air, NO.6
1998-01 → 2002-01
ended
|
1MZFE MCU1# | — | |
| 17346E — Clip(FOR AIR HOSE NO.6) | ||||
| 90467-13007 |
Clip(FOR AIR HOSE NO.6)
1998-04 → 2002-01
ended
|
1MZFE MCU1# | — | |
| 90467-13007 |
Clip(FOR AIR HOSE NO.6)
2002-01 → 2002-04
ended
|
1MZFE MCU15 | — | |
| 90467-13007 note |
Clip(FOR AIR HOSE NO.6)
2002-01 → 2002-04
ended
|
1MZFE MCU10 | — | |
| 90467-13070 note |
Clip(FOR AIR HOSE NO.6)
2002-01 → 2002-04
ended
|
1MZFE MCU10 | — | |
| 96132-51300 |
Clip(FOR AIR HOSE NO.6)
2002-04 → —
|
1MZFE MCU1# | — | |
| 96133-41300 |
Clip(FOR AIR HOSE NO.6)
1998-01 → 1998-04
ended
|
1MZFE MCU1# | — | |
| 17347B — Hose, Air, NO.7 | ||||
| 17347-0A010 note |
Hose, Air, NO.7
2002-01 → —
|
1MZFE MCU10 | — | |
| 17347-20010 |
Hose, Air, NO.7
1998-01 → 2002-01
ended
|
1MZFE MCU1# | — | |
| 17347-20010 |
Hose, Air, NO.7
2002-01 → —
|
1MZFE MCU15 | — | |
| 17347-20010 note |
Hose, Air, NO.7
2002-01 → —
|
1MZFE MCU10 | — | |
| 17347E — Clip(FOR AIR HOSE NO.7) | ||||
| 90467-13007 note |
Clip(FOR AIR HOSE NO.7)
2002-01 → 2002-04
ended
|
1MZFE MCU10 | — | |
| 90467-13007 |
Clip(FOR AIR HOSE NO.7)
1998-04 → 2002-01
ended
|
1MZFE MCU1# | — | |
| 90467-13007 |
Clip(FOR AIR HOSE NO.7)
2002-01 → 2002-04
ended
|
1MZFE MCU15 | — | |
| 90467-13070 note |
Clip(FOR AIR HOSE NO.7)
2002-01 → 2002-04
ended
|
1MZFE MCU10 | — | |
| 96132-51300 |
Clip(FOR AIR HOSE NO.7)
2002-04 → —
|
1MZFE MCU1# | — | |
| 96133-41300 |
Clip(FOR AIR HOSE NO.7)
1998-01 → 1998-04
ended
|
1MZFE MCU1# | — | |
| 17650G — Valve, Duty Vacuum Switching | ||||
| 90910-12150 note |
Valve, Duty Vacuum Switching
1998-01 → 1999-08
ended
|
1MZFE MCU1# | — | |
| 90910-12192 note |
Valve, Duty Vacuum Switching
1998-01 → —
|
1MZFE MCU1# | — | |
| 90910-12196 note |
Valve, Duty Vacuum Switching
1999-08 → 2000-07
ended
|
1MZFE MCU1# | — | |
| 90910-12241 note |
Valve, Duty Vacuum Switching
2000-07 → —
|
1MZFE MCU1# | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-20030 |
Hose, Fuel Vapor Feed, NO.2
1998-01 → —
|
1MZFE MCU1# | — | |
| 23829 — Hose, Fuel Vapor Feed, NO.3 | ||||
| 23829-20040 |
Hose, Fuel Vapor Feed, NO.3
1998-01 → 1998-07
ended
|
1MZFE MCU1# | — | |
| 23829-20080 note |
Hose, Fuel Vapor Feed, NO.3
1998-07 → —
|
1MZFE MCU1# | — | |
| 23829-20090 note |
Hose, Fuel Vapor Feed, NO.3
1998-07 → —
|
1MZFE MCU1# | — | |
| 23829A — Hose, Fuel Vapor Feed | ||||
| 23829-20050 |
Hose, Fuel Vapor Feed
1998-01 → —
|
1MZFE MCU1# | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14003 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2000-06 → —
|
1MZFE MCU1# | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE)
1998-01 → 1998-07
ended
|
1MZFE MCU1# | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2000-06 → —
|
1MZFE MCU1# | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
1998-07 → 2000-06
ended
|
1MZFE MCU1# | — | |
| 25701 — Valve Set, Emission Control | ||||
| 25701-20120 |
Valve Set, Emission Control
1998-01 → 1999-08
ended
|
1MZFE MCU1# | — | |
| 25701-20140 |
Valve Set, Emission Control
1999-08 → 2000-07
ended
|
1MZFE MCU1# | — | |
| 25701-20160 |
Valve Set, Emission Control
2000-07 → —
|
1MZFE MCU1# | — | |
| 25719 — Tank, Vacuum Surge | ||||
| 25719-20020 |
Tank, Vacuum Surge
1998-01 → 2001-12
ended
|
1MZFE MCU1# | — | |
| 25719-20040 |
Tank, Vacuum Surge
2001-12 → —
|
1MZFE MCU1# | — | |
| 25729 — Tank, Vacuum Surge W/Bracket | ||||
| 25729-20010 |
Tank, Vacuum Surge W/Bracket
1998-01 → 1998-04
ended
|
1MZFE MCU1# | — | |
| 25729-20030 |
Tank, Vacuum Surge W/Bracket
1998-04 → —
|
1MZFE MCU1# | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-62010 |
Valve Assy, Vacuum Switching, NO.1
1998-01 → —
|
1MZFE MCU1# | — | |
| 25861 — Bracket, Vacuum Switching Valve | ||||
| 25861-20060 |
Bracket, Vacuum Switching Valve
1998-01 → —
|
1MZFE MCU1# | — | |
| 77739 — Valve, Evap Service Port | ||||
| 77739-33010 |
Valve, Evap Service Port
1998-07 → —
|
MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
