Toyota Lexus RX300
1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States
Discontinued model
Data version 2003-10

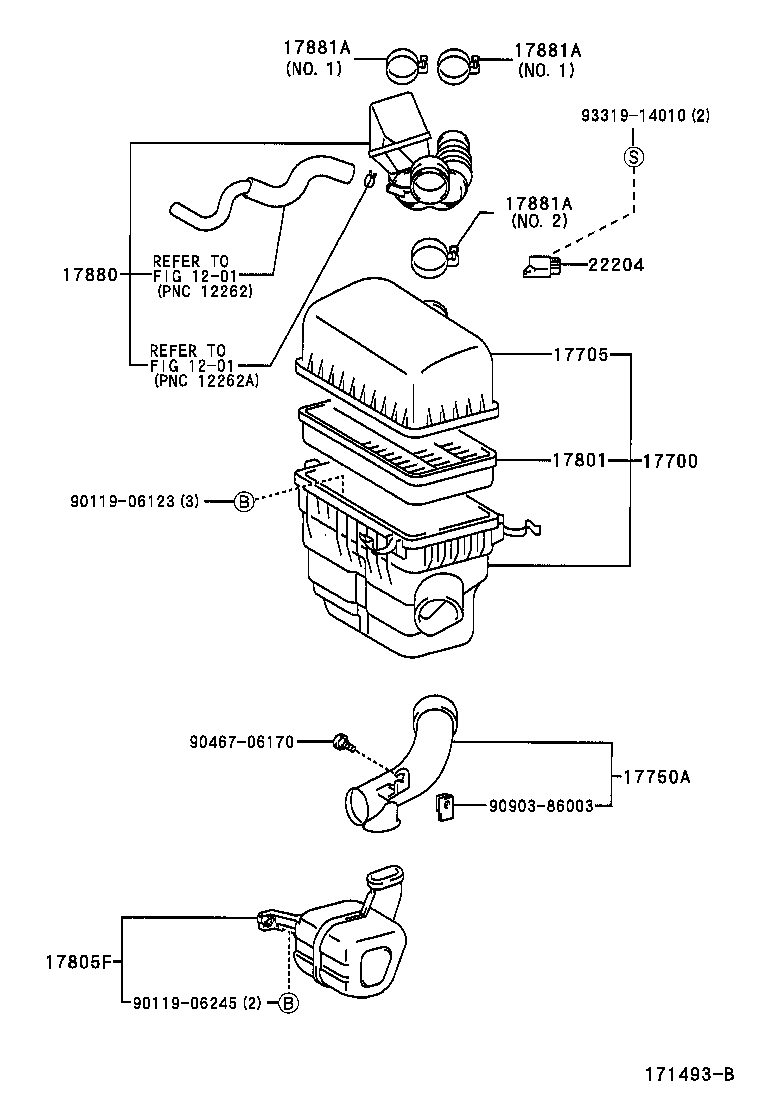

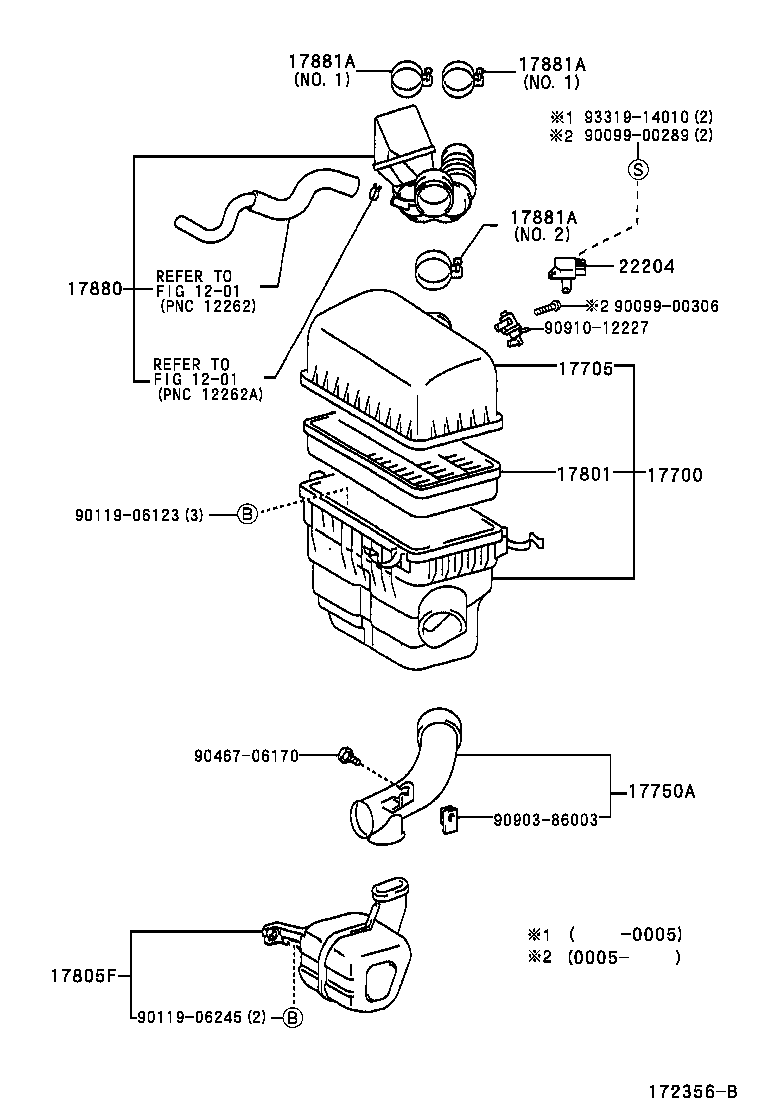

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-20080 |
Cleaner Assy, Air
1998-01 → 1999-08
ended
|
1MZFE MCU1# | — | |
| 17700-20130 |
Cleaner Assy, Air
1999-08 → —
|
1MZFE MCU1# | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-20070 |
Cap Sub-assy, Air Cleaner
1998-01 → 1999-08
ended
|
1MZFE MCU1# | — | |
| 17705-20100 |
Cap Sub-assy, Air Cleaner
1999-08 → 2000-05
ended
|
1MZFE MCU1# | — | |
| 17705-20140 |
Cap Sub-assy, Air Cleaner
2000-05 → —
|
1MZFE MCU1# | — | |
| 17750A — Inlet Assy, Air Cleaner | ||||
| 17750-20050 |
Inlet Assy, Air Cleaner
1998-01 → —
|
1MZFE MCU1# | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-03010 note |
Element Sub-assy, Air Cleaner Filter
1998-02 → —
|
1MZFE MCU1# | — | |
| 17801-74060 |
Element Sub-assy, Air Cleaner Filter
1998-01 → 1998-02
ended
|
1MZFE MCU1# | — | |
| 17801-74060 note |
Element Sub-assy, Air Cleaner Filter
1998-02 → —
|
1MZFE MCU1# | — | |
| 17805F — Resonator Sub-assy, Intake Air | ||||
| 17805-20030 |
Resonator Sub-assy, Intake Air
1998-01 → —
|
1MZFE MCU1# | — | |
| 17880 — Hose Assy, Air Cleaner | ||||
| 17880-20080 |
Hose Assy, Air Cleaner
1998-01 → —
|
1MZFE MCU1# | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10620 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1998-01 → —
|
1MZFE MCU1# | — | |
| 96111-10850 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1998-01 → —
|
1MZFE MCU1# | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-21010 |
Meter Sub-assy, Intake Air Flow
1998-01 → —
|
1MZFE MCU1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
