Toyota Lexus RX300

1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

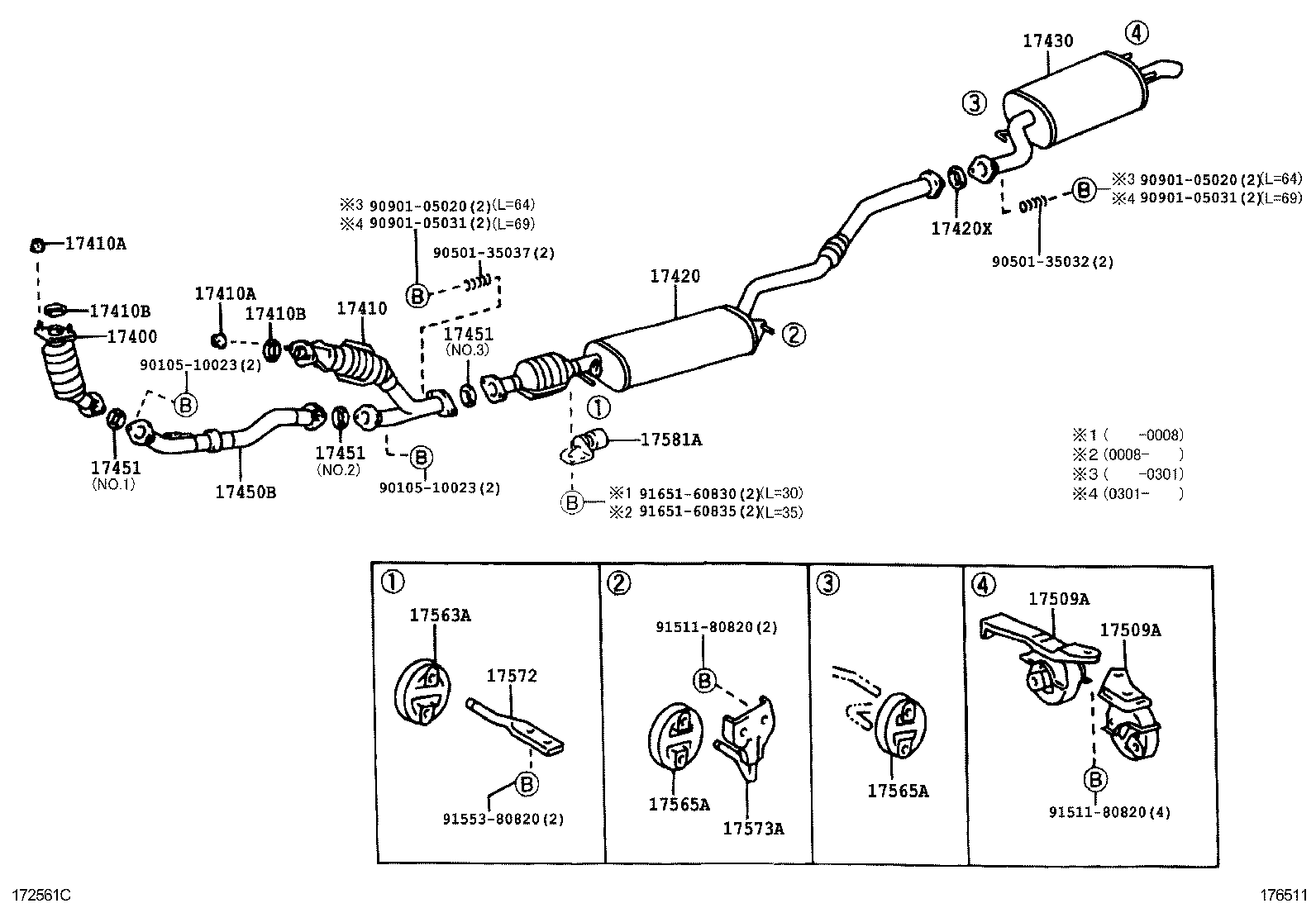

26 parts on this figure

Part number	Description	Fitment	Price
17400 — Converter Assy, W/Catalyst
18450-20110	Converter Assy, W/Catalyst 1998-01 → —	1MZFE MCU1#	—
17410 — Pipe Assy, Exhaust, Front
17410-20200	Pipe Assy, Exhaust, Front 1998-01 → 1999-12 ended	1MZFE MCU1#	—
17410-20201	Pipe Assy, Exhaust, Front 1999-12 → —	1MZFE MCU1#	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1998-01 → —	1MZFE MCU1#	—
17410B — Gasket, Exhaust Pipe
90917-06075	Gasket, Exhaust Pipe 1998-01 → —	1MZFE MCU1#	—
17420 — Pipe Assy, Exhaust, Center
17420-20130	Pipe Assy, Exhaust, Center 1998-01 → 2000-07 ended	1MZFE MCU1#	—
17420-20250	Pipe Assy, Exhaust, Center 2000-07 → —	1MZFE MCU1#	—
17420X — Gasket, Exhaust Pipe, Center
17451-74060	Gasket, Exhaust Pipe, Center 1998-01 → —	1MZFE MCU1#	—
17430 — Pipe Assy, Exhaust, Tail
17440-20080	Pipe Assy, Exhaust, Tail 1998-01 → 2000-07 ended	1MZFE MCU1#	—
17440-20110 note	Pipe Assy, Exhaust, Tail 1998-01 → 2000-07 ended	1MZFE MCU1#	—
17440-20150	Pipe Assy, Exhaust, Tail 2000-07 → —	1MZFE MCU1#	—
17440-20160 note	Pipe Assy, Exhaust, Tail 2000-07 → —	1MZFE MCU1#	—
17450B — Pipe Assy, Exhaust, Front NO.2
17450-20070	Pipe Assy, Exhaust, Front NO.2 1998-01 → 1999-09 ended	1MZFE MCU1#	—
17450-20071	Pipe Assy, Exhaust, Front NO.2 1999-09 → 2000-01 ended	1MZFE MCU1#	—
17450-20072	Pipe Assy, Exhaust, Front NO.2 2000-01 → —	1MZFE MCU1#	—
17451 — Gasket, Exhaust Pipe
17451-20020 note	Gasket, Exhaust Pipe 1998-01 → —	1MZFE MCU1#	—
90917-06046 note	Gasket, Exhaust Pipe 1998-01 → —	1MZFE MCU1#	—
90917-06078 note	Gasket, Exhaust Pipe 1998-01 → —	1MZFE MCU1#	—
17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support
17509-20030 note	Bracket Sub-assy, Exhaust Pipe NO.4 Support 1998-01 → —	1MZFE MCU1#	—
17509-20040 note	Bracket Sub-assy, Exhaust Pipe NO.4 Support 1998-01 → —	1MZFE MCU1#	—
17563A — Support, Exhaust Pipe, NO.3
17565-15140	Support, Exhaust Pipe, NO.3 1998-01 → —	1MZFE MCU1#	—
17565A — Support, Exhaust Pipe, NO.4
17565-55050	Support, Exhaust Pipe, NO.4 1998-01 → —	1MZFE MCU1#	—
17572 — Bracket, Exhaust Pipe NO.1 Support
17572-20070	Bracket, Exhaust Pipe NO.1 Support 1998-01 → —	1MZFE MCU1#	—
17573A — Bracket, Exhaust Pipe Support, NO.3
17573-20030	Bracket, Exhaust Pipe Support, NO.3 1998-01 → —	1MZFE MCU1#	—
17581A — Damper, Exhaust Pipe
17581-46010	Damper, Exhaust Pipe 1999-09 → —	1MZFE MCU1#	—
17581-46060	Damper, Exhaust Pipe 1998-10 → 1999-09 ended	1MZFE MCU1#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
