Toyota Lexus RX300

1998-01 → 2003-02 · chassis MCU1# · catalogue 521410 · United States

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

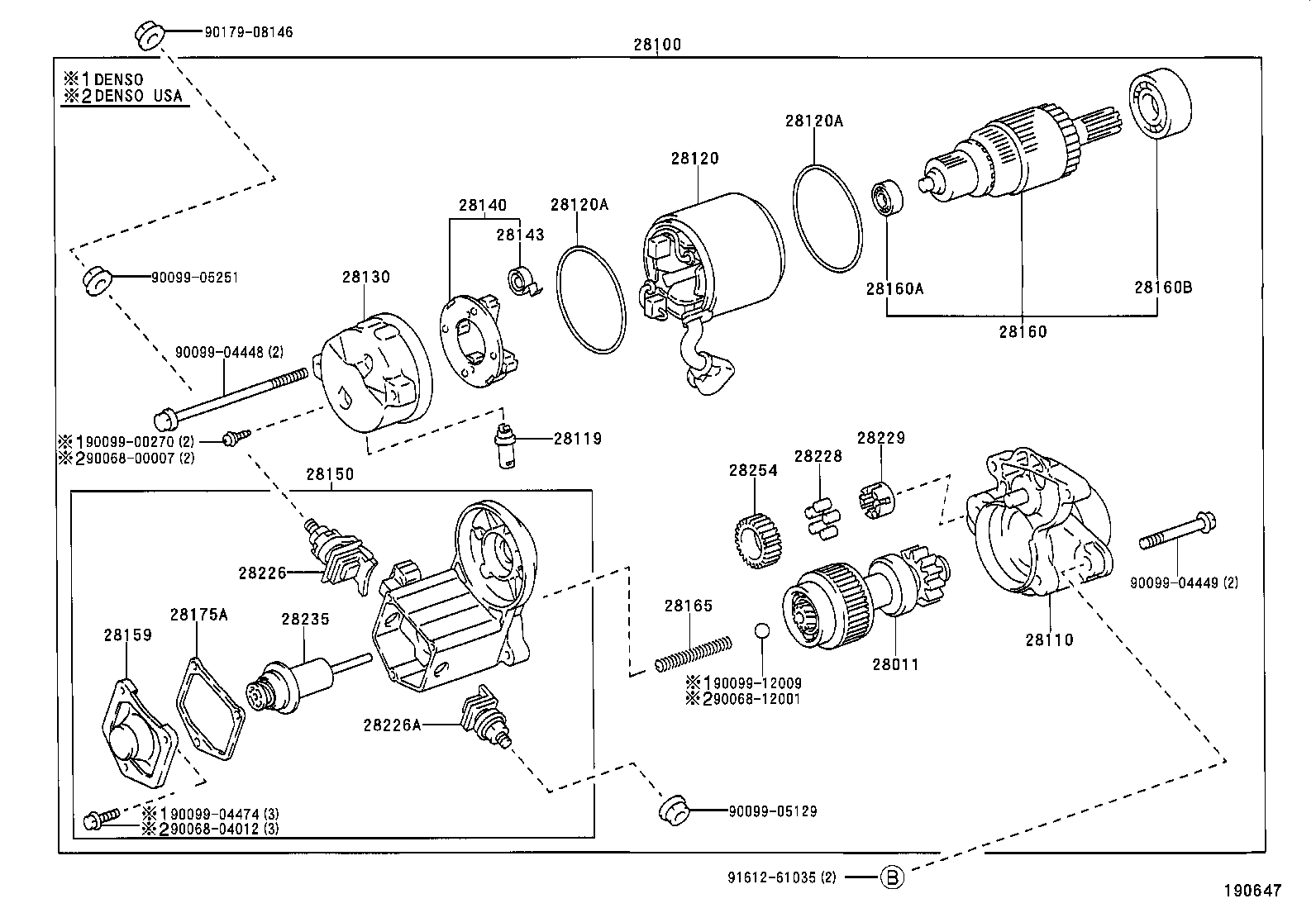

36 parts on this figure

Part number	Description	Fitment	Price
28011 — Clutch Sub-assy, Starter
28011-74070	Clutch Sub-assy, Starter 1998-01 → —	1MZFE MCU1#	—
28100 — Starter Assy
28100-03100 note	Starter Assy 1998-01 → —	1MZFE MCU1#	—
28100-74260 note	Starter Assy 1998-01 → —	1MZFE MCU1#	—
28110 — Housing Assy, Starter Drive
28110-03100 note	Housing Assy, Starter Drive 1998-01 → —	1MZFE MCU1#	—
28110-74270 note	Housing Assy, Starter Drive 1998-01 → —	1MZFE MCU1#	—
28119 — Cover, Starter End Frame
28199-74110	Cover, Starter End Frame 1998-01 → —	1MZFE MCU1#	—
28120 — Yoke Assy, Starter
28120-01030 note	Yoke Assy, Starter 1998-01 → —	1MZFE MCU1#	—
28120-66040 note	Yoke Assy, Starter 1998-01 → —	1MZFE MCU1#	—
28120A — Ring, O(FOR STARTER YOKE)
90068-14001 note	Ring, O(FOR STARTER YOKE) 1998-01 → —	1MZFE MCU1#	—
90099-14064 note	Ring, O(FOR STARTER YOKE) 1998-01 → —	1MZFE MCU1#	—
28130 — Frame Assy, Starter Commutator End
28130-03100 note	Frame Assy, Starter Commutator End 1998-01 → —	1MZFE MCU1#	—
28130-74260 note	Frame Assy, Starter Commutator End 1998-01 → —	1MZFE MCU1#	—
28140 — Holder Assy, Starter Brush
28140-03010 note	Holder Assy, Starter Brush 1998-01 → —	1MZFE MCU1#	—
28140-74070 note	Holder Assy, Starter Brush 1998-01 → —	1MZFE MCU1#	—
28143 — Spring, Starter Brush
90099-17112	Spring, Starter Brush 1998-01 → —	1MZFE MCU1#	—
28150 — Switch Assy, Magnet Starter
28150-03100 note	Switch Assy, Magnet Starter 1998-01 → —	1MZFE MCU1#	—
28150-74270 note	Switch Assy, Magnet Starter 1998-01 → —	1MZFE MCU1#	—
28159 — Cover, Starter Protector
28159-07010 note	Cover, Starter Protector 1998-01 → —	1MZFE MCU1#	—
28159-55050 note	Cover, Starter Protector 1998-01 → —	1MZFE MCU1#	—
28160 — Armature Assy, Starter
28160-01020 note	Armature Assy, Starter 1998-01 → —	1MZFE MCU1#	—
28160-74070 note	Armature Assy, Starter 1998-01 → —	1MZFE MCU1#	—
28160A — Bearing, Starter Armature
90068-10003 note	Bearing, Starter Armature 1998-01 → —	1MZFE MCU1#	—
90099-10196 note	Bearing, Starter Armature 1998-01 → —	1MZFE MCU1#	—
28160B — Bearing, Starter Armature, NO.2
90068-10004 note	Bearing, Starter Armature, NO.2 1998-01 → —	1MZFE MCU1#	—
90099-10197 note	Bearing, Starter Armature, NO.2 1998-01 → —	1MZFE MCU1#	—
28165 — Spring, Starter Magnet Switch Return
28165-74070	Spring, Starter Magnet Switch Return 1998-01 → —	1MZFE MCU1#	—
28175A — Gasket, Magnet Switch Cover
28175-55050	Gasket, Magnet Switch Cover 1998-01 → —	1MZFE MCU1#	—
28226 — Starter Kit, Battery Terminal
28226-55050	Starter Kit, Battery Terminal 1998-01 → —	1MZFE MCU1#	—
28226A — Starter Kit, Motor Terminal
28226-74070	Starter Kit, Motor Terminal 1998-01 → —	1MZFE MCU1#	—
28228 — Roller, Starter Idle Gear Clutch
28228-26040	Roller, Starter Idle Gear Clutch 1998-01 → —	1MZFE MCU1#	—
28229 — Retainer, Starter Idle Gear
28229-01020 note	Retainer, Starter Idle Gear 1998-01 → —	1MZFE MCU1#	—
28229-74070 note	Retainer, Starter Idle Gear 1998-01 → —	1MZFE MCU1#	—
28235 — Plunger, Magnet Switch
28235-03080 note	Plunger, Magnet Switch 1998-01 → —	1MZFE MCU1#	—
28235-74130 note	Plunger, Magnet Switch 1998-01 → —	1MZFE MCU1#	—
28254 — Pinion, Starter Idle Gear
28254-03010 note	Pinion, Starter Idle Gear 1998-01 → —	1MZFE MCU1#	—
28254-74070 note	Pinion, Starter Idle Gear 1998-01 → —	1MZFE MCU1#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
